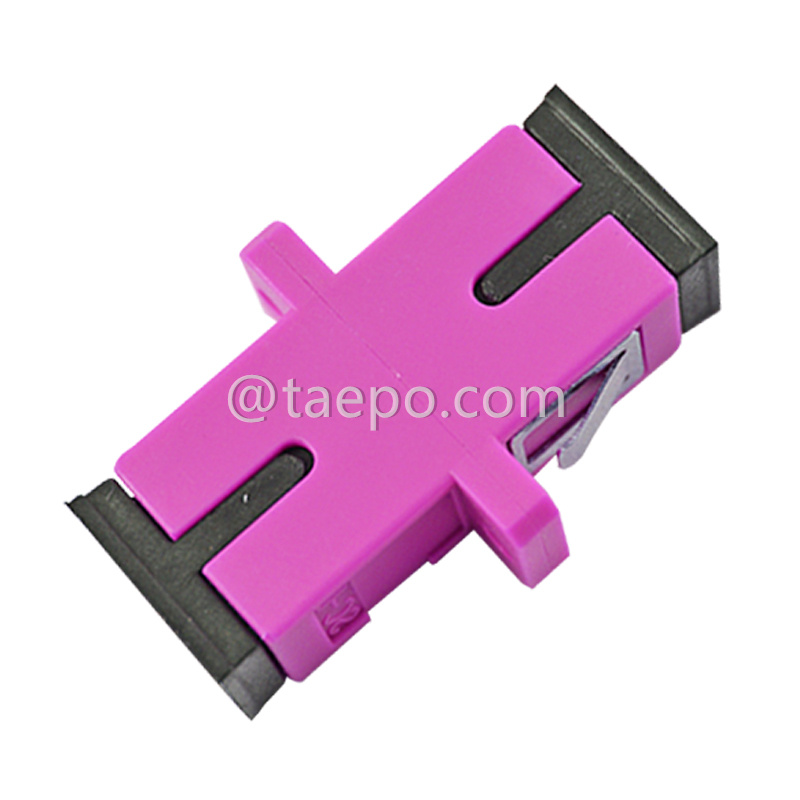

Multimode OM4 simplex SC UPC Fiber optic adapter

    Descriptions

A Multimode OM4 Simplex SC UPC Fiber Optic Adapter is a small but essential component used in fiber optic networks to connect two fiber optic cables of the same type, ensuring a stable connection with minimal signal loss.

Let's break down the terminology:
Multimode: Refers to the type of fiber optic cable that carries multiple light modes (paths). It's typically used for short-distance, high-bandwidth applications like data centers.

Simplex: Simplex means the adapter is designed to connect one fiber (single-core connection), handling unidirectional data flow (data flows in one direction only).

SC (Subscriber Connector or Standard Connector): SC refers to the connector type. It's a square-shaped connector widely used in fiber optic networks for its push-pull design that ensures easy and secure insertion/removal.

UPC (Ultra Physical Contact): UPC refers to the finish of the fiber end-face. The fiber is polished to an ultra-smooth flat surface, which helps reduce signal reflection. UPC connectors are typically used where minimal loss is essential.

    Main Features

The main feature of a Multimode OM4 Simplex SC UPC Fiber Optic Adapter is its ability to provide high-bandwidth, low-loss connectivity for short-distance, multimode fiber optic networks, specifically for OM4 fiber.

Here are the key features that stand out:
High Bandwidth and Speed: Supports high-speed data transmission, enabling up to 100 Gbps data rates, making it ideal for data centers and high-performance computing environments.
Low Insertion Loss: The SC UPC (Ultra Physical Contact) design ensures minimal signal loss at the connection point, maintaining the integrity of the light signal across the fiber link.
Simplex Configuration: Designed for single-fiber connections, it handles unidirectional data flow, which is beneficial in applications where data is transmitted in only one direction.
Optimized for Short Distances: OM4 multimode fiber is optimized for short-distance applications, allowing reliable transmission of data up to 400 meters at 100 Gbps, making it perfect for intra-building or campus-wide network setups.
Easy Installation and Maintenance: The SC push-pull design provides a secure, quick-connect/disconnect feature, making it easy to use in high-density fiber networks.
Durability and Reliability: Made from materials that ensure long-lasting performance, even in high-demand environments, the adapter is designed to support frequent connections and disconnections without performance degradation.

In summary, the main feature is its ability to facilitate high-speed, low-loss, multimode fiber connectivity in a reliable, easy-to-install form factor.
