Descriptions

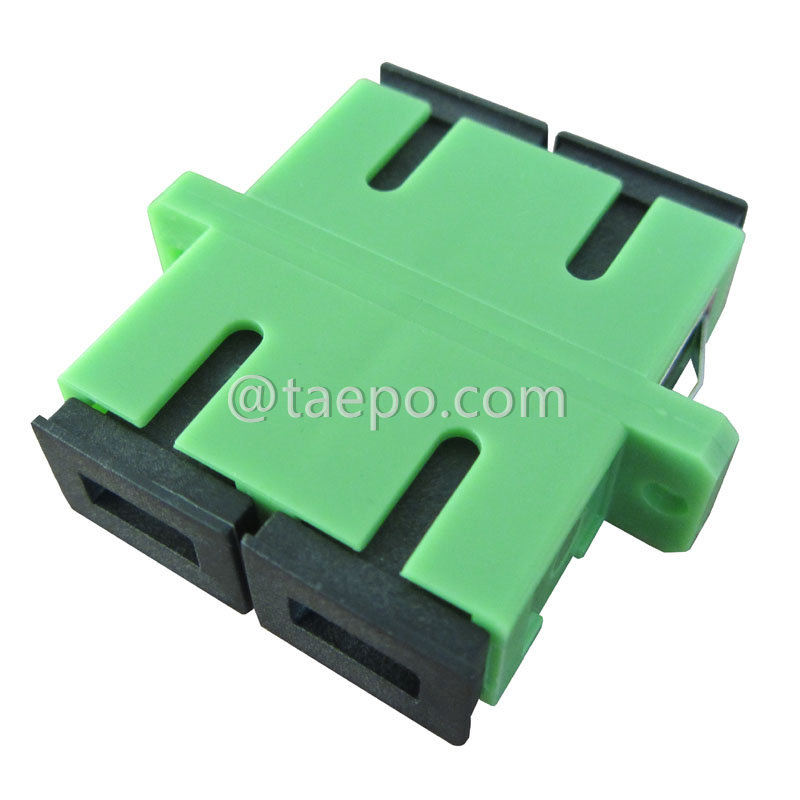

A Singlemode Duplex SC APC Fiber Optic Adapter is a device used to connect two pairs of single-mode fiber optic cables, each with SC APC connectors, in a duplex configuration. It provides a reliable, low-loss connection, commonly used in long-distance, high-precision, and high-speed communication networks.
Breakdown of the Components:
Singlemode: Single-mode fiber is designed to carry light signals over a single path (mode), ideal for long-distance data transmission with minimal signal loss. It’s commonly used in telecommunications, high-speed internet, and long-distance data links. It offers better performance over longer distances compared to multimode fiber due to reduced modal dispersion.
Duplex: it refers to a connection that involves two fibers, allowing for bidirectional communication (one fiber transmits data, and the other receives). This is useful in applications requiring two-way data flow, such as in most telecom and data communication systems.
SC (Subscriber Connector or Standard Connector): SC connectors have a square-shaped design and a push-pull mechanism, ensuring a secure and easy connection. SC connectors are widely used in fiber optic networks due to their durability, ease of use, and stable performance. SC connectors are often found in high-density applications like patch panels, data centers, and telecommunications.
APC (Angled Physical Contact): APC refers to the type of end-face polish applied to the fiber connector. APC connectors have an 8-degree angled surface, which reduces reflection (return loss) and minimizes signal degradation.
Main Features
Low Insertion and Return Loss: The APC angled polish provides very low signal reflection and high return loss, making it ideal for long-distance data transmission.
Duplex Configuration: Supports simultaneous bidirectional communication through two fibers (one for transmitting, one for receiving), essential for telecom and high-speed data networks.
SC Connector: Features a simple push-pull design for easy installation and removal, commonly used in high-density fiber optic networks.
Optimized for Long-Distance Applications: Single-mode fiber with APC connectors is optimized for long-distance transmission, typically found in telecom, internet service providers (ISPs), and optical distribution networks.

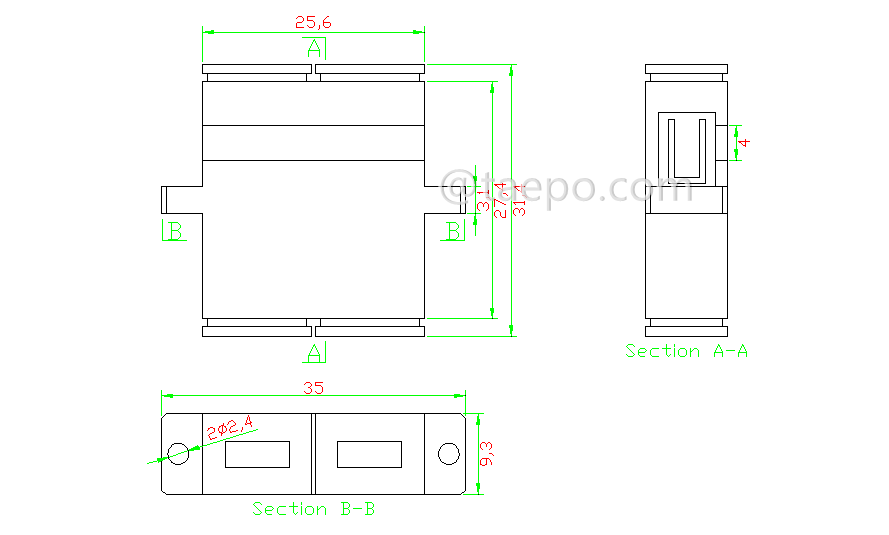

Schematic Diagrams
Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3001-SM2SCASCA-LF |
Fiber optic adapter, singlemode, quadri, LC/APC-LC/APC |
