Descriptions

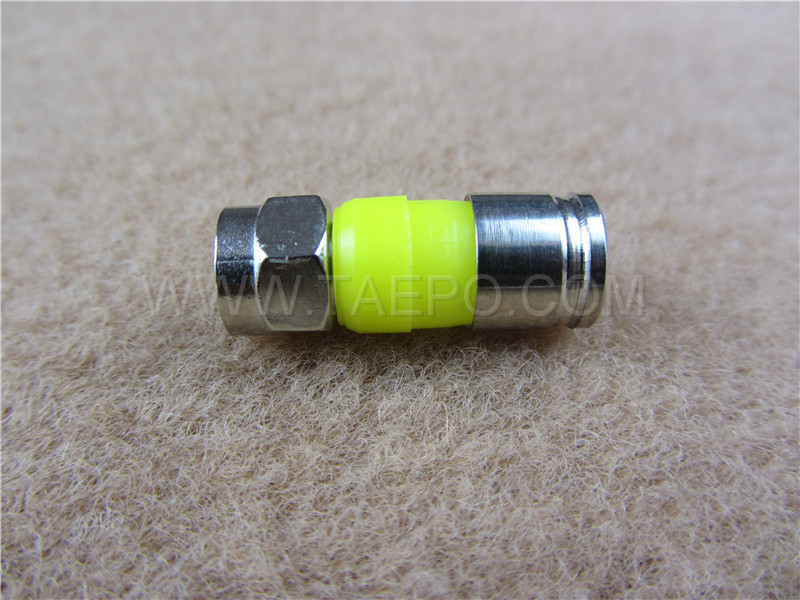

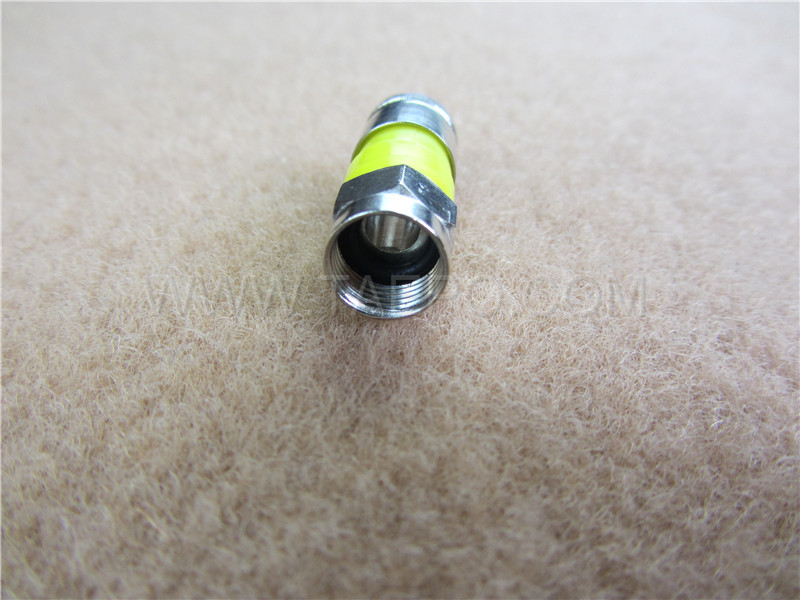

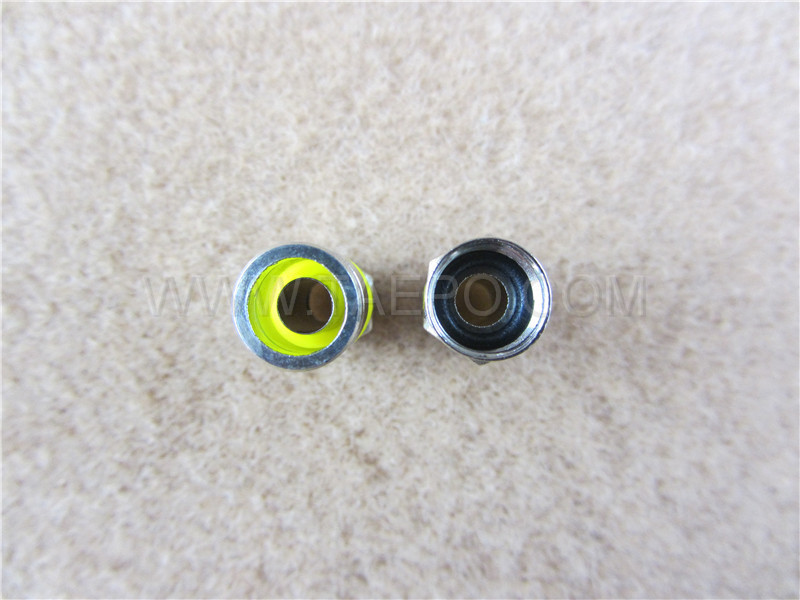

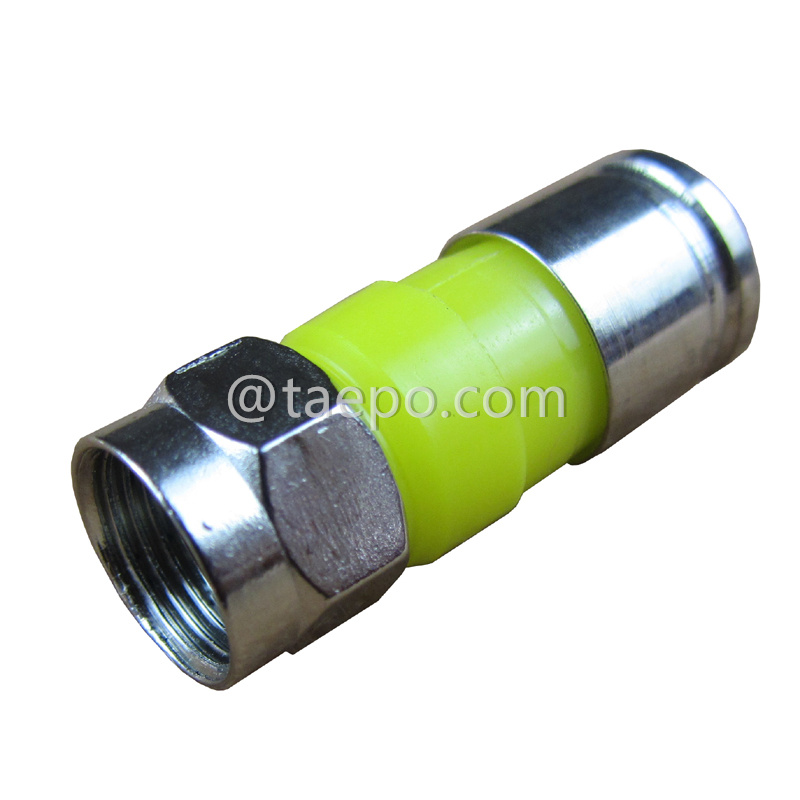

The "RG6 Waterproof Compression Male F-Type Connector for Coaxial Cable" is a specialized connector used for terminating RG6 coaxial cables, providing a secure and waterproof connection in television, satellite, and broadband internet systems.
RG6 Coaxial Cable: The connector is specifically designed to be used with RG6 cables, which are commonly used for Cable TV (CATV), satellite TV, and broadband internet installations. RG6 cables are thinner than RG11 cables but still provide good signal quality for shorter distances.
Waterproof: This feature indicates that the connector is designed to resist water penetration, making it suitable for outdoor use. It ensures the connection remains protected from moisture and environmental elements like rain or humidity, preventing signal degradation or corrosion.
Compression Connector: The connector attaches to the coaxial cable using a compression mechanism. A compression tool is used to securely clamp the connector onto the cable, ensuring a tight fit and preventing the connector from coming loose over time. This type of connection offers a better seal compared to crimp or twist-on connectors, which is especially important in outdoor installations where exposure to weather is a concern.
Male F-Type Connector: The F-type connector is a standard connector used for connecting coaxial cables to devices like TVs, satellite receivers, and modems. The male part of the connector has a center pin that connects to the female counterpart on the device or splitter.
Main Features
Waterproof Design: Ensures that the connection remains protected from moisture, preventing water ingress that could lead to corrosion, signal loss, or short circuits. Ideal for outdoor installations.
Compression Mechanism: The compression fitting ensures a secure and permanent connection, providing better durability and signal transmission quality compared to other types of connectors like crimp or twist-on types.
High Signal Integrity: The F-type connector ensures that the signal transmission from the coaxial cable is of high quality, minimizing loss or interference, which is critical for television, satellite, and internet services.
Durability: The connector is often made from corrosion-resistant materials, such as nickel-plated brass or aluminum, ensuring long-term reliability, especially in outdoor or harsh environments.
Easy Installation: Although it requires a compression tool for installation, this type of connector offers a secure, professional-grade installation with minimal risk of disconnection or signal loss.
Schematic Diagrams

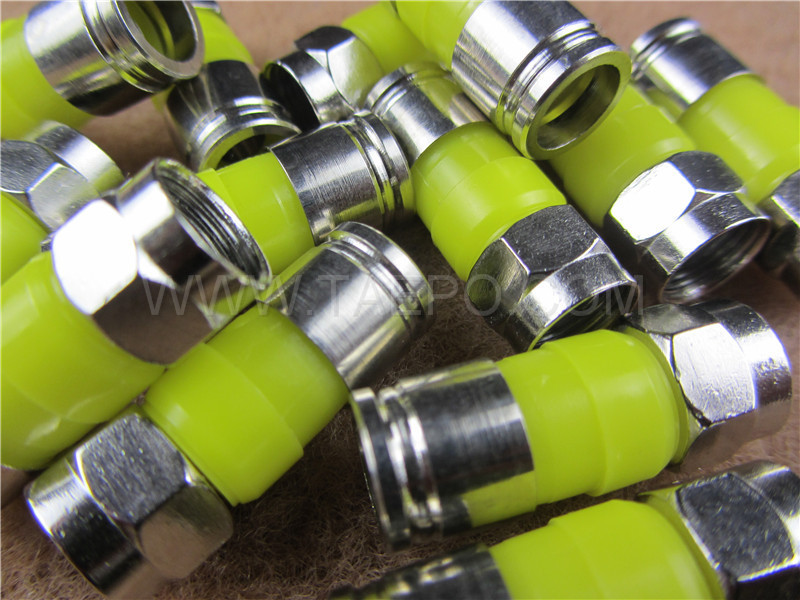

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-7063-B |
RG6 water proof compression male F connector |
