Descriptions
The "0.08mm thickness 6mm width 33mts length Kapton high-temperature polyimide tape" is a specialized adhesive tape made from polyimide film, which is known for its excellent thermal stability, electrical insulation properties, and chemical resistance. This type of tape is widely used in various industries, especially electronics, aerospace, and automotive, where extreme conditions exist.
Material: The tape is made from polyimide film, a high-performance material known for its ability to withstand very high temperatures. The most well-known brand of polyimide tape is Kapton, which is often used as a synonym for polyimide tape.
Thickness: The tape has a thickness of 0.08mm which makes it thin yet durable enough for applications requiring precise, fine insulation or protection.
Width: The tape is from 5mm to 30mm wide, making it ideal for detailed or confined applications, such as in circuit boards or other electronics.
Length: It comes in a 33-meter (33 meters) roll, providing enough material for multiple uses.
High Temperature: Kapton tape is known for its resistance to high temperatures, typically withstanding up to 260°C (500°F), though it can tolerate short-term exposure to even higher temperatures.
Main Features
High-Temperature Resistance: The tape can withstand extreme temperatures, making it ideal for applications like soldering, heat insulation, or even use in space where temperature fluctuations are vast.
Electrical Insulation: Polyimide tape is an excellent electrical insulator, which makes it suitable for use in electronic components, circuit boards, and transformers where reliable insulation is essential.
Chemical Resistance: It offers strong resistance to chemicals, oils, and solvents, making it durable in industrial settings.
Thin and Flexible: The 0.08mm thickness allows for flexibility, making it useful for wrapping or covering small, intricate parts without adding too much bulk.
Durability: Despite its thinness, the tape is mechanically strong and resistant to tearing, making it durable enough to last in challenging conditions.
Adhesive Backing: The tape has a pressure-sensitive adhesive that sticks well to various surfaces and withstands high temperatures without losing its adhesion properties.
Schematic Diagrams

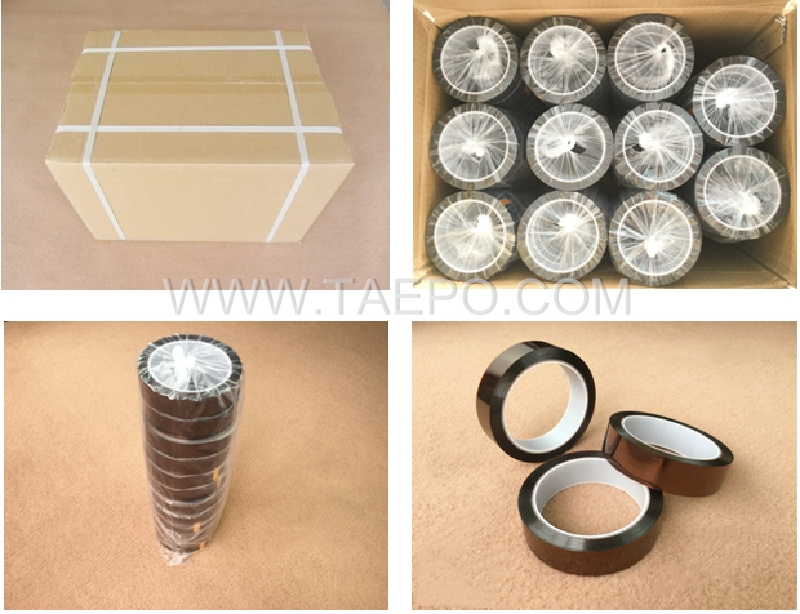

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-7070-00805 |
Polyamide tape 0.08mm thickness, 5mm width, 33mts length |
| TP-7070-00806 |
Polyamide tape 0.08mm thickness, 6mm width, 33mts length |
| TP-7070-00807 |
Polyamide tape 0.08mm thickness, 7mm width, 33mts length |
| TP-7070-00808 |
Polyamide tape 0.08mm thickness, 8mm width, 33mts length |
| TP-7070-00810 |
Polyamide tape 0.08mm thickness, 10mm width, 33mts length |
| TP-7070-00812 |
Polyamide tape 0.08mm thickness, 12mm width, 33mts length |
| TP-7070-00815 |
Polyamide tape 0.08mm thickness, 15mm width, 33mts length |
| TP-7070-00820 |
Polyamide tape 0.08mm thickness, 20mm width, 33mts length |
| TP-7070-00825 |
Polyamide tape 0.08mm thickness, 25mm width, 33mts length |
| TP-7070-00830 |
Polyamide tape 0.08mm thickness, 30mm width, 33mts length |
