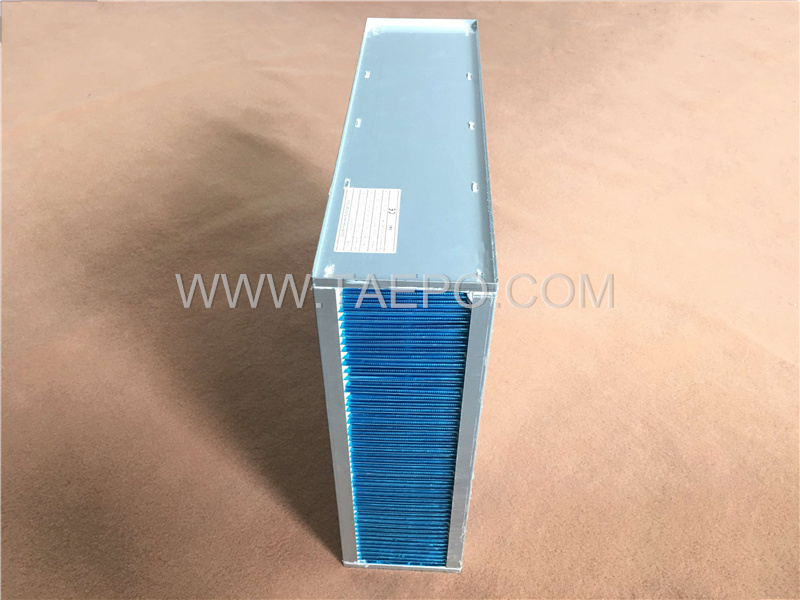

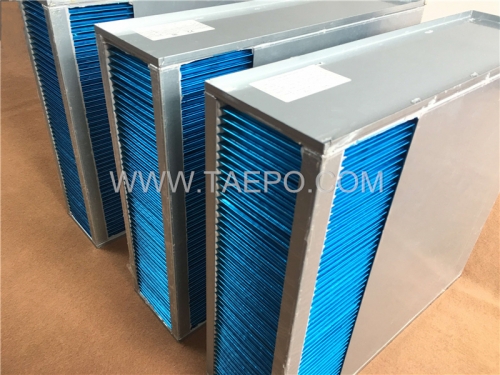

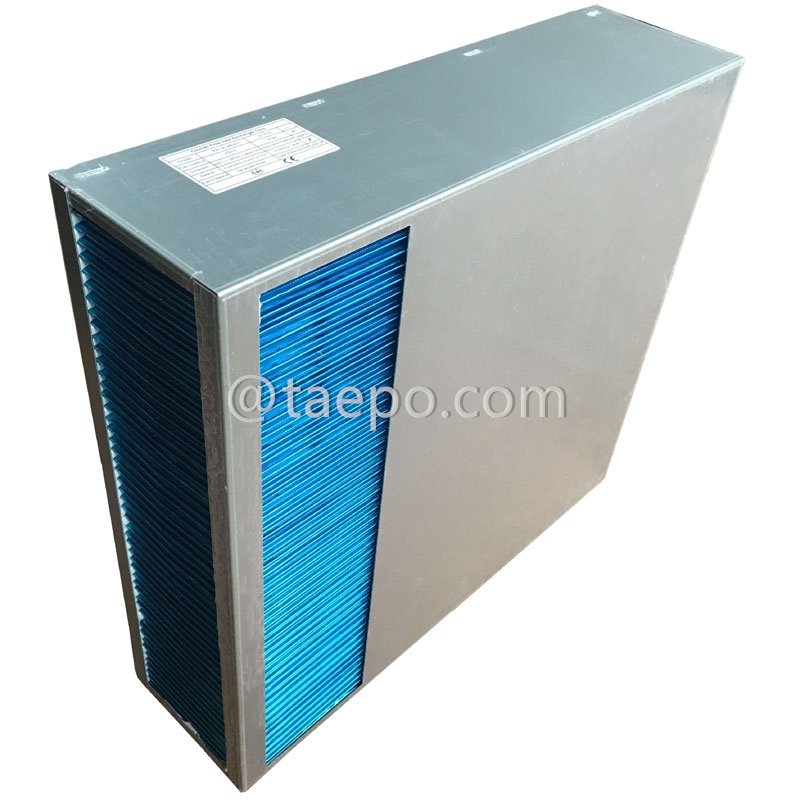

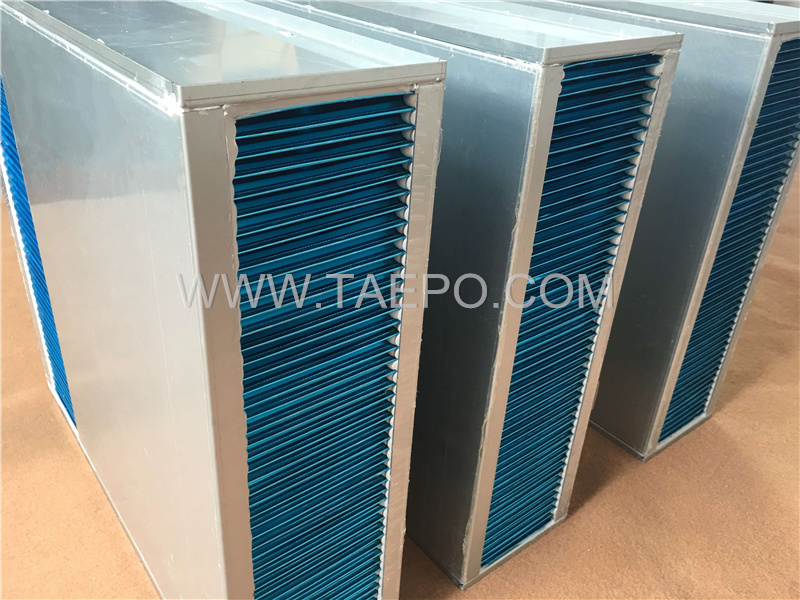

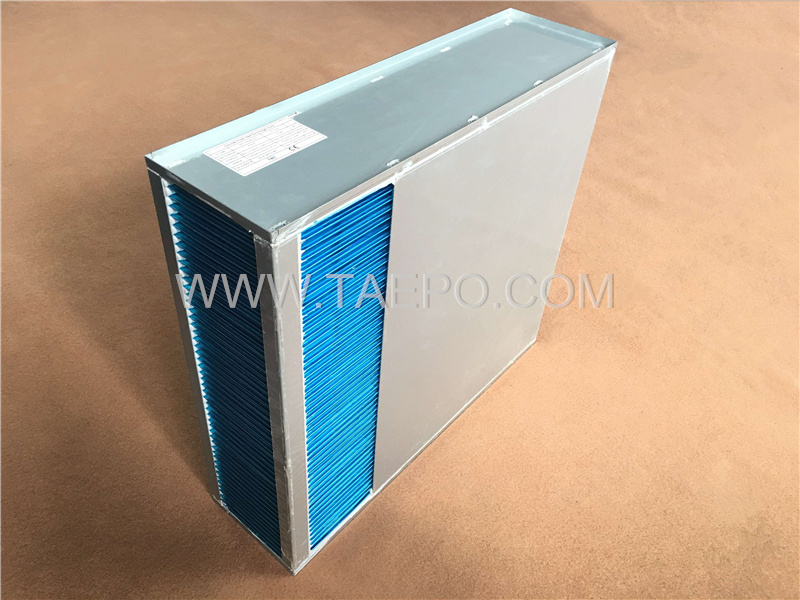

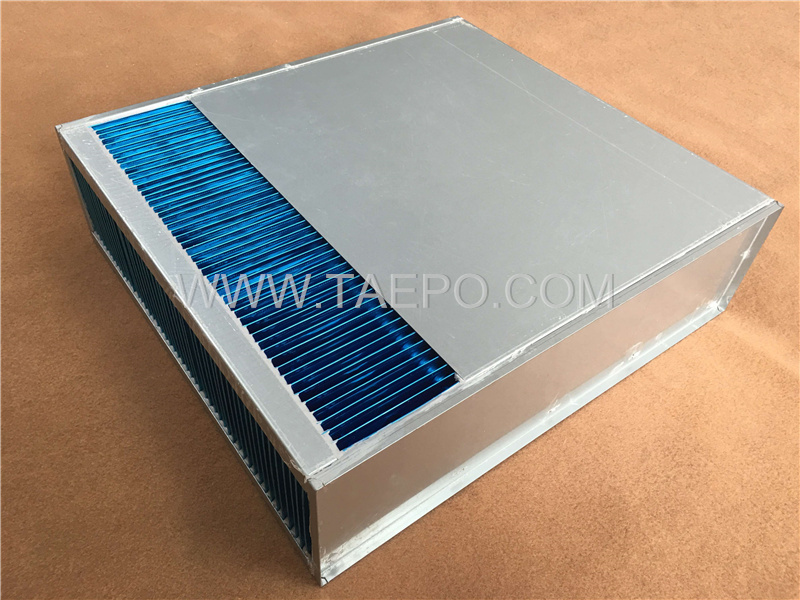

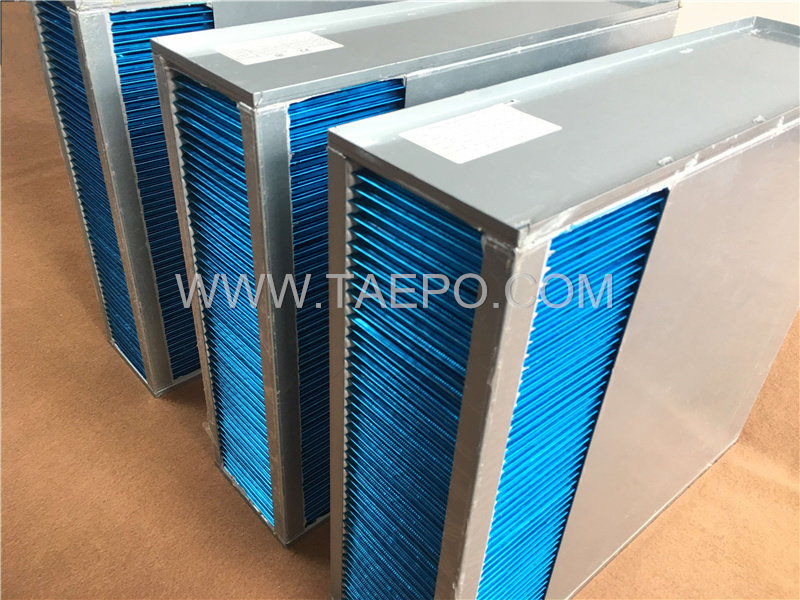

L-L air flow IPX5 protection Counter flow heat exchanger core for Outdoor Enclosure

    Descriptions

The "L-L air flow IPX5 protection Counter flow heat exchanger core for Outdoor Enclosure" is typically used in electronic or telecommunication enclosures to regulate temperature by transferring heat without direct air mixing.

Here's a breakdown of its components and purpose:
L-L Air Flow: This refers to the air entering and exiting the system in a linear-to-linear (L-L) fashion, meaning air enters from one side and leaves from the opposite side. This ensures effective ventilation and cooling.
IPX5 Protection: The IPX5 rating indicates a water-resistant design that can withstand water jets from any direction. This makes the heat exchanger suitable for outdoor use, protecting sensitive components from rain or splashes.

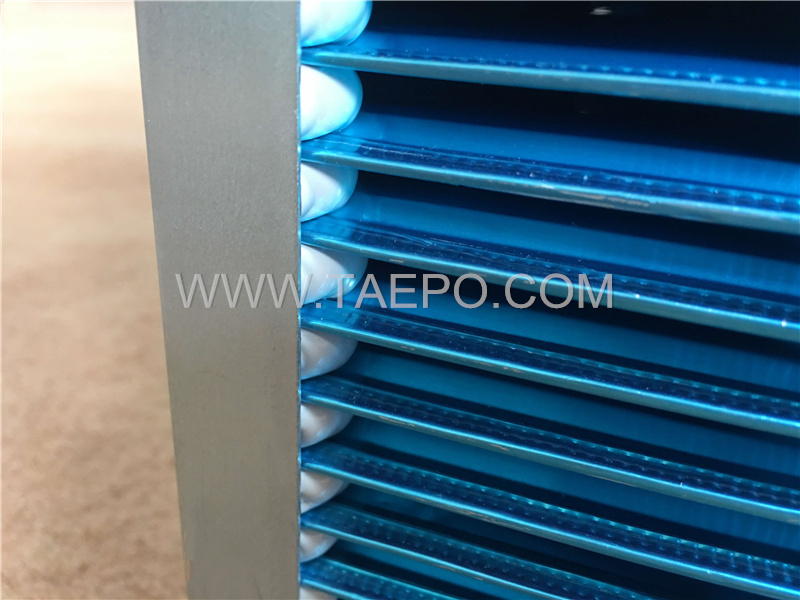

Counter Flow Heat Exchanger Core: A counter-flow heat exchanger core facilitates the transfer of heat between two air streams that move in opposite directions. This design is very efficient for heat recovery because it maximizes the temperature difference, which increases the rate of heat exchange.
Outdoor Enclosure: Refers to the device being protected by this heat exchanger core. The outdoor enclosures typically house sensitive electronic equipment (like telecom hardware or industrial machinery controllers), which require stable temperatures to function reliably even in harsh outdoor environments.

    Main Features

Efficient Heat Transfer: The counter-flow heat exchanger allows for superior heat recovery, ensuring minimal energy loss and stable internal temperatures.

IPX5 Water Resistance: Offers protection against water jets, making the system resilient to outdoor weather conditions like rain, making it suitable for industrial or telecommunication enclosures.

L-L Airflow System: The linear air flow reduces turbulence, ensuring consistent and smooth cooling or ventilation.

Durability: Designed for outdoor use, these systems are built with materials that can withstand extreme temperatures, rain, dust, and other harsh environmental factors.

Energy Efficiency: The design often aims to reduce the energy consumption of active cooling methods by maximizing passive heat transfer.

Protection of Sensitive Components: Ensures the enclosed electronic or telecommunication devices operate within a safe temperature range, thus enhancing their longevity and reliability.

    Schematic Diagrams

    Packing Pictures

    Order Data
