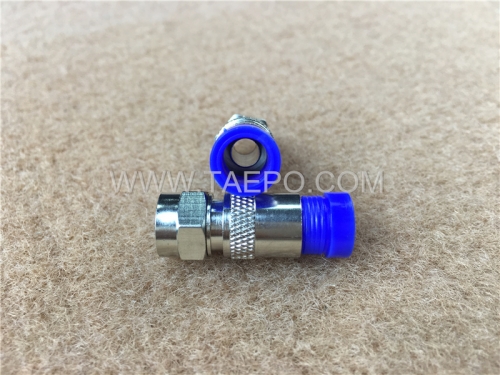

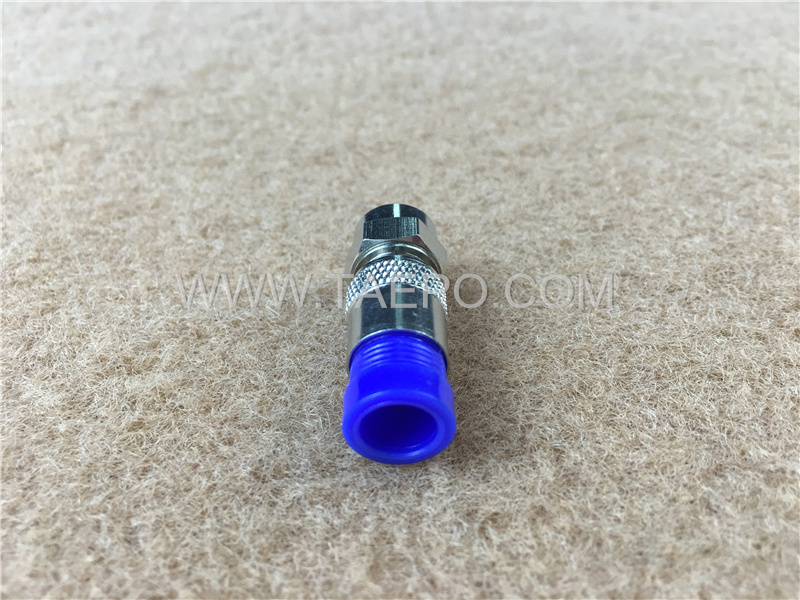

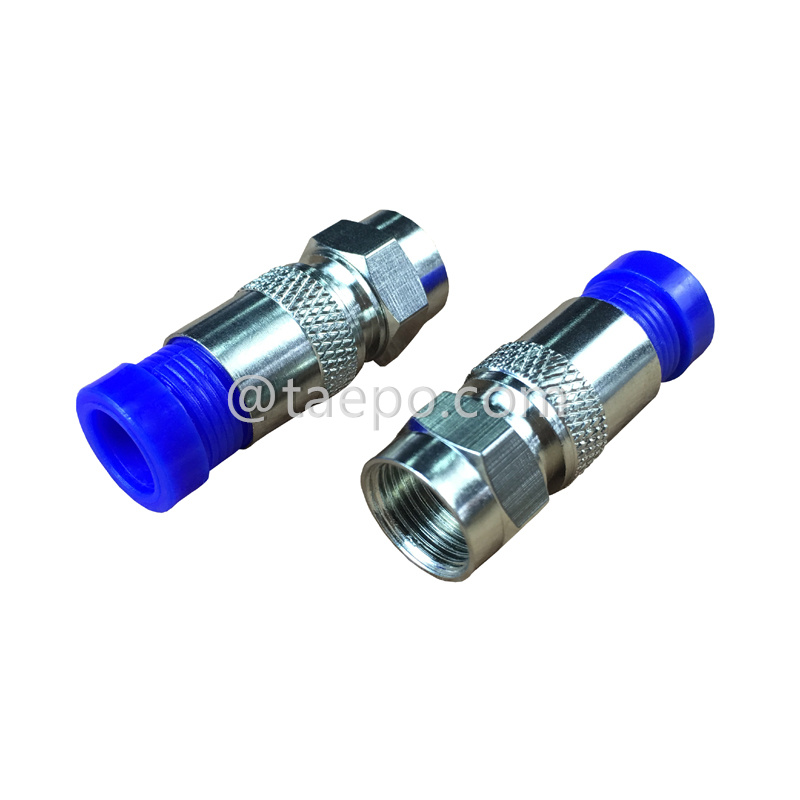

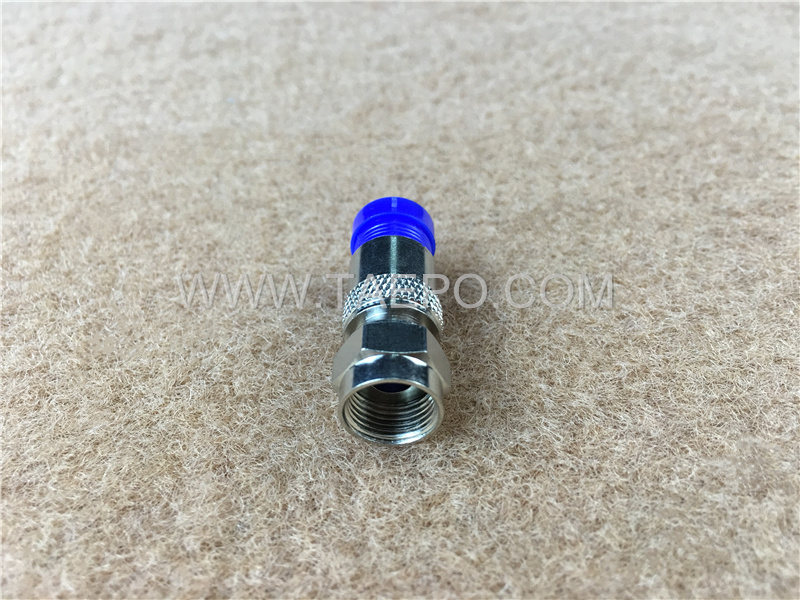

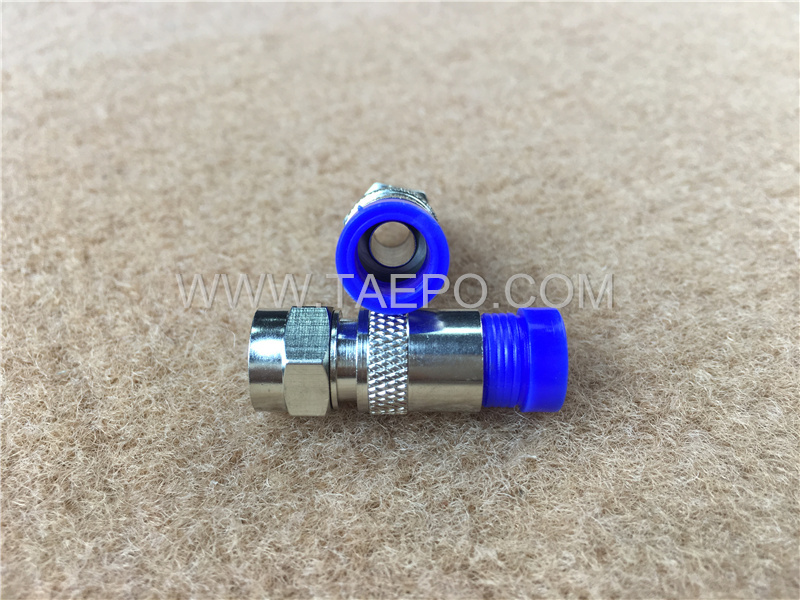

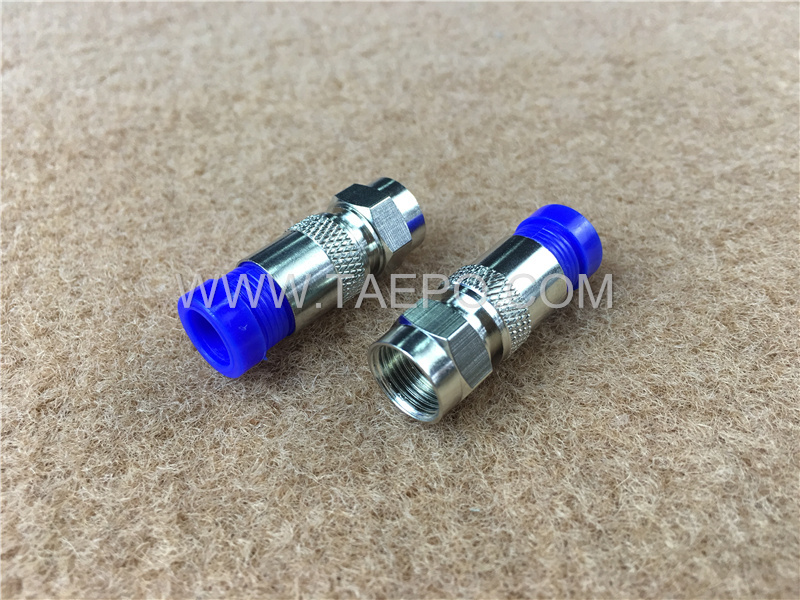

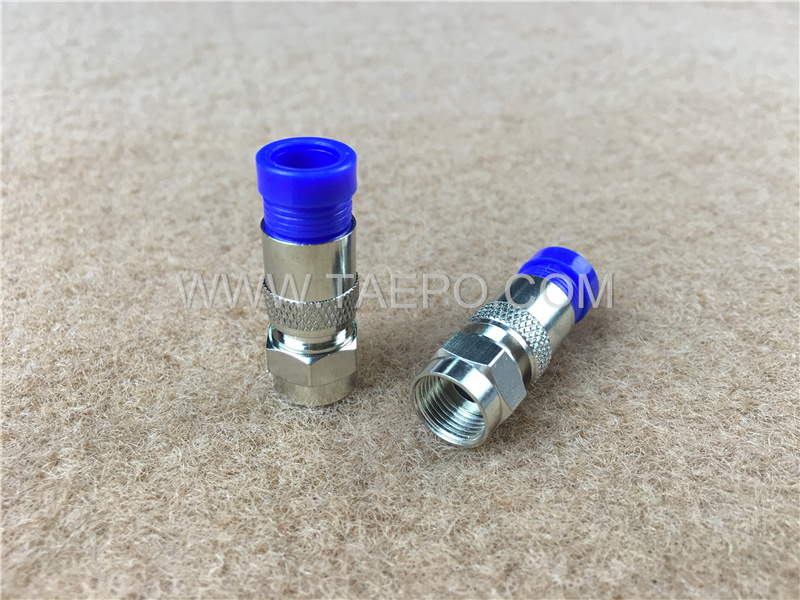

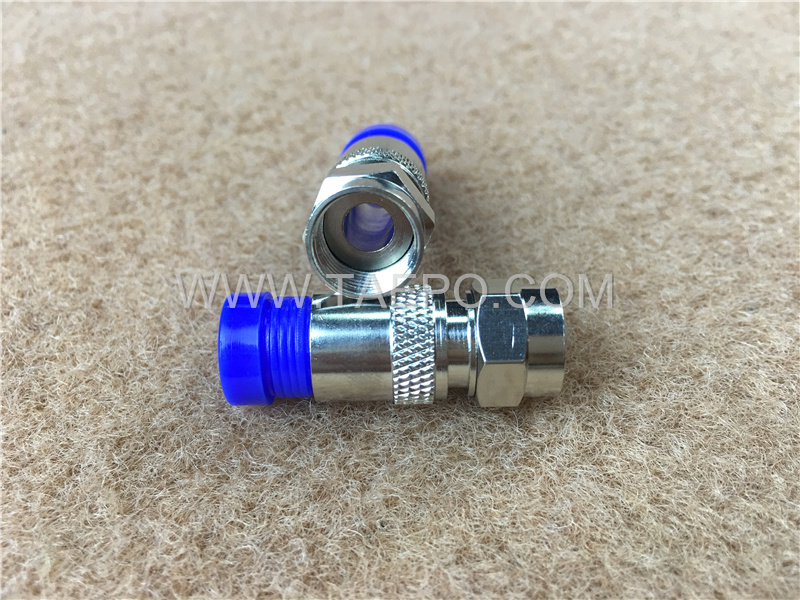

RG6 water proof compression male F connector

    Descriptions

The "RG6 Waterproof Compression Male F Connector" is a type of connector used to securely terminate and connect RG6 coaxial cables to various devices in television, satellite, and broadband internet systems.

Here's a detailed breakdown:
RG6 Coaxial Cable: This connector is specifically designed for RG6 coaxial cables, which are widely used in Cable TV (CATV), satellite TV, and broadband internet installations. RG6 cables have a medium thickness, providing a good balance of signal quality and flexibility for installations that don’t require long cable runs like RG11.
Waterproof: This feature means the connector is designed to resist water penetration, making it ideal for outdoor installations where the connection might be exposed to rain, moisture, or harsh environmental conditions. This helps protect the integrity of the connection and ensures that water or moisture does not degrade the signal.
Compression Connector: A compression-type connector secures the connector onto the RG6 cable using a compression tool. The tool compresses the connector onto the cable, forming a tight, reliable seal. This compression technique provides a more secure and durable connection compared to twist-on or crimp connectors, making it suitable for high-quality and long-lasting connections.
Male F Connector: The F-type connector is a standard connector used for coaxial cables in consumer electronics. The male version has a center pin that inserts into the female port on devices such as TVs, cable boxes, satellite receivers, or modems.

    Main Features

Waterproof Design: The waterproof capability ensures the connector resists moisture ingress, preventing water from corroding the connection or interfering with the signal, making it ideal for outdoor applications.
Compression Fitting: The compression-style fitting provides a secure and long-lasting connection. Once compressed onto the cable, the connection is tight, preventing the connector from coming loose over time and maintaining good signal quality.
Durability: Often made from corrosion-resistant materials such as nickel-plated brass, these connectors are built to last in harsh environments, ensuring they can withstand outdoor conditions, including UV exposure and extreme weather.
Signal Integrity: Designed to minimize signal loss and interference, the F connector ensures a high-quality connection, providing stable performance for TV, internet, and satellite systems.
Easy Installation: Although the connector requires a compression tool for installation, the process is straightforward, and the result is a professional-grade, reliable connection.

    Schematic Diagrams

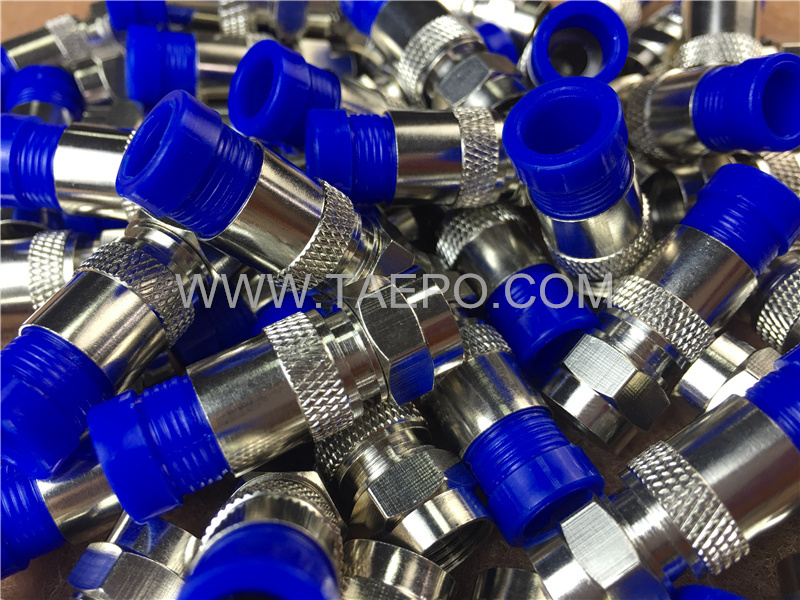

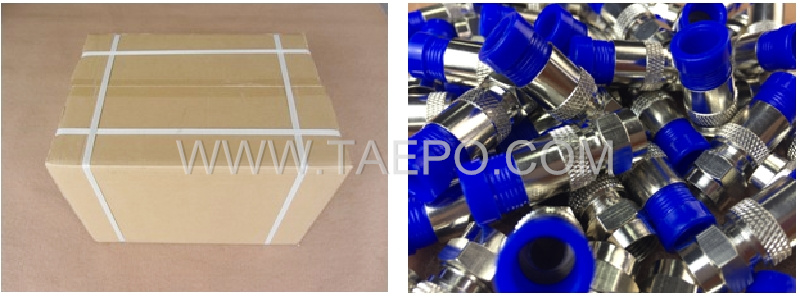

    Packing Pictures

    Order Data
