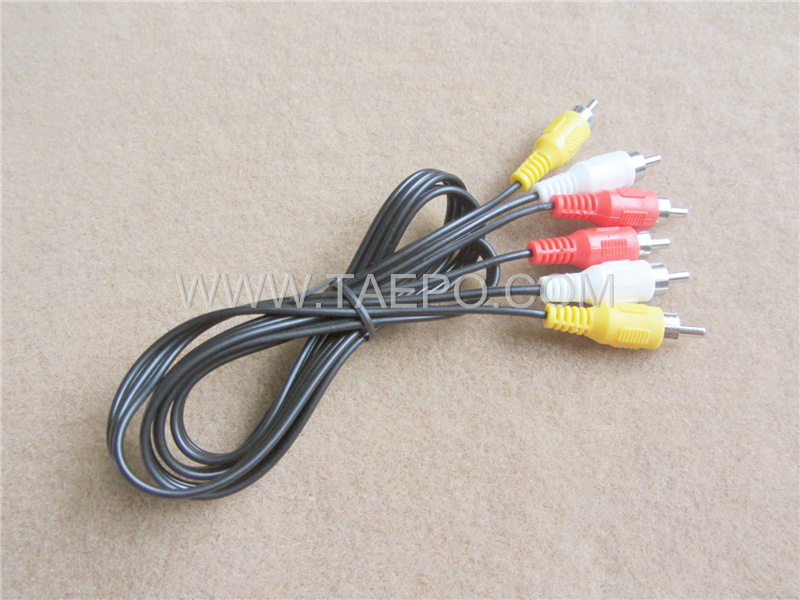

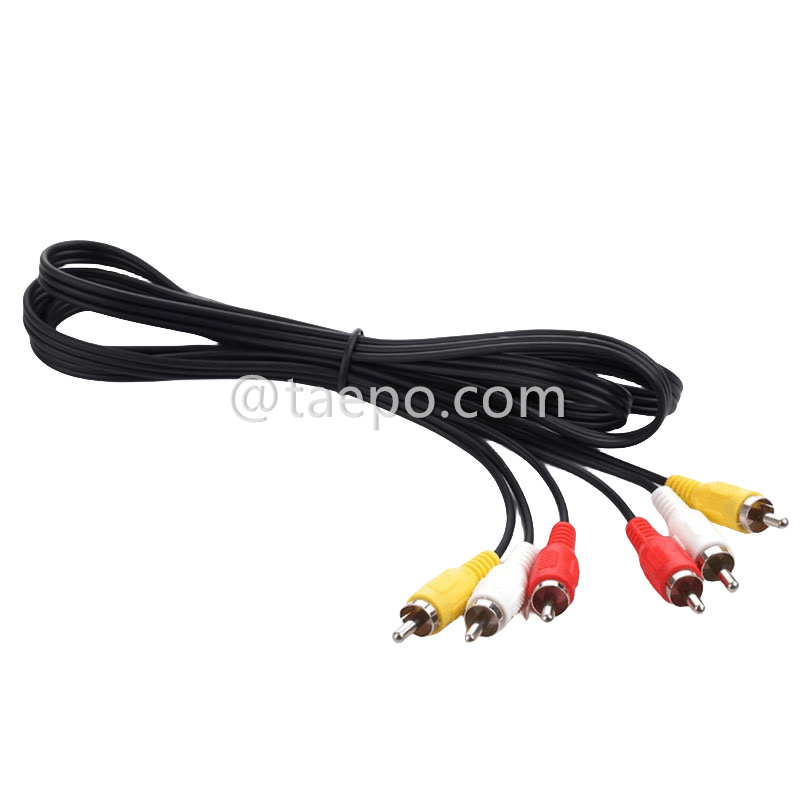

RCA cable with 3 RCA male connector to 3 RCA male connector

Item No.: TP-7055-6-0010
An RCA cable with 3 RCA male connectors to 3 RCA male connectors is a simple, widely used analog cable that carries composite video and stereo audio between compatible devices.
Description

    Descriptions


An RCA cable with 3 RCA male connectors to 3 RCA male connectors is a type of analog audio/video cable used for transmitting standard-definition video and stereo audio signals between devices.

Here's a breakdown of what it is and how it functions:

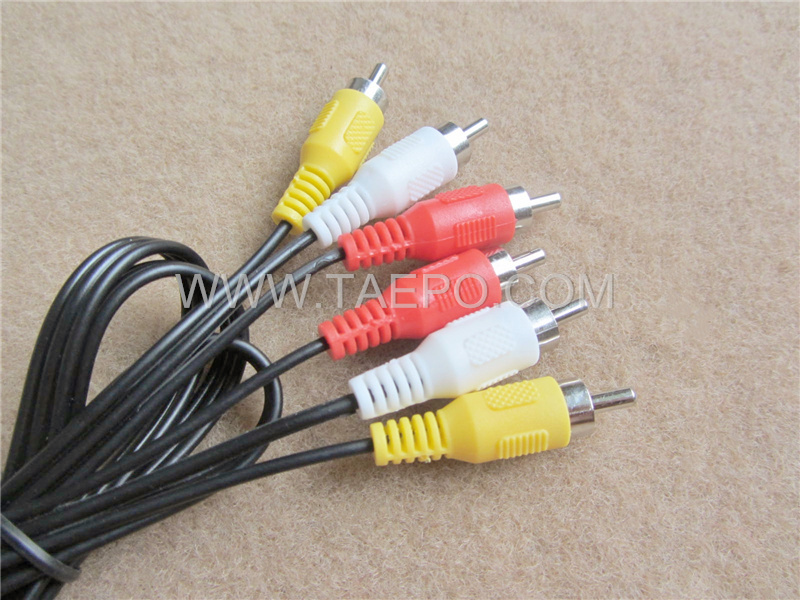

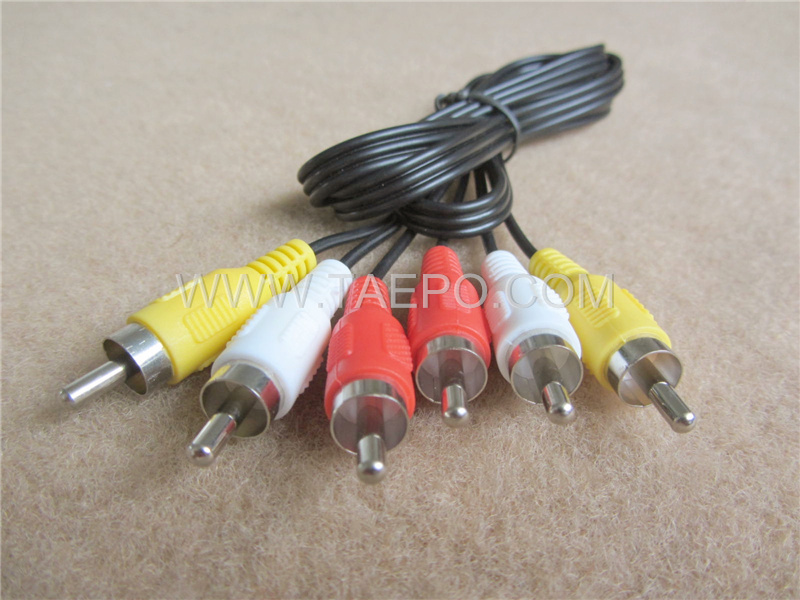

This RCA cable has three male connectors on each end, typically color-coded for easy identification:
Yellow: For composite video signal, responsible for transmitting the video feed.
Red: For right channel audio.
White: For left channel audio.

This type of cable is commonly used to connect devices like DVD players, VCRs, gaming consoles, or cable boxes to TVs or stereo systems. The 3 RCA connectors are standard in older home entertainment systems and are still used for many legacy devices.





    Main Features


3 RCA Male to Male Connectors:
Both ends of the cable have three male RCA connectors that plug into corresponding female RCA jacks on devices.
Color-coded connectors (yellow for video, red and white for audio) ensure proper connections are made easily.

Composite Video and Stereo Audio:
The yellow connector transmits composite video, which is an analog video signal.
The red and white connectors transmit stereo audio (right and left channels), which delivers basic 2-channel audio output.

Analog Signal Transmission:
RCA cables transmit analog signals, which are suitable for standard-definition video and stereo audio but not for high-definition video.

Shielded Cable:
Typically, the cable is shielded to prevent interference from external signals and to maintain the integrity of the audio and video quality.

Durability:
The connectors are often made of gold or nickel plating to prevent corrosion and ensure better signal transfer.
The cables are usually built to withstand everyday wear and tear.




    Schematic Diagrams






    Packing Pictures


Packing Picture for RCA cable with 3 RCA male connector to 3 RCA male connector






    Order Data



Item No Descriptions
TP-7055-6-0010    RCA cable, 3 RCA male connector to 3 RCA male connector, 1m
