Ibdn Bix impact punch down tool with close lock for telecommunications 25 pairs wiring block

Item No.: TP-5911
Bix impact punch down tool | bix punch tool online manufacturer from China with competitive price | for 25 pairs wiring block | high-quality tool
  • Color: Grey and Silver
  • Brand: Neutral / OEM / TAEPO
  • Packing: 1pc/box, 100boxes/ctn, gw 12kg/ctn, 38.5*20*33.5cm/ctn
  • MOQ: 200pcs
  • Delivery: 7-14 days
  • Description



      Descriptions


    Question 1: What is a Bix punch down tool ?

    Answer: A Bix punch down tool is a specialized tool used primarily in telecommunications and networking for connecting wires to terminal blocks or patch panels.
    It features a blade that pushes wires into insulation displacement connectors (IDCs), which secure the wire while cutting off excess.
    The tool is designed for efficiency and precision, making it easier to terminate multiple wires quickly and securely. It's commonly used in structured cabling systems for telephone and data networks.
    This Ibdn Bix impact punch down tool (bix punch tool) is designed to terminate cables, pigtails, and jumper wires, this punch down tool is perfect for use on  25 pairs bix wiring block.



    Question 2: How does a Bix punch down tool work ?

    Answer:
    A Bix punch down tool works by using a combination of pressure and a cutting action to securely connect wires to terminal blocks or patch panels.

    Here’s a step-by-step overview of how it works:

    Preparation: First, the technician prepares the wires by stripping the outer insulation, exposing the individual conductors.

    Inserting Wires: The exposed wires are then inserted into the appropriate slots on the terminal block or patch panel. Each wire typically corresponds to a specific terminal.

    Positioning the Tool: The punch down tool is positioned over the terminal block, aligning the blade with the wire that needs to be terminated.

    Punching Down: The technician applies downward pressure on the handle of the tool. This action pushes the wire into the insulation displacement connector (IDC) on the terminal block. The blade of the tool makes contact with the wire, forcing it down into the connector.

    Cutting Excess Wire: As the wire is pushed into the IDC, the blade also cuts off any excess wire. This ensures a clean and secure termination without extra wire sticking out.

    Testing: After all connections are made, technicians may test the connections to ensure that they are functioning properly.


    Using a Bix punch down tool allows for quick and efficient terminations, especially when dealing with multiple connections in a structured cabling system.





      Main Features


    This tool is a single-action and spring-activated design for ease of use.
    It terminates 22 AWG to 26 AWG plastic insulated, solid copper conductor wires and is adjustable with a button on the handle for only seating the conductors or both seating and cutting the conductors.
    TAEPO makes high-quality tools that are designed to last for life.

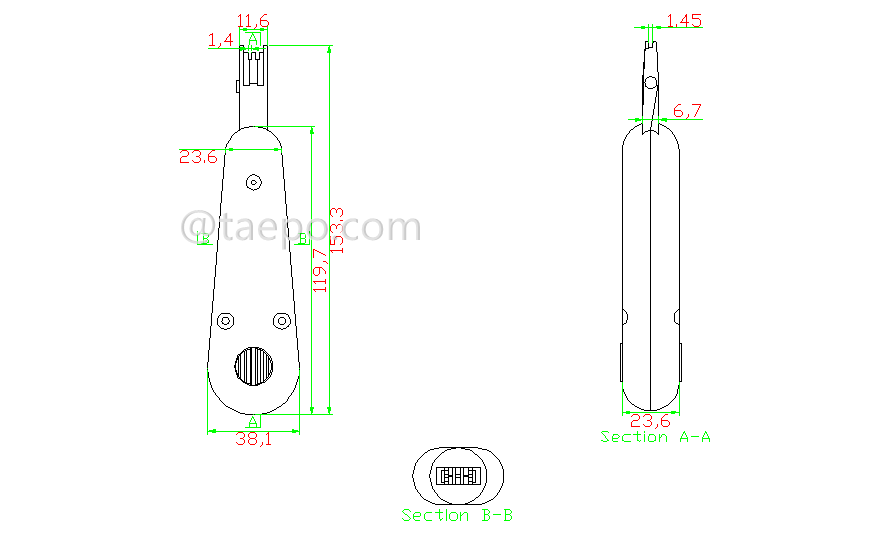

      Schematic Diagrams


    Schematic Diagrams for Bix impact punch down tool




      Packing Pictures


    Packing Picture for Bix impact punch down tool





      Order Data




    Item No Description
    TP-5911 Punch down tool for NT block #TP-1303-25
