Descriptions

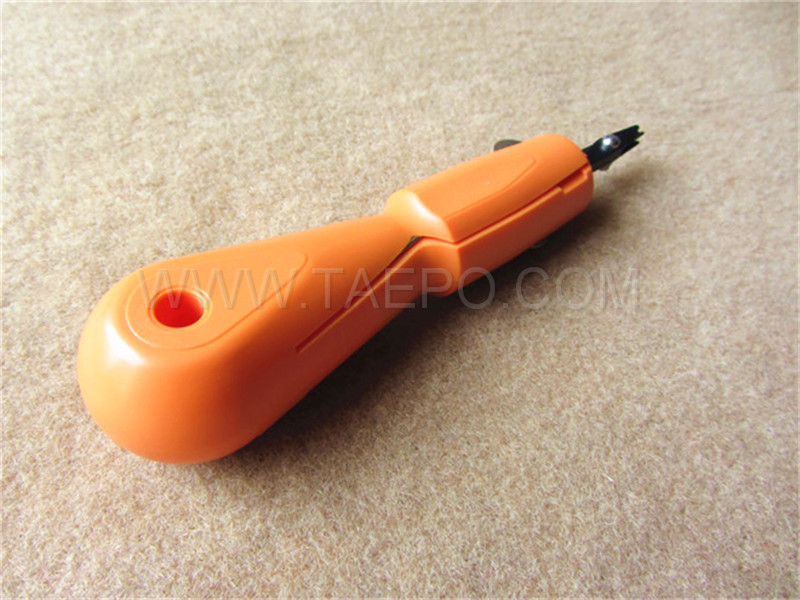

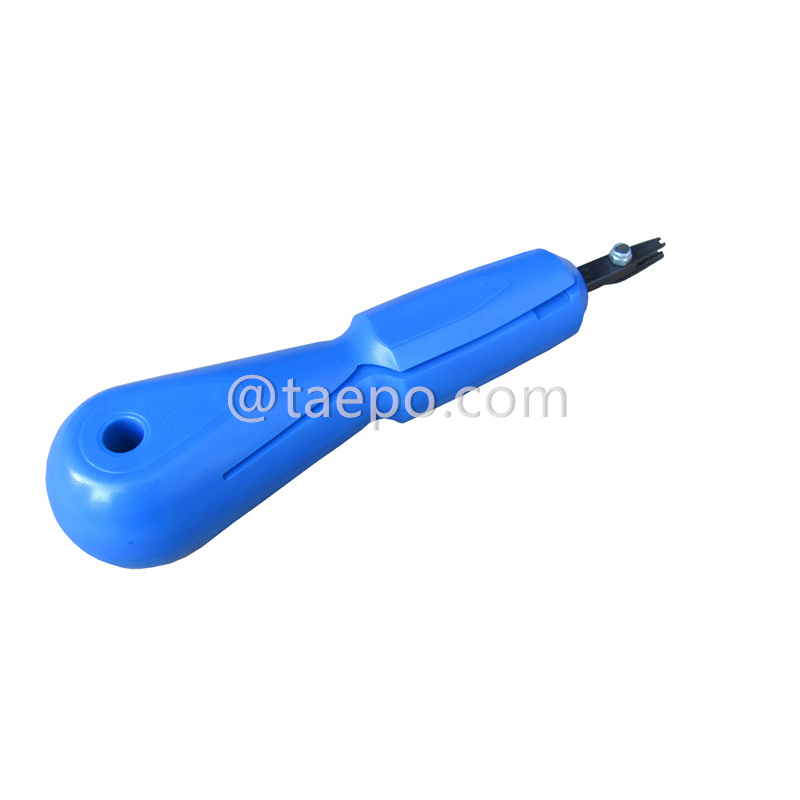

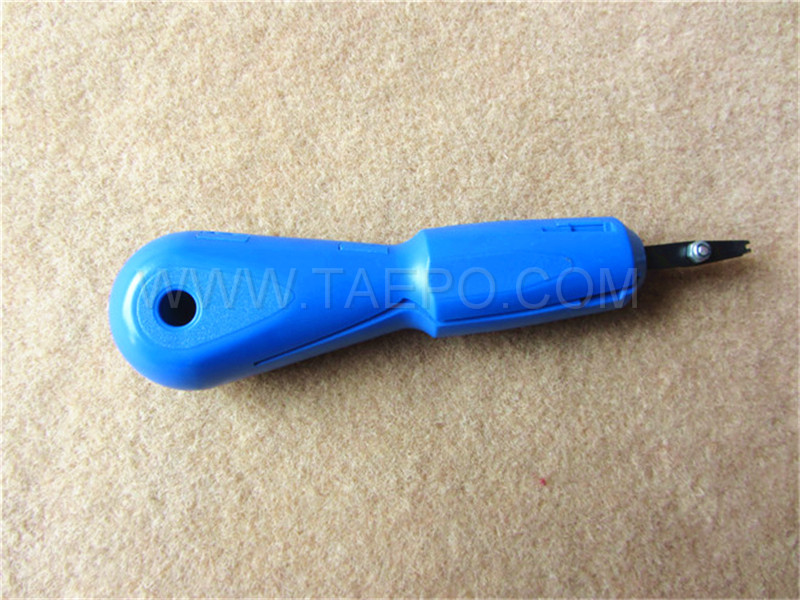

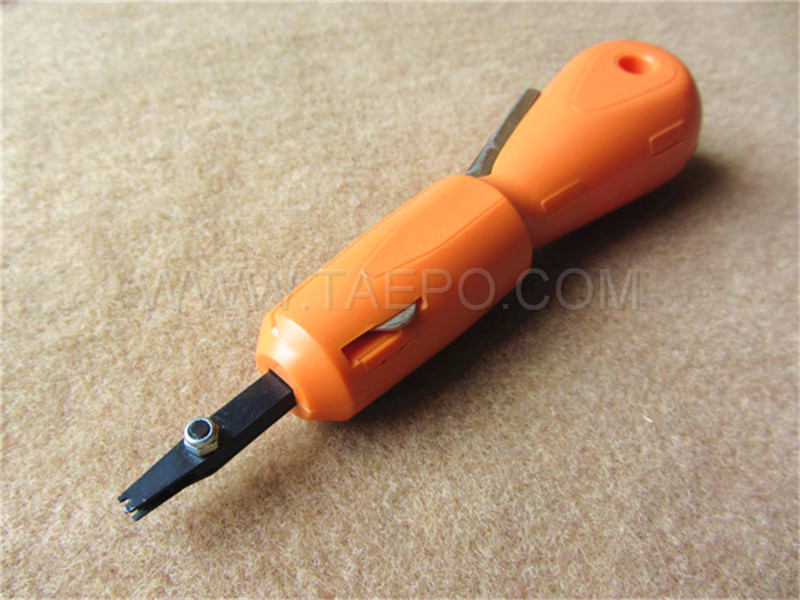

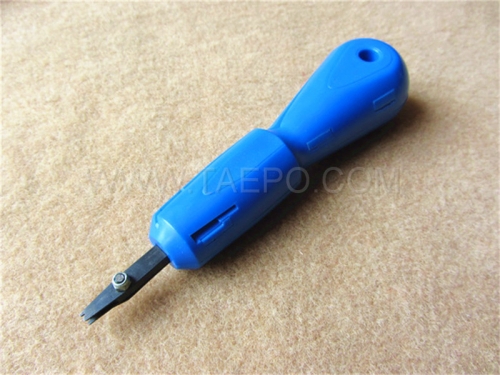

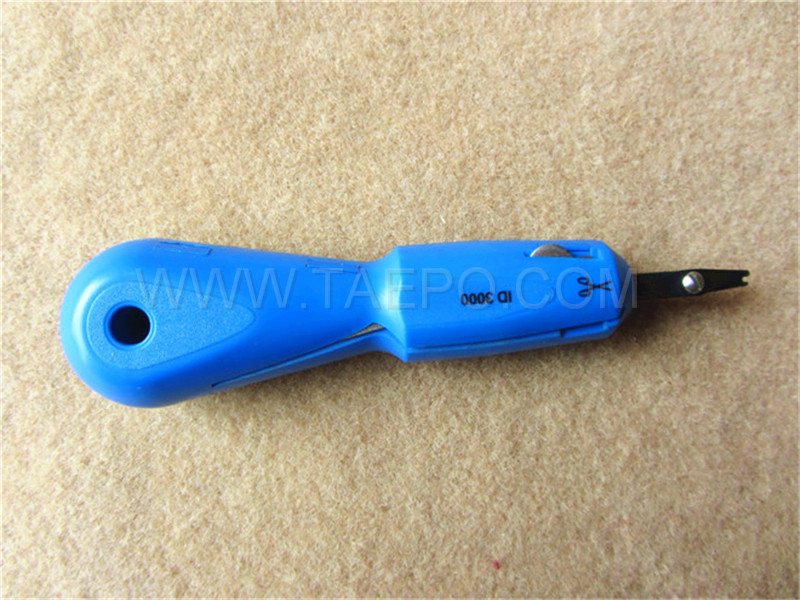

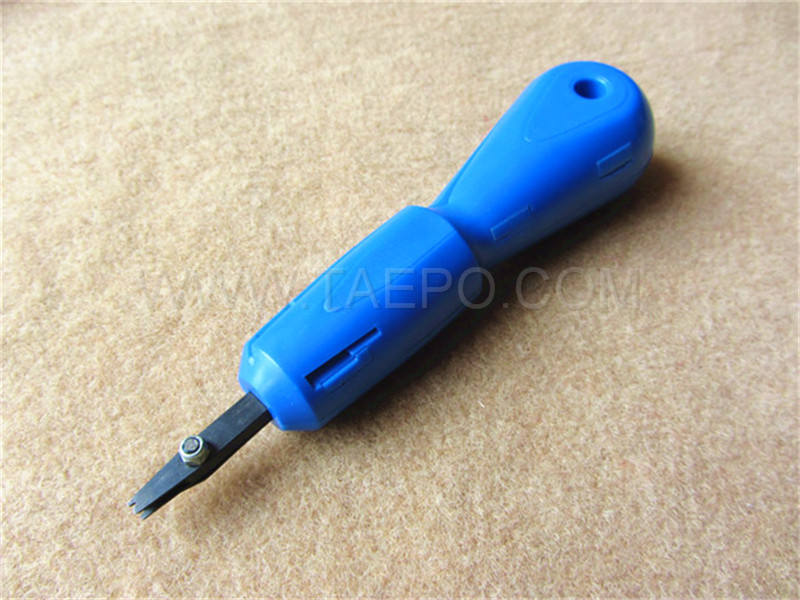

This insertion tool (TP-5943) is available for all applications where a large number of single wires must be distributed or connected. Advantage: no insulation removal, no use of screws, no soldering, extremely fast working on-site with integrated contact safety.
The Insertion Tool permits the gas-tight connection and trimming of the wire in just one single action. No stripping of wires or use of screws is required - a simple pressing of the tool is sufficient. A correctly terminated contact is indicated by an audible click.

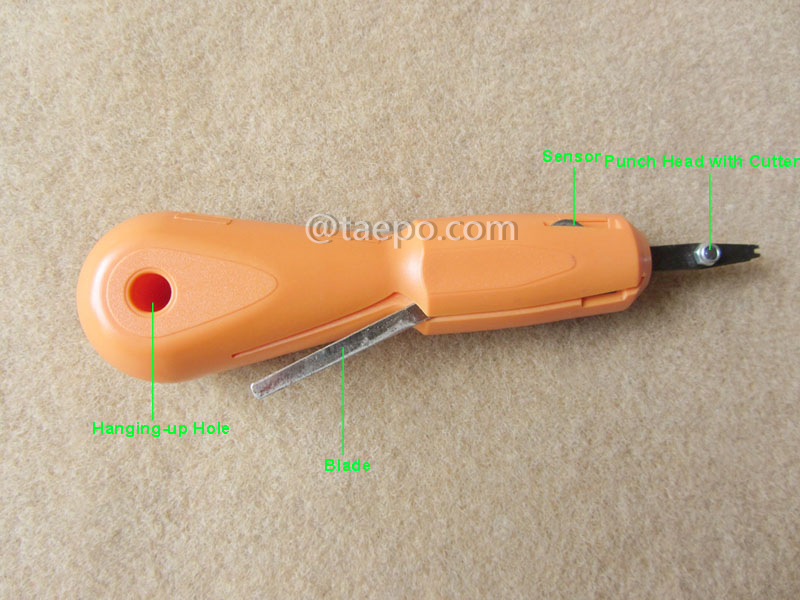

The hole of the tool can be attached to the mounting aid. A handy hook for hanging up the tool when it is not immediately being used.
The blade is non-replaceable. The hardened, nickel-plated scissors have such a long service life.
Main Features
Insulation Displacement Connection (IDC)
Easy operation
Long life use

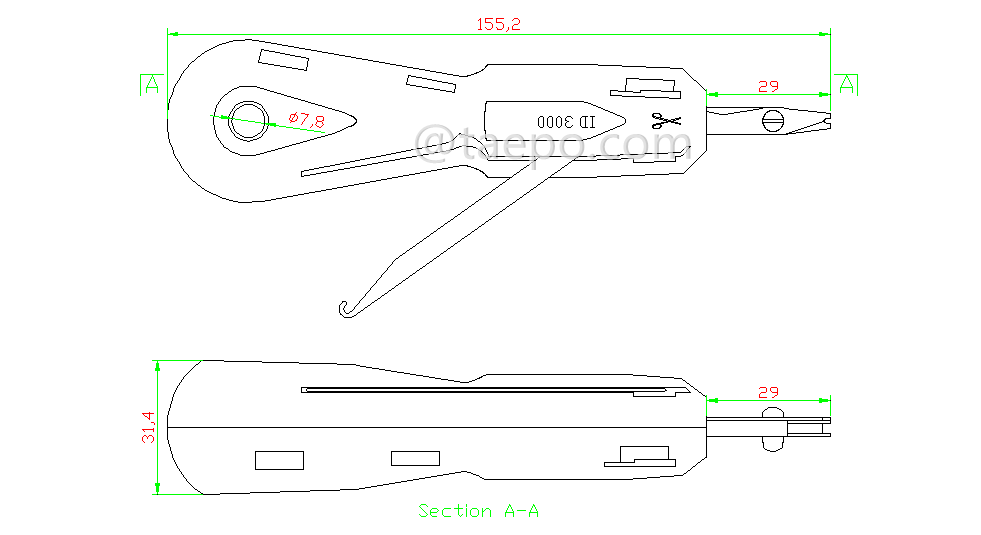

Schematic Diagrams

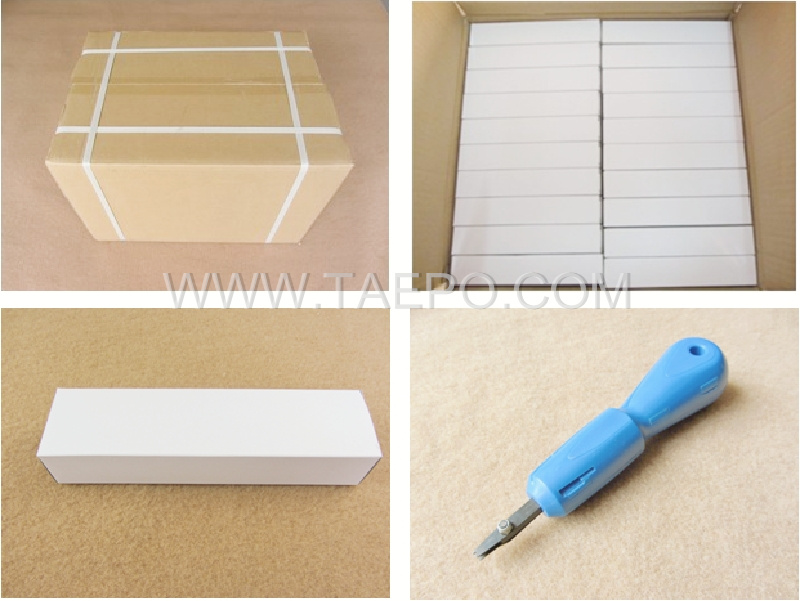

Packing Pictures
Order Data
Item No | Descriptions |
TP-5943 | Insertion comfort tool for disconnection block #TP-1402-200, scissor action |
