Insertion tool for ZT terminal block

TAEPO - Your Professional Insertion Tool for ZT Terminal Block Manufacturer in China !
What is a  Insertion Tool for ZT Terminal Block ?

    DESCRIPTIONS

TP-5938 is available for all applications where a large number of single wires must be distributed or connected. Advantage: no insulation removal, no use of screws, no soldering, extremely fast working on-site with integrated contact safety.

The Insertion Tool permits the gas-tight connection and trimming of the wire in just one single action. No stripping of wires or use of screws is required, a simple pressing of the tool is sufficient. A correctly terminated contact is indicated by an audible click.

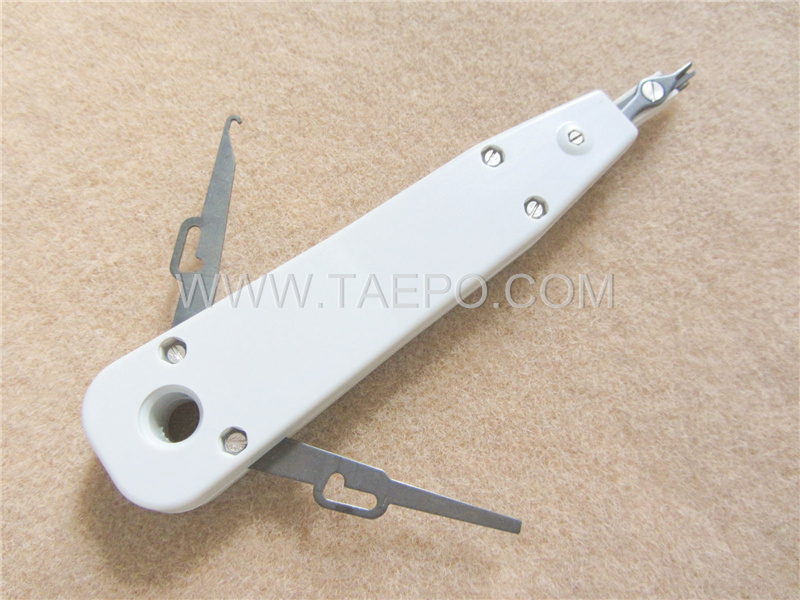

The hook can be used to remove connected wires from the contact.

Th blade is used to release modules from the back-mount frame.

The hole of the tool can be attached to the mounting aid. A handy hook for hanging up the tool when it is not immediately being used.

    MAIN FEATURES

• Insulation Displacement Connection (IDC)
• Easy operation
• Long life use

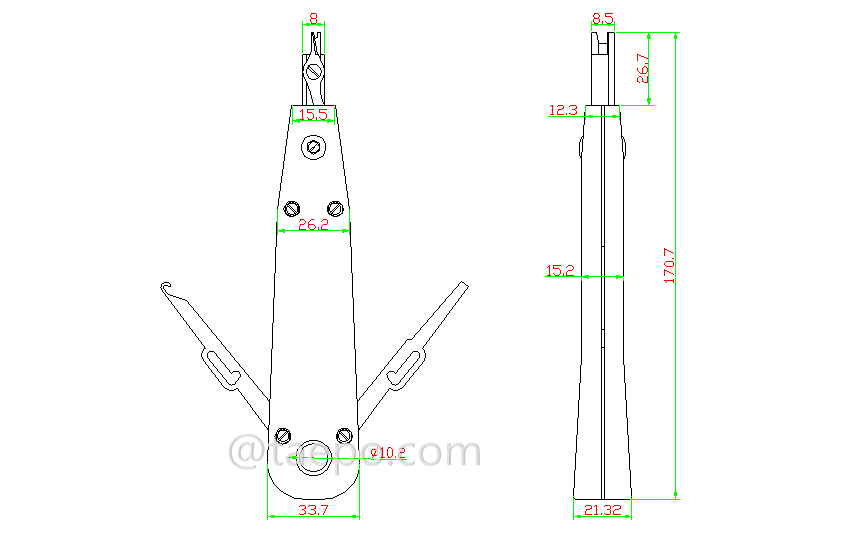

    SCHEMATIC DIAGRAMS

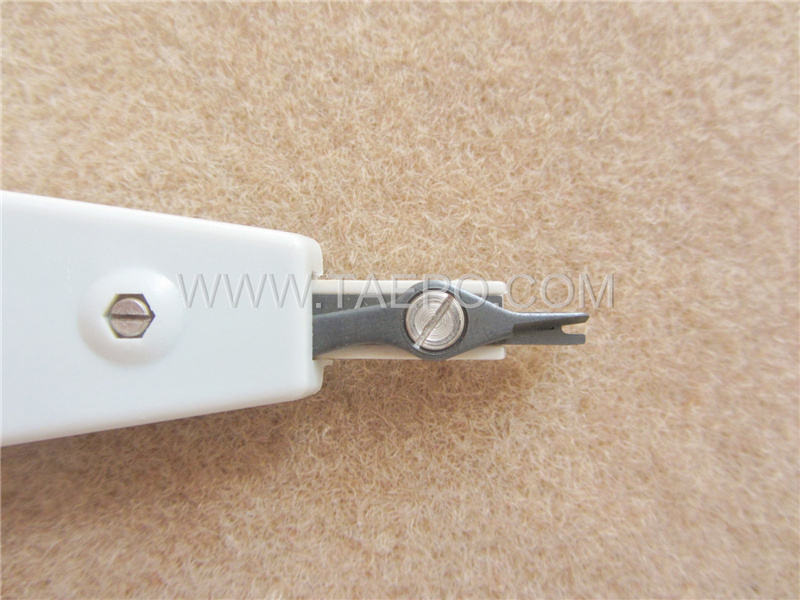

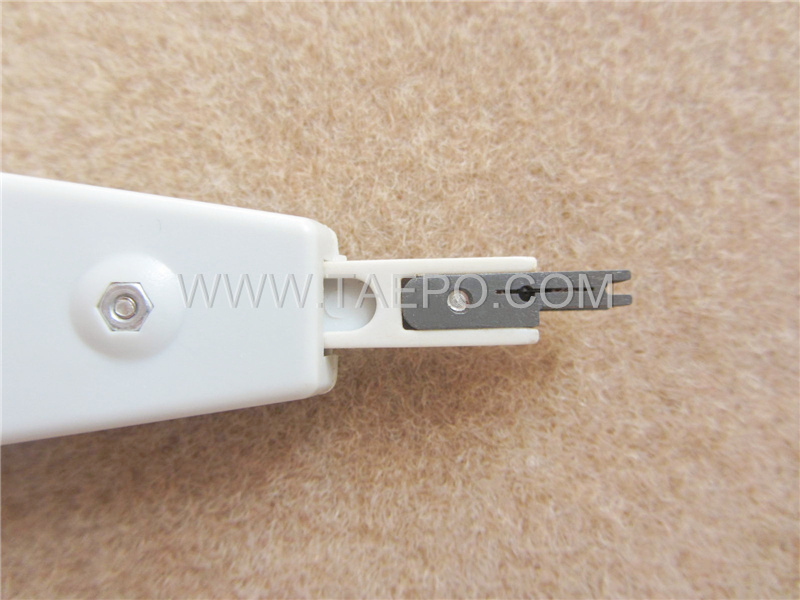

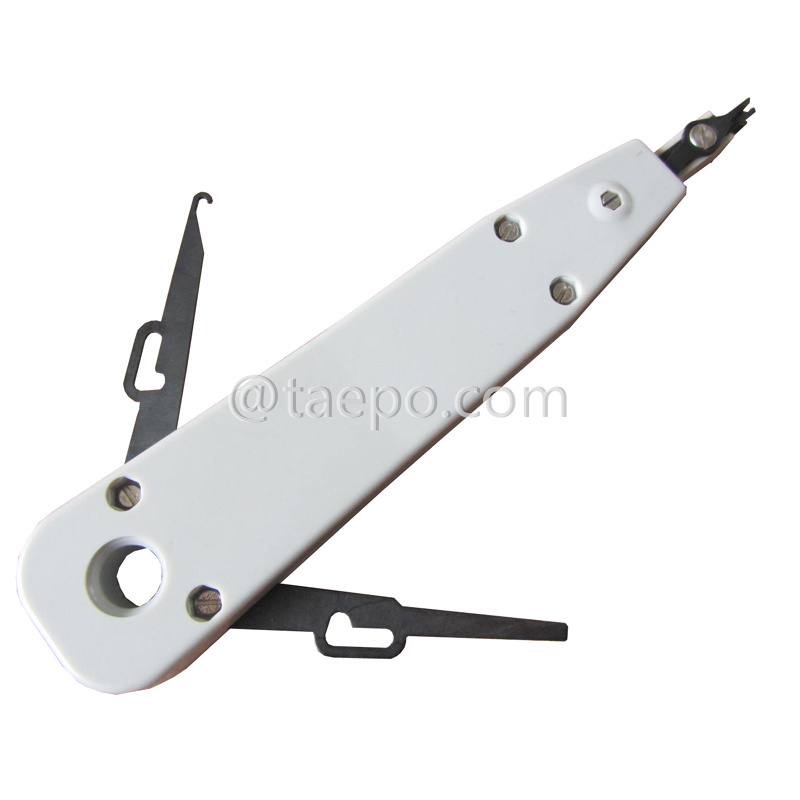

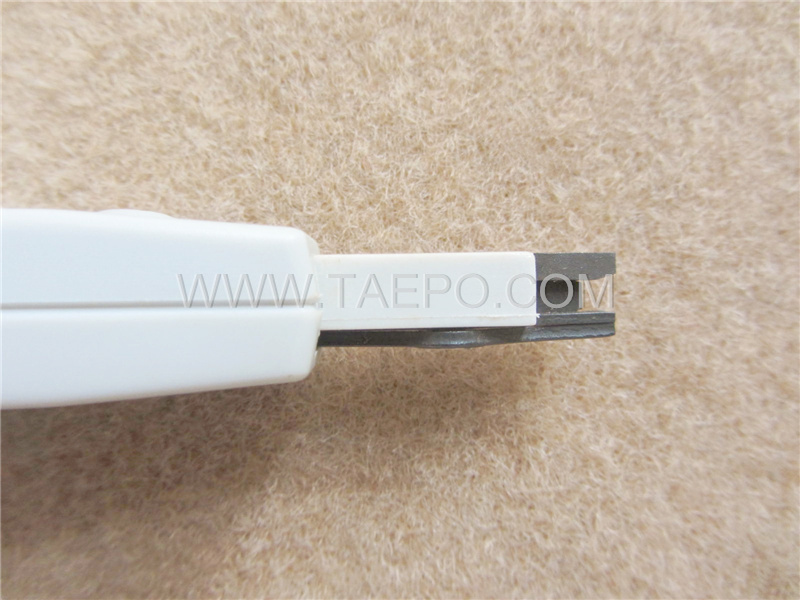

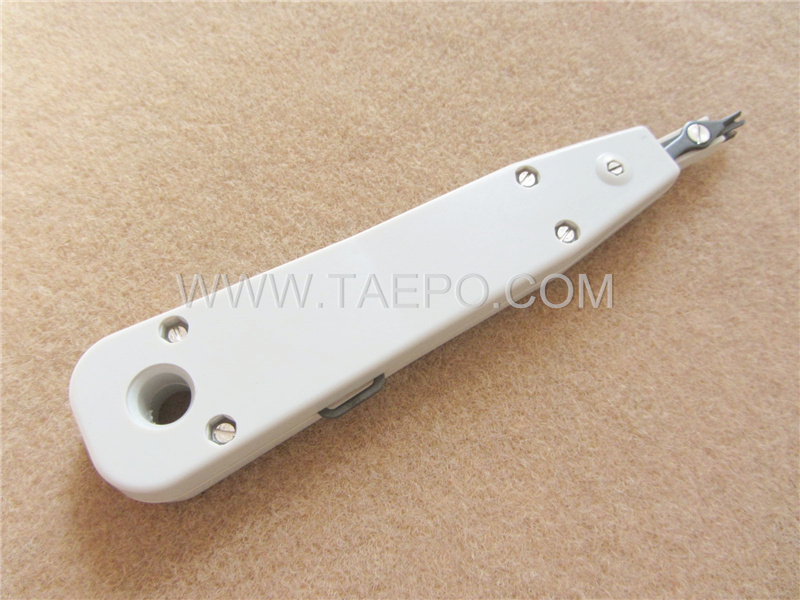

    ILLUSTRATION PICTURES

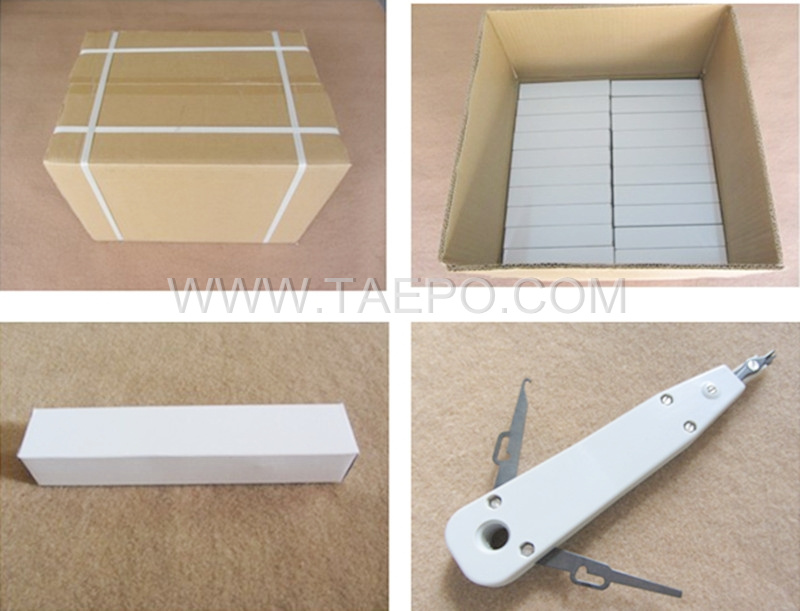

    PACKING PICTURES

    ORDER DATA
