TAEPO - Your professional 10 pairs LSA profile highband disconnection module manufacturer in China !

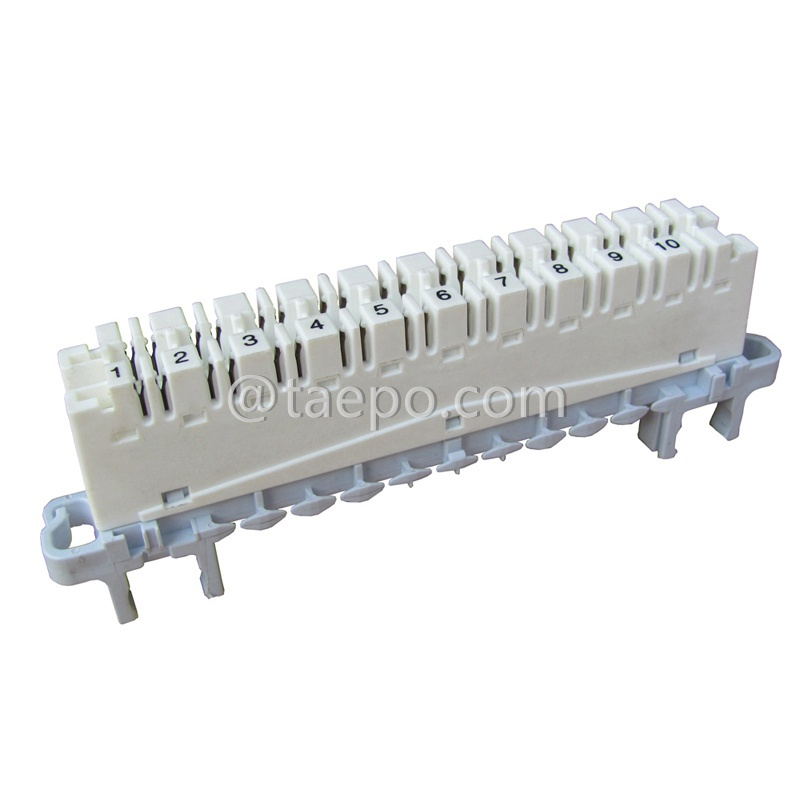

What is a 10 pairs LSA profile highband disconnection module ?
DESCRIPTIONS
10 pairs LSA profile highband disconnection modules (TP-1205-10P) are superior high speed data and voice cross connect modules. It is superior high speed data and voice cross connect modules.
The modules enable high speed LAN and WAN systems maximum headroom in transmission performance. These modules are with phosphor bronze or special brass IDC contacts with silver plating. The gas tight contacts ensure a reliable and long lasting connection. The modules can be either patched, jumpered and used in a patch by exception configuration.
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
MAIN FEATURES
- Highband Design: The module features a highband design optimized for enhanced signal transmission, allowing it to accommodate higher frequencies and increased bandwidth, making it suitable for modern high-speed communication demands.
- Insulation Displacement Contact (IDC): it is designed to make electrical connections without the need for stripping wires or using separate connectors, by using a sharp blade or wedge to penetrate the insulation of the wire and make contact with the conductor.
- Compact Size: The module is designed to be small and space-saving, making it ideal for use in crowded telecommunications cabinets or enclosures.
- High-density Connection: The 10 pairs LSA disconnection module allows for the connection of multiple cables in a single location, making it easier to manage and maintain the telecommunications infrastructure.
- Disconnection Capability: The module has a disconnection function, which allows individual cables to be disconnected without affecting other cables connected to the module.
- Easy Installation: The module can be quickly and easily installed using insetion tool by one-push and and back mount frame for modular installations.
- Excellent Conductivity: The module features a high-quality copper alloy construction that provides excellent conductivity, ensuring a strong and reliable connection.
- Durability: The LSA disconnection module is designed to be durable and withstand the rigors of daily use.
- Versatility: The LSA disconnection module can be used in a wide range of applications, including data centers, telecommunications networks, and security systems.
- Compatibility: The LSA disconnection module is compatible with a wide range of wiring systems, making it a versatile and flexible solution for many different applications.
- Profile Design: The module's profile design enhances accessibility during installation and maintenance, allowing for efficient handling and organization of connections.
- 10-pair capacity: Each module connects 10 twisted pairs, reducing space and improving organization.
- Gas-tight connection: Prevents corrosion and oxidation at contact points.
- Snap-on mounting: Fits standard DIN-rail for fast installation.
- Low insertion loss: Ensures signal strength retention across connections.
- Controlled crosstalk performance: Minimizes EMI and signal degradation.

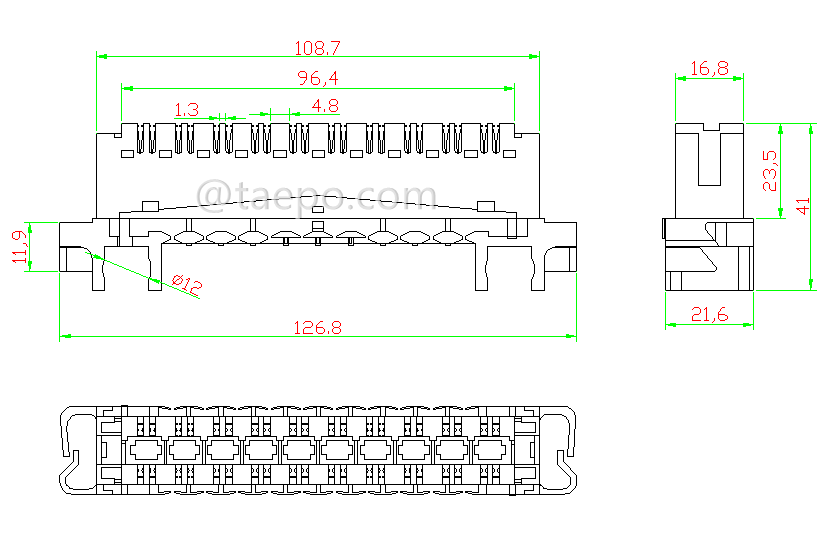

SCHEMATIC DIAGRAMS

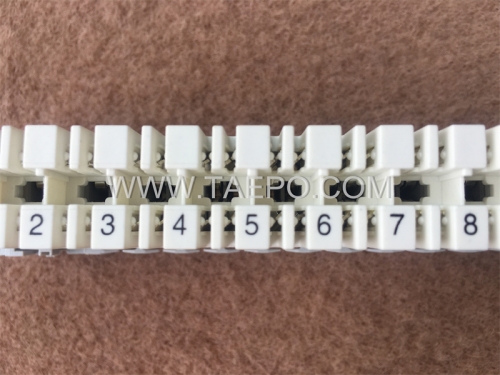

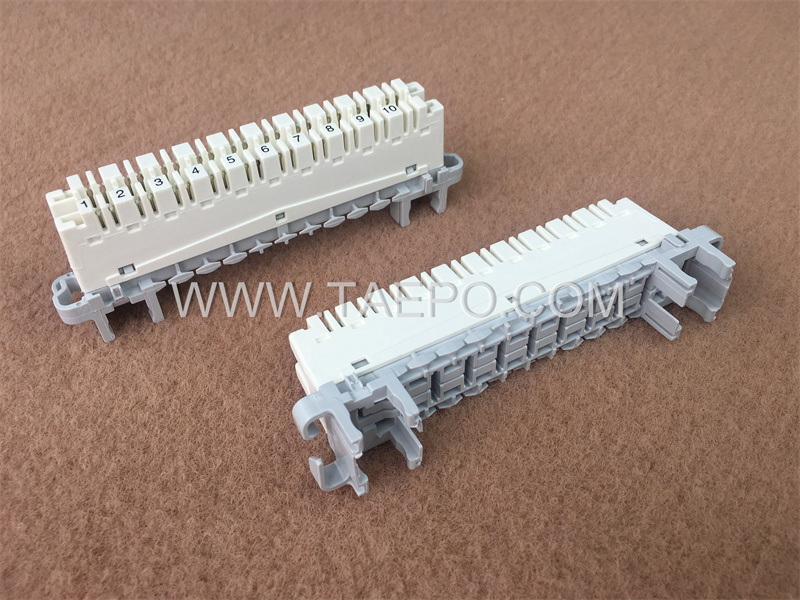

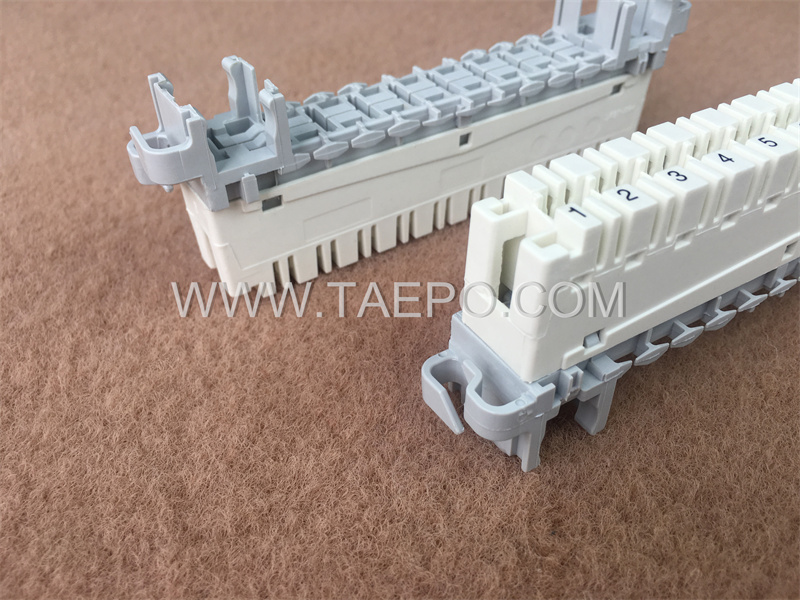

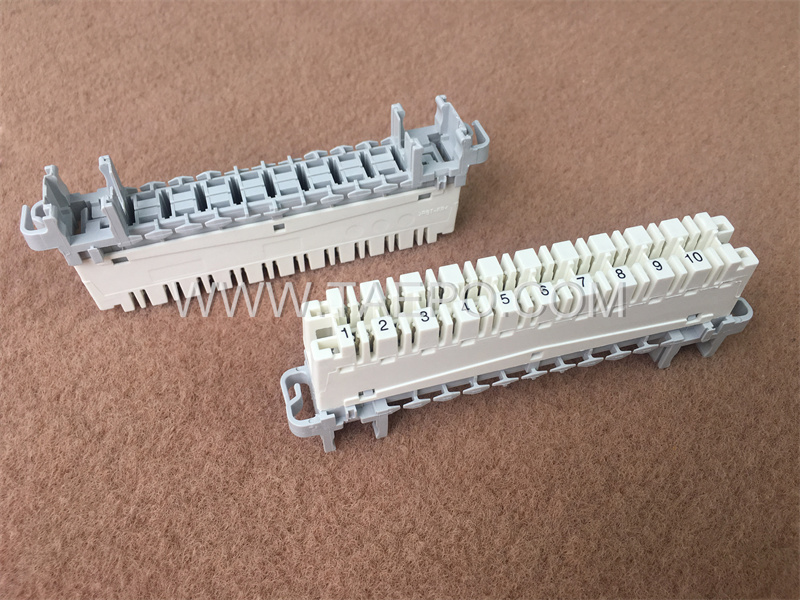

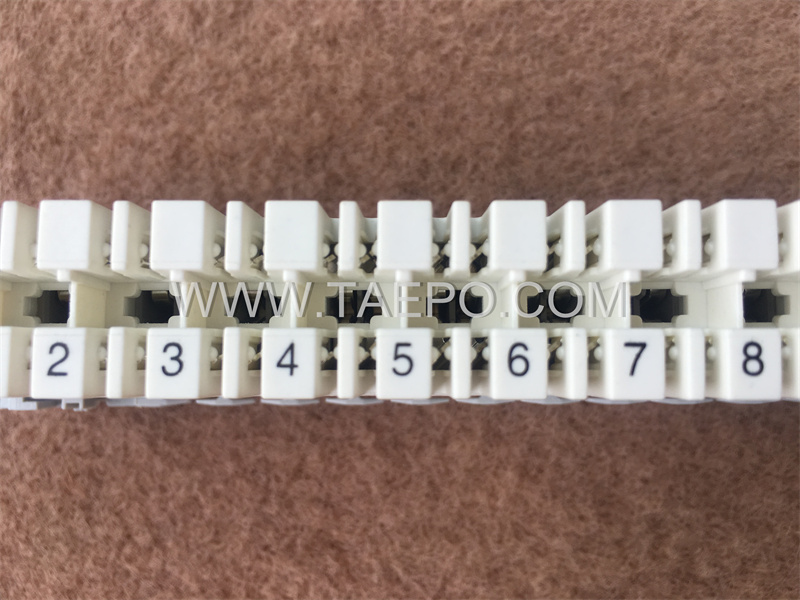

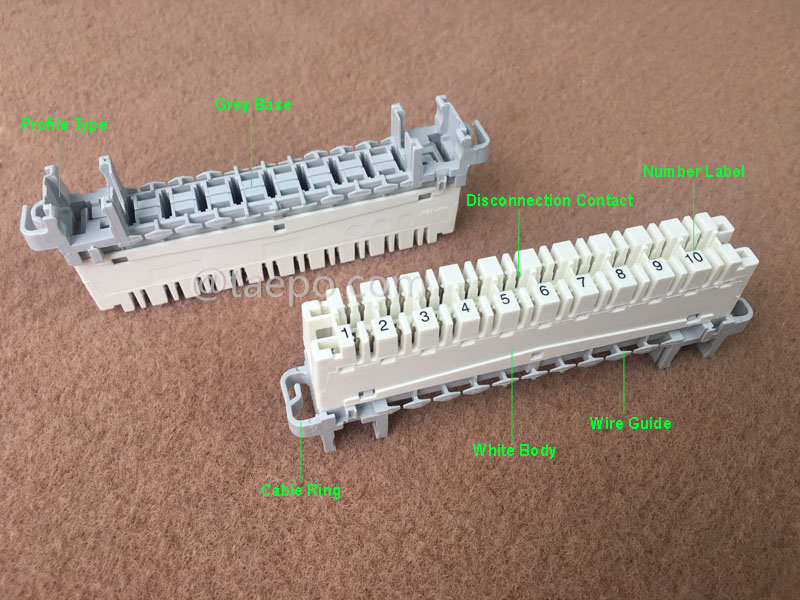

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1205-10P |
10 pairs LSA profile highband disconnection module |
