What Is a 10 Pairs LSA Profile Connection Module ?
DESCRIPTIONS
10 pairs LSA profile connection module (TP-1202-10P) is used throughout the distribution level, in the main distribution frame (MDF), in the cross connection cabinet (CCC) and in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
LSA connection modules use a normally one-piece contact, thus only having the function of connection instead of disconnection performances.
The LSA connection module consists of a plastic or metal housing with multiple slots for inserting copper wires. Each slot can accommodate a single wire and is designed to hold the wire securely in place with a spring-loaded clamp. The clamp is typically made of a sharp blade that cuts through the wire insulation to establish contact with the conductive wire core.
The 10 pairs LSA connection module is designed to handle up to ten pairs of copper wires, which are commonly used in telecommunications applications. The module is typically mounted on a badk mount frame, the copper wires are inserted into the slots on the module, and the spring-loaded clamps establish a secure connection between the wires and the terminal block.
MAIN FEATURES
- Insulation Displacement Contact (IDC): it is designed to make electrical connections without the need for stripping wires or using separate connectors, by using a sharp blade or wedge to penetrate the insulation of the wire and make contact with the conductor.
- Compact Size: The module is designed to be small and space-saving, making it ideal for use in crowded telecommunications cabinets or enclosures.
- High-density Connection: The 10 pairs LSA disconnection module allows for the connection of multiple cables in a single location, making it easier to manage and maintain the telecommunications infrastructure.
- Easy Installation: The module can be quickly and easily installed using insetion tool by one-push and and back mount frame for modular installations.
- Excellent Conductivity: The module features a high-quality copper alloy construction that provides excellent conductivity, ensuring a strong and reliable connection.
- Durability: The LSA disconnection module is designed to be durable and withstand the rigors of daily use.
- Compatibility: The LSA disconnection module is compatible with a wide range of wiring systems, making it a versatile and flexible solution for many different applications.
- Profile Design: The module's profile design enhances accessibility during installation and maintenance, allowing for efficient handling and organization of connections.

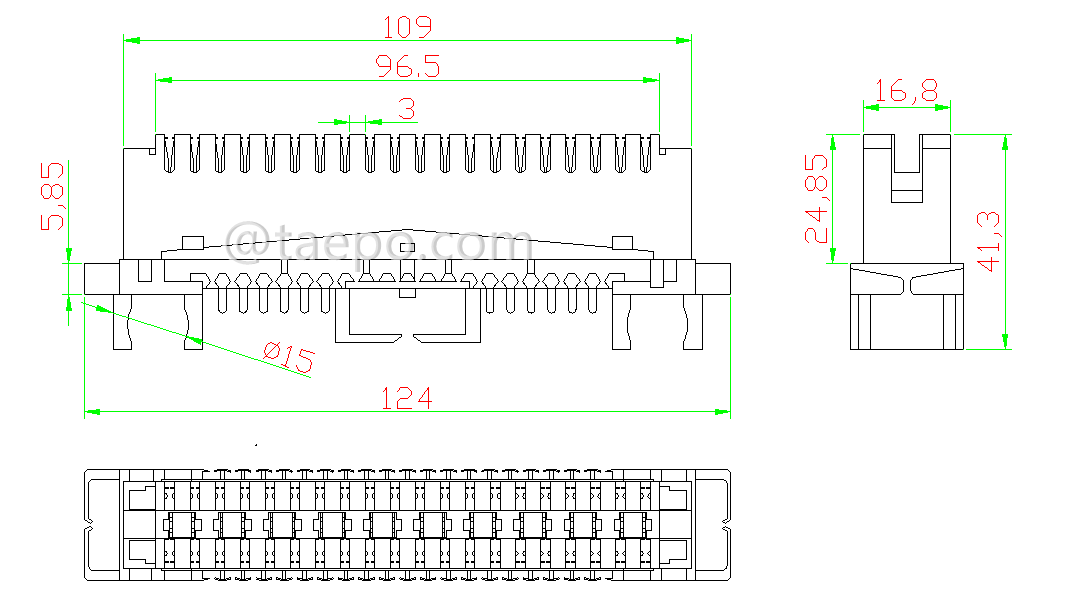

SCHEMATIC DIAGRAMS

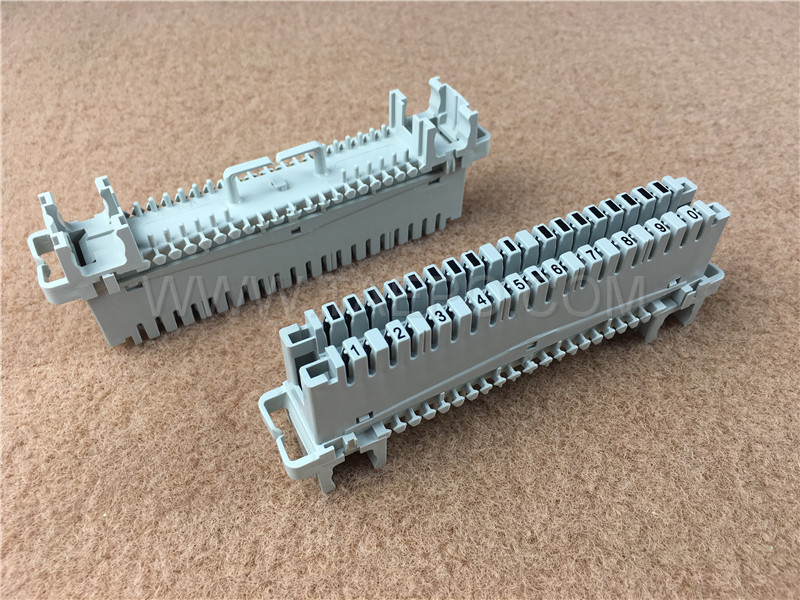

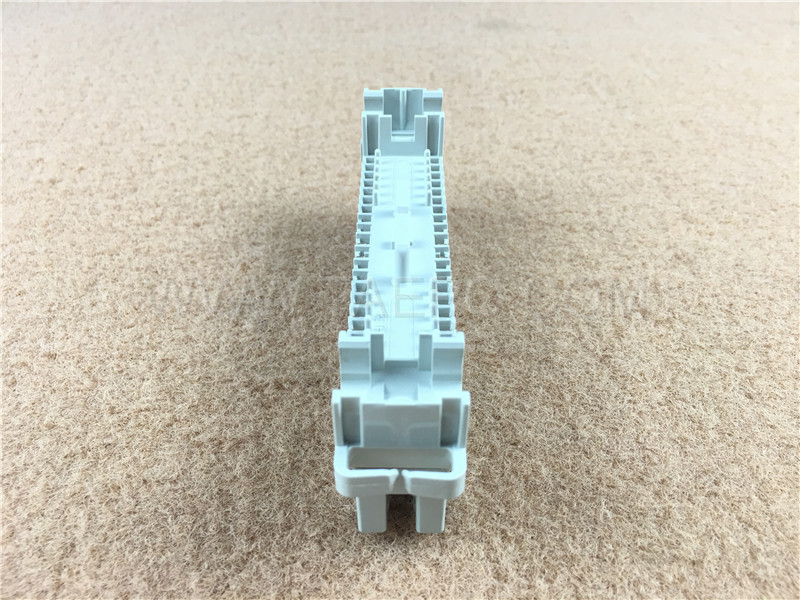

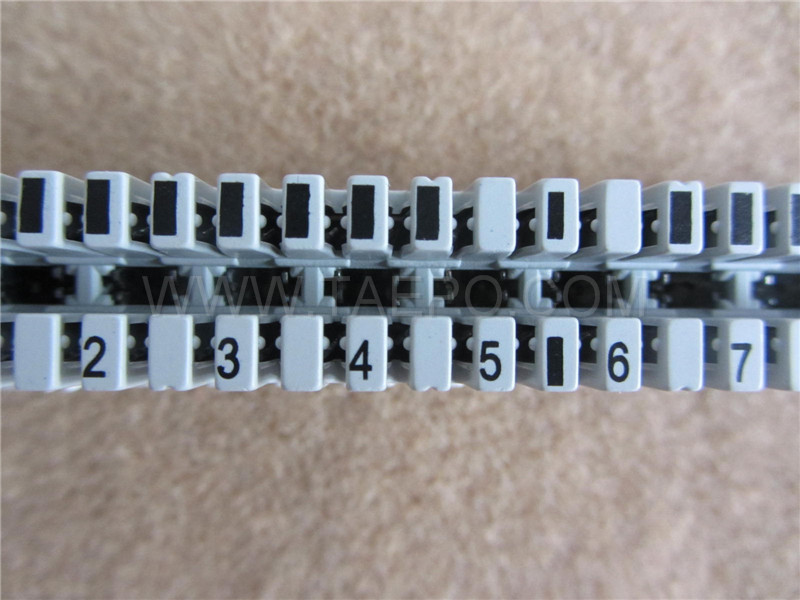

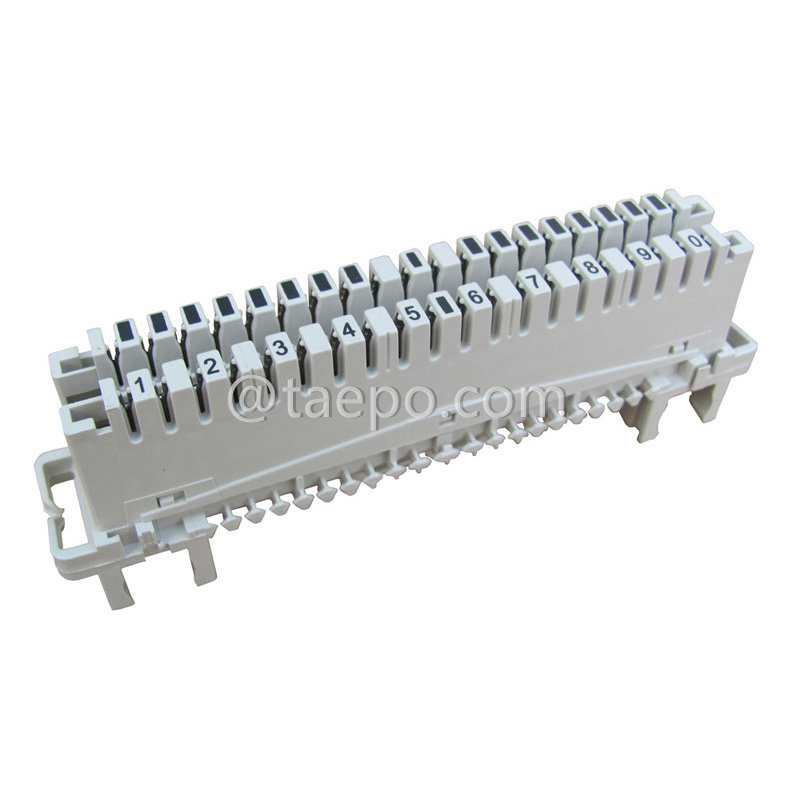

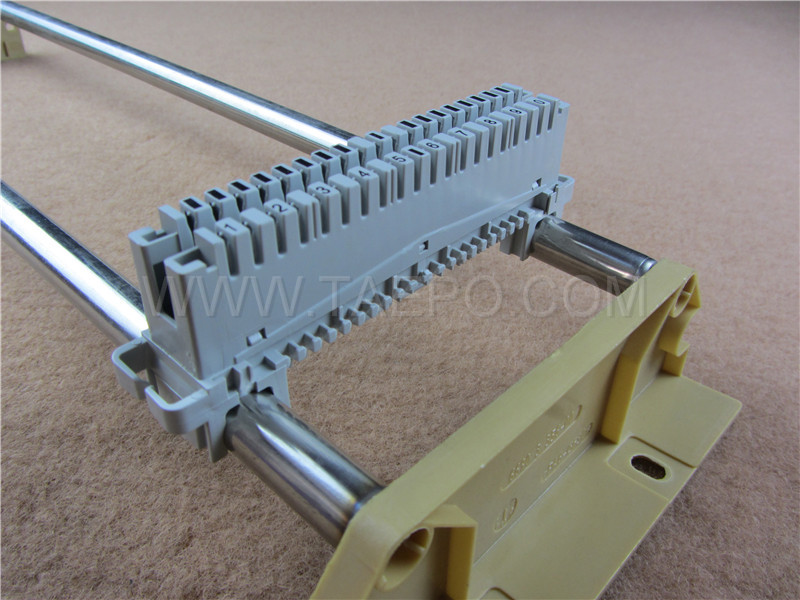

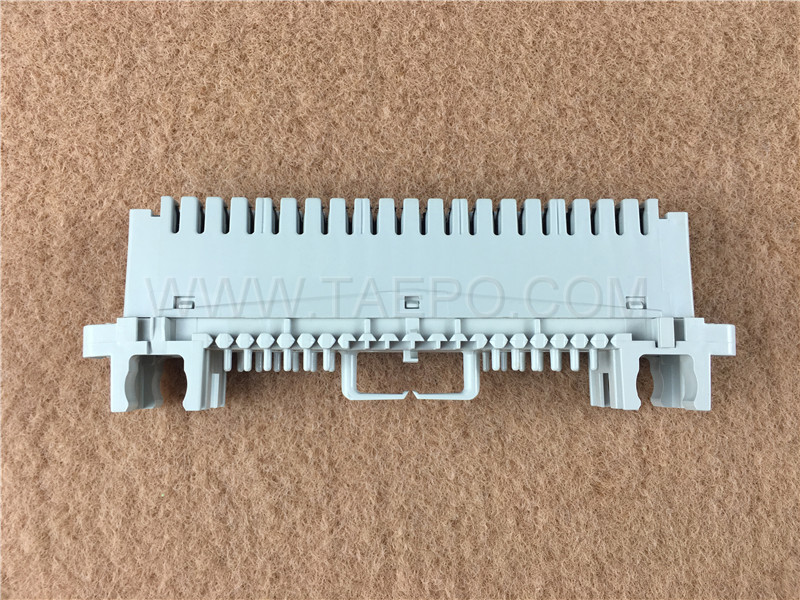

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
|
Item No
|
Descriptions
|
|
TP-1202-10P
|
10 pairs LSA profile connection module
|
