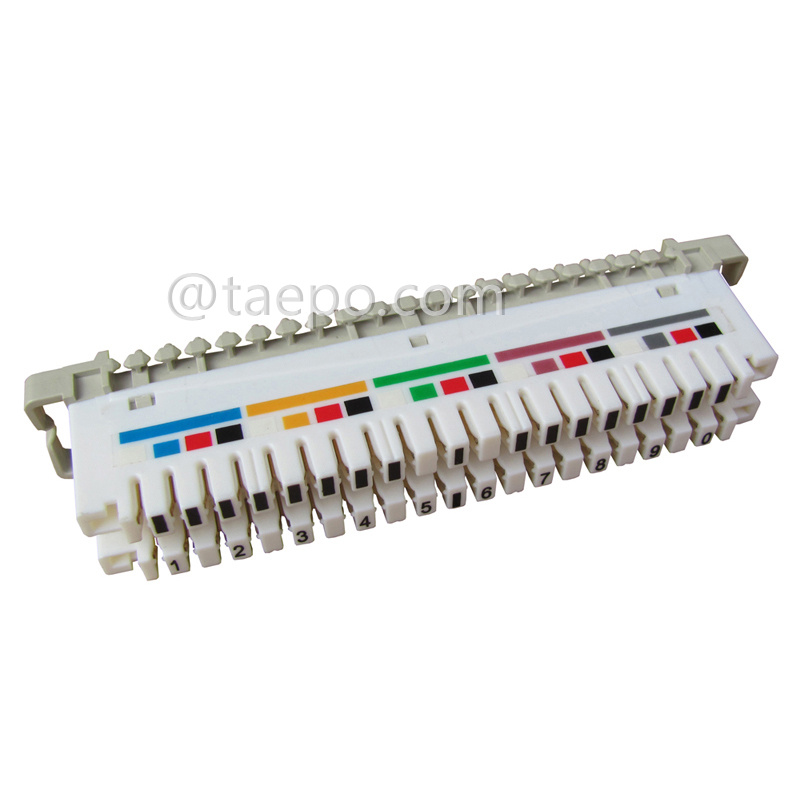

Krone 10 pair lsa plus disconnection module with color label

What is a Disconnection module ?

    Descriptions

TAEPO -Your Professional Lsa Plus Module Manufacturer
Series of IDC Lsa module, Get the Competitive Price from TAEPO Now!

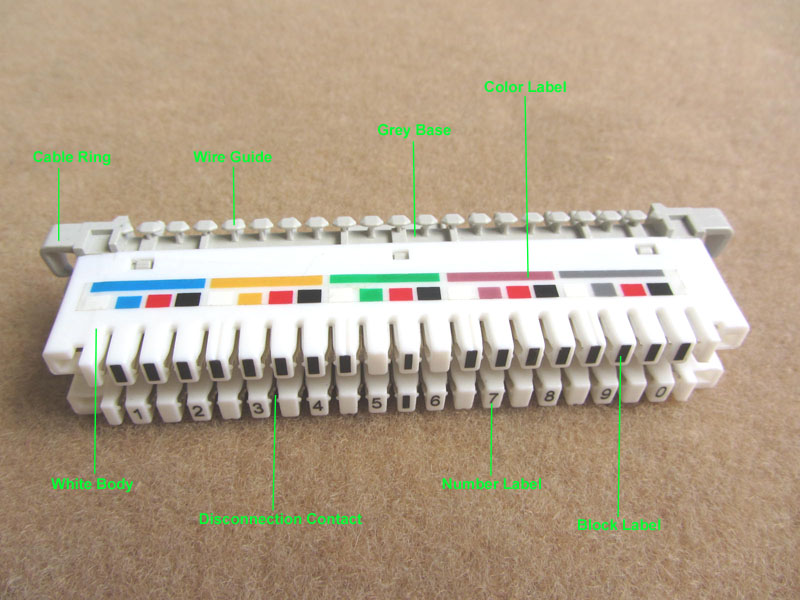

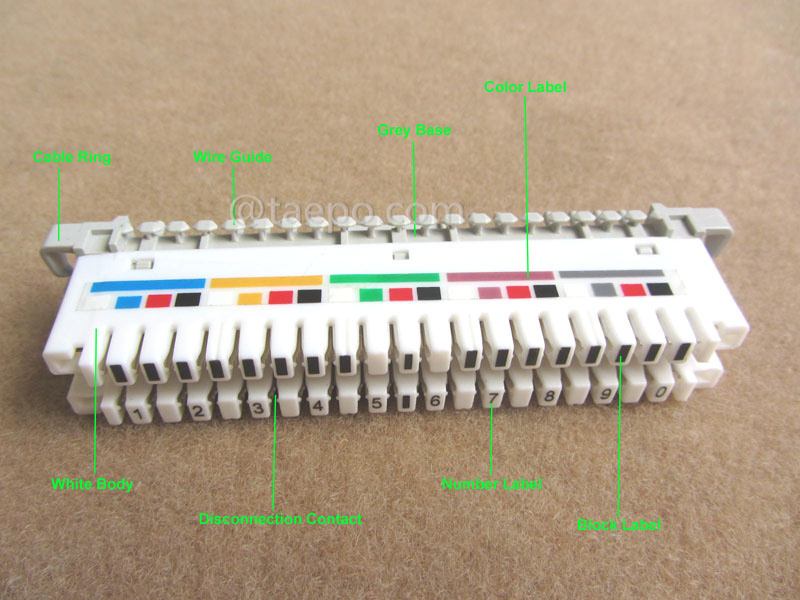

Krone lsa plus 10 pair disconnection module with color label (TP-1201-10CL) is used throughout the distribution level,
in the main distribution frames (MDF, You can visit our item TP-1418-50A here),
in the cross connection cabinets (CCC, You can visit our item TP)-1803-1200 here )
or in the distribution point boxes ((DP box, You can visit our Product Category here ) .

It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.

It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

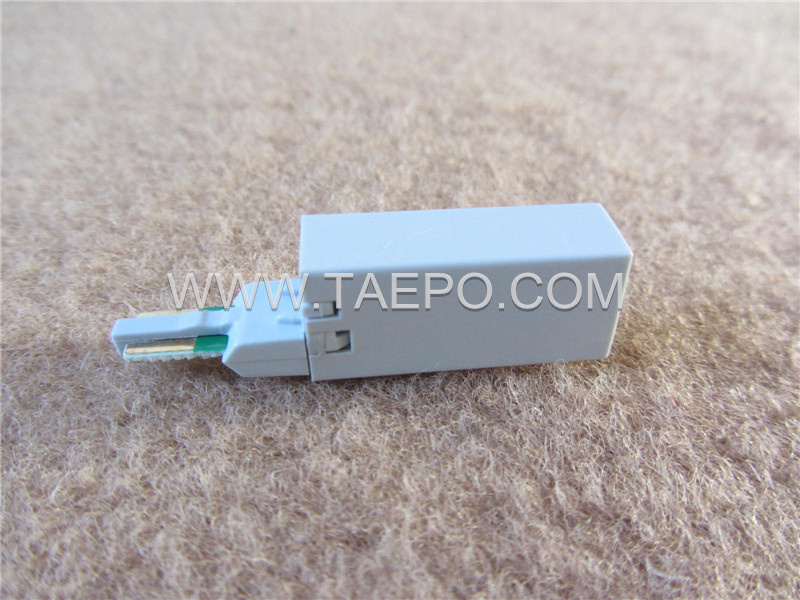

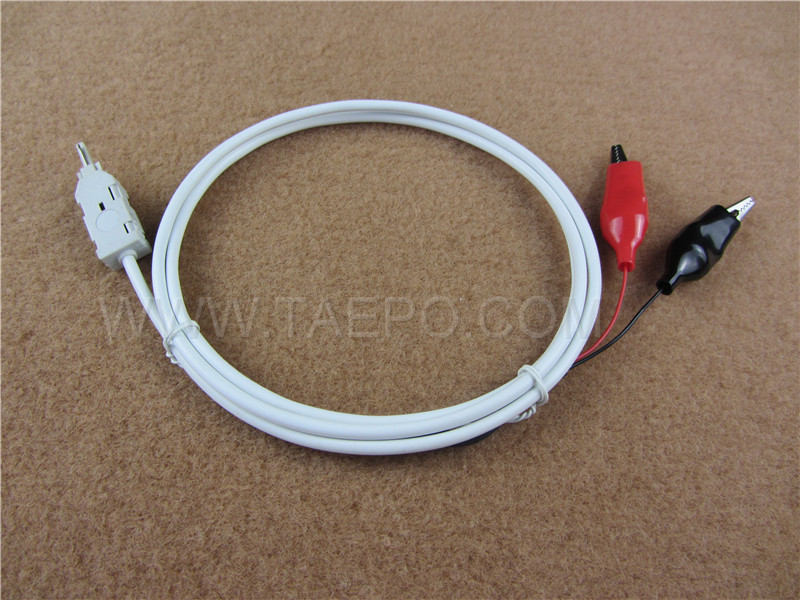

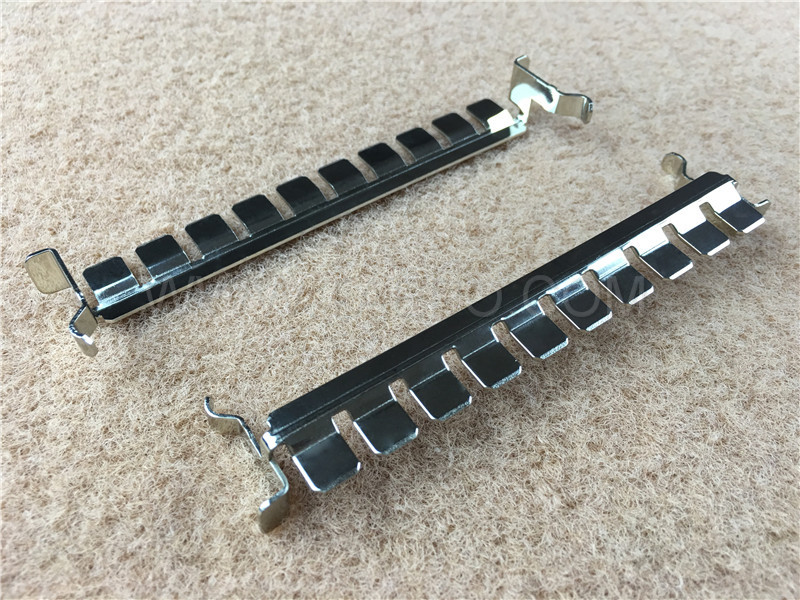

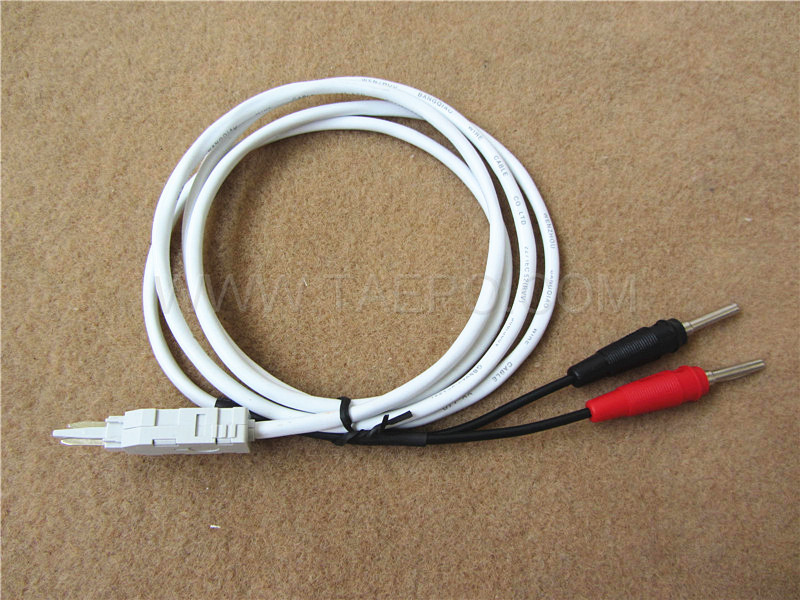

Krone 10 pair disconnection module use a normally closed two piece contact, with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test cord ( You can vist our Product Category here  )   can be inserted into a pair to test each side of the circuit independently. This greatly accelerates fault identification. The center contact point can also be used for overvoltage or current protection.

    Main Features

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use

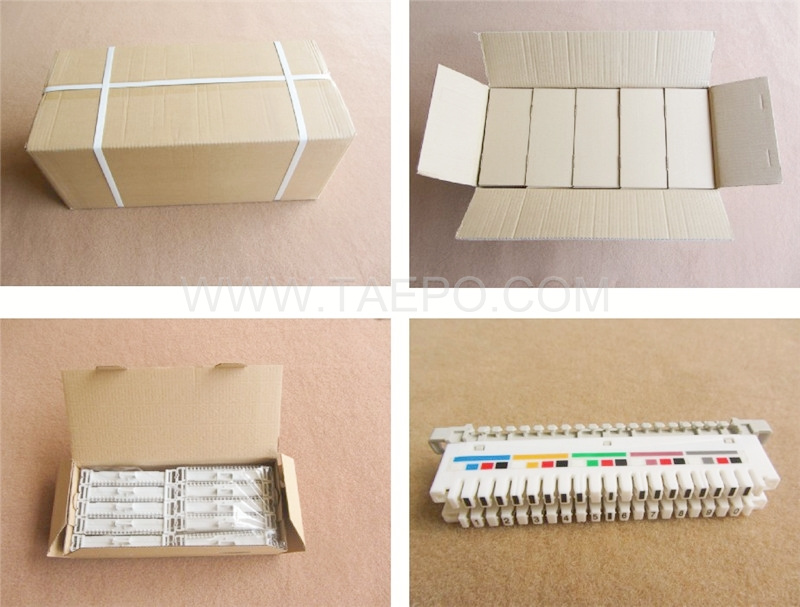

    Packing Pictures

    Order Data
