Fiber distribution box (FDB), outdoor, SC, 16 fibers, plastic housing

TAEPO - Your Professional 16 Fiber Optic Distribution Box (FDB) Manufacturer in China !
What does Fiber Optic Distribution Box do?


    DESCRIPTIONS

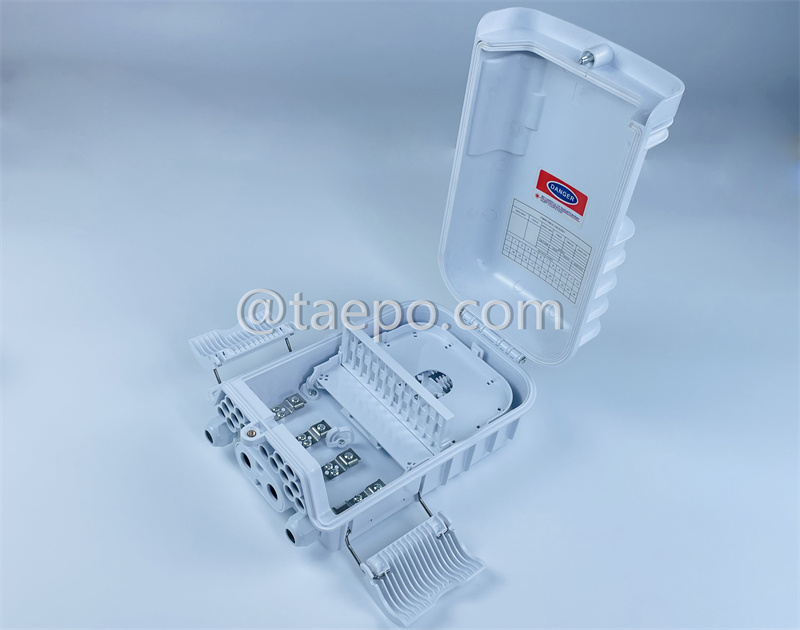

The fiber distribution box (TP-3235-16) is a high-quality outdoor enclosure designed for the distribution and protection of optical fiber cables in harsh environments. It can support up to 16 fiber connections using SC adapters, offering a reliable solution for connecting multiple fiber optic cables in a telecommunications or network setting. This particular model comes with or without adapters and pigtails, giving users the flexibility to configure the box according to their specific needs. Its sturdy plastic housing ensures resistance against environmental factors, making it suitable for external installations.

With dimensions of 280x180x105mm, this FDB is compact yet spacious enough to accommodate the necessary fiber connections and associated hardware. Its IP65-rated protection ensures dust-tight performance and resistance to water ingress, safeguarding internal components in outdoor conditions. The FDB is also equipped with a secure locking mechanism, protecting against unauthorized access while ensuring easy maintenance. Ideal for fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and other outdoor fiber optic distribution applications.

This 16-fiber FDB is easy to install, with multiple cable entry and exit points, providing versatility in a range of installation environments. Its modular design enables efficient management of fiber routing, minimizing the risk of bending or breaking fibers while ensuring optimal signal performance.

    MAIN FEATURES

• 16 Fiber Capacity: Supports up to 16 SC fiber connections for flexible networking needs.
• Plastic Housing: Durable, lightweight plastic ensures longevity in outdoor environments.
• Compact Dimensions: Measuring 280x180x105mm, it offers a balance between space and functionality.
• Optional Adapters or Pigtails: Allows for custom configuration based on installation requirements.
• IP65 Rated: Provides excellent protection against dust and water ingress, ideal for outdoor use.

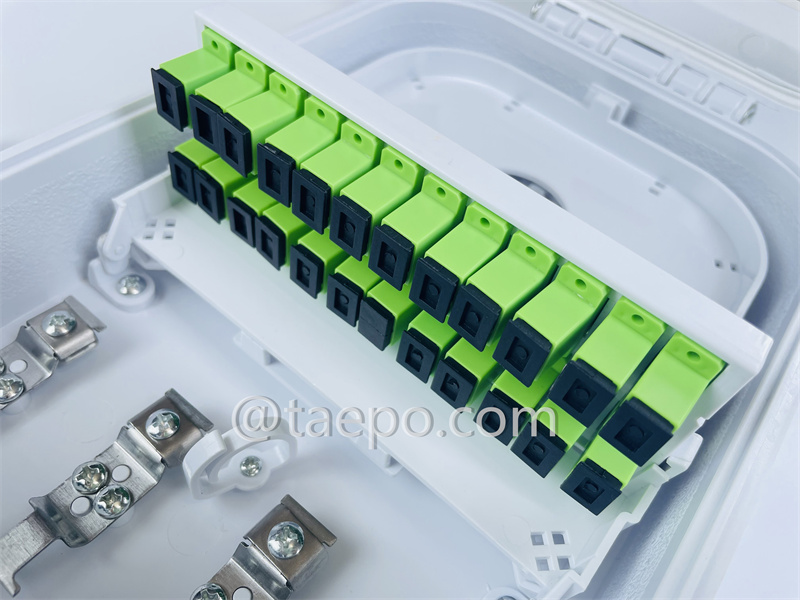

• SC Adapter Support: Designed for SC adapters, which are widely used in fiber optic networks.

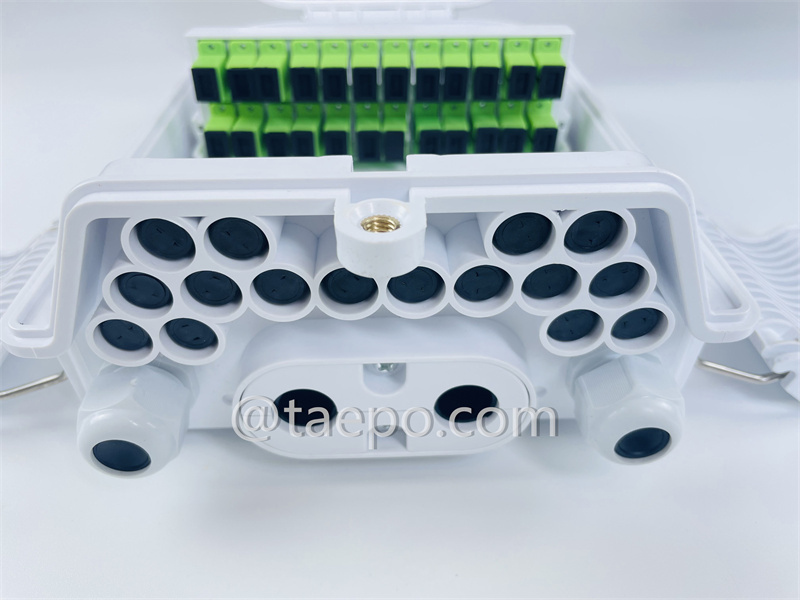

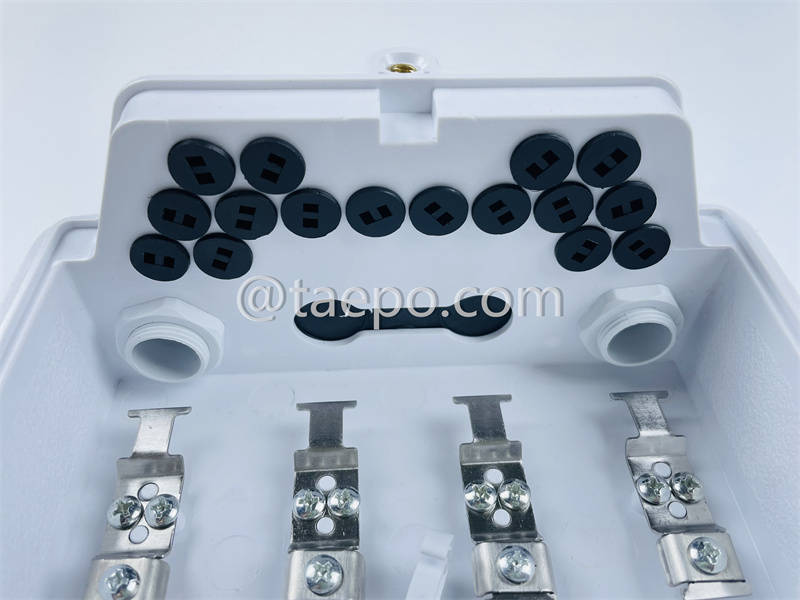

• Multiple Cable Entry Points: Allows for versatile cable management and connection options.
• Wall or Pole Mountable: Can be easily installed on walls or poles for flexible deployment.
• Secure Locking Mechanism: Protects internal components from unauthorized access.
• UV Resistant: The housing material resists UV radiation, preventing degradation over time.
• Splicing Tray Included: Equipped with a splicing tray for efficient fiber management and splicing.
• Cable Management System: Internal cable guides and holders help organize fibers and avoid tangling.
• Shock Resistant: Built to withstand physical impact, ensuring durability in rugged environments.

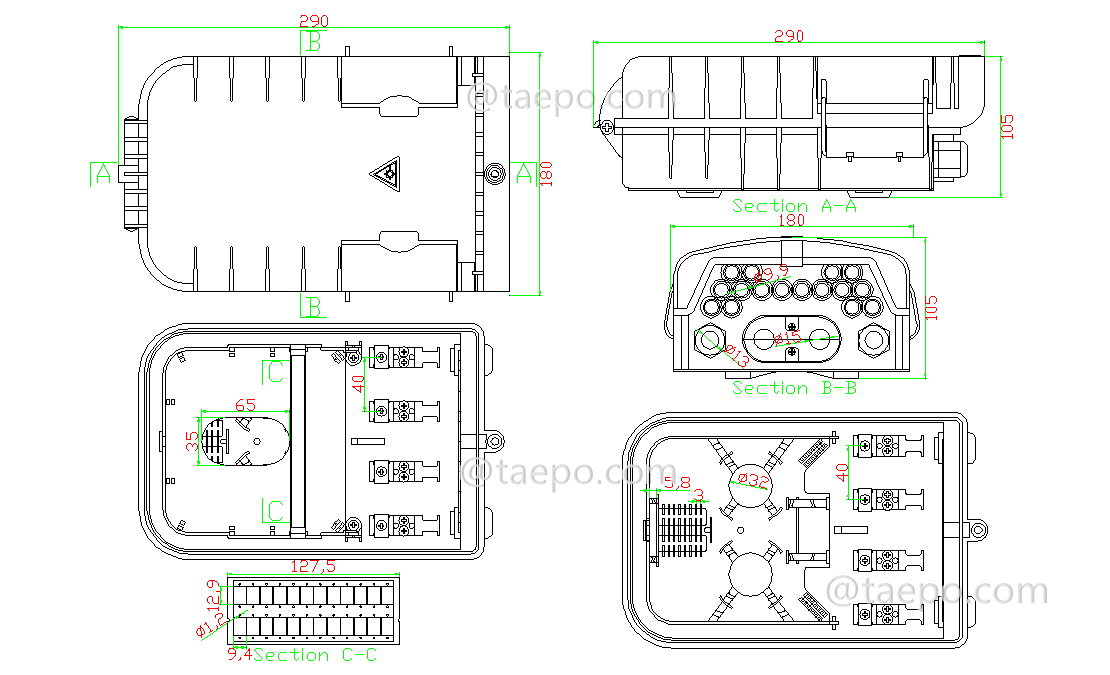

    SCHEMATIC DIAGRAMS

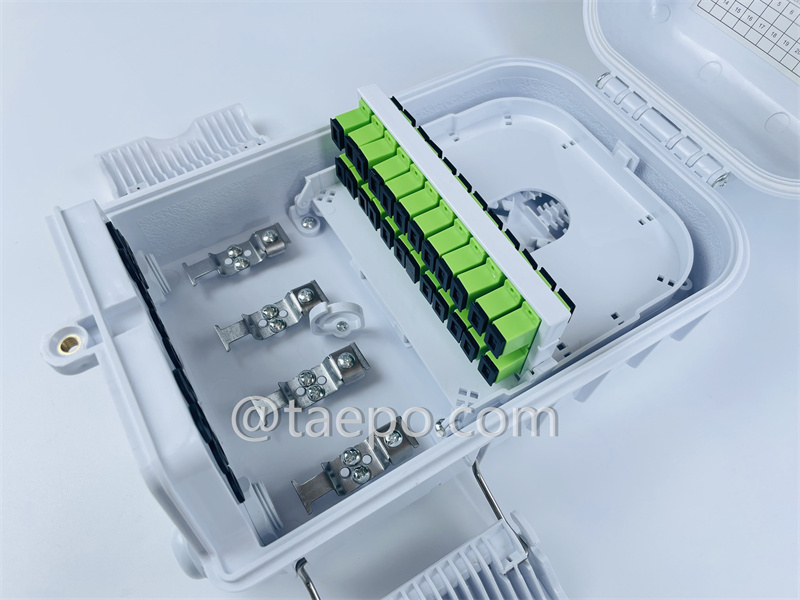

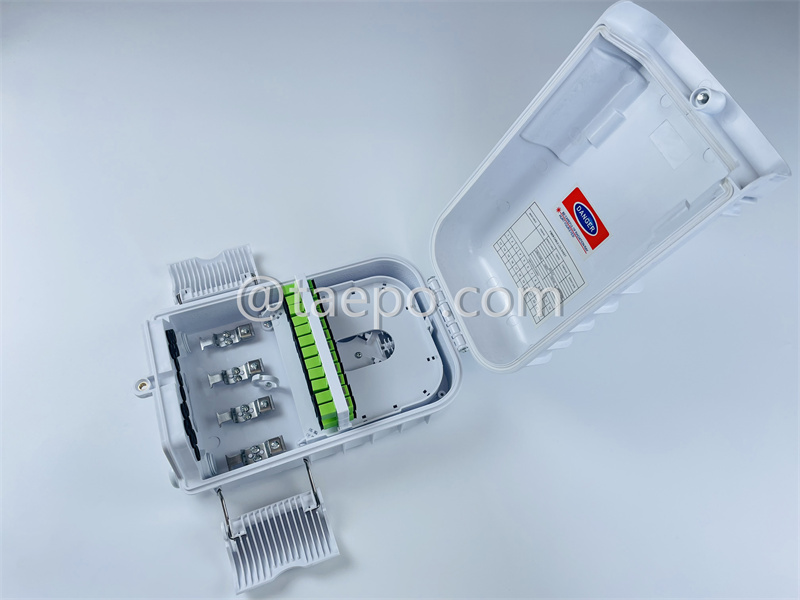

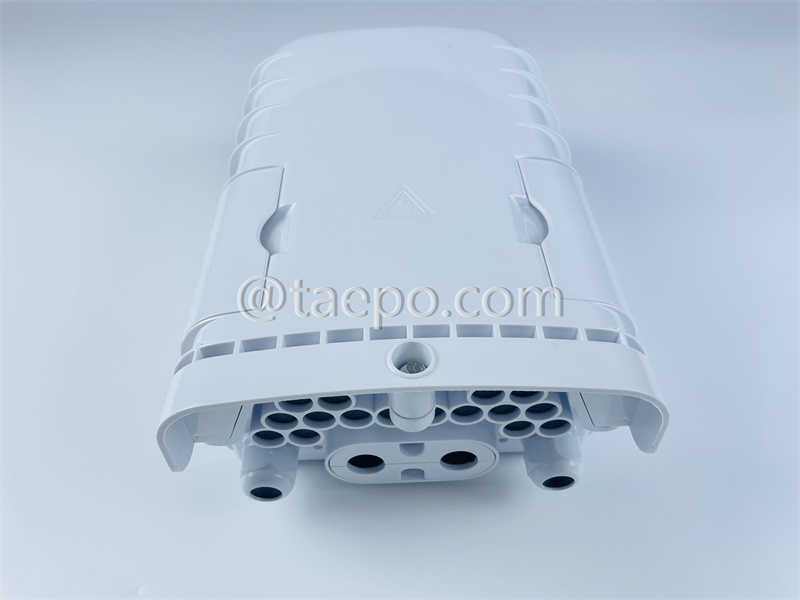

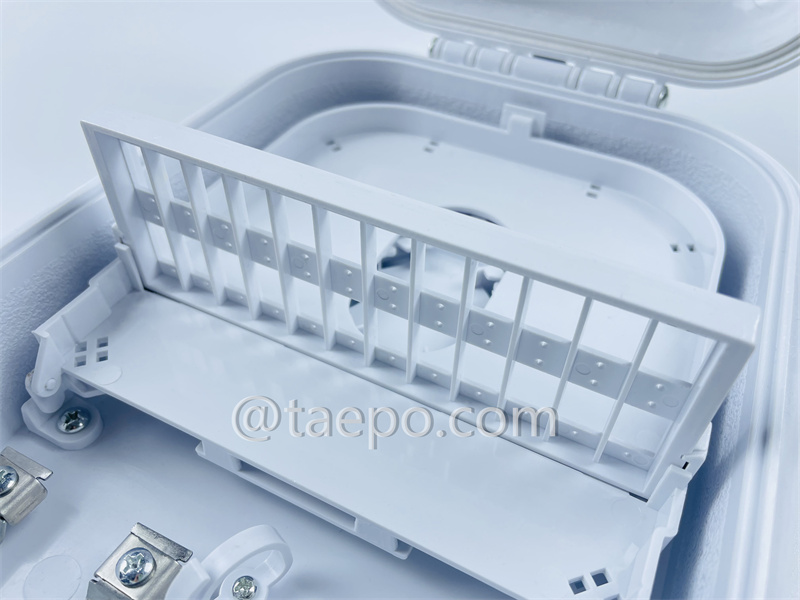

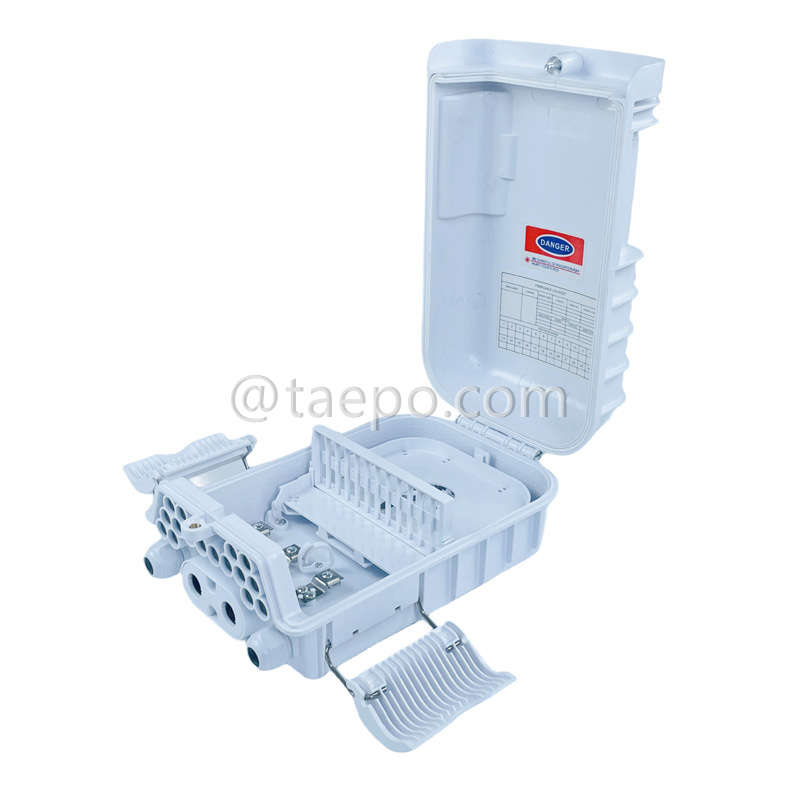

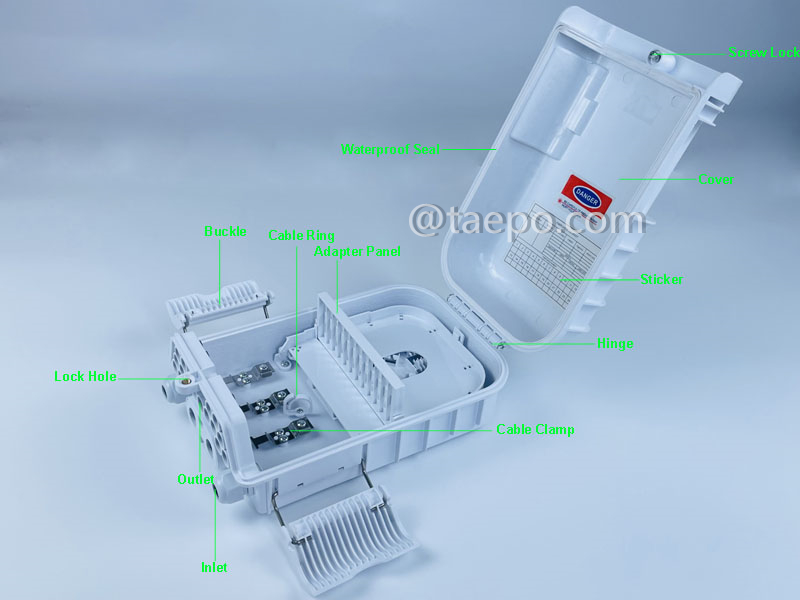

    ILLUSTRATION PICTURES

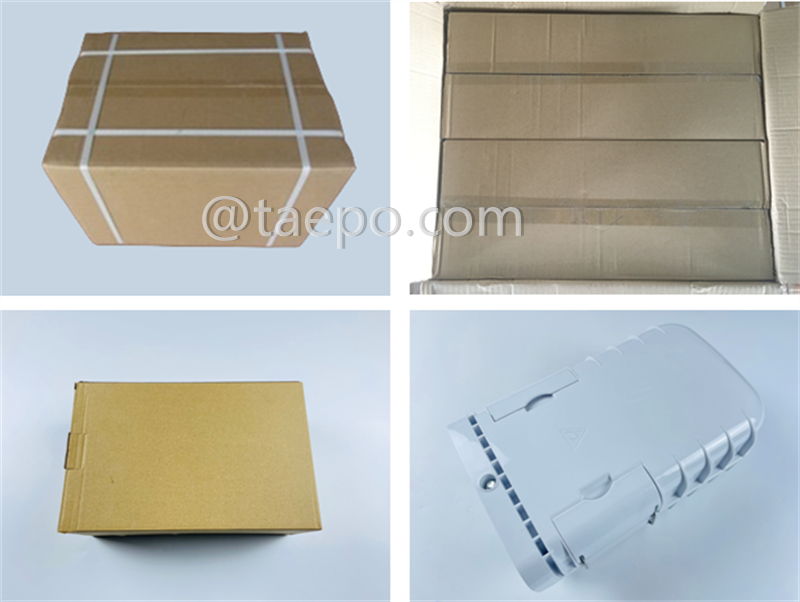

    PACKING PICTURES

    ORDER DATA
