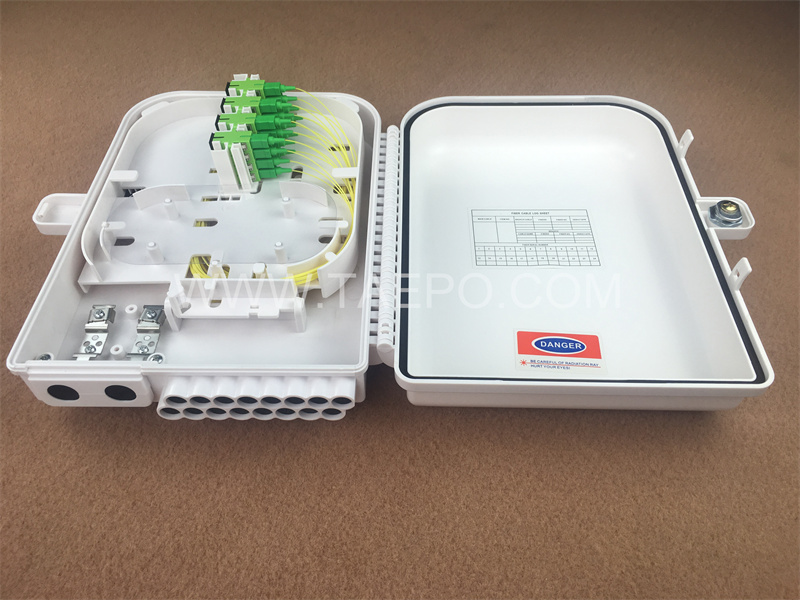

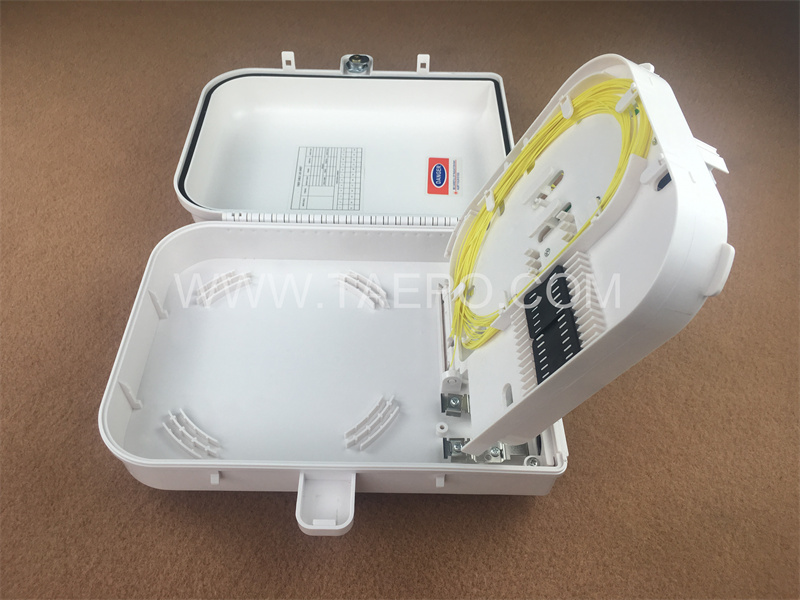

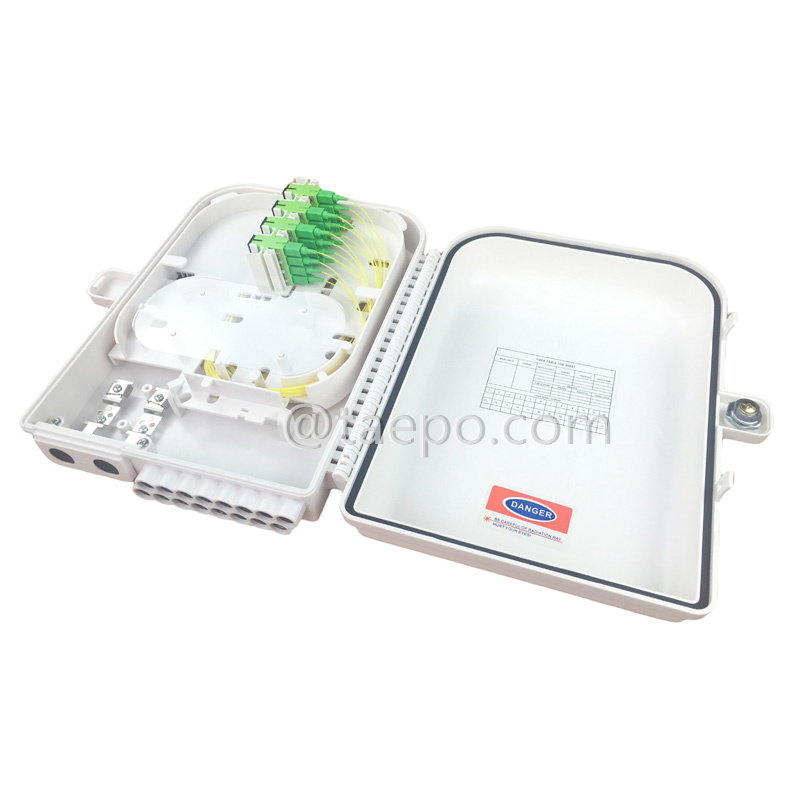

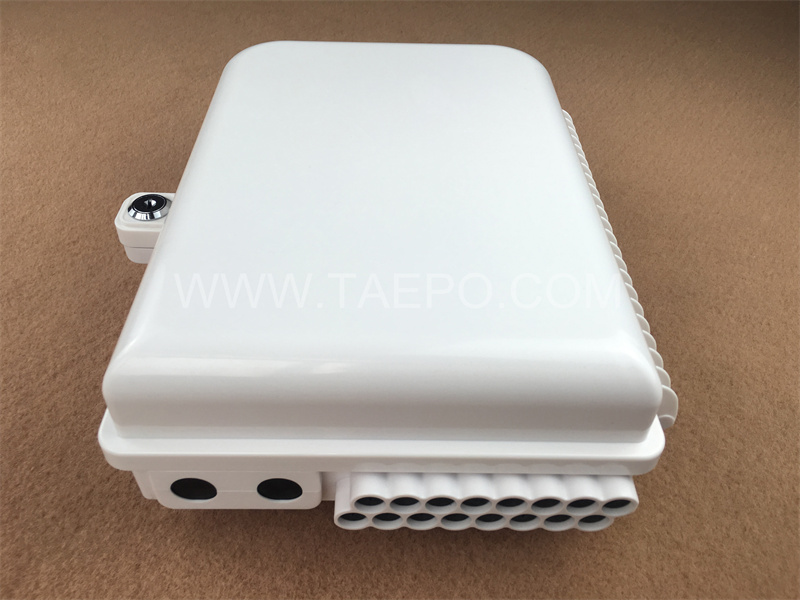

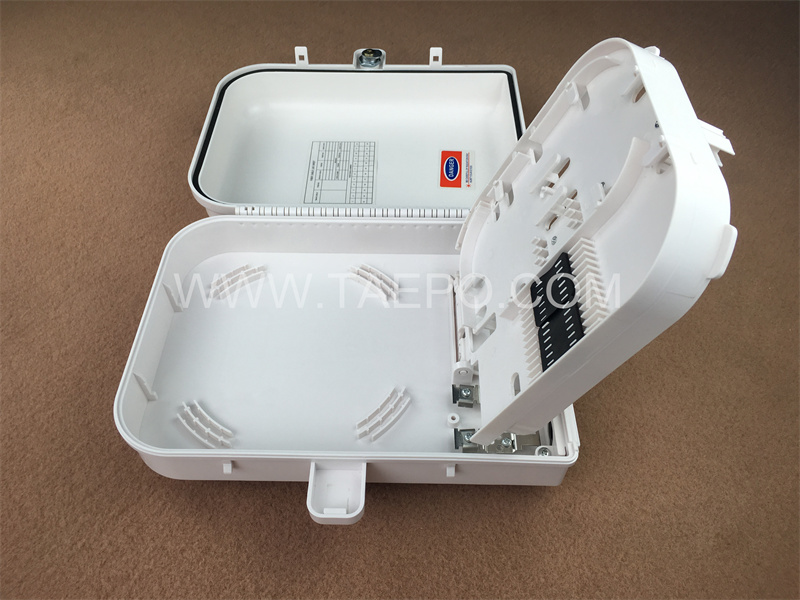

Fiber distribution box (FDB), outdoor, SC, 16 fibers, plastic housing

TAEPO - Your Trusted Chinese Manufacturer of Fiber Optic Distribution Box (FDB) with Professional Expertise !
What does Fiber Optic Distribution Box (FDB) mean?


    DESCRIPTIONS

The outdoor fiber distribution box (TP-3225-16-C) is a crucial component in fiber optic networks, designed for the distribution and protection of optical fibers in telecommunications, broadband, and FTTH (Fiber to the Home) installations. This specific model is capable of managing up to 16 SC connectors, providing a safe and organized environment for fiber splicing and cable management. Its compact design, with dimensions of 300x220x90mm, allows for easy installation on walls or poles in outdoor environments, where it can withstand various weather conditions.

The plastic housing ensures durability, offering UV resistance and protection against harsh environmental factors like rain, dust, and wind. With a focus on safety and efficiency, this FDB allows for secure fiber terminations and splicing without the need for additional adapters or pigtails. Its flexible internal layout supports convenient fiber management, ensuring minimal signal loss while maintaining excellent network performance.

Ideal for small to medium-sized fiber optic networks, this FDB is a cost-effective solution for deploying fiber optic cables in outdoor scenarios. Its user-friendly design, coupled with robust protection and space for 16 fibers, makes it a valuable asset in ensuring network reliability and service continuity.


    MAIN FEATURES

• SC Connector Compatibility: Supports up to 16 SC connectors for fiber terminations.
• Plastic Housing: UV-resistant, weatherproof plastic enclosure for durability.
• Outdoor Use: Designed for outdoor installations with protection against rain, dust, and wind.
• Compact Size: Dimensions of 300x220x90mm for easy wall or pole mounting.
• 16 Fiber Capacity: Manages up to 16 optical fibers, ideal for medium-sized networks.
• Cable Management System: Ensures organized and secure fiber splicing and cable arrangement.
• Easy Access: Hinged cover allows for quick access to internal components.
• Splicing Tray: Integrated splicing tray for fiber splicing and storage.
• Waterproof Seal: Equipped with a rubber seal to prevent water ingress.
• Pole/Wall Mounting: Flexible installation options for various outdoor locations.
• Tamper-proof Design: Lockable enclosure to prevent unauthorized access.
• Rustproof Hardware: Stainless steel fittings for corrosion resistance.
• UV Resistance: Protects the box and fibers from sun damage over time.
• Cable Entry/Exit Ports: Multiple cable entry points with grommets for sealing.
• Grounding Provision: Equipped with a grounding point for electrical safety.
• Durable Latches: Reinforced latches ensure secure closure.
• Lightweight: Easy to handle and install due to its lightweight design.
• Versatile Applications: Suitable for telecommunications, FTTH, and broadband networks.
• High Impact Resistance: Plastic housing designed to withstand physical impacts.

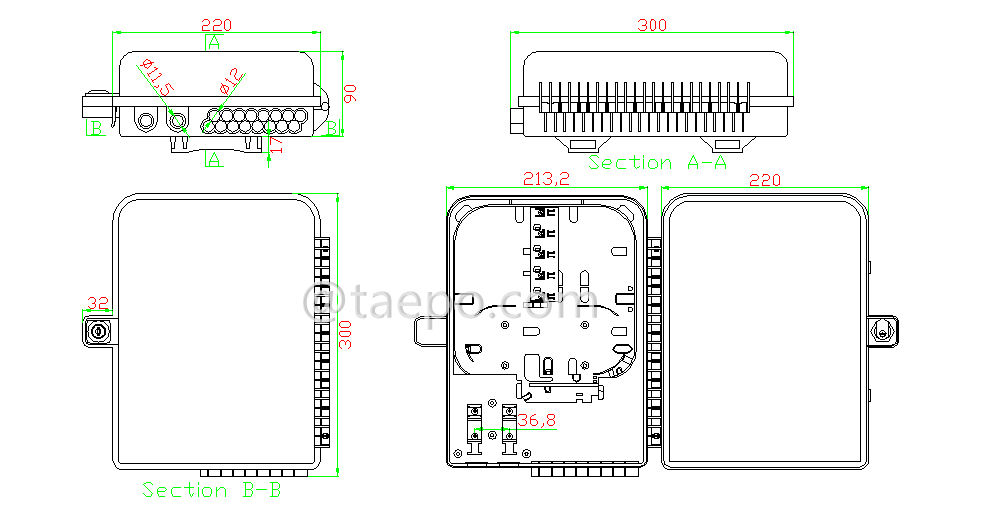

    SCHEMATIC DIAGRAMS

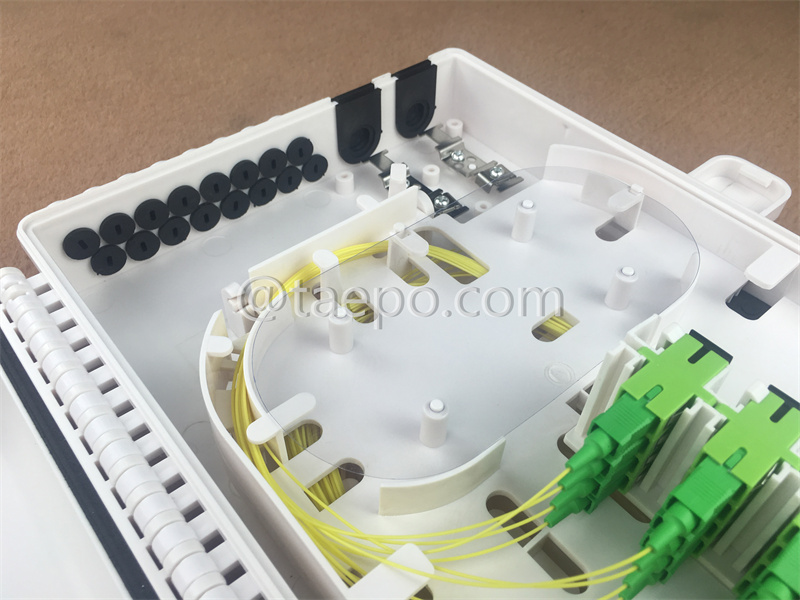

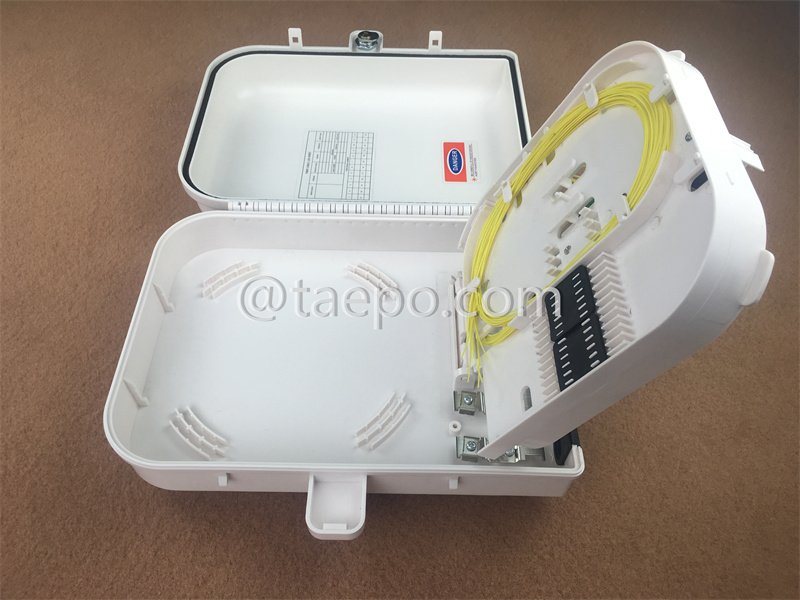

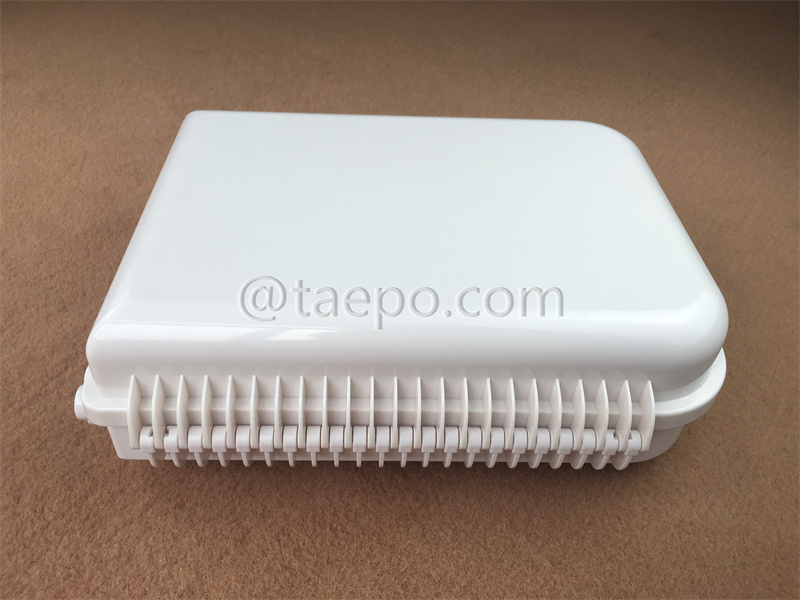

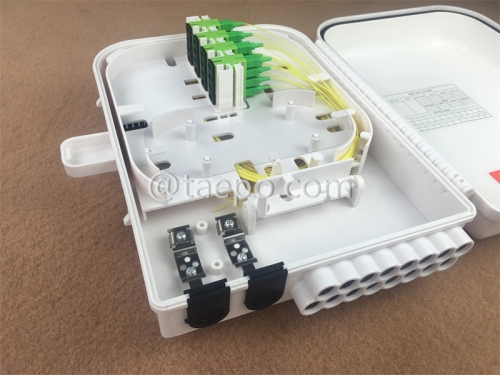

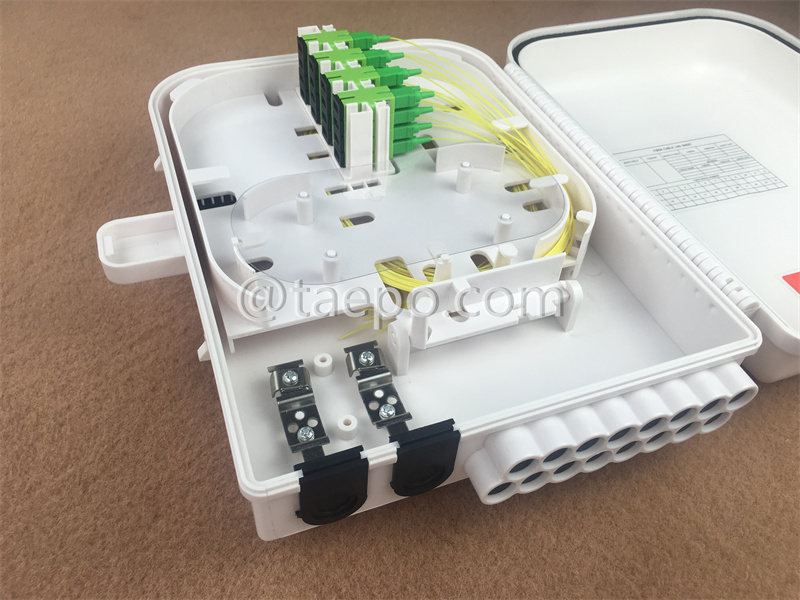

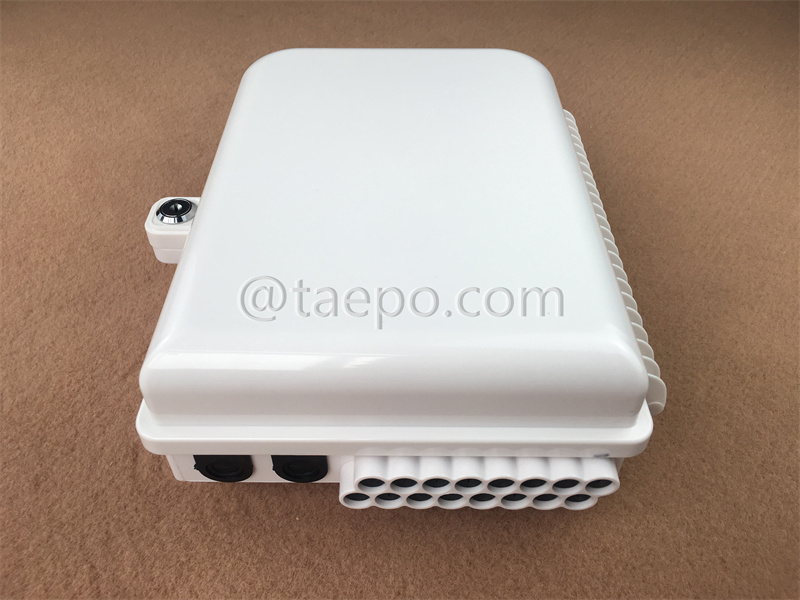

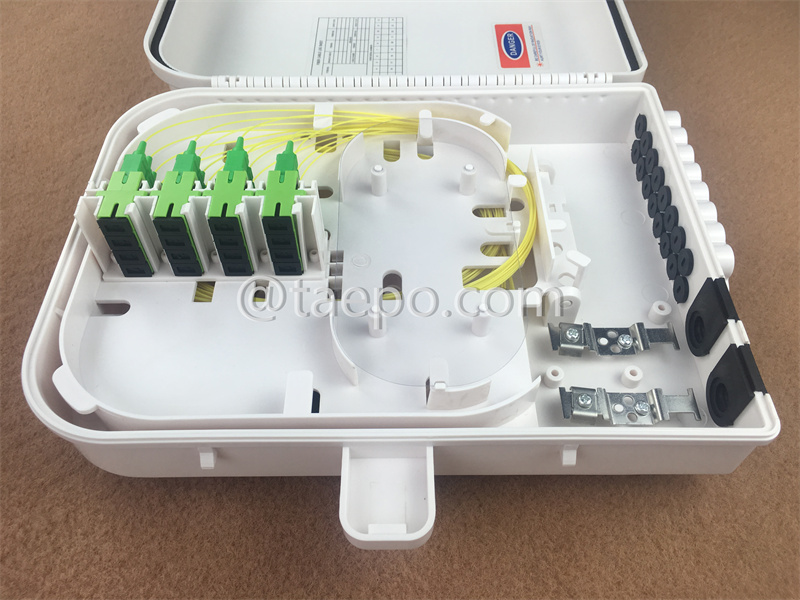

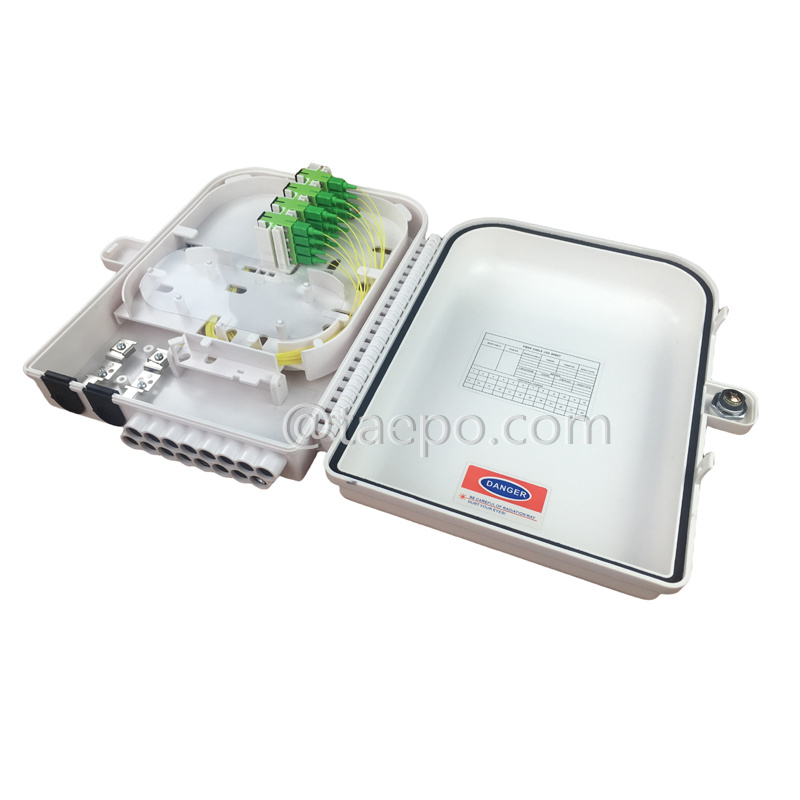

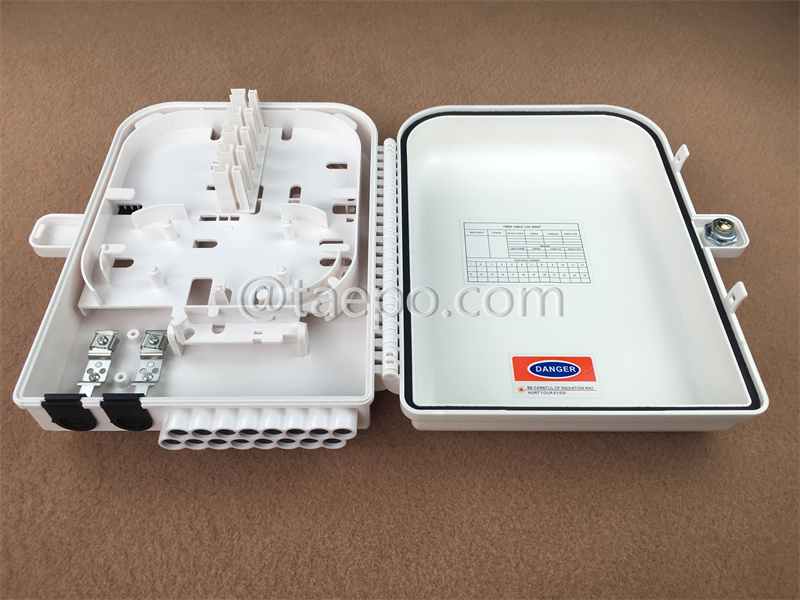

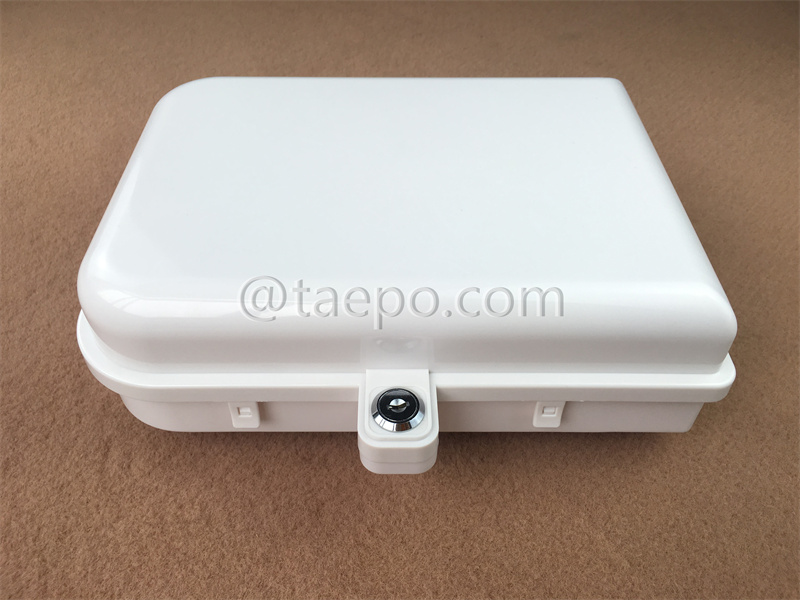

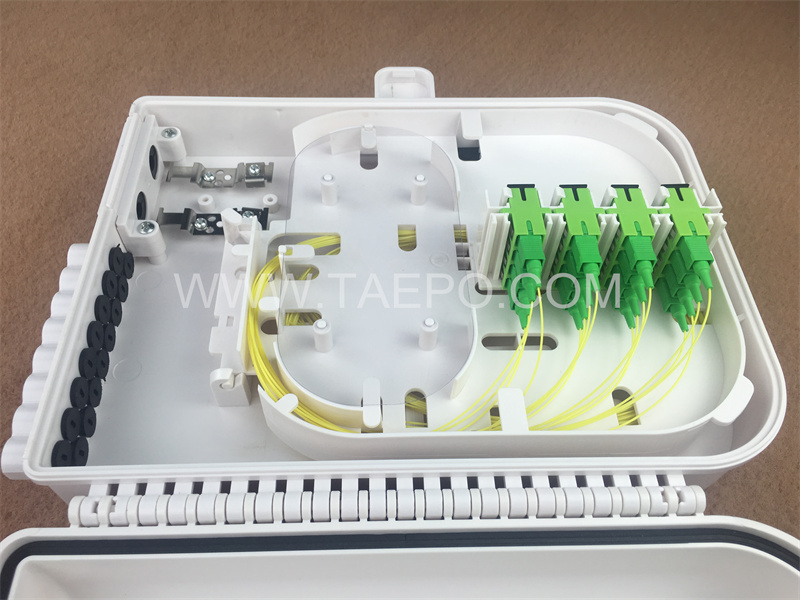

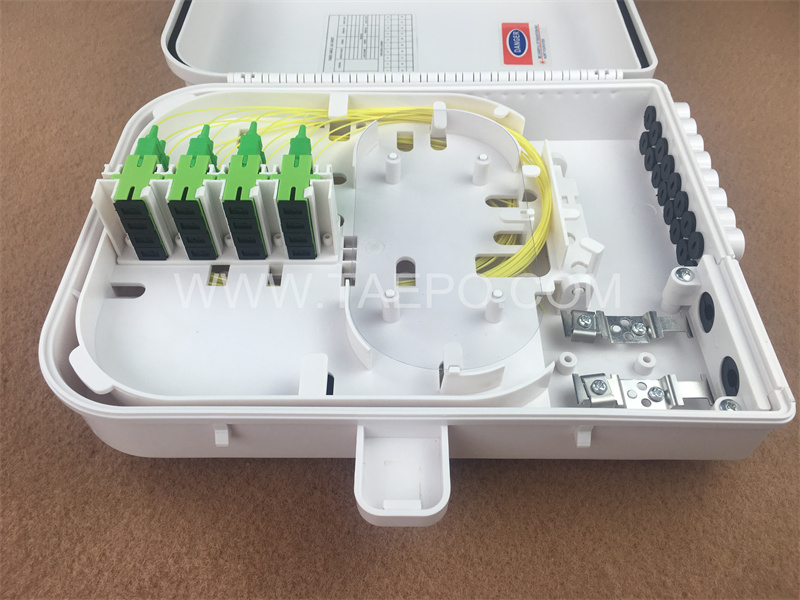

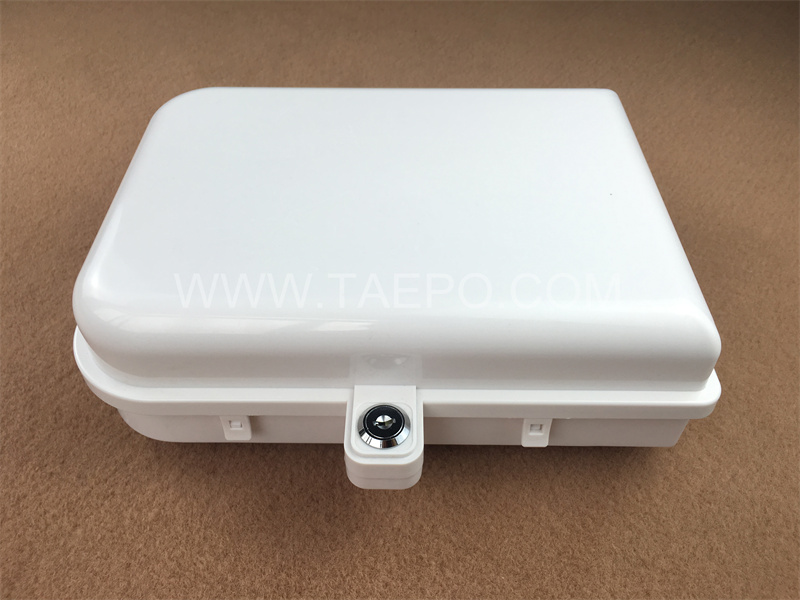

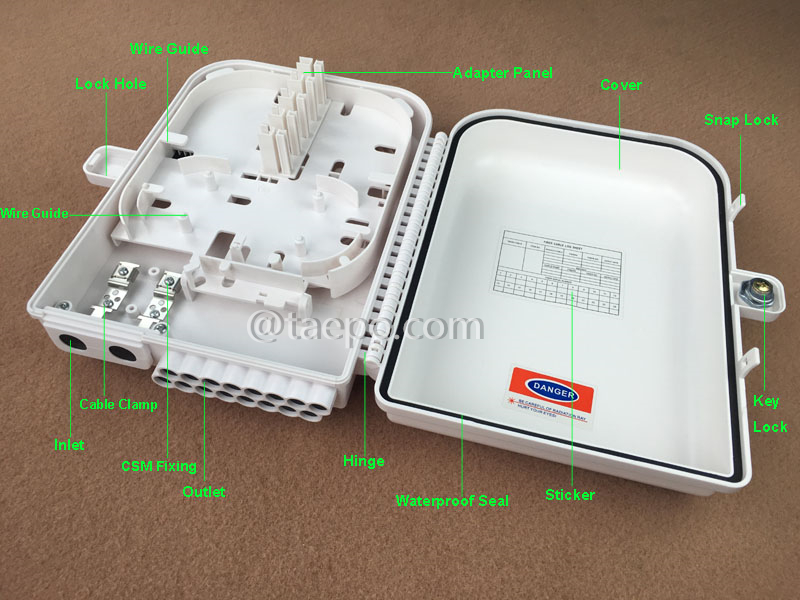

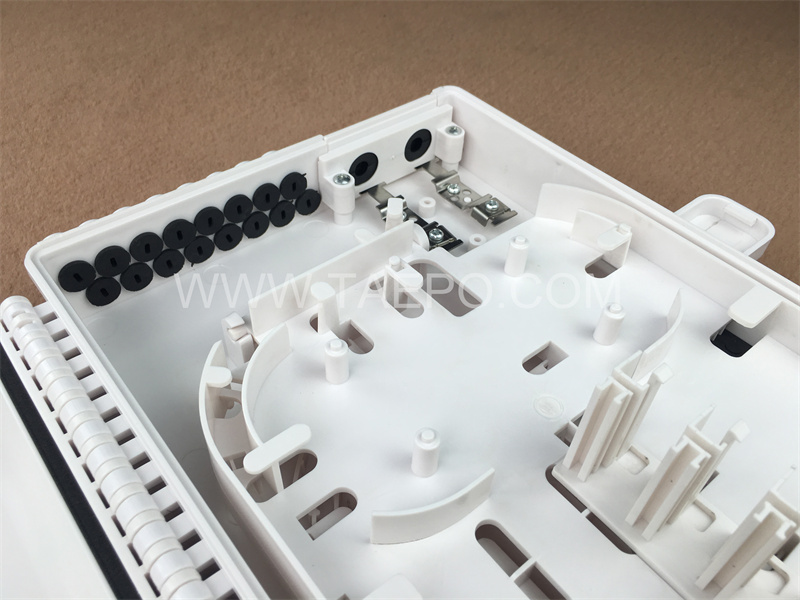

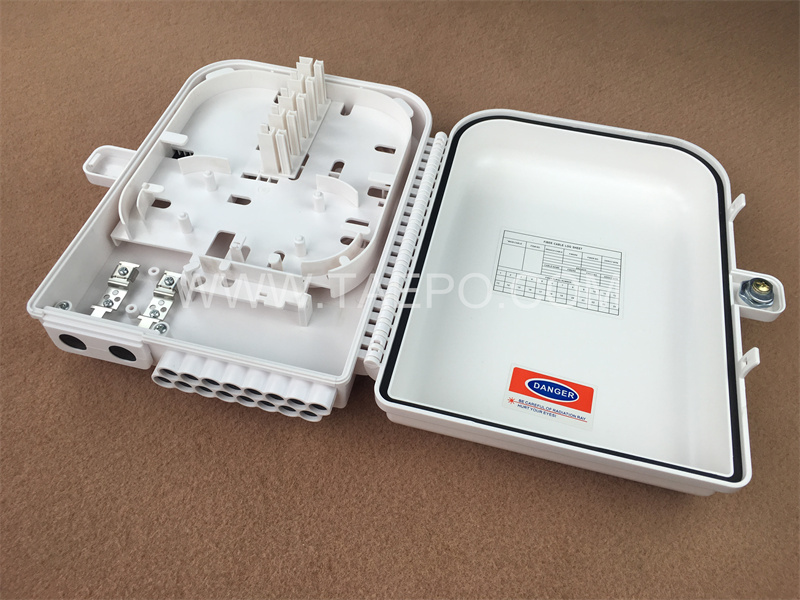

    ILLUSTRATION PICTURES

    PACKING PICTURES

    ORDER DATA
