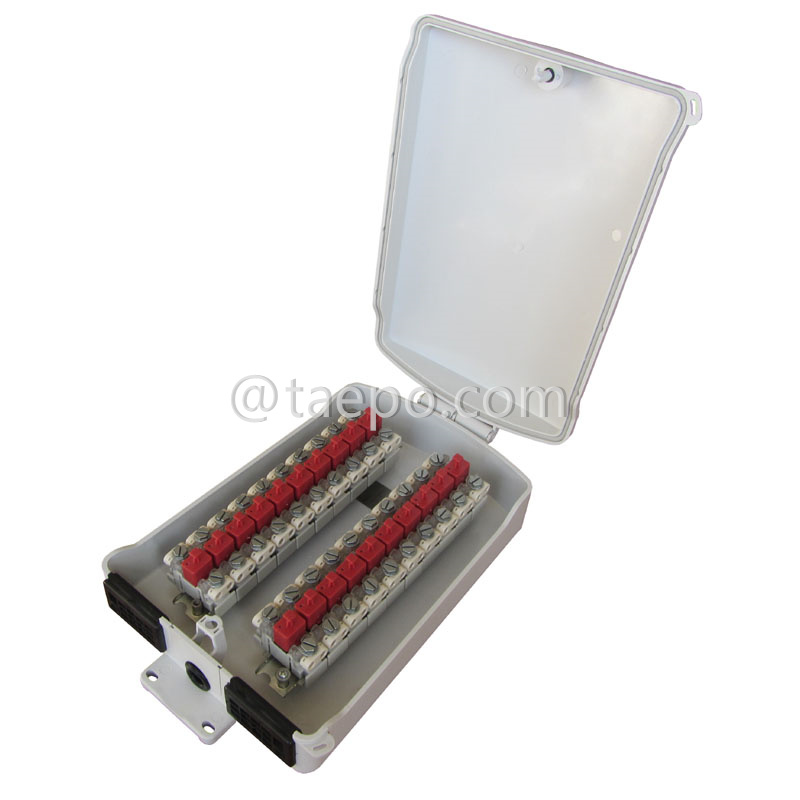

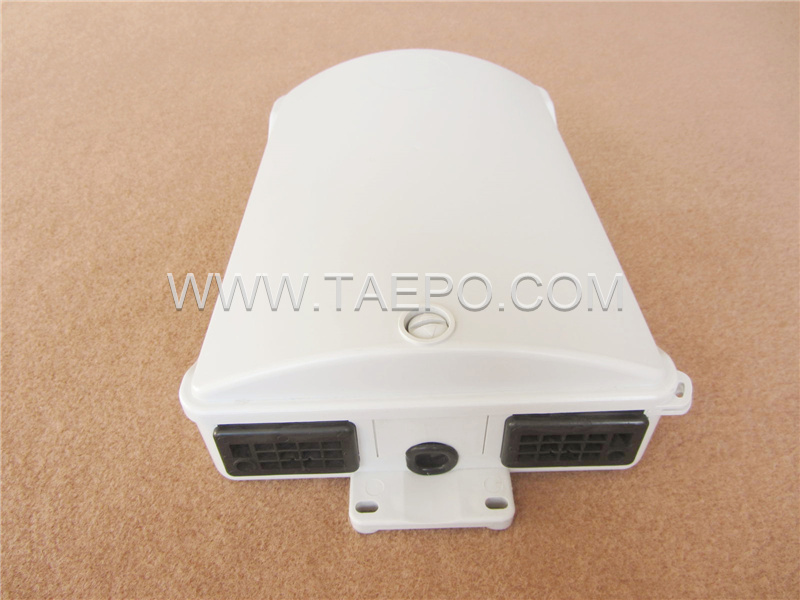

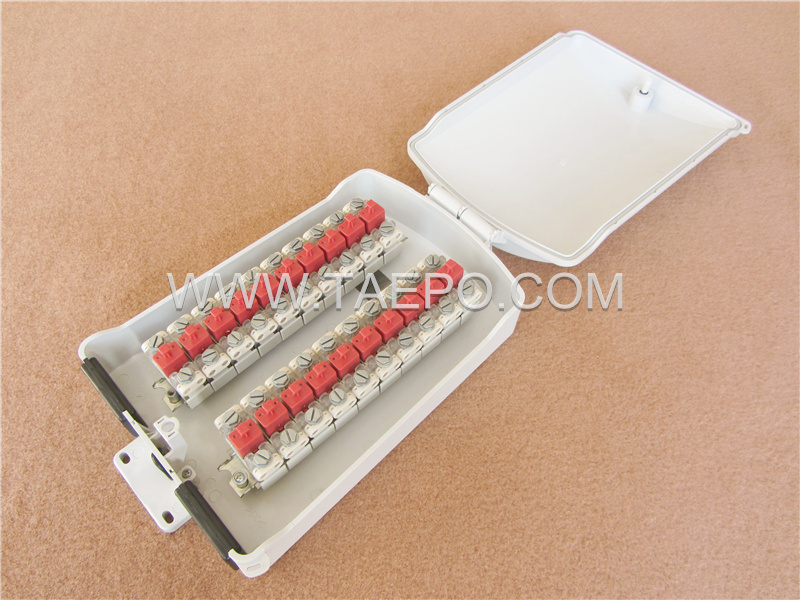

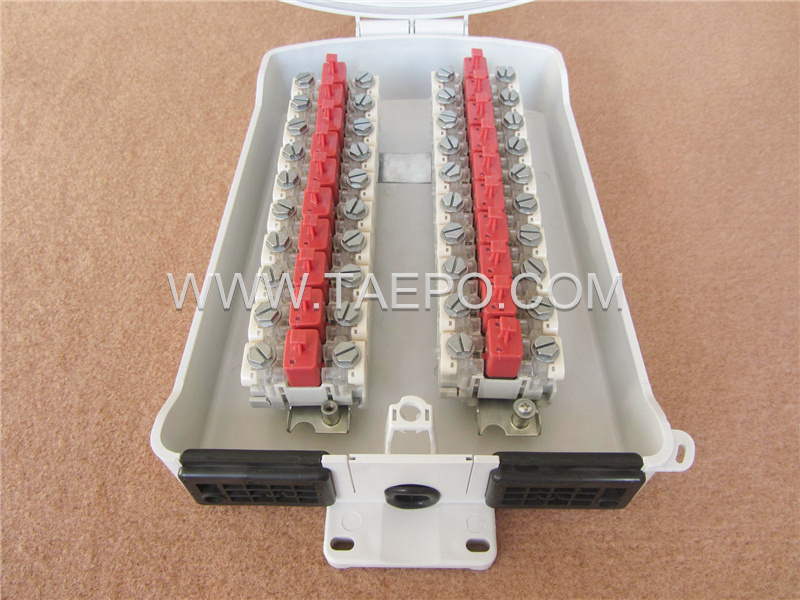

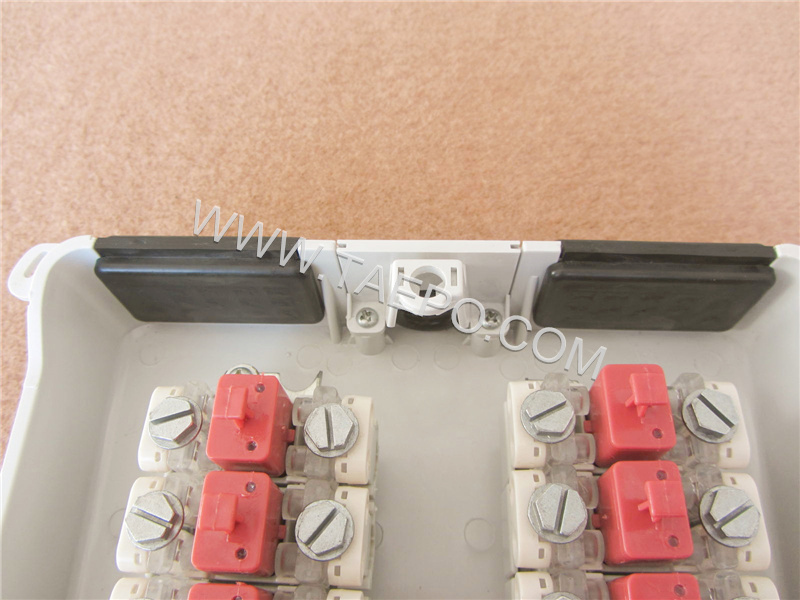

Outdoor 20 pairs terminal box for STB module, 350x204x90mm, screw snap locking, plastic housing, with STB module with over-voltage protection

TAEPO - Your Go-To Chinese Manufacturer for 20 pairs Terminal Box for STB Module with Over-voltage Protection, Professional Engineering Meets Timely Delivery !

What does 20 pairs Terminal Box do?

    DESCRIPTIONS

Outdoor 20 pairs terminal box (TP-1714-20MG) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

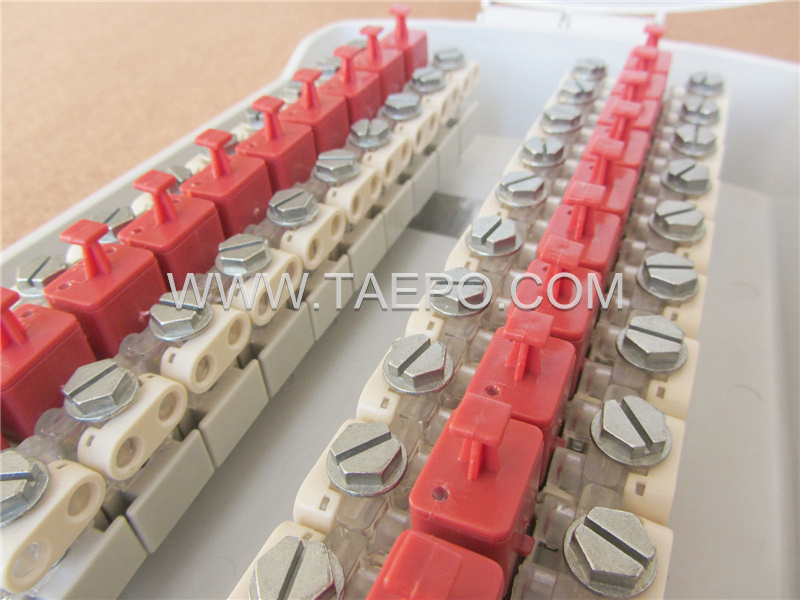

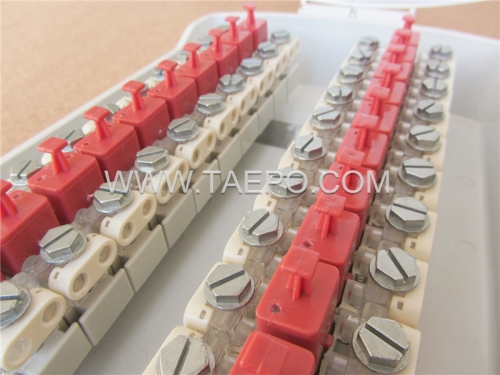

The STB module also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

It is equipped with GDT (Gas Discharge Tube) arrester in side the plug-in module, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:

• The surge voltage caused by lightning on or around the outside lines.
• The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
• The outside line directly collides against a 220 V power line.


It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.

    MAIN FEATURES

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use
• Wall or pole mountable
• Quick mounting and installation

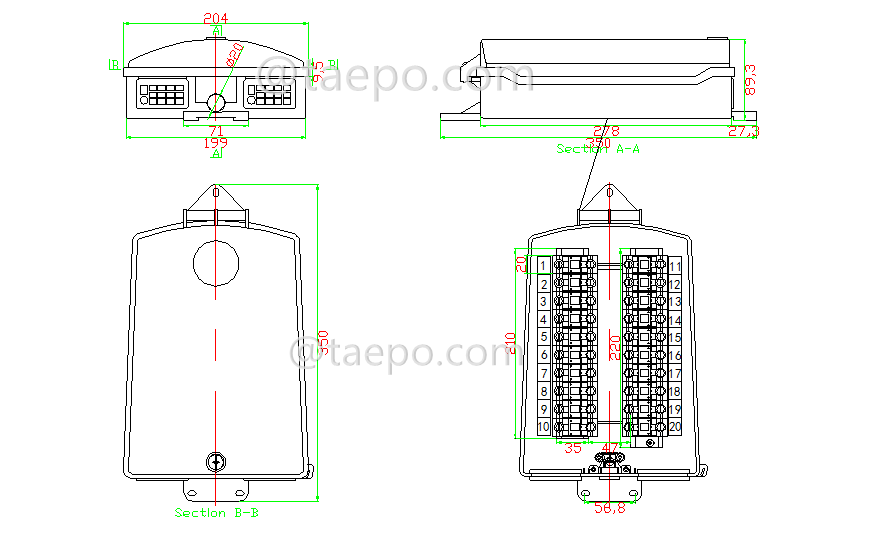

    SCHEMATIC DIAGRAMS

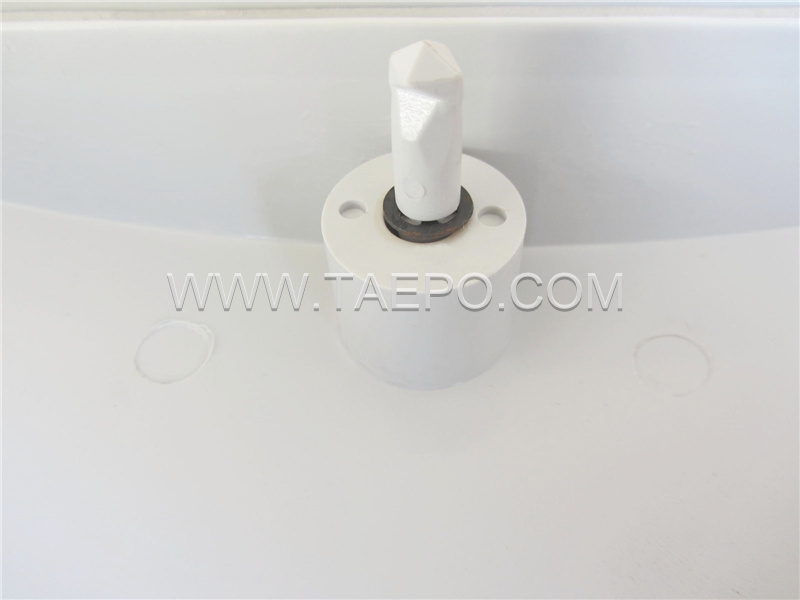

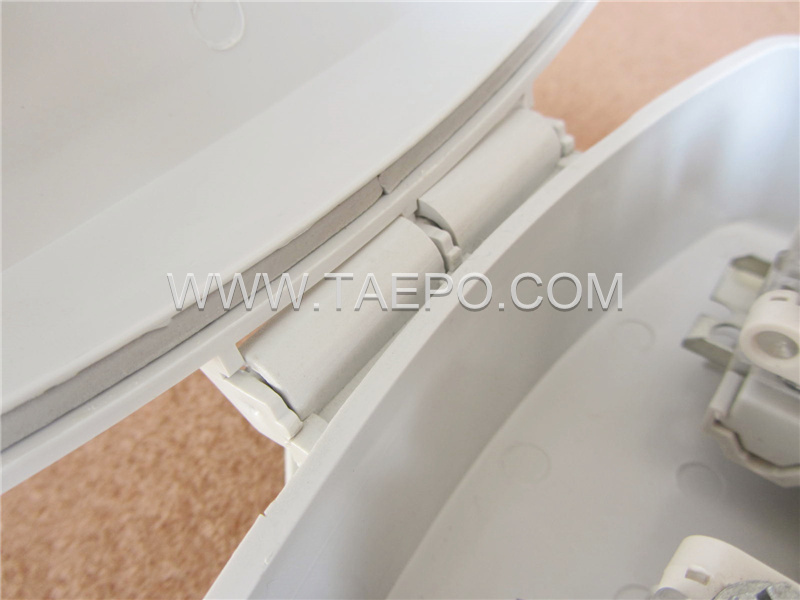

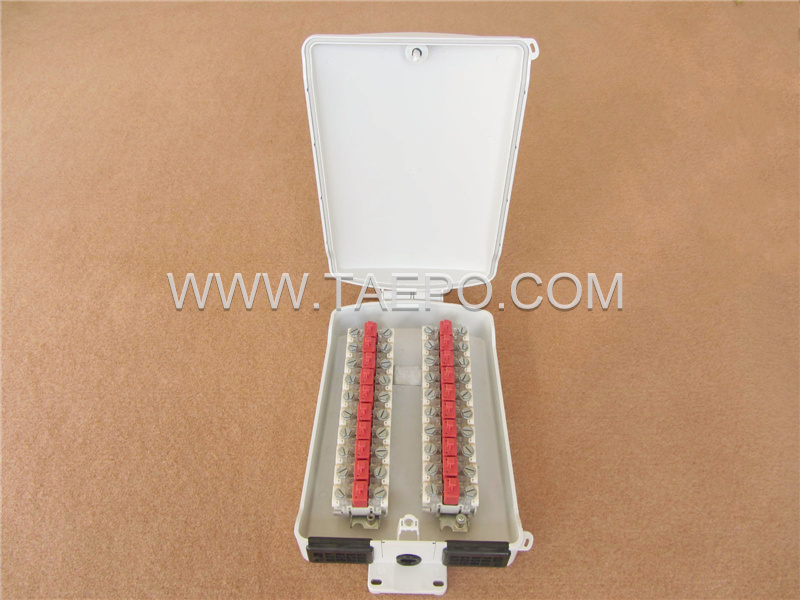

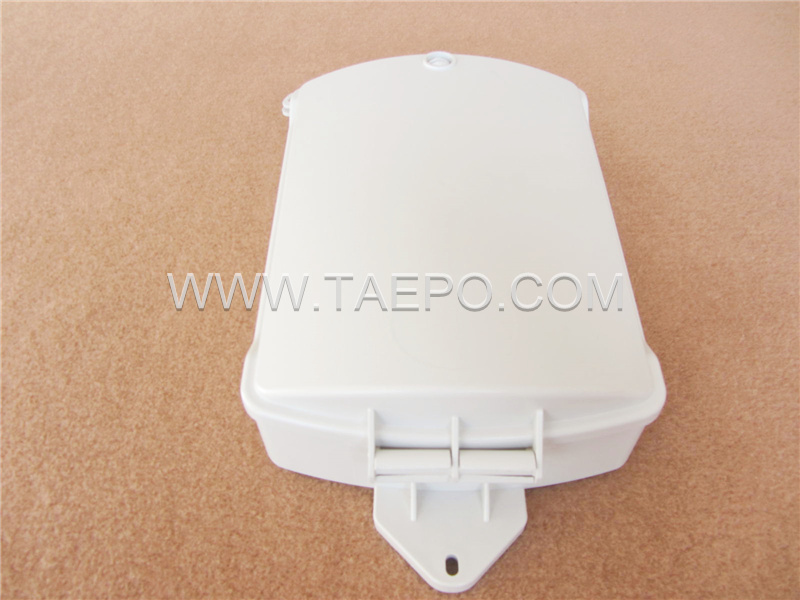

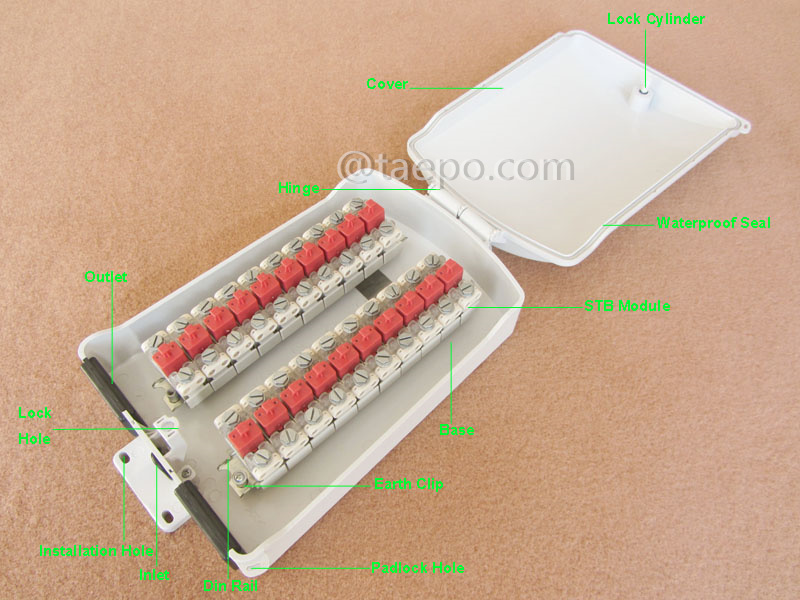

    ILLUSTRATION PICTURES

    PACKING PICTURES

    ORDER DATA
