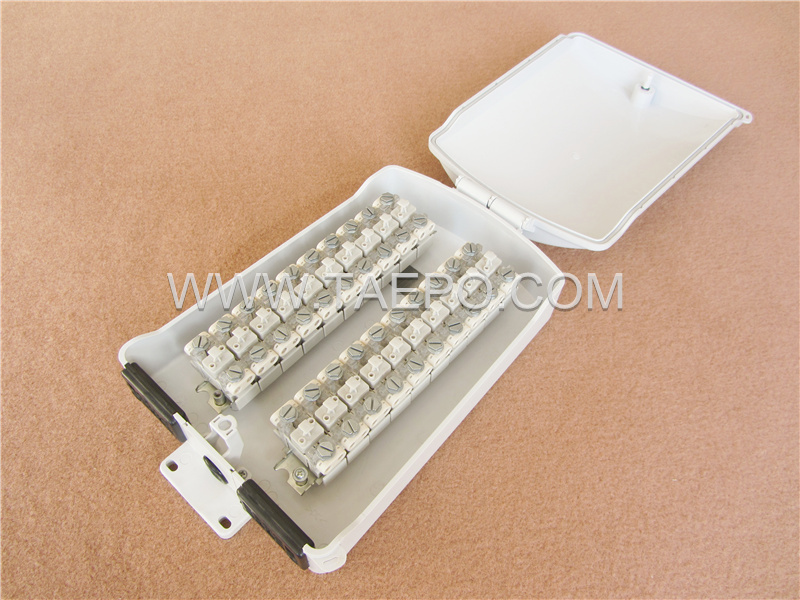

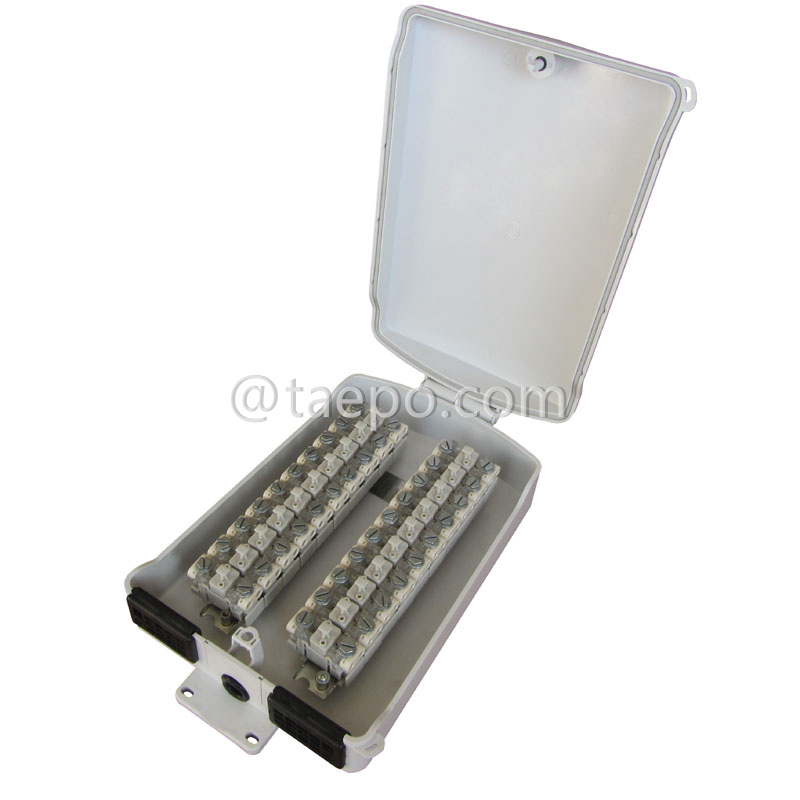

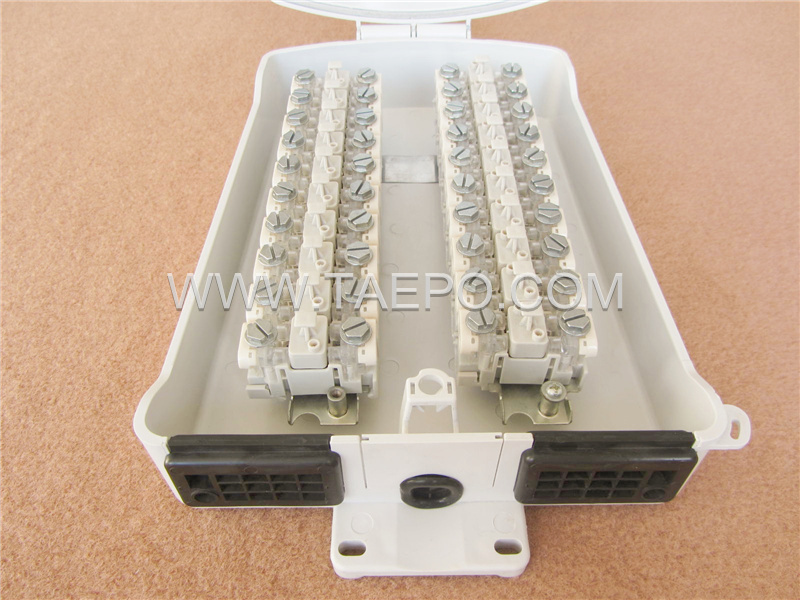

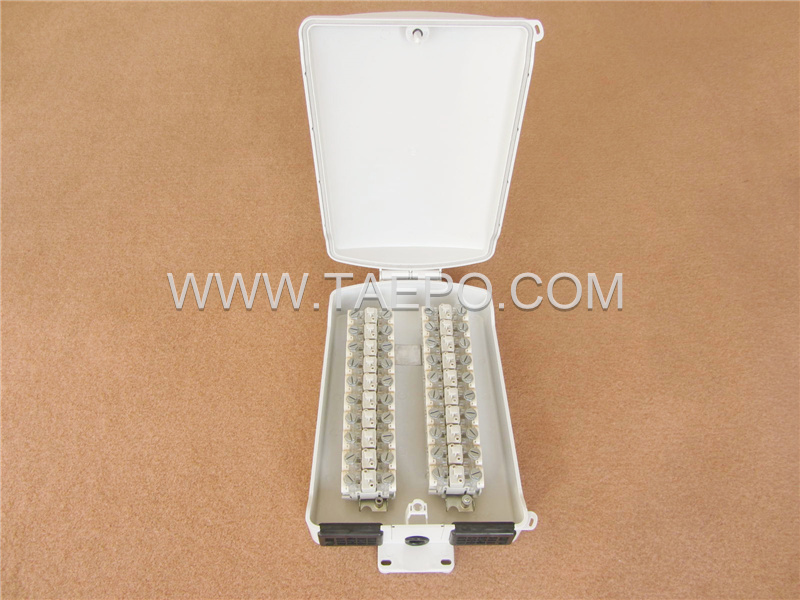

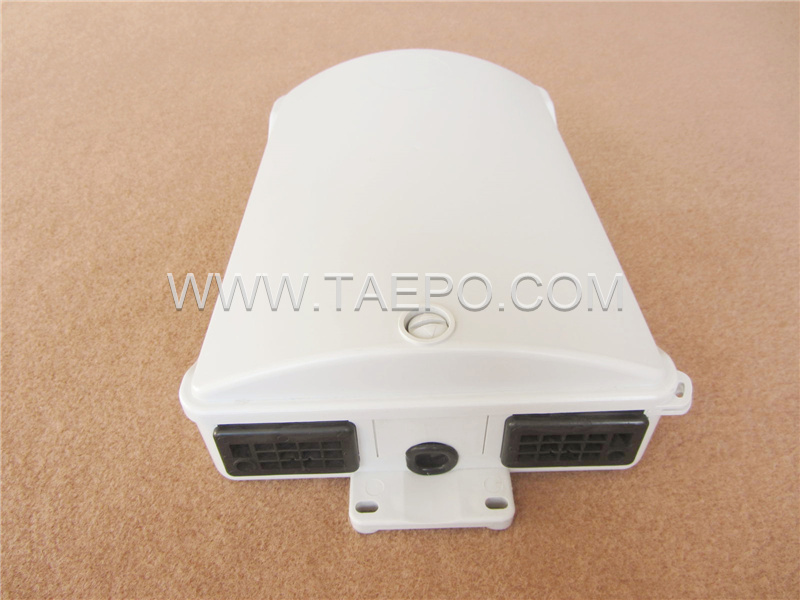

Outdoor 20 pair telephone distribution box for STB module

    Descriptions

Outdoor 20 pair telephone distribution box (TP-1714-20M) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

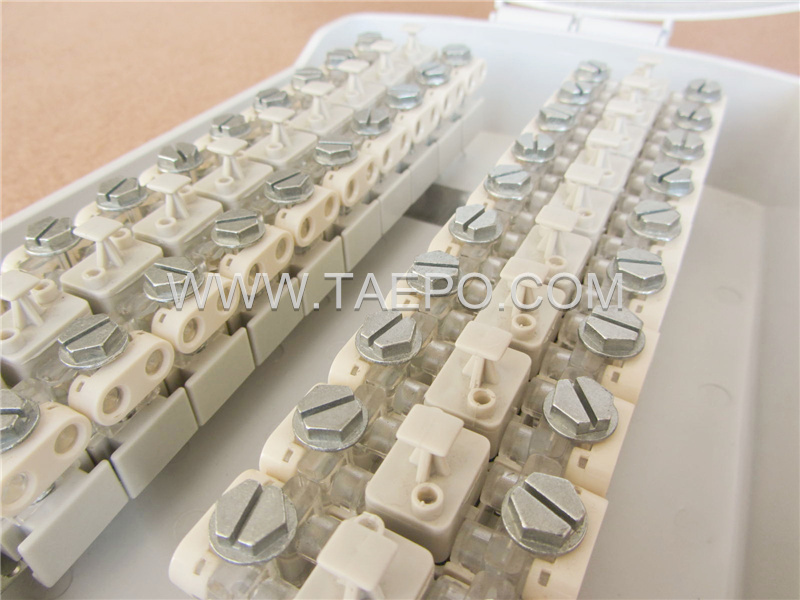

The STB module also called VX connection module ( you can visit details here  ) provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.

    Main Features

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use
• Wall or pole mountable
• Quick mounting and installation

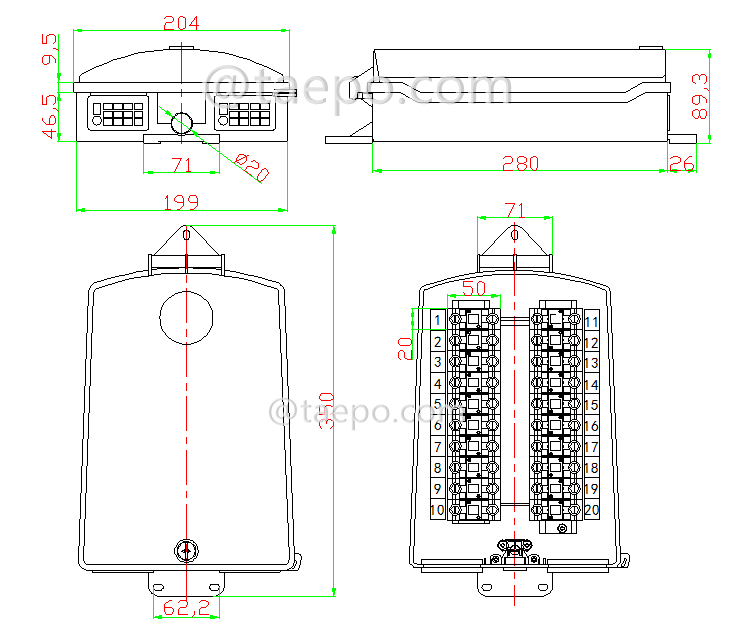

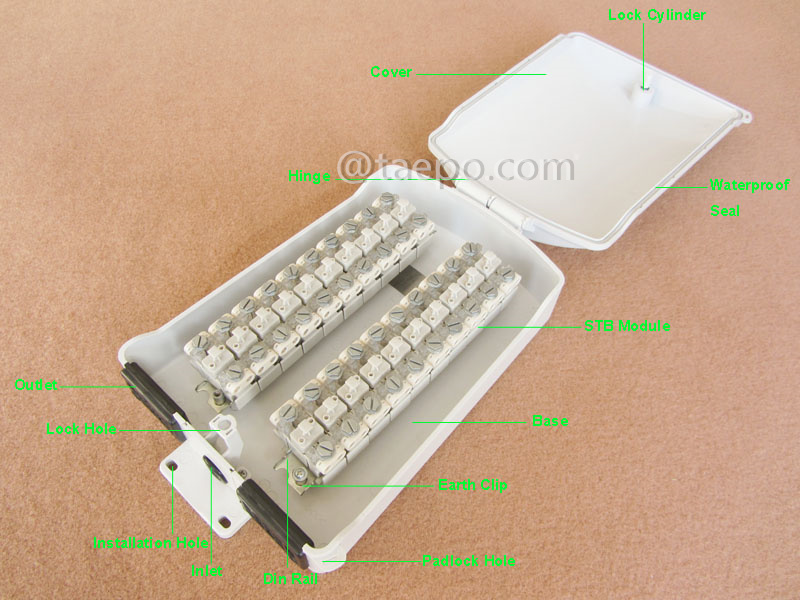

    Schematic Diagrams

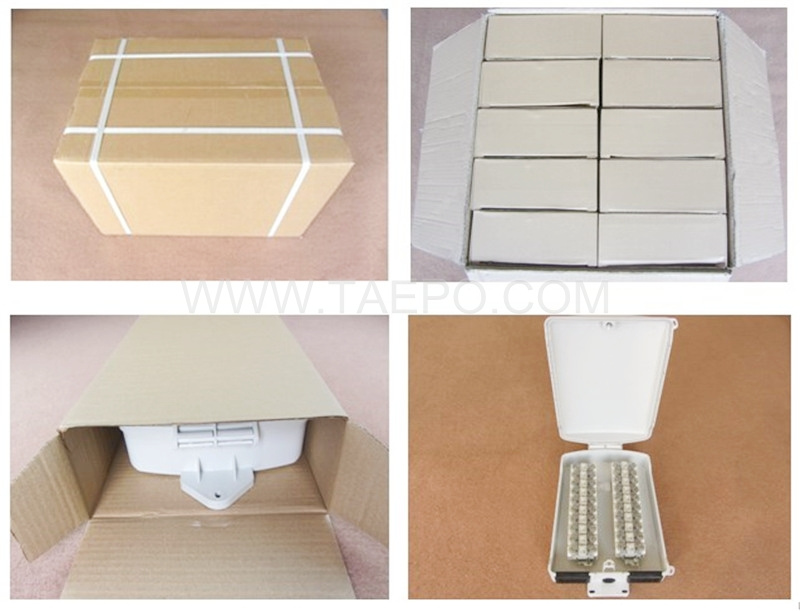

    Packing Pictures

    Order Data
