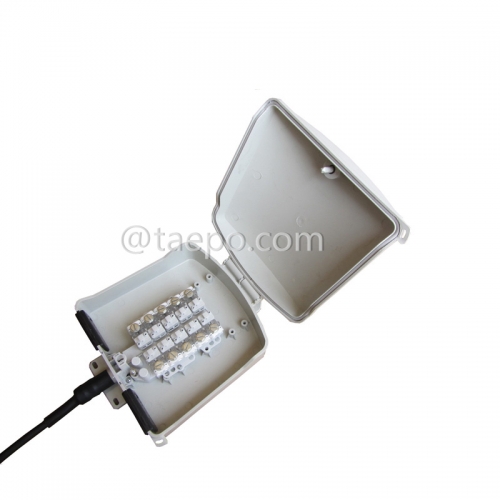

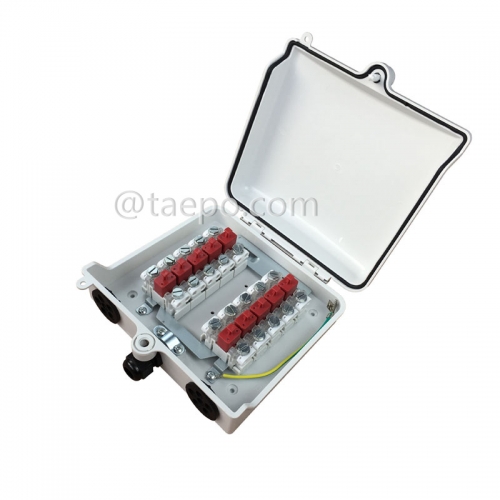

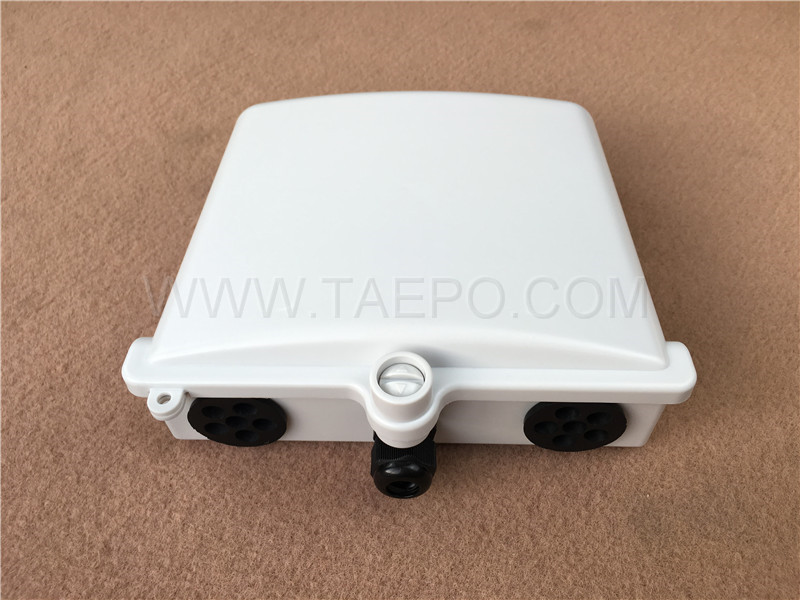

Outdoor 10 pair distribution point DP box for STB module without protection

Item No.: TP-1712-10BM
Connect telephone cables | outdoor connections  | 1 pair STB module
  • Color: Grey
  • Brand: Neutral / OEM / TAEPO
  • Packing: 1pcs/box, 20boxes/ctn, 46*45*39cm/ctn,15.5kg/ctn
  • MOQ: 1000pcs
  • Delivery: 15-30 days
  • Description

        Descriptions


    Distribution point box / DP (TP-1712-10BM) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

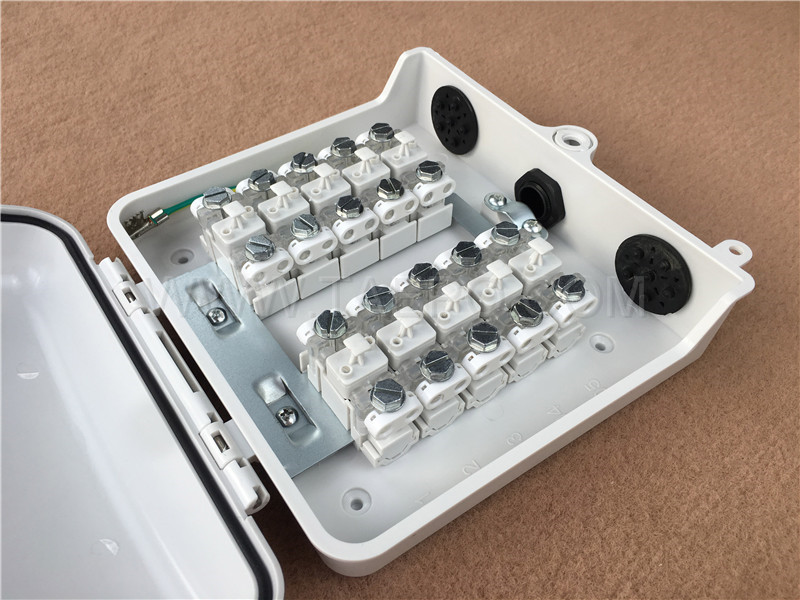

    The STB module also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

    It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

    The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.





        Main Features


    • Insulation Displacement Connection
    • No wire-stripping, screw and solder free
    • Reliable connections
    • Clear labeling
    • Modular design and installations
    • Gas tight connection
    • One push wire insertion
    • Robust long-term environmental stability
    • Flexible indoor and outdoor use
    • Wall or pole mountable
    • Quick mounting and installation

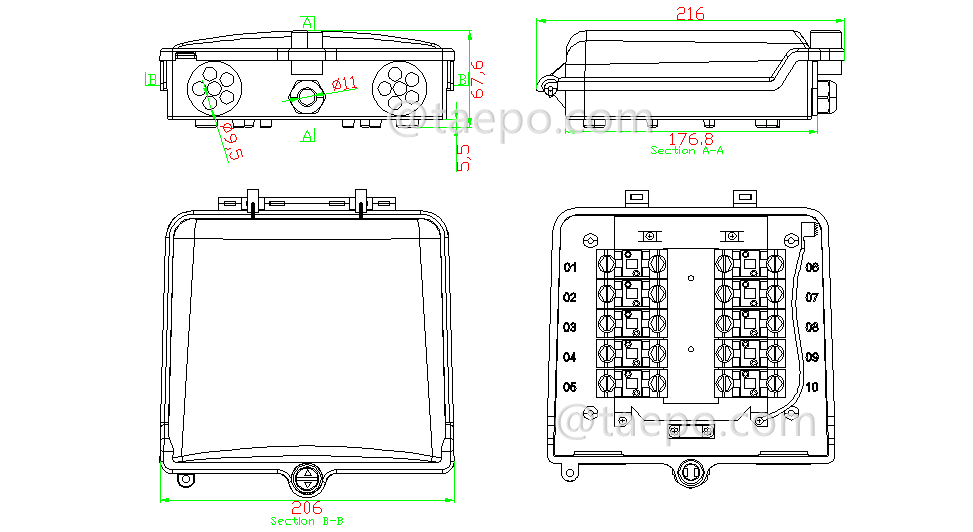

        Schematic Diagrams


    Schematic Diagrams for  Outdoor 10 pair distribution point STB DP box

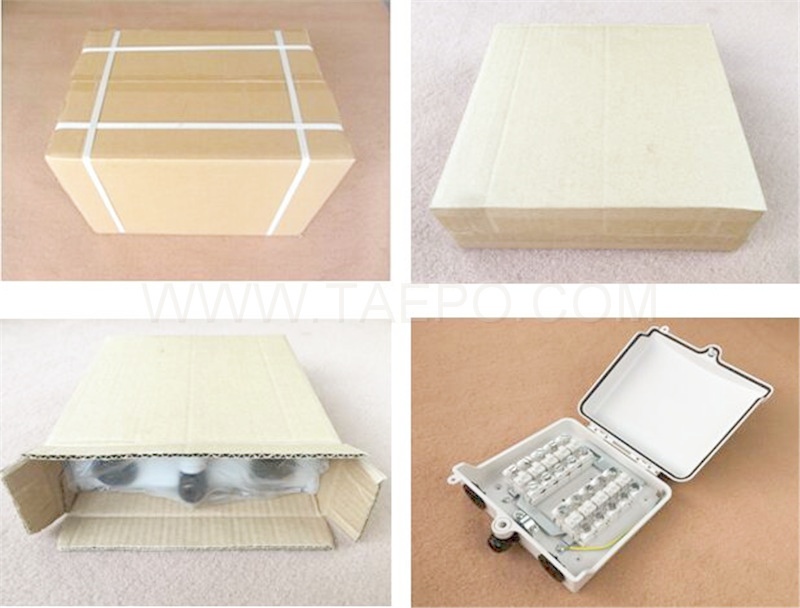

        Packing Pictures




    Packing Picture for Outdoor 10 pair distribution point STB DP box




        Order Data



    Item No Descriptions
    TP-1712-10BM Outdoor 10 pairs distribution point box for STB module, 200x185x70mm, scew snap locking, plastic housing, with STB module without protection
