Descriptions
An Optical Power Meter for fiber optic testing is a tool used to measure the power of light transmitted through optical fibers. It's essential in the field of fiber optic communication to ensure that the transmission of data is efficient and meets operational standards. These meters are primarily used by technicians to troubleshoot, install, and maintain fiber optic networks.
An Optical Power Meter (OPM) measures the power of an optical signal, typically expressed in dBm (decibel-milliwatts) or milliwatts (mW), and is used to verify signal strength and detect losses in fiber optic cables. When testing a fiber optic network, an OPM ensures that the light transmitted through the fiber is at the correct power level. It works in conjunction with a light source or a laser, measuring the amount of light received on the other end of the cable to assess any potential attenuation (loss) in the signal.
Main Features
Wide Wavelength Range: Optical power meters support various wavelengths, typically in the range of 800 nm to 1650 nm, which are standard for different types of optical fibers (e.g., 850 nm, 1300 nm, 1310 nm, 1550 nm for single-mode and multimode fibers).
High Accuracy: These meters provide precise measurements of optical power, with very small error margins, ensuring the network meets required performance standards.
dBm and mW Measurement Units: Optical power meters can display power in both decibel-milliwatts (dBm) and milliwatts (mW), allowing for flexibility in interpretation depending on the test requirements.
Automatic Calibration: Many models come with an auto-calibration feature that maintains accuracy across different wavelengths and over time.
Portability: Optical power meters are compact and portable, making them ideal for fieldwork during fiber optic cable installation or troubleshooting.
LCD Display: These devices have clear displays showing the measurement readings, wavelength settings, and other parameters.
Easy Operation: Optical power meters typically come with user-friendly interfaces, with buttons to select units, wavelengths, and auto-off features to conserve battery life.
Data Storage and Transfer: Some advanced models allow for the storage of test data, which can be transferred to a computer or other device for record-keeping and analysis.
Long Battery Life: Most handheld OPMs are powered by batteries, and their energy-efficient design enables long operational hours in the field.

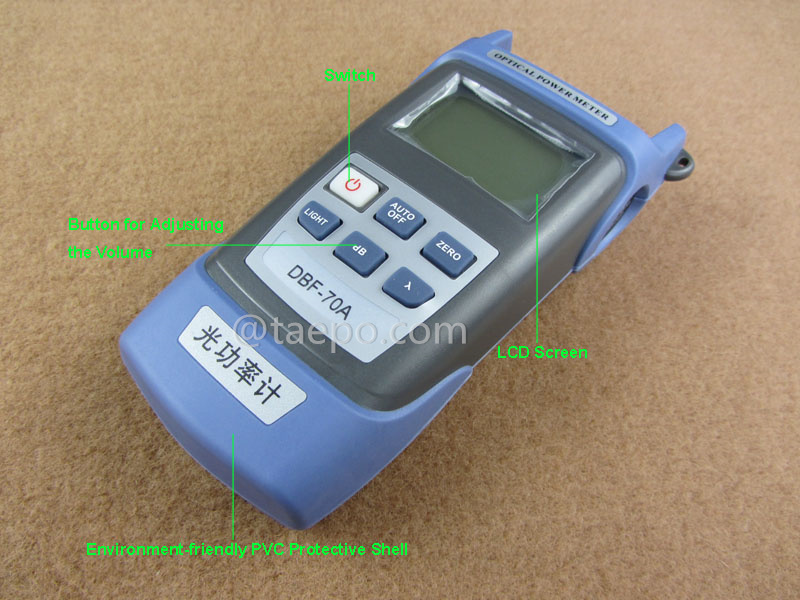

Schematic Diagrams

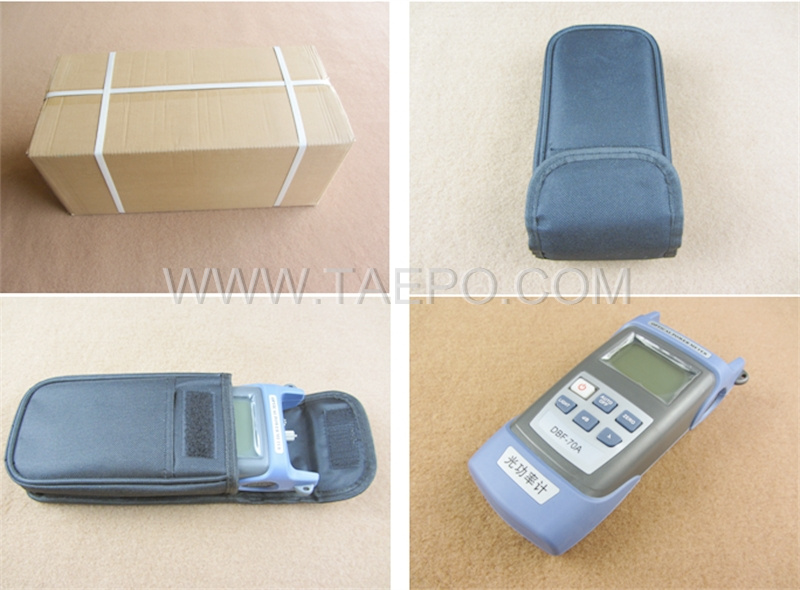

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3711-A |
Optical power meter |
