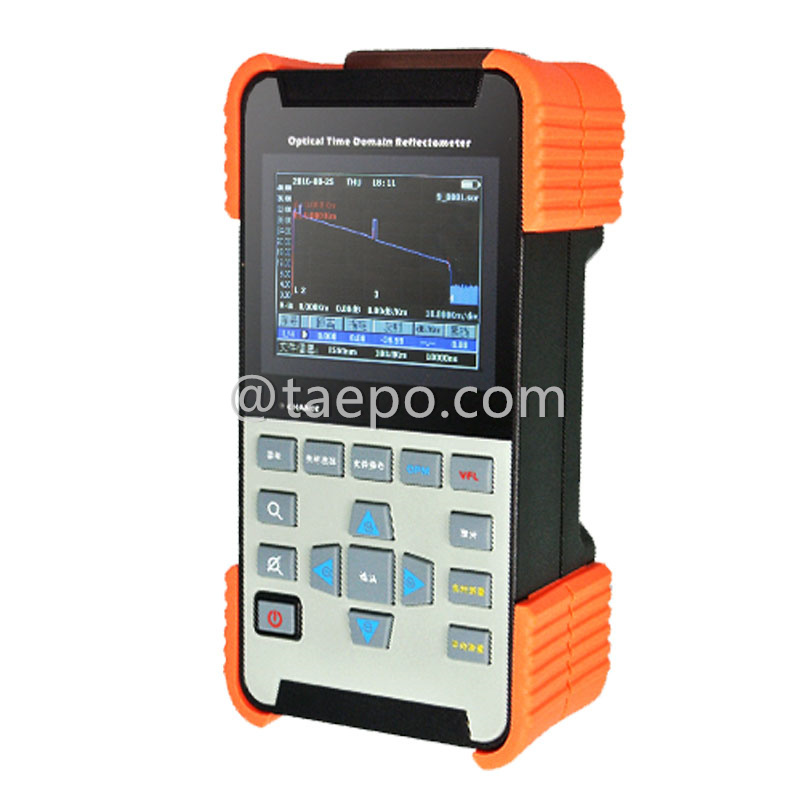

80KM Handheld OTDR Optical Time Domain Reflectometry tester

    Descriptions

An "80KM Handheld OTDR (Optical Time Domain Reflectometry) tester" is a portable device used to analyze and troubleshoot fiber optic networks. Here’s a brief overview:

An OTDR tester sends a series of light pulses down a fiber optic cable and measures the light that is reflected back. This data allows technicians to assess the integrity of the fiber, identify faults, and measure the distance to those faults.

    Main Features

Distance Range: Can test fiber optic cables up to 80 kilometers, making it suitable for long-haul networks.

User-Friendly Interface: Typically features a touchscreen or intuitive buttons for easy operation.

Data Storage and Analysis: Often includes options to store test results for later analysis and reporting.

Multiple Testing Modes: Supports various testing functions, such as insertion loss and return loss measurements.

Compact Design: Handheld design for portability and convenience in fieldwork.

Rechargeable Battery: Usually powered by a rechargeable battery for extended use in the field.

Display: Clear display for viewing real-time test results and trace graphs.

    Schematic Diagrams

    Packing Pictures

    Order Data
