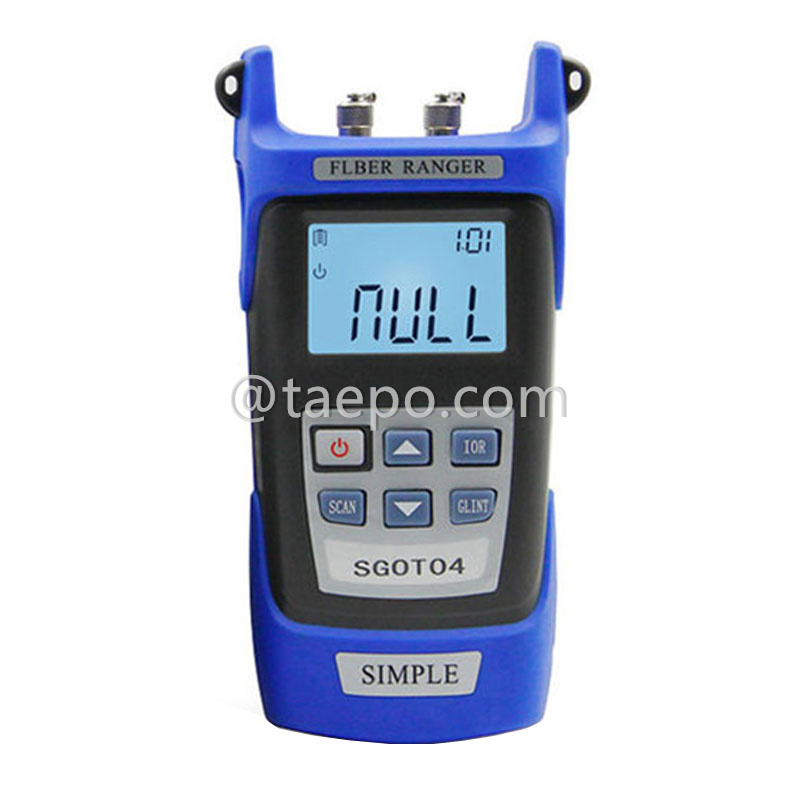

Handheld optical Fiber ranger fault finder

Name: Handheld optical Fiber ranger fault finder
Brand: TAEPO Official Website
SKU: TP-3720-SGOT04
Availability: InStock
Rating: 5 (1 reviews)

Item No.: TP-3720-SGOT04

This Fiber ranger tool is highly valued for its portability, simplicity, and effectiveness in finding faults in fiber optic systems, especially for smaller-scale installations and routine maintenance.

Color: Blue

Brand: Neutral / OEM / TAEPO

Packing: box + ctn

MOQ: 10pcs

Delivery: 7-14 days

INQUIRY

Description

Descriptions

A Handheld Optical Fiber Ranger Fault Finder is a compact tool used to locate faults, breaks, or weak points in fiber optic cables. It works by sending light pulses down the fiber and measuring the reflections caused by discontinuities, such as breaks or significant bends in the fiber. This tool helps technicians quickly identify the location of the fault without needing extensive testing equipment.

This device functions similarly to an Optical Time Domain Reflectometer (OTDR), but it is a more basic and affordable alternative. The Fiber Ranger measures the time it takes for the light pulse to reflect back from a fault, then calculates and displays the distance to the fault point. It's commonly used in the field for quick troubleshooting, especially in smaller or less complex fiber networks.

Main Features

Fault Location: Accurately identifies the distance to a break or fault in the fiber optic cable.
Portable Design: Small, handheld, and battery-powered, making it ideal for field use.
Easy to Use: Simple interface with minimal setup, allowing quick fault detection.
Cost-Effective: More affordable than full OTDR devices while providing essential fault-finding functionality.
Distance Measurement: Can measure distances to faults over several kilometers, depending on the model.
Loss Measurement: Some models also measure the optical signal loss caused by a fault or bend in the fiber.
Quick Diagnosis: Provides fast results, helping technicians locate issues in a fraction of the time it would take with more complex tools.

Schematic Diagrams

Packing Pictures

Order Data

Item No	Descriptions
TP-3720-SGOT04	Fiber ranger
