What Does Earth Clip Mean?
DESCRIPTIONS

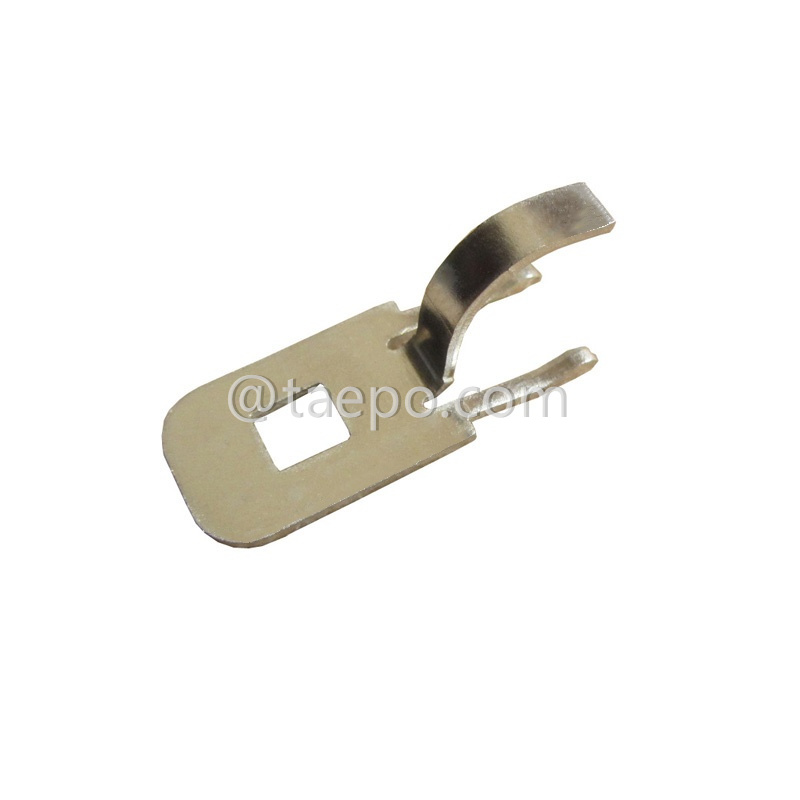

Earth clip for LSA profile module (TP-1243) is used on the LSA profile disconnection module, together with 10 pairs earth bar to form the earthing system, and 1 pair protectors are used mounted onto the earth bar for against over-voltage and over-current protection.
Each 10 pairs LSA profile module is equipped with 2 pieces of earth clip. It helps protect equipment, personnel, and the network infrastructure from electrical hazards and disturbances by providing a reliable path for dissipating electrical currents safely into the ground.
This clip is engineered for compatibility with 10-pair LSA disconnection or connection modules typically mounted on profile rods. It is manufactured from conductive materials, offering high corrosion resistance and excellent conductivity. The design ensures a secure mechanical and electrical contact with both the profile rod and the earth cable, facilitating fast installation without tools.
MAIN FEATURES
- Grounding and Bonding: The primary function of this earth bar is to provide a secure and low-resistance path for grounding and bonding. It helps dissipate electrical currents, reduce the risk of electrical shock, and protect equipment from surges or faults.
- Modularity: Offer modularity to allow for scalability and expansion of grounding connections as needed.
- User-Friendly Design: Designed with user-friendliness in mind, ensuring straightforward installation and maintenance procedures.
- Surge Protection: Include provisions for connecting surge protection devices to safeguard equipment from electrical surges and transient voltage events.
- Corrosion Resistance: Constructed with corrosion-resistant materials or coatings to ensure long-term durability, especially in challenging environments.
- Quick Snap Installation: Tool-free application via a snap-on mechanism for rapid deployment.
- No Sharp Edges: Rounded finishing prevents insulation damage to nearby wires or modules.
- Profile Rod Piercing Teeth: Clip grips tightly by embedding into metal surface.
- Compatible with 10-Pair Modules: Designed around dimensions of LSA+ disconnection blocks.
- Durable Spring Tension: Long-life spring effect ensures consistent contact force.

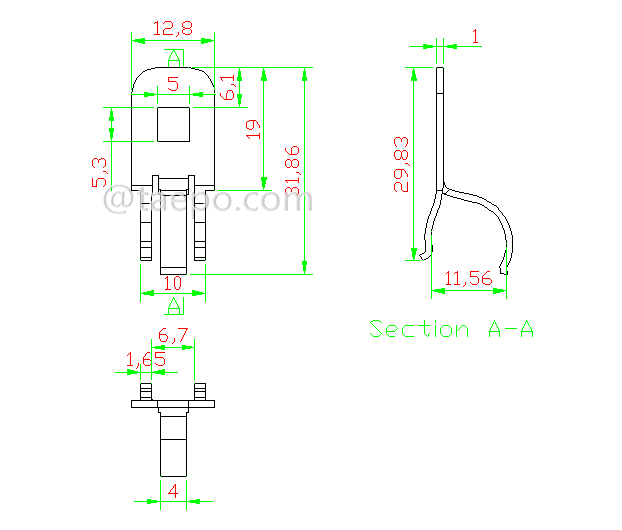

SCHEMATIC DIAGRAMS

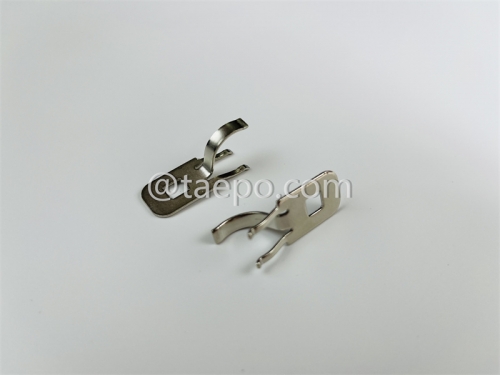

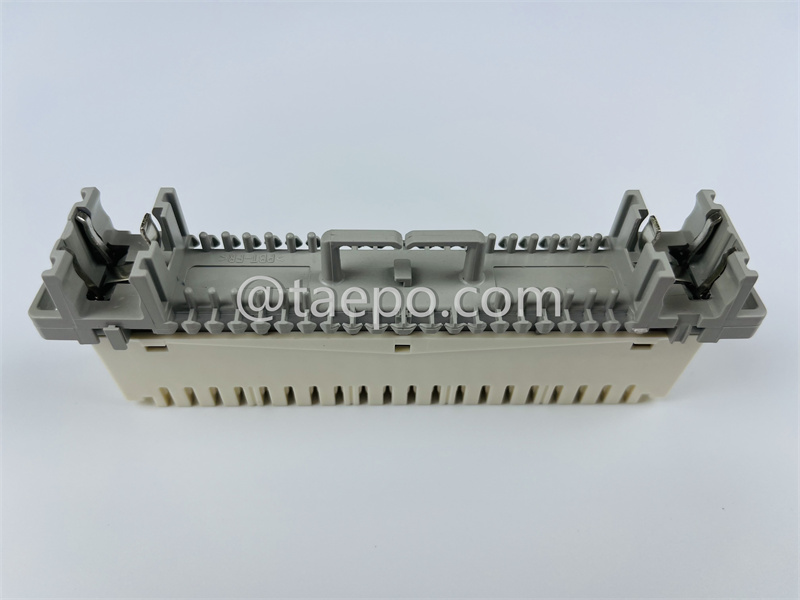

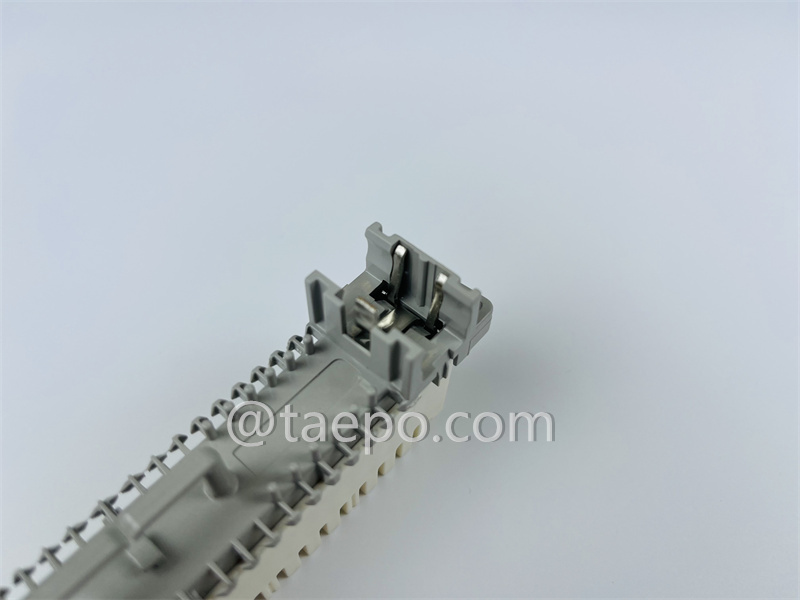

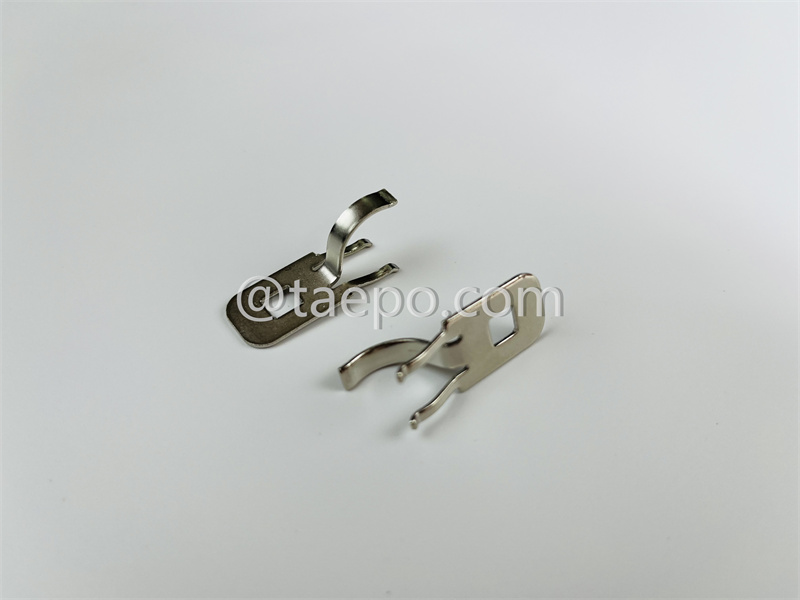

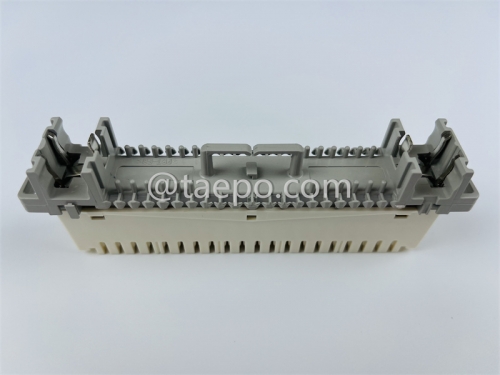

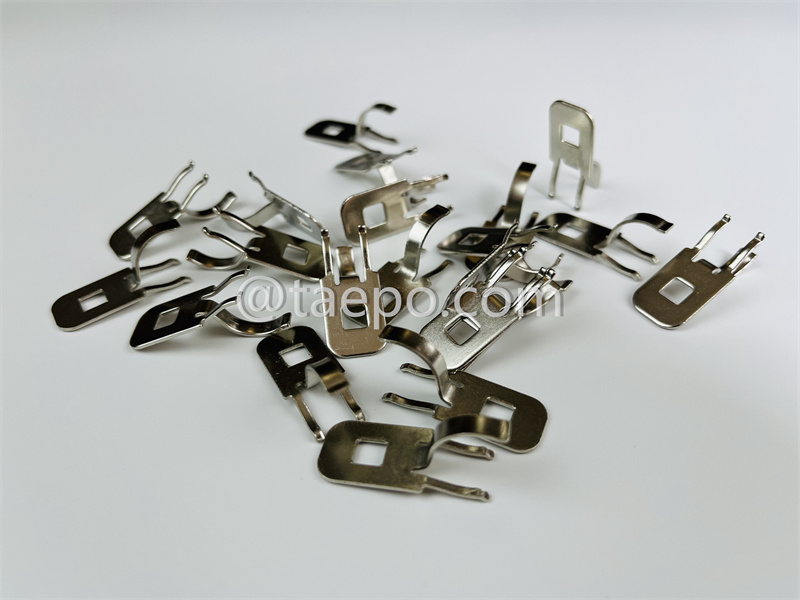

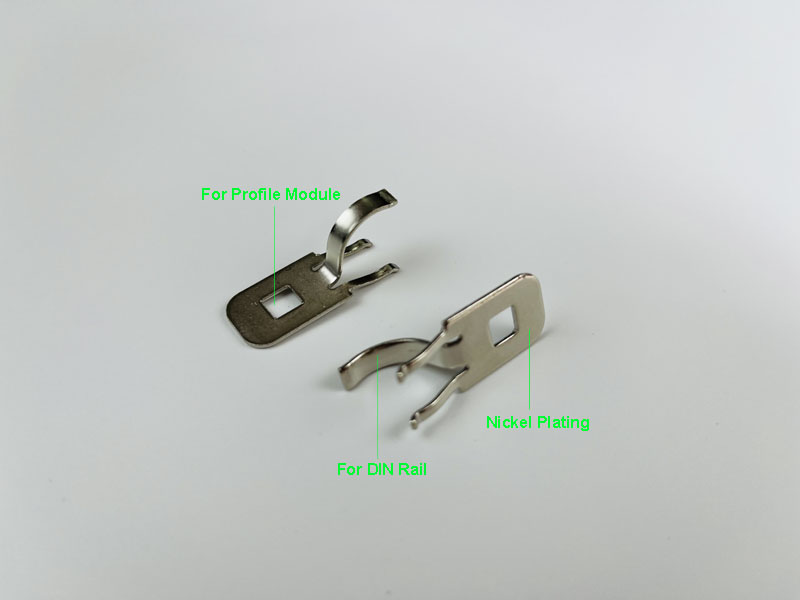

ILLUSTRATION PICTURES

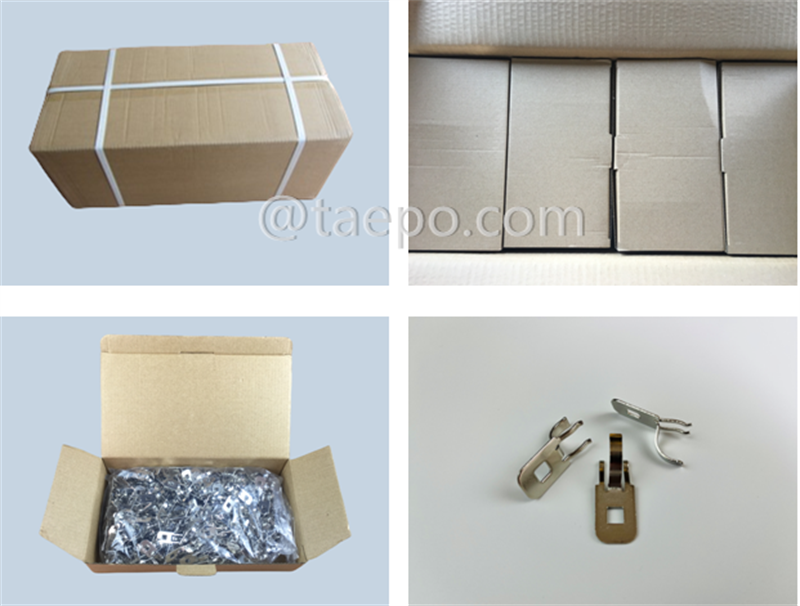

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1243 |
Earth clip for LSA profile module |
