Descriptions

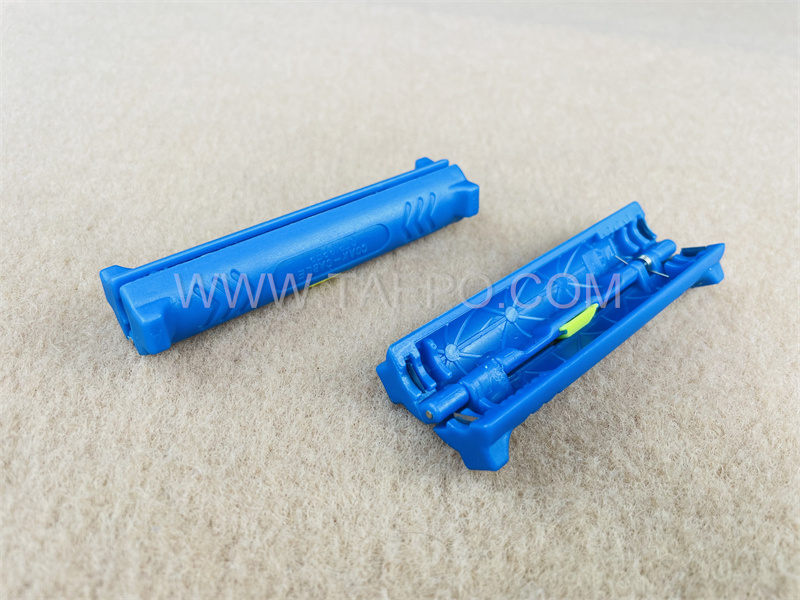

A Manual Small Coaxial Cable Wire Stripper is a hand tool designed for stripping the outer insulation and shielding layers from coaxial cables, which are commonly used in telecommunications and cable TV installations.
Here are some details about this tool:
Design and Components:
Blade Assembly: It has adjustable blades that can be set to cut through the various layers of a coaxial cable without damaging the inner conductor.
Rotary Mechanism: Often includes a rotary mechanism where the user rotates the tool around the cable to make clean cuts.
Adjustable Settings: Allows for adjustments to accommodate different cable sizes and thicknesses.
Types of Coaxial Cables:
The tool is used for different types of coaxial cables like RG6, RG58, RG59, and others, which vary in diameter and construction.
Usage:
Step 1: Insert the coaxial cable into the stripper's designated slot.
Step 2: Adjust the blade to the correct depth for the specific type of cable being stripped.
Step 3: Rotate the stripper around the cable several times to cut through the insulation and shielding.
Step 4: Remove the stripped sections to expose the inner conductor and dielectric insulator.
Advantages:
Precision: Ensures precise stripping without damaging the inner conductor.
Efficiency: Speeds up the cable preparation process.
Versatility: Can be used for various cable sizes with adjustable settings.
Applications:
Commonly used in telecommunications, networking, and satellite installations where coaxial cables are frequently used for signal transmission.
In summary, a Manual Small Coaxial Cable Wire Stripper is an essential tool for anyone working with coaxial cables, providing a quick and accurate way to prepare the cables for connectors and installations.
Main Features
The main features of a Manual Small Coaxial Cable Wire Stripper include:
Rotary Mechanism:
The tool typically includes a rotary mechanism that allows the user to rotate the stripper around the cable. This feature ensures an even and clean cut around the cable's circumference.
Multiple Cable Sizes:
The stripper can handle various sizes of coaxial cables, such as RG6, RG58, RG59, and others. It often includes different slots or guides for different cable diameters.
Spring-Loaded Mechanism:
A spring-loaded design allows for easier and more controlled stripping, returning the tool to its open position automatically after use.
Lightweight and Portable:
Compact and lightweight, making it easy to carry and use in various settings, from home installations to professional fieldwork.
Safety Features:
Features like blade guards and locking mechanisms to prevent accidental cuts and ensure safe handling when the tool is not in use.
These features make the Manual Small Coaxial Cable Wire Stripper an essential and efficient tool for anyone working with coaxial cables in telecommunications, networking, or home entertainment setups.

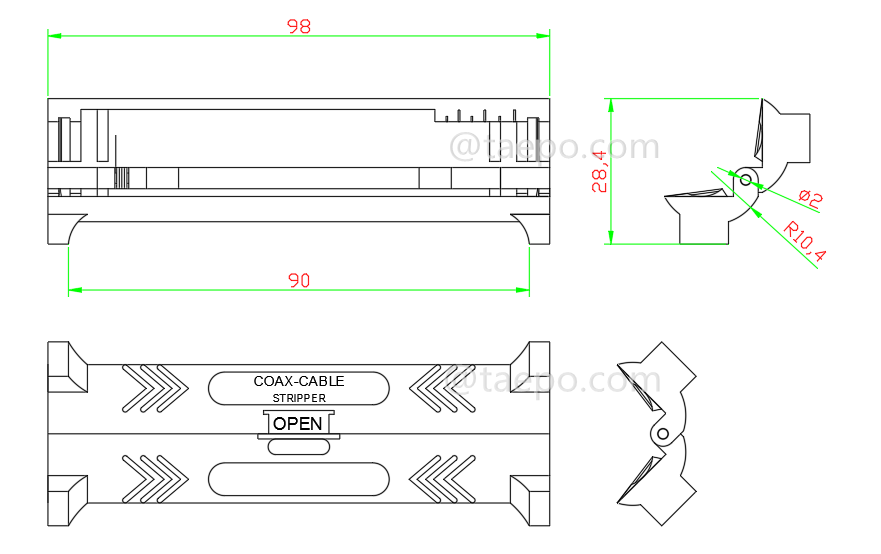

Schematic Diagrams

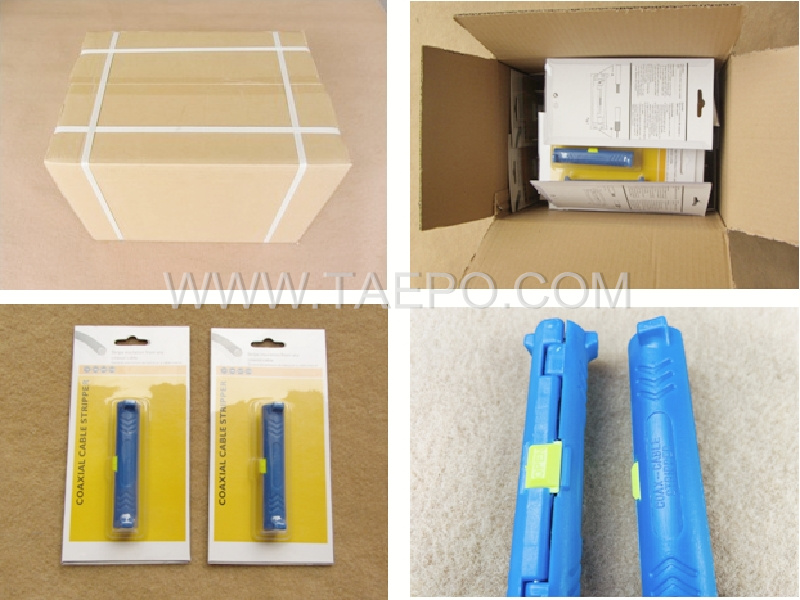

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-5949 |
Coaxial cable stripper |
