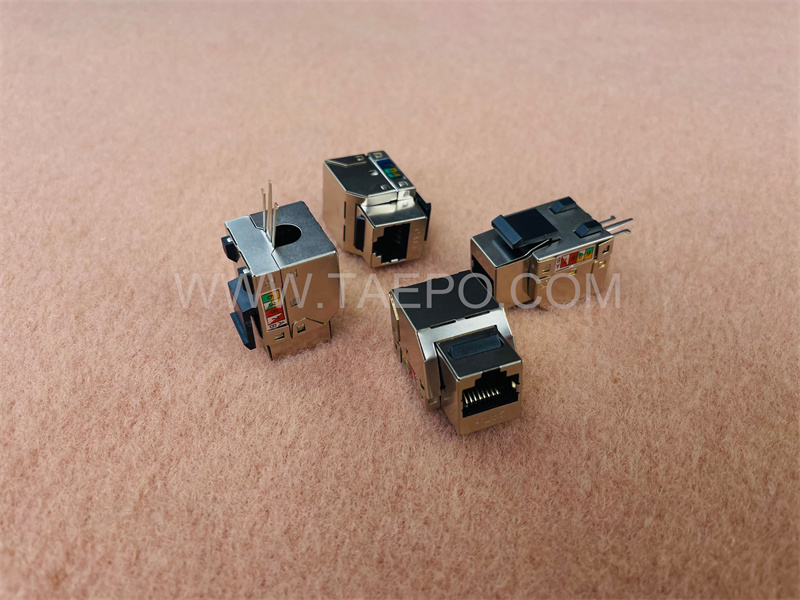

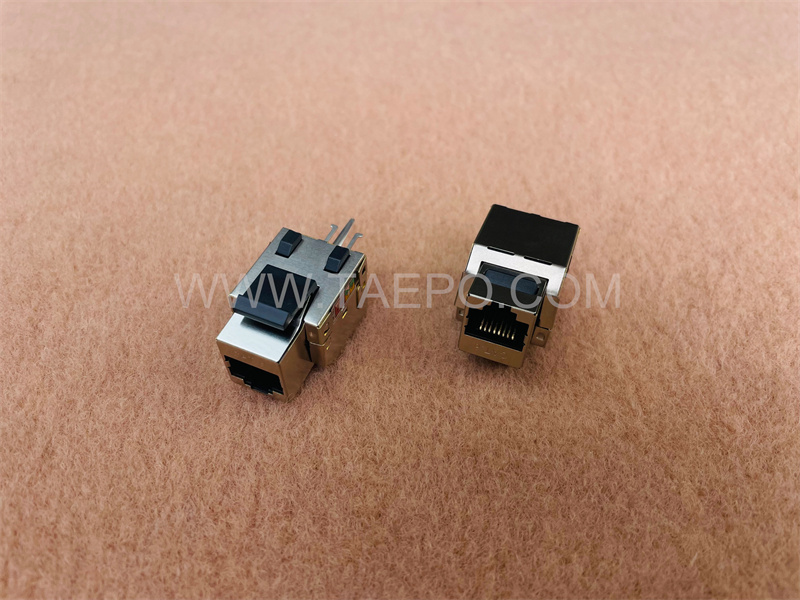

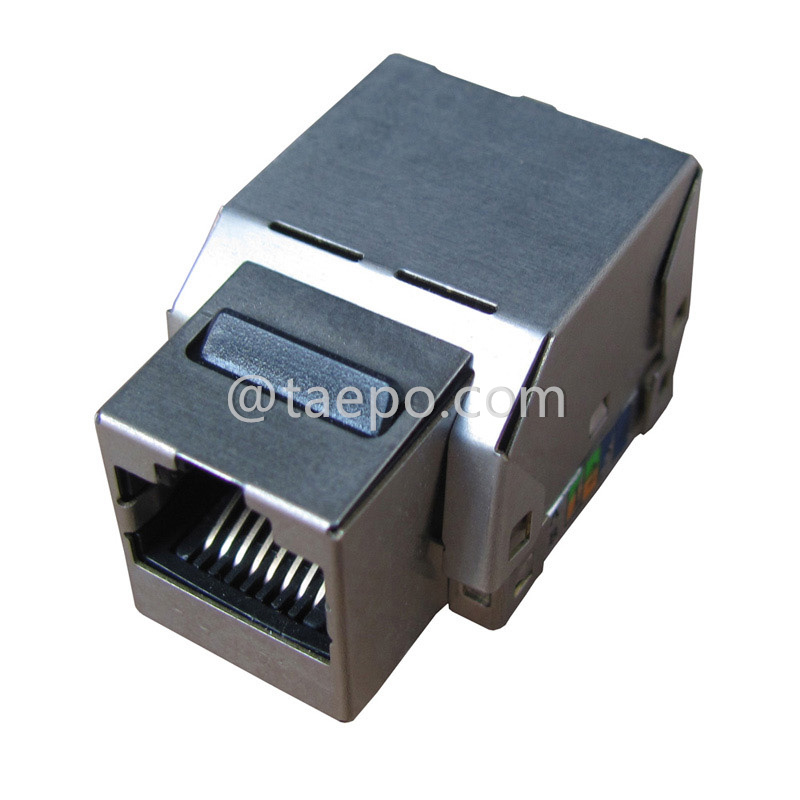

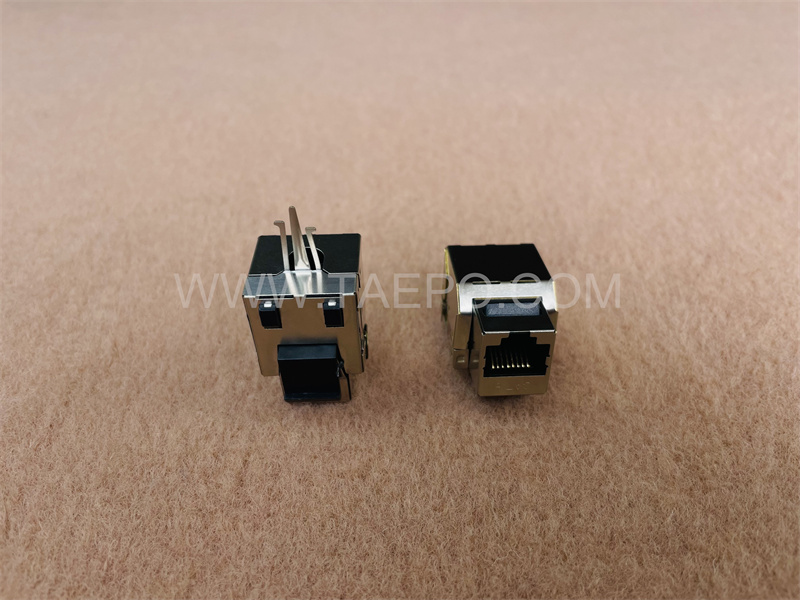

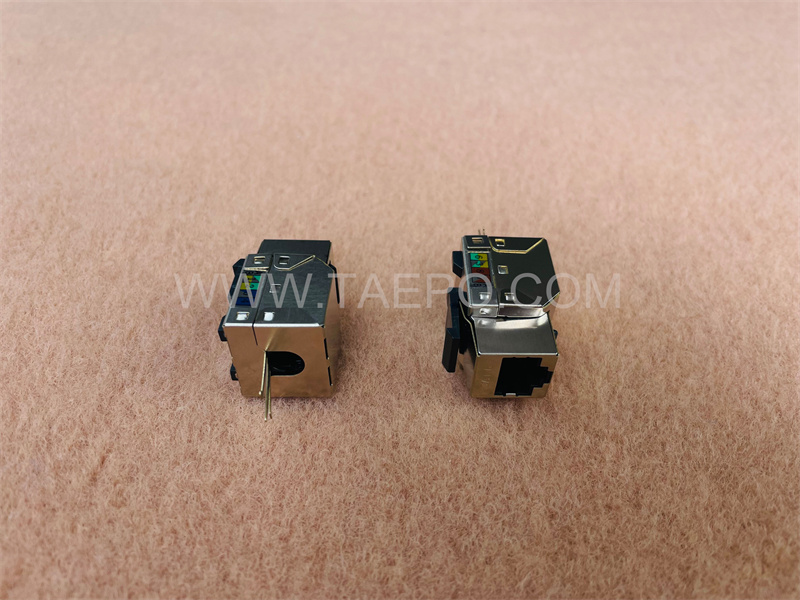

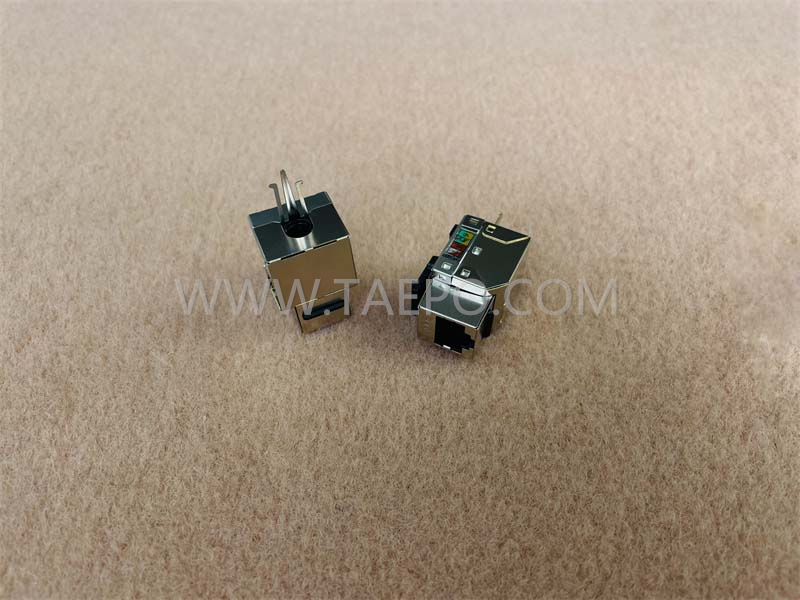

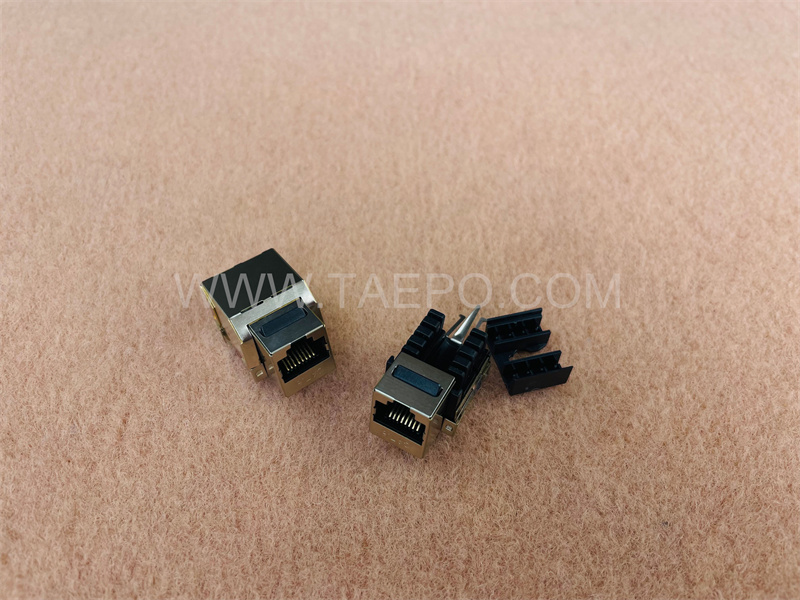

CAT 6 rj45 8P8C 90 degree STP shielded network Keystone jack

    Descriptions

A CAT6 RJ45 8P8C 90-degree STP shielded network keystone jack (TP-5202-C6S8) is a type of network connector used in structured cabling systems.

Here’s a breakdown of itscomponent:

CAT6: This indicates that the jack is designed for Category 6 cabling, which supports higher data transfer speeds (up to 10 Gbps) and greater bandwidth (up to 250 MHz) compared to previous categories. It is commonly used for Ethernet networks.

RJ45: This refers to the standardized connector used for Ethernet networking. It typically has eight positions and is designed to accommodate the 8P8C wiring configuration.

8P8C: This stands for "8 positions, 8 contacts," meaning the connector can hold eight wires (four pairs) necessary for a standard Ethernet connection.

90-Degree: This indicates the orientation of the jack, allowing for a right-angle connection. This can be useful in tight spaces, as it helps to manage cable routing more efficiently.

STP (Shielded Twisted Pair): This refers to the type of cabling used, which includes shielding to reduce electromagnetic interference (EMI). This is particularly beneficial in environments with a lot of electronic noise.

Keystone Jack: This is a modular connector that can be mounted in a wall plate, patch panel, or surface mount box. It allows for easy replacement and customization of network connections.

    Main Features

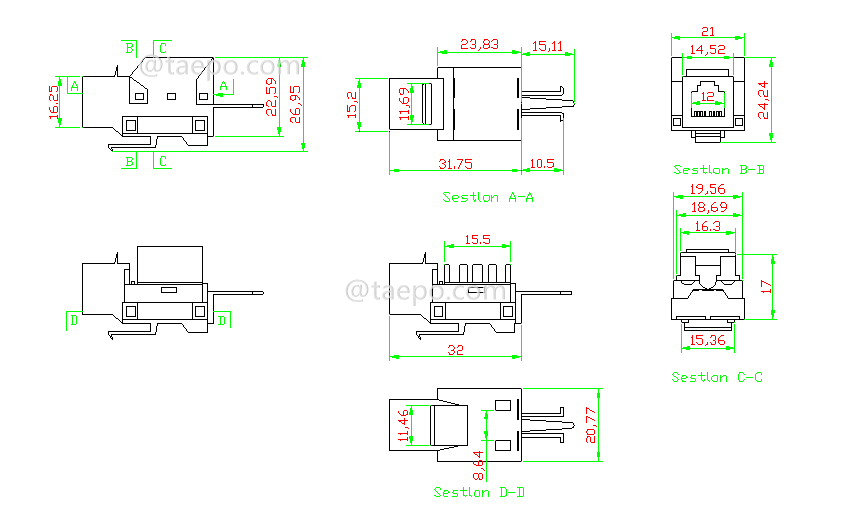

    Schematic Diagrams

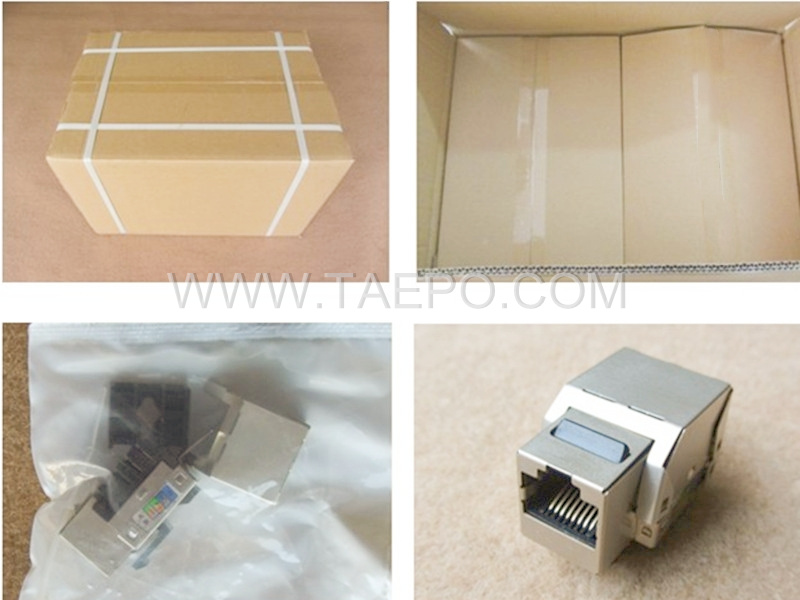

    Packing Pictures

    Order Data
