180 degree CAT5E UTP 8P8C network Keystone jack

    Descriptions

A 180-degree CAT5E UTP 8P8C network Keystone jack is a type of connector used in networking applications, particularly in Ethernet networks.

Let's break down the terms:

180-degree: This refers to the design of the Keystone jack, specifically how the wires are positioned when terminated. In a 180-degree Keystone jack, the wires are typically inserted at a 180-degree angle to the connector, allowing for easier and more organized cable management.

CAT5E: This refers to the category of Ethernet cable. CAT5E (Category 5 Enhanced) cables are designed to support data rates up to 1 Gbps and are suitable for most Ethernet applications. CAT5E cables are backward compatible with older CAT5 cables but offer improved performance and reduced crosstalk.

UTP: This stands for Unshielded Twisted Pair. It refers to the type of cable used with the Keystone jack. UTP cables consist of pairs of insulated wires twisted together to reduce electromagnetic interference.

8P8C: This stands for 8 positions, 8 contacts. It indicates the configuration of the connector. In an 8P8C connector, there are eight positions where the wires can be inserted, and all eight positions have contacts. This is the standard configuration for RJ45 connectors, which are commonly used in Ethernet networks.

Keystone jack: This is a modular connector that is typically mounted in a wall plate or patch panel. Keystone jacks allow for easy termination of network cables and provide a standardized interface for connecting devices to a network.


So, a 180-degree CAT5E UTP 8P8C network Keystone jack is a connector designed for use with CAT5E Ethernet cables. It features a 180-degree termination design for easier cable management and organization. This type of Keystone jack is commonly used in residential, commercial, and industrial networking installations.

    Main Features

The main features of a 180-degree CAT5E UTP 8P8C network Keystone jack include:


High Performance: Designed to meet CAT5E standards, this Keystone jack supports data rates up to 1 Gbps, making it suitable for most Ethernet applications.

180-Degree Termination: The 180-degree termination design allows for easier and more organized cable management. This feature ensures that the wires are positioned neatly within the Keystone jack, reducing the risk of cable strain and damage.

Compatibility: Compatible with CAT5E UTP cables, this Keystone jack can be used with a wide range of networking equipment, including switches, routers, and patch panels.

Standardized Interface: The 8P8C configuration provides a standardized interface for connecting devices to a network. This ensures compatibility with other networking components and simplifies installation and troubleshooting.

Easy Installation: Keystone jacks are designed for easy installation into wall plates, patch panels, or surface-mount boxes. The 180-degree termination design simplifies the termination process, making it suitable for both professional installers and DIY enthusiasts.

Durable Construction: Constructed from high-quality materials, this Keystone jack is durable and able to withstand the rigors of networking environments. It provides reliable performance and long-lasting functionality.

Versatility: The Keystone jack's modular design allows it to be used in various networking applications, including residential, commercial, and industrial installations.


Overall, the main features of a 180-degree CAT5E UTP 8P8C network Keystone jack focus on high performance, easy installation, compatibility, durability, and versatility, making it an essential component for creating reliable and efficient Ethernet networks.

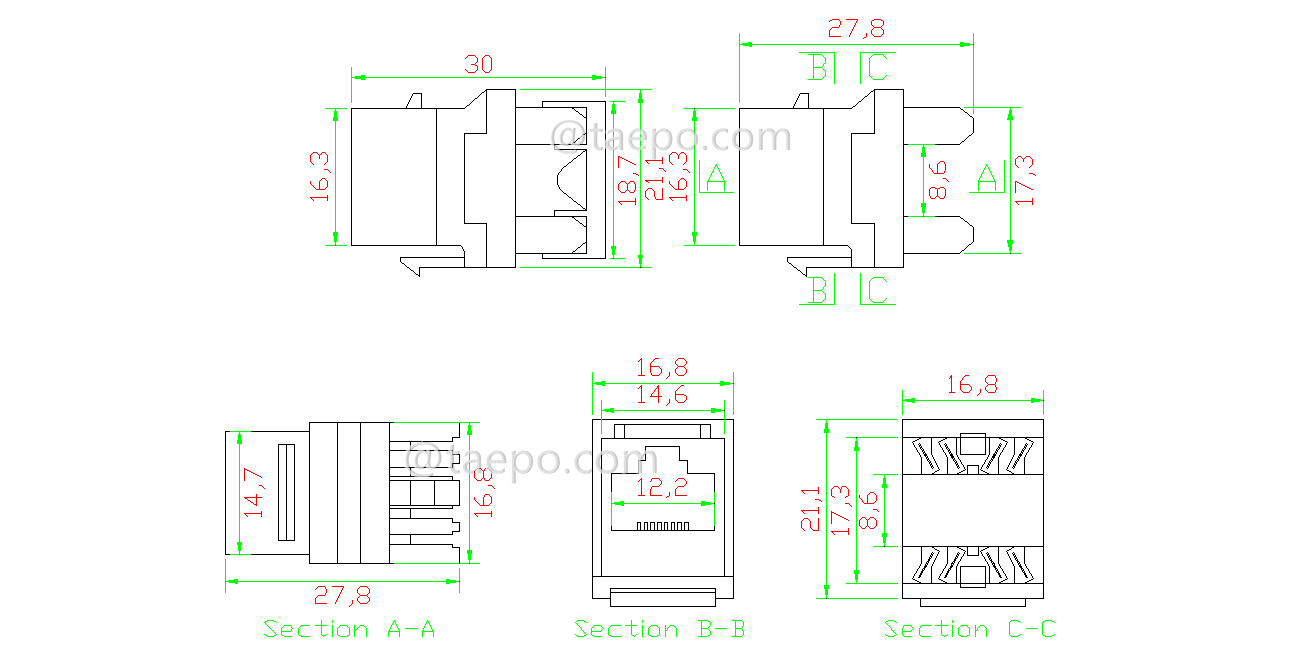

    Schematic Diagrams
