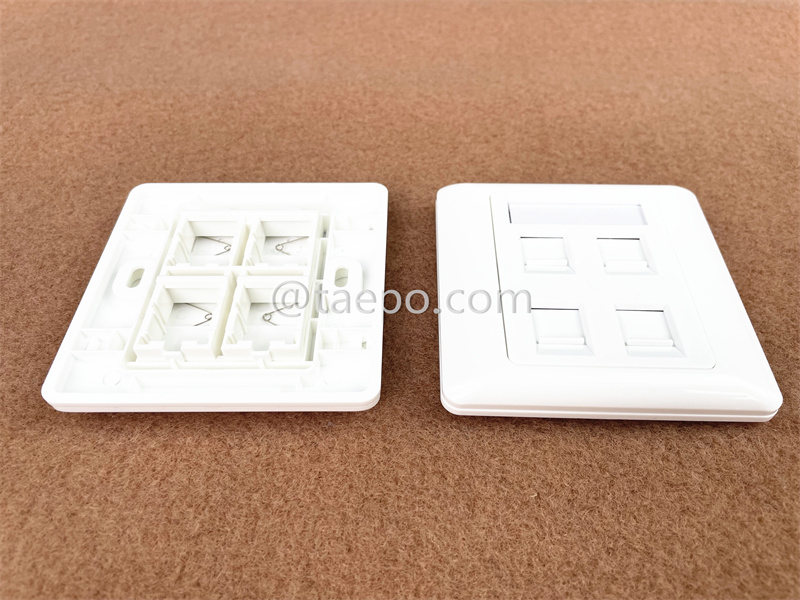

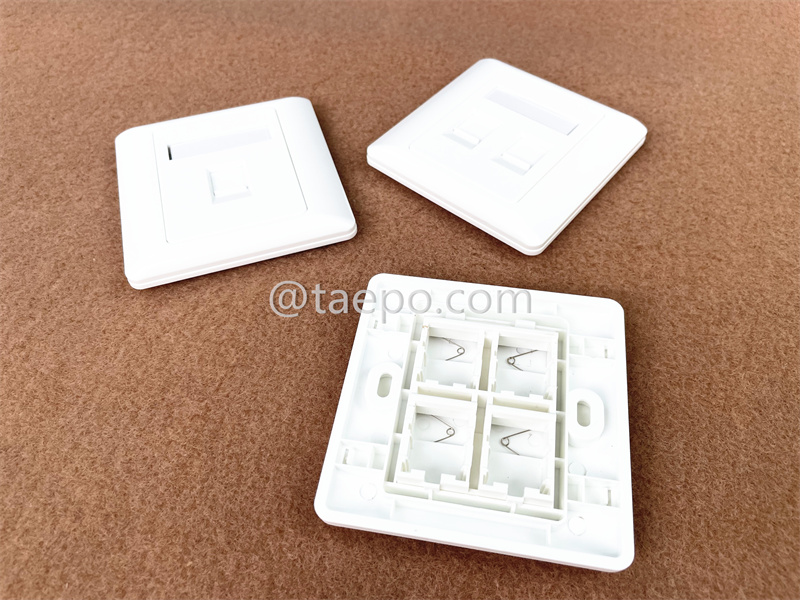

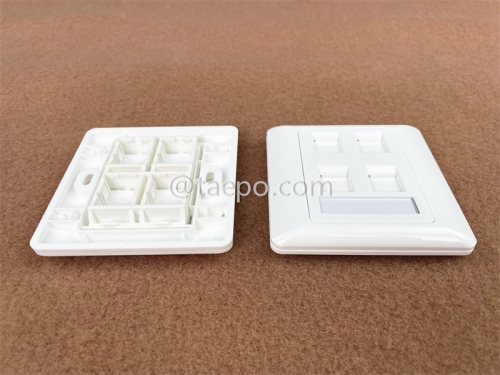

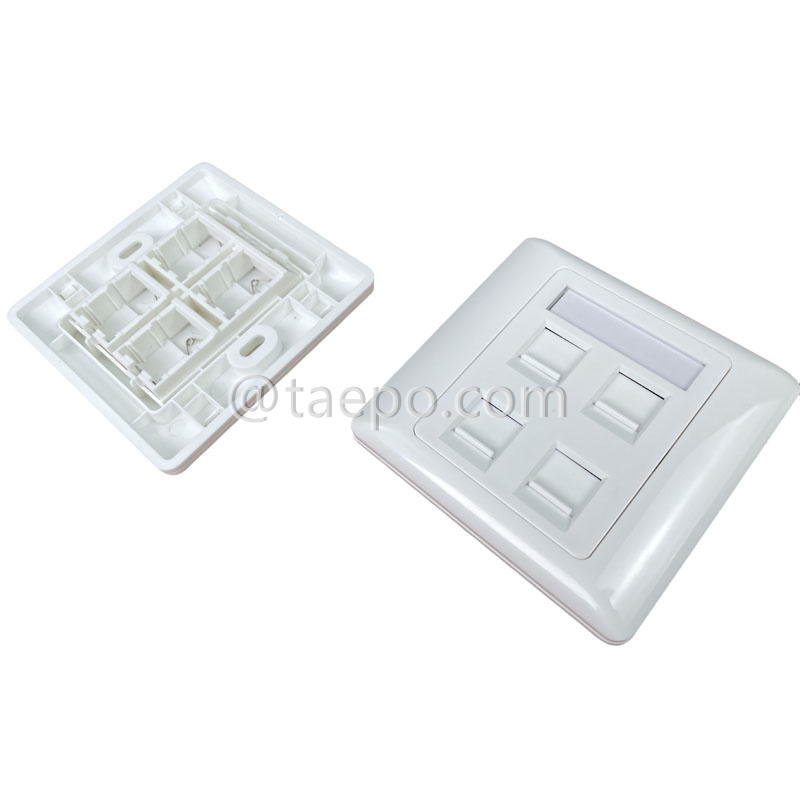

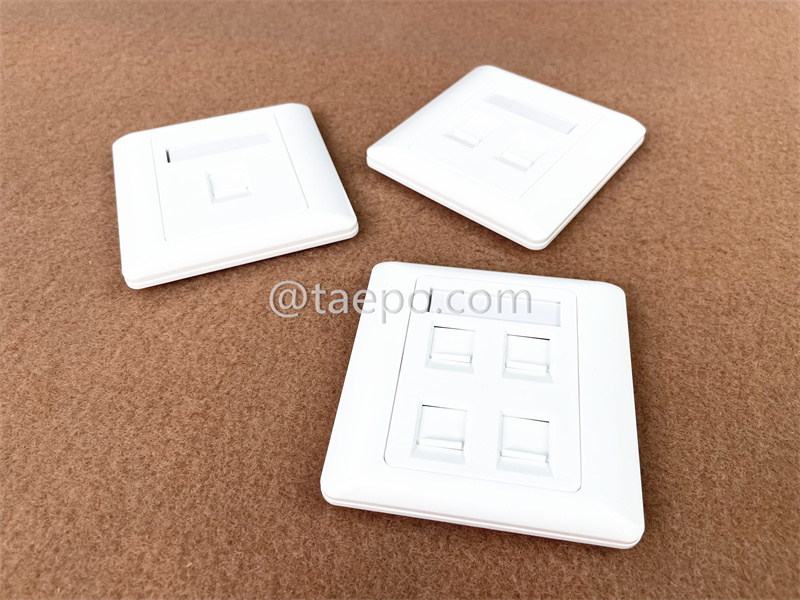

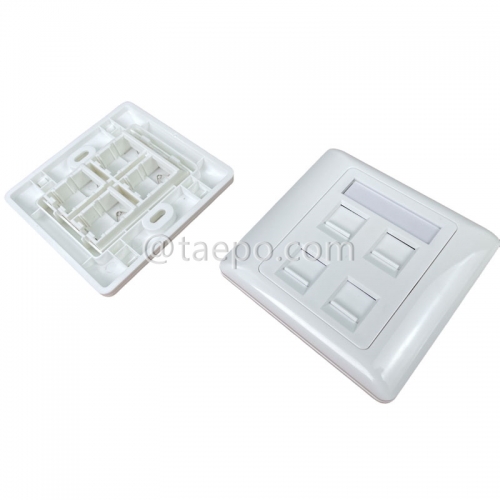

86x86mm AP style 4 port RJ45 wall network face plate

    Descriptions

An 86x86mm AP style 4 port RJ45 wall network face plate is a specific type of wall plate designed for networking installations.

Here’s what each part of the description means:

86x86mm: This indicates the dimensions of the face plate. It measures 86 millimeters by 86 millimeters, which is a standard size for wall plates in many regions.

AP Style: "AP" likely stands for "Australian Plate," a style or design standard commonly used in Australia and some other regions for electrical and networking installations.

4 Port RJ45: This specifies the configuration of the faceplate. It has four ports designed to accommodate RJ45 connectors. RJ45 connectors are used for Ethernet and networking connections, allowing multiple devices or connections to be terminated in one location.
Wall Network Face Plate: This indicates that the face plate is designed to be mounted on a wall and used specifically for networking purposes. It provides a centralized point for terminating Ethernet cables and connecting them to a network.

    Main Features

High Port Density: The face plate accommodates four RJ45 ports, allowing for the termination of multiple Ethernet connections in a single location. This increases flexibility in network setups and reduces the need for additional wall plates.

Standard Size: The 86x86mm dimensions ensure compatibility with standard wall mounting boxes and frames, making installation straightforward and conforming to industry standards.

Professional Appearance: It provides a neat and organized appearance for Ethernet cable terminations, contributing to a professional-looking networking setup in homes, offices, or commercial environments.

Durable Construction: Typically made from durable materials such as ABS plastic or metal, ensuring longevity and reliability in various installation environments.

Easy Installation: Designed for simple installation on standard electrical back boxes or mounting frames, making it accessible for both professional installers and DIY enthusiasts.

Versatility: Compatible with various types of RJ45 connectors used for Cat5e, Cat6, Cat6a, and potentially higher categories, depending on the specific design and construction standards.

Regional Compatibility: The "AP style" designation suggests suitability for regions using Australian Plate standards, which might influence design and compatibility with local electrical and networking standards.


In summary, an 86x86mm AP style 4 port RJ45 wall network faceplate is designed to provide a centralized and organized solution for terminating multiple Ethernet connections in networking installations, ensuring efficiency, flexibility, and a professional appearance.

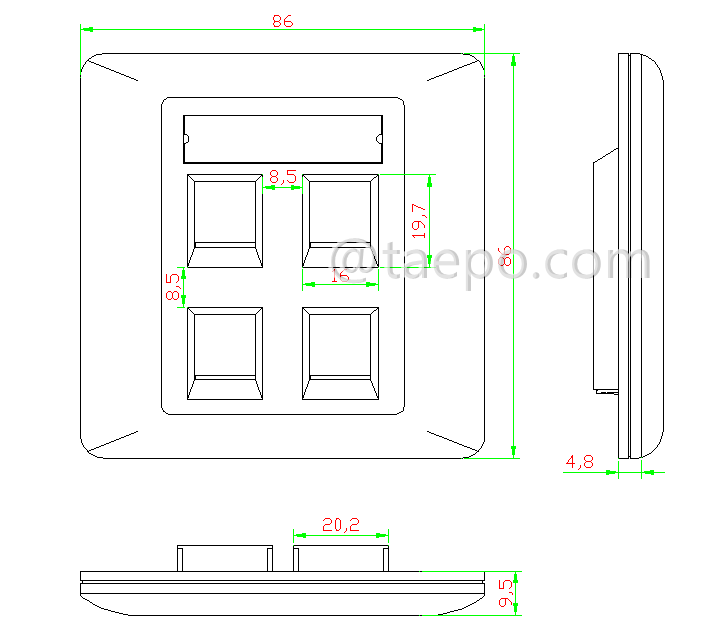

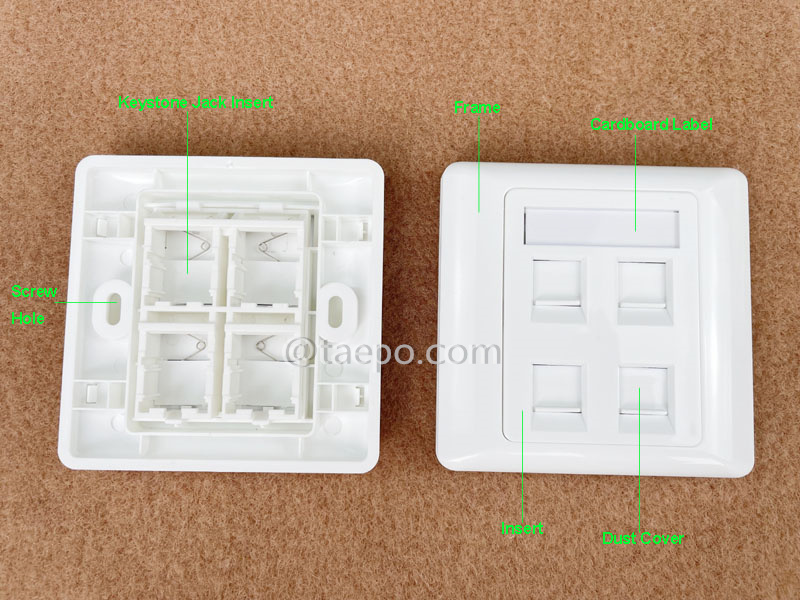

    Schematic Diagrams

    Packing Pictures
