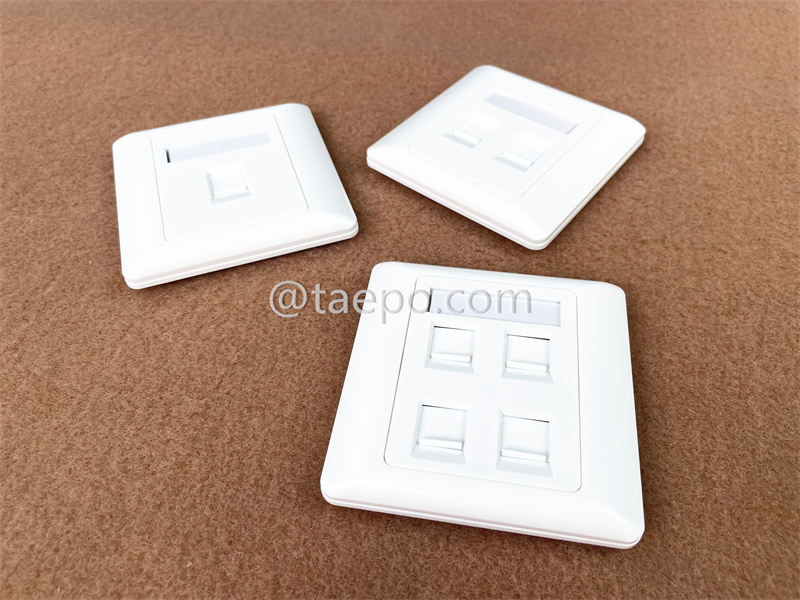

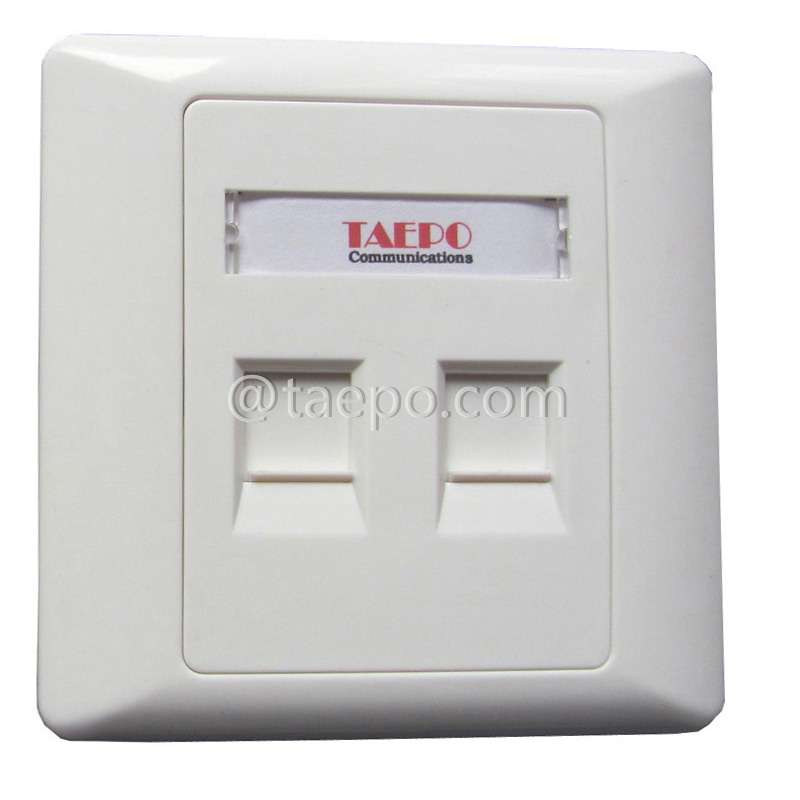

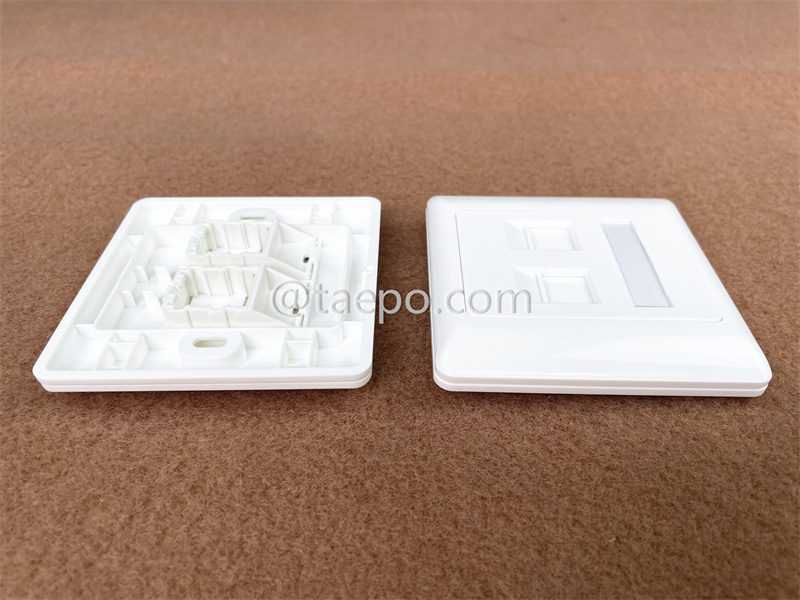

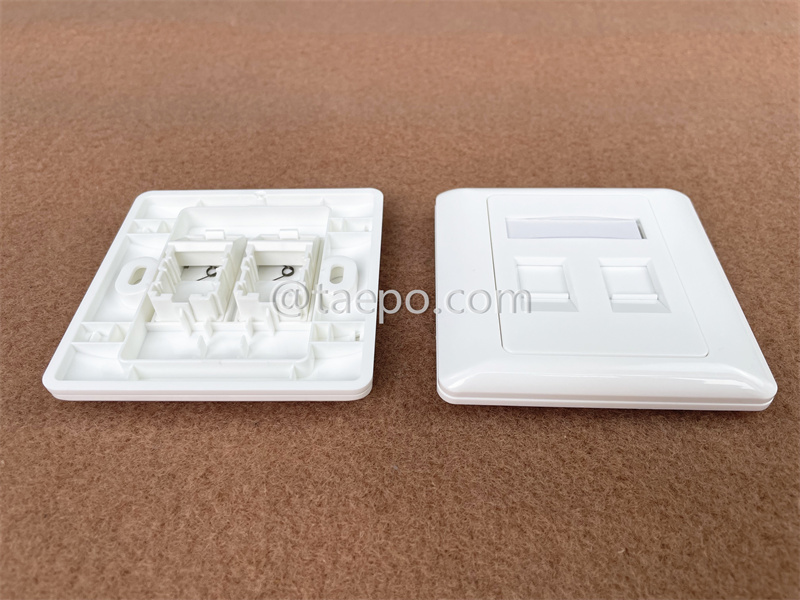

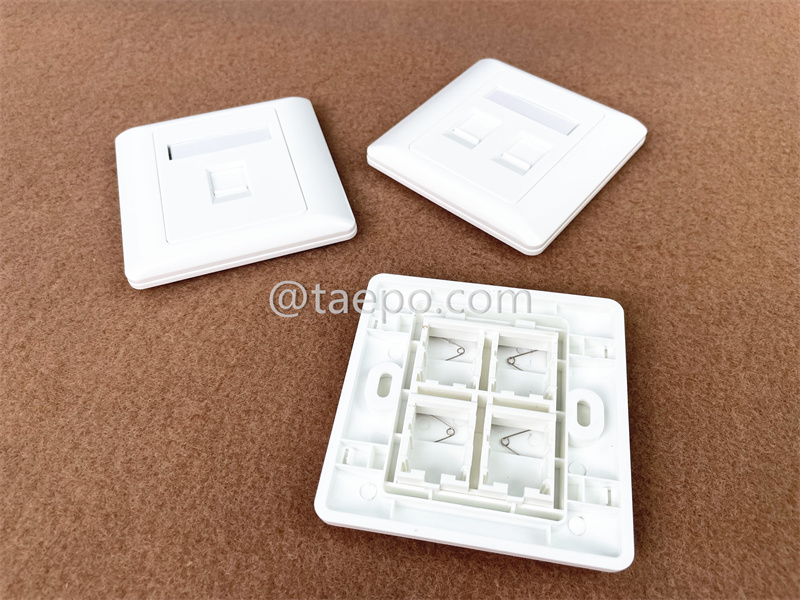

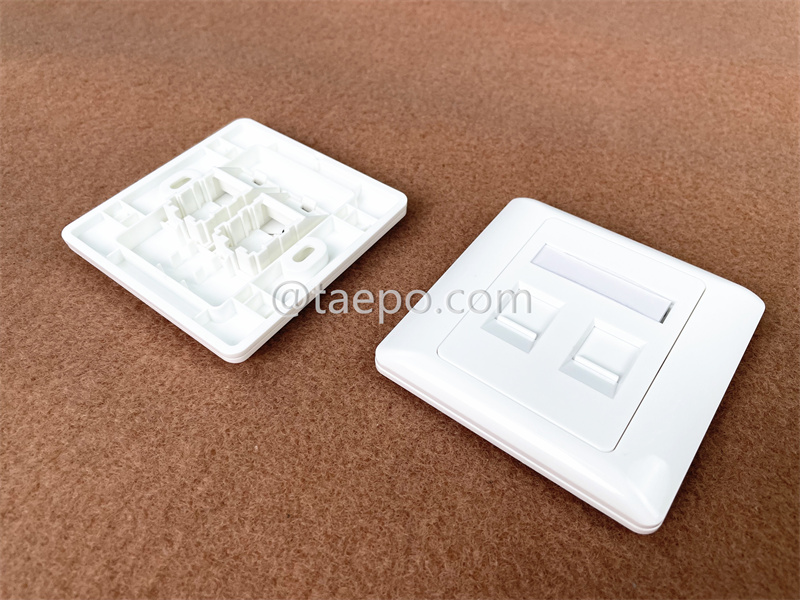

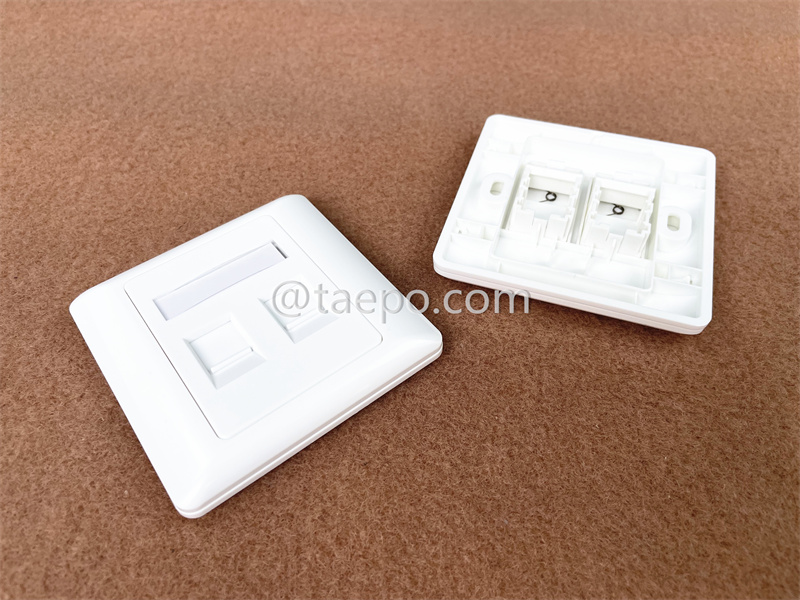

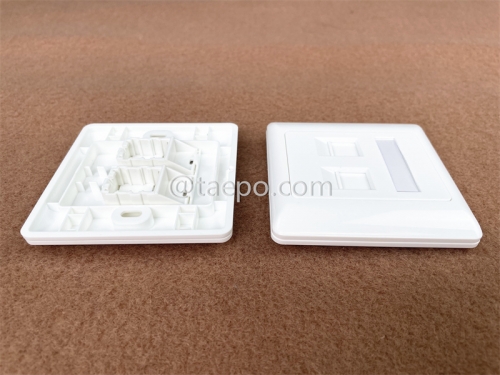

86x86mm AP style 2 port RJ45 double network wall faceplate

    Descriptions

An 86x86mm AP style 2 port RJ45 double network wall faceplate refers to a specific type of wall plate used in networking and telecommunications installations.

Here's a breakdown of each component of the description:

86x86mm: This dimension refers to the size of the faceplate. In this case, it indicates that the faceplate is square-shaped and measures 86 millimeters by 86 millimeters. This size is a standard for wall plates used in many regions.

AP Style: "AP" likely stands for "Australian Plate," which is a type of wall plate standard used in Australia and some other regions. It denotes a specific style or design of the faceplate.

2 Port RJ45: This specifies the configuration of the faceplate. It has two ports that are designed to accommodate RJ45 connectors. RJ45 connectors are used for Ethernet and networking connections, commonly seen in home and office environments.

Double Network: This further clarifies that the faceplate is designed to support two separate network connections. Each port typically corresponds to a separate Ethernet connection, allowing for flexibility in networking setups.

Wall Faceplate: This indicates that the device is designed to be mounted on a wall, providing a neat and professional way to terminate Ethernet cables and connect them to the network.

In summary, an 86x86mm AP style 2 port RJ45 double network wall faceplate is a standardized wall-mounted plate used to facilitate the termination and connection of Ethernet cables in networking installations. It provides a tidy and organized solution for bringing network connectivity to specific locations within a building, such as offices, homes, or other networking environments.



    Main Features

The main features of an 86x86mm AP style 2 port RJ45 double network wall faceplate include:


Dual Port RJ45 Connectivity: It allows for the termination of two separate RJ45 Ethernet cables. This enables the faceplate to support two independent network connections or devices, providing flexibility in network configuration.

Standard Size: The 86x86mm dimensions conform to a widely accepted standard for wall plates, ensuring compatibility with standard wall mounting boxes and making installation straightforward.

Neat and Professional Installation: It provides a tidy and organized appearance for Ethernet cable terminations, contributing to a professional-looking networking setup in offices, homes, or commercial environments.

Durable Construction: Typically made from durable materials such as plastic or metal, ensuring longevity and reliability in various installation environments.

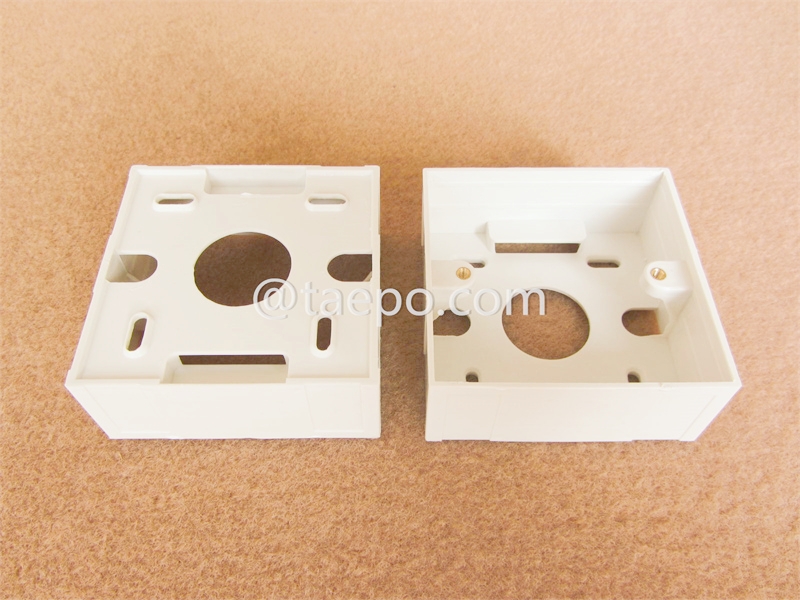

Easy Installation: Designed for simple installation on standard electrical back boxes or mounting frames, making it accessible for both professional installers and DIY enthusiasts.

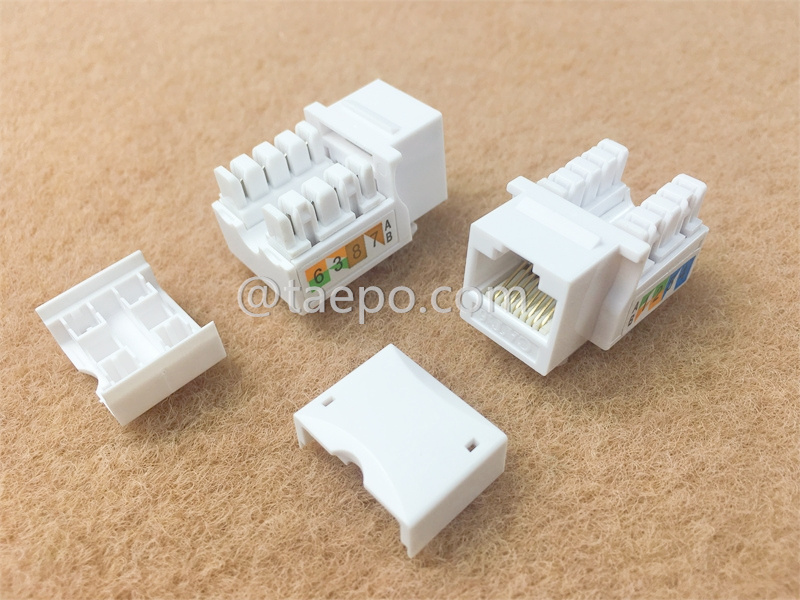

Versatility: Compatible with various types of RJ45 connectors, including those used for Cat5e, Cat6, Cat6a, and potentially higher categories, depending on the specific design and construction standards.

Regional Compatibility: The "AP style" designation suggests suitability for regions using Australian Plate standards, which might influence design and compatibility with local electrical and networking standards.

Overall, the main feature of this faceplate is its capability to provide a reliable and organized method for connecting Ethernet cables in a manner that is both aesthetically pleasing and functional, supporting dual network connections in a single unit.

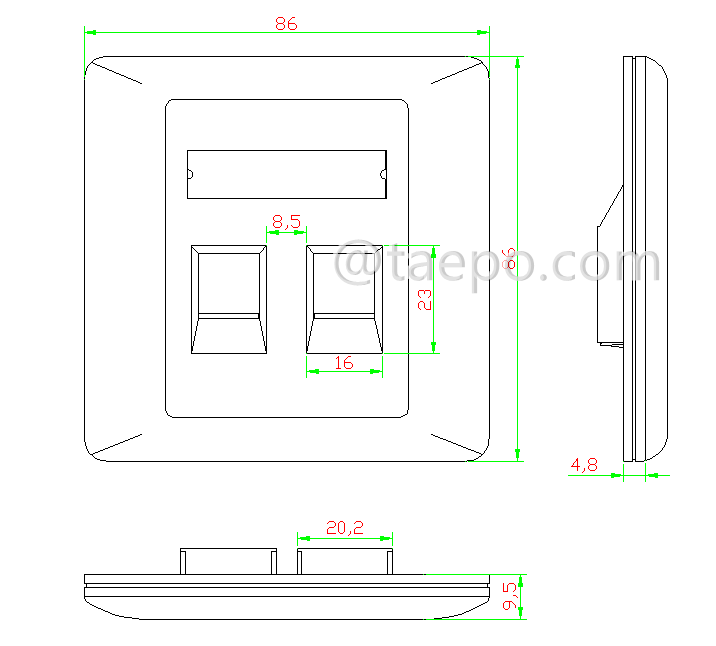

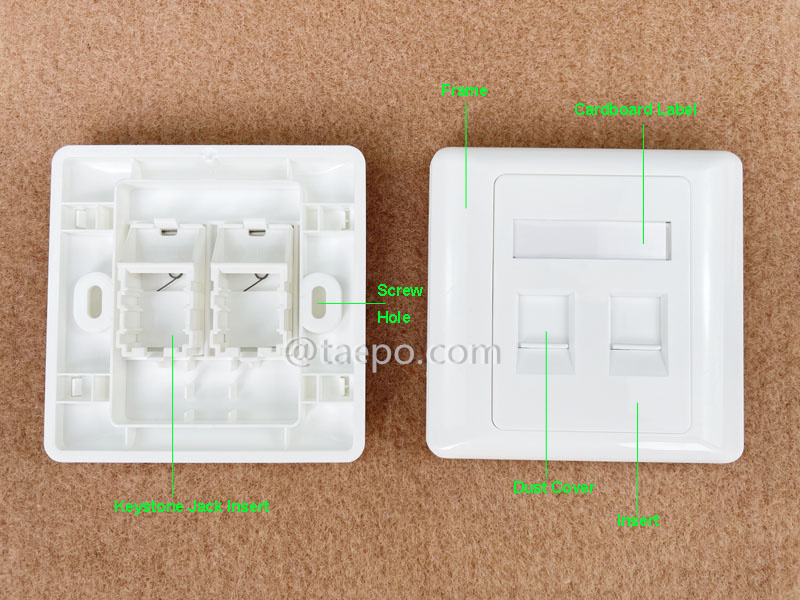

    Schematic Diagrams

    Packing Pictures

    Order Data
