Name: 4 pole HW connection test cord with test plug to test plug
Brand: TAEPO Official Website
SKU: TP-1332-4TT
Availability: InStock
Rating: 5 (1 reviews)

Item No.: TP-1332-4TT

These test cords are essential tools for engineers, electricians, and technicians working in fields where testing and troubleshooting multi-pole electrical systems is necessary.

Color: White

Brand: Neutral / OEM / TAEPO

Packing: 2 pcs/bag，150 bags/CTN

MOQ: 500pcs

Delivery: 7-14 days

INQUIRY

Description

DESCRIPTIONS

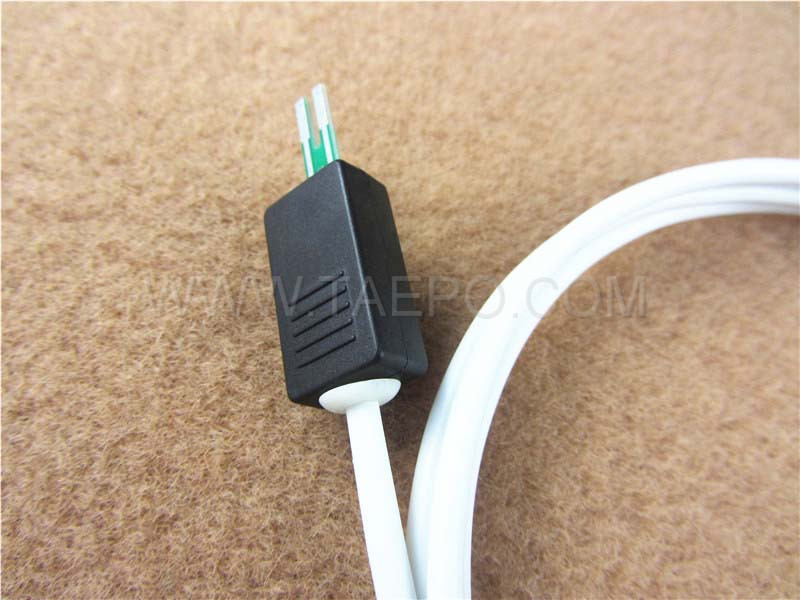

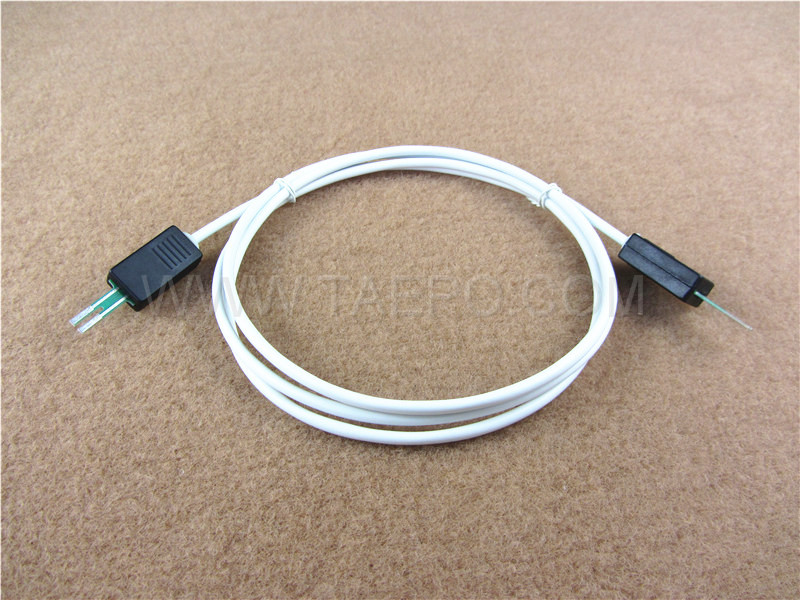

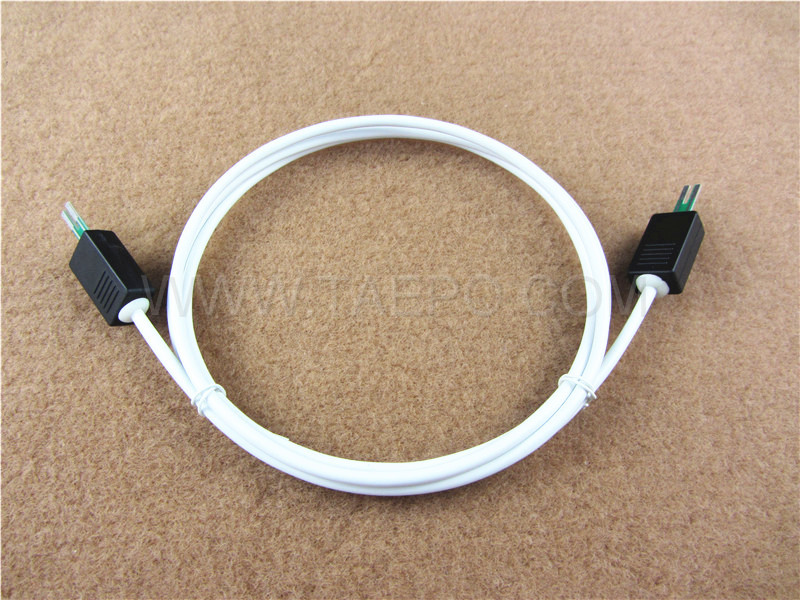

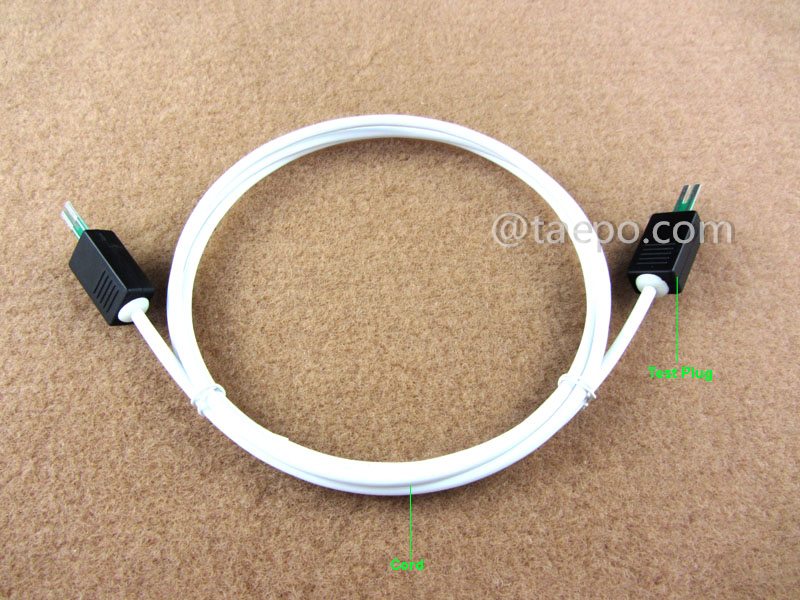

A "4 pole HW connection test cord with test plug to test plug" (TP-1332-4TT) typically refers to a specialized cable used for testing electrical or electronic systems that require four separate electrical connections (poles). These test cords are equipped with test plugs at both ends, allowing users to connect them to corresponding test points or devices for the purpose of signal transmission, measurement, or diagnostics.

4 Pole: This refers to the number of electrical connections or conductors inside the cord. Each pole corresponds to a separate electrical pathway for transmitting or receiving a signal.

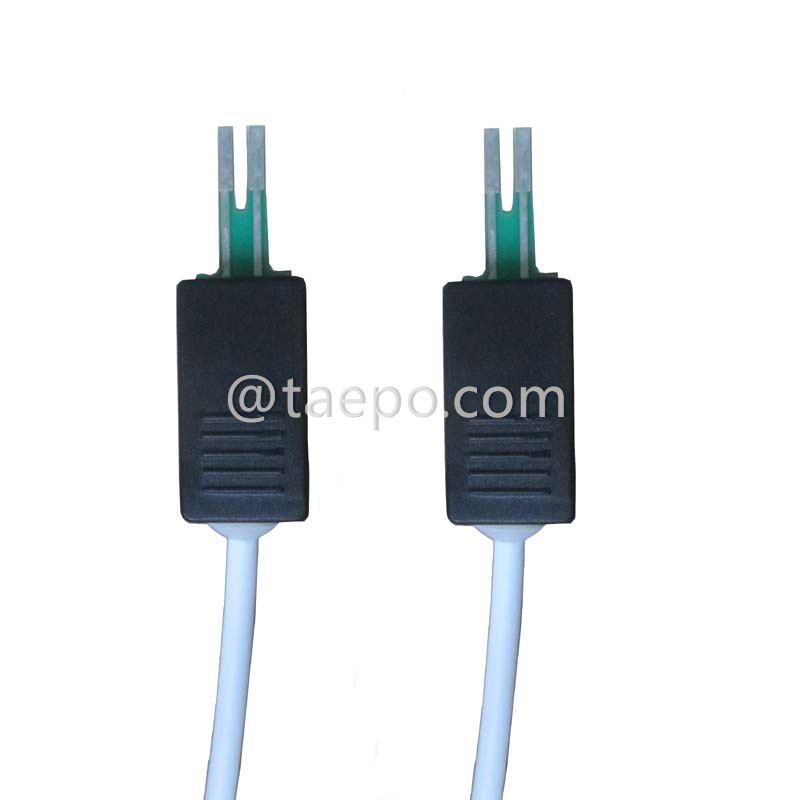

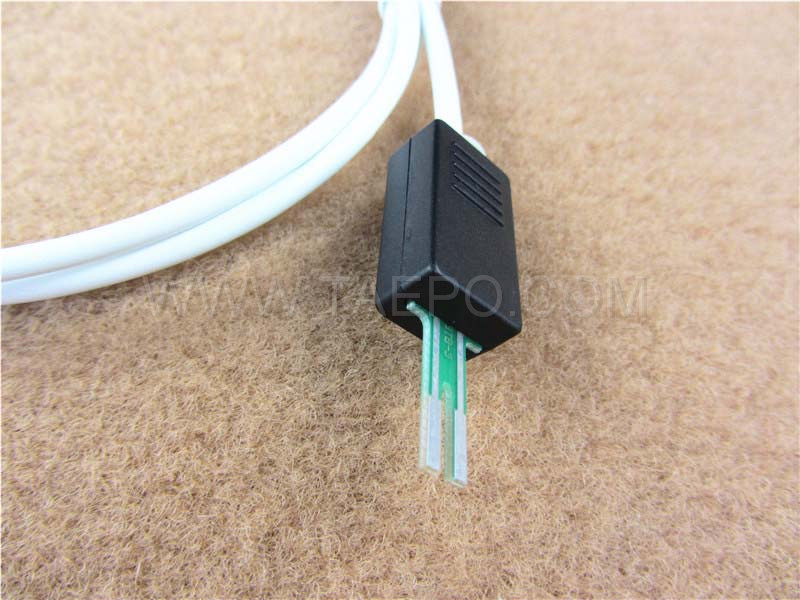

Test Plug to Test Plug: The cord has test plugs on both ends, typically male connectors, allowing for easy and direct connections to the test devices, meters, or equipment.

MAIN FEATURES

Multi-pole Connectivity: Provides four separate pathways for testing multiple signals or circuits simultaneously.
Durable Construction: Often designed to handle mechanical stress and offer electrical insulation for safe testing in both industrial and lab environments.
Compatibility: Can be used with a variety of test equipment, including multimeters, oscilloscopes, and circuit analyzers.
Secure Connections: The test plugs ensure a stable connection with minimal interference or signal loss.
Flexible Lengths: These cords are available in different lengths, depending on the application and distance between testing points.
Insulation Protection: The wires are typically insulated to prevent short circuits and ensure operator safety during testing.
Versatile Use: Suitable for testing electrical systems, industrial equipment, automotive diagnostics, and other electrical applications.

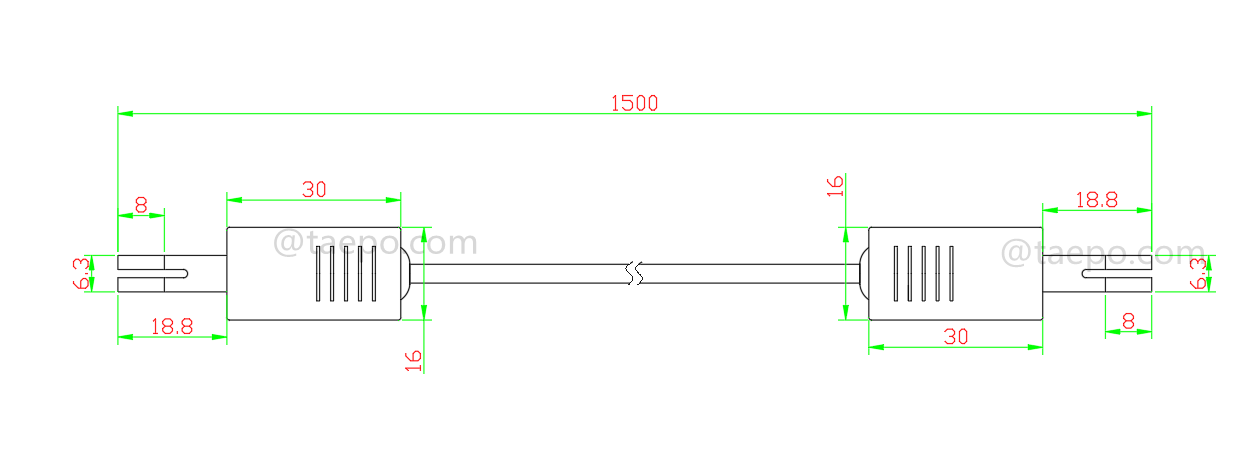

Schematic Diagrams

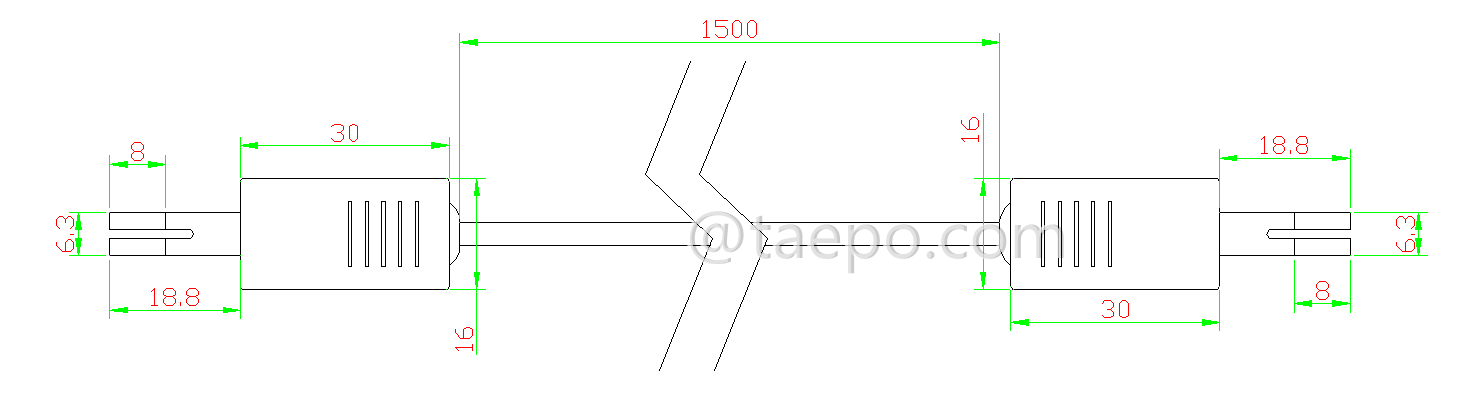

Schematic Diagrams for 4 pole HW connection test cord

PACKING PICTURES
