8 pins KRONE PCB connection module with RoHS Certificate

Item No.: TP-1305-8
Used on the ethernet patch panel | RJ45 connection boxes
  • Color: Ivory or White
  • Brand: Neutral / OEM / TAEPO
  • Packing: polybag + inner box + ctn
  • MOQ: 20000pcs
  • Delivery: 2-4 weeks
  • Description

        Descriptions


    8 pins PCB connection modules (TP-1305-8) are used on the ethernet patch panel or RJ45 connection boxes, for the connection of LAN cable wires. For soldering on printed circuit boards. For terminating CAT 5E or CAT6 cables on LSA-PLUS contacts. Wire diameter: 0.40 ~ 0.63mm, Insulation diameter: 0.70 ~ 1.70mm

    It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.





        Main Features


    • Insulation Displacement Connection
    • No wire-stripping, screw and solder free
    • Reliable connections
    • Modular design and installations
    • Gas tight connection
    • One push wire insertion
    • Robust long-term environmental stability



        Installation Vedeos





        Schematic Diagrams

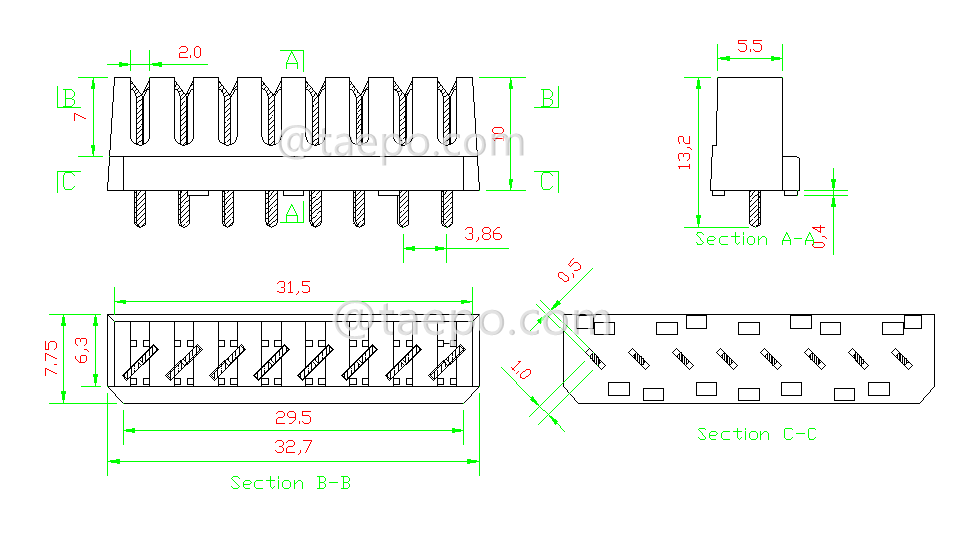

    Schematic Diagrams for 8 pins PCB connection modules


        Packing Pictures


    Packing picture for 8 pins KRONE PCB connection module




        Order Data



    Item No Descriptions
    TP-1305-8 8 pins PCB connection module
