Descriptions

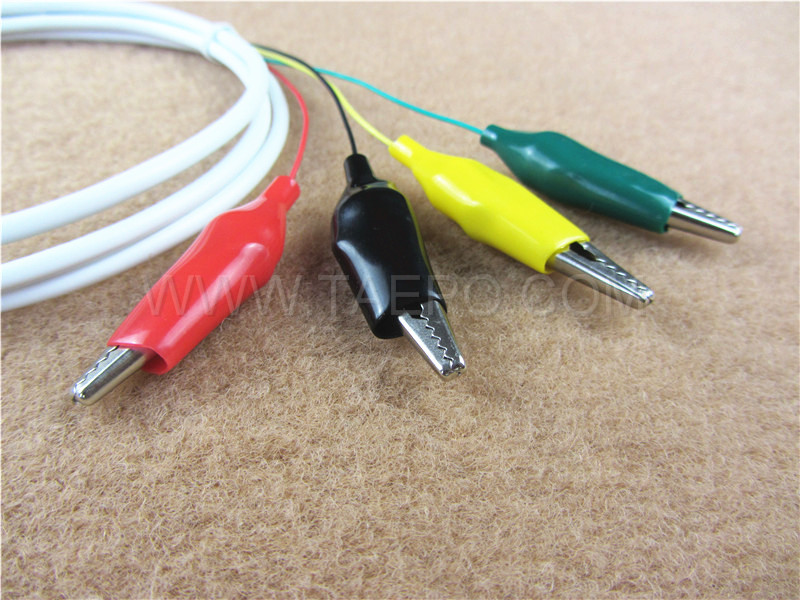

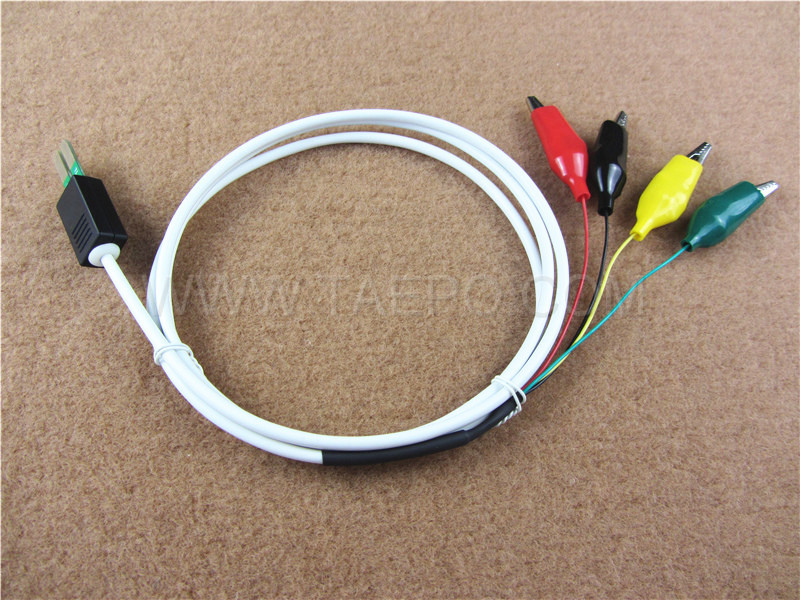

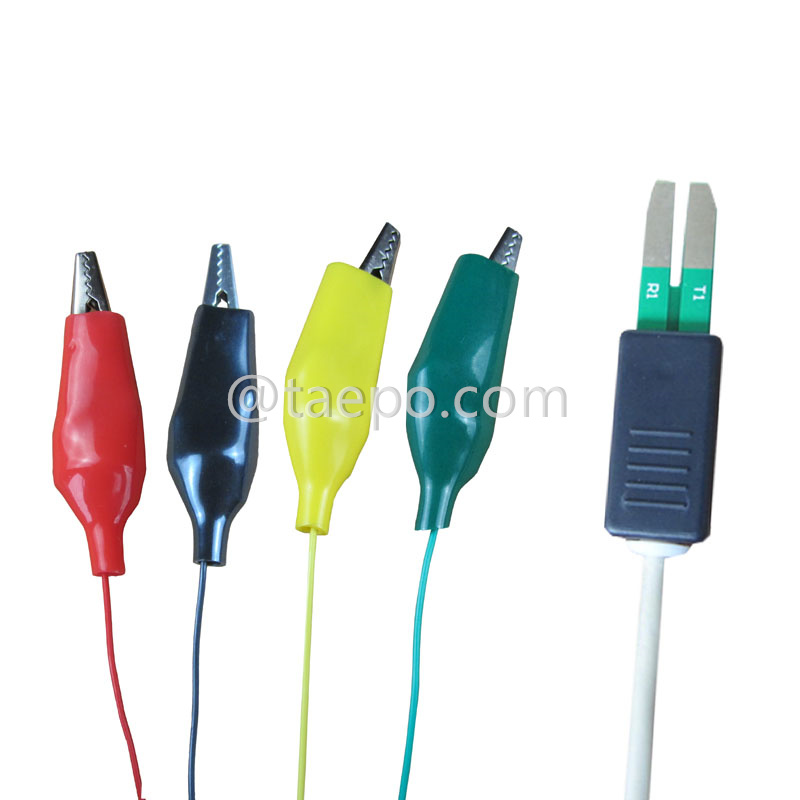

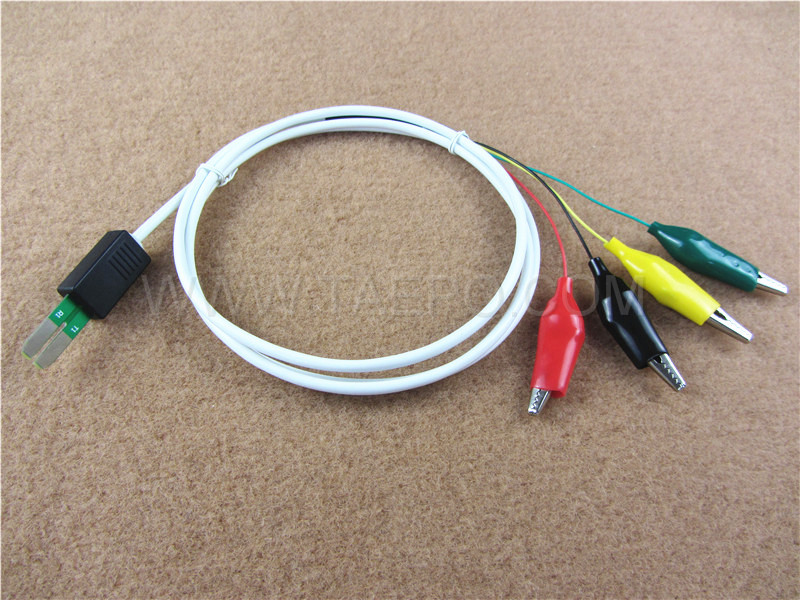

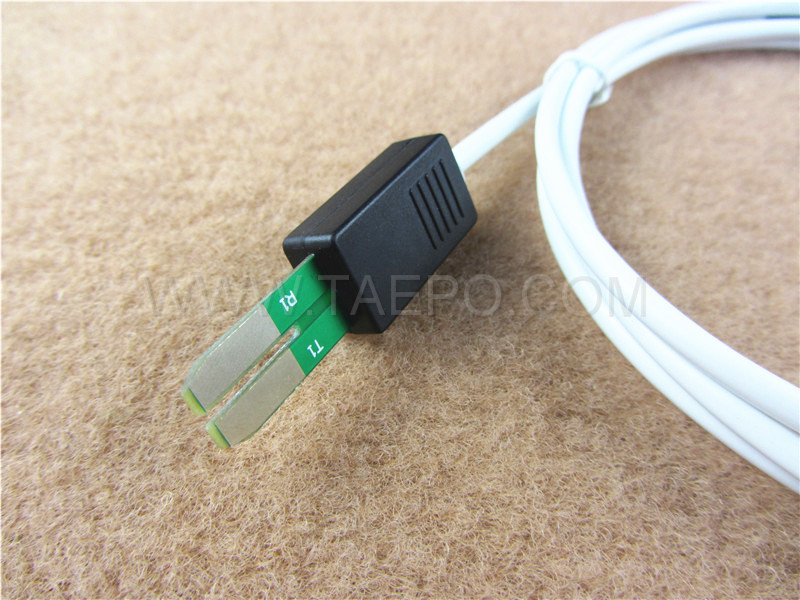

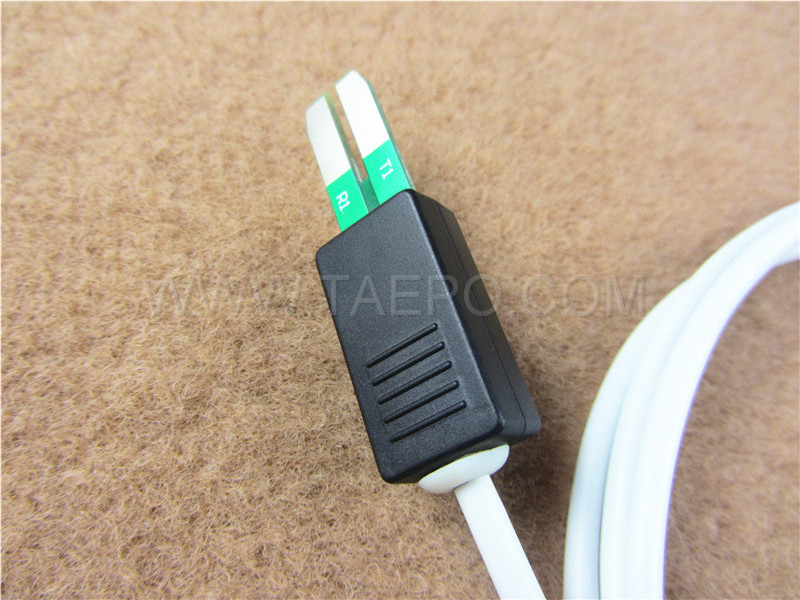

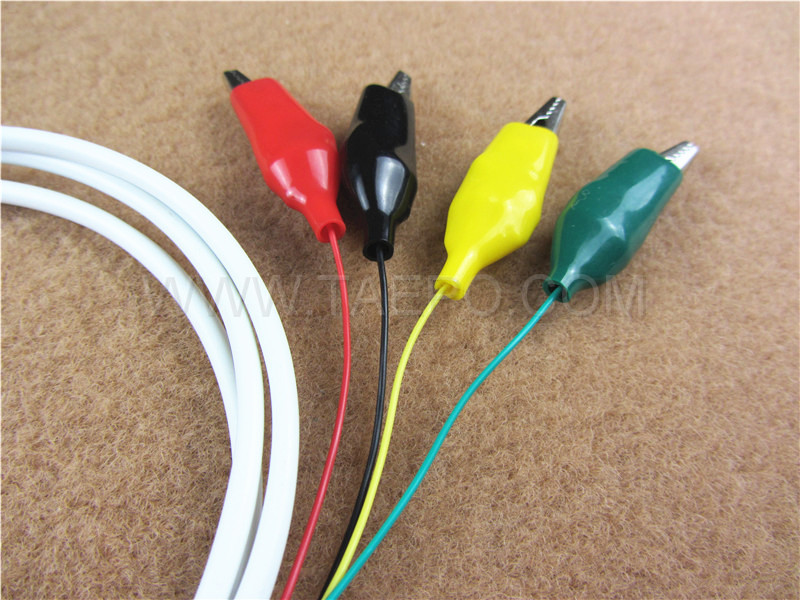

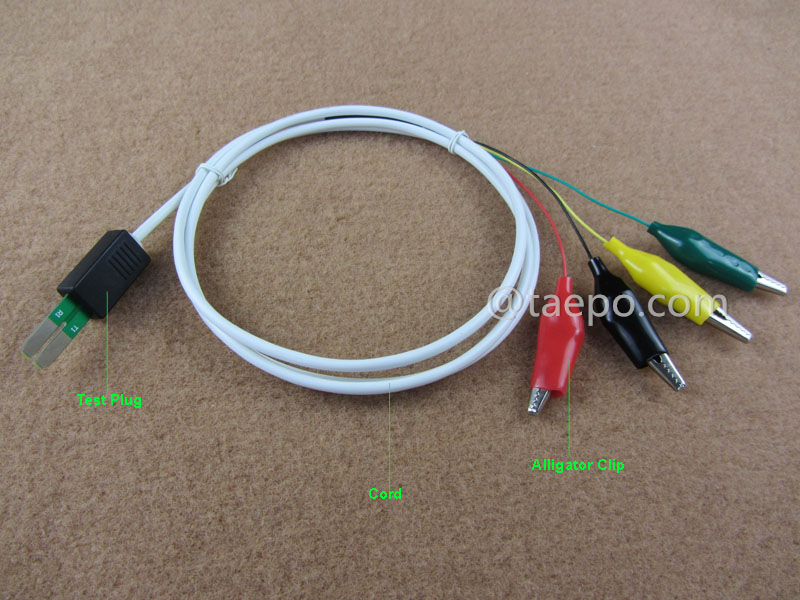

4-pole HW test cord, test plug to alligator clip (TP-1317-4TA) is used for testing the telephone line. The HW plug is used for inserting into the HW disconnection module, and the alligator clip for connecting to the telephone testing kit.
The grey 4-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 4-pole cords can be used in switching modules. The PCB contacts would make a positive contact in this case.
Main Features

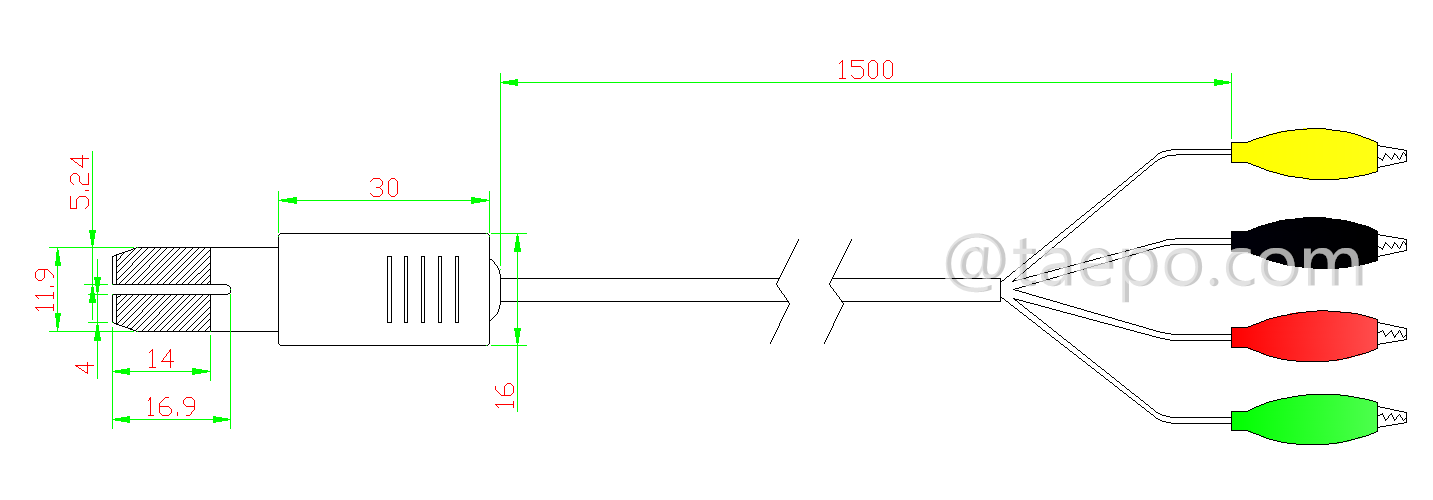

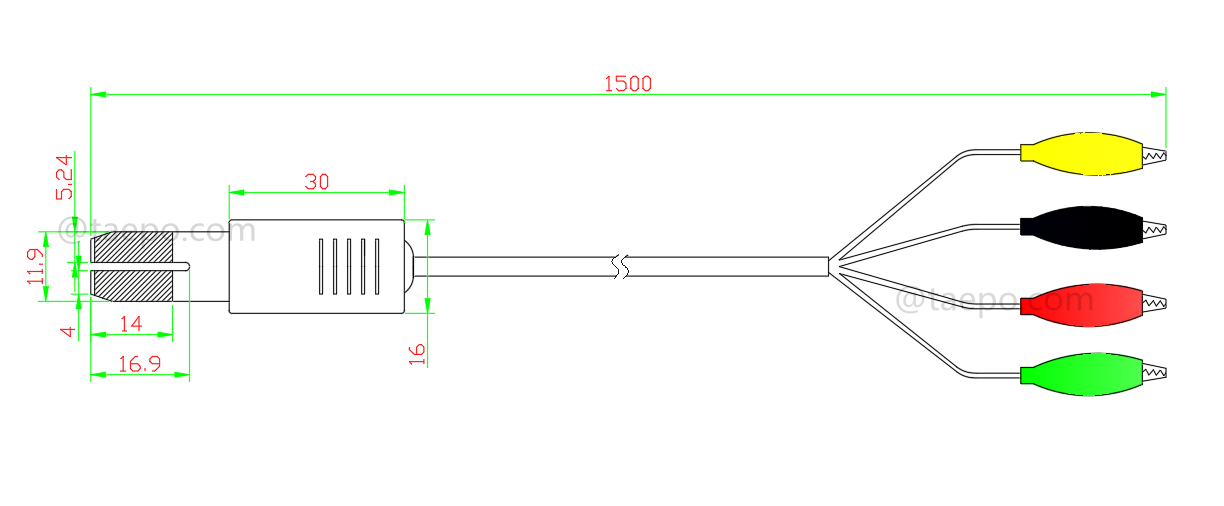

Schematic Diagrams
Order Data
Item No | Descriptions |
TP-1317-4TA | 4-pole HW test cord, test plug to alligator clip, 1.5m |
