Descriptions
A 2-pole test cord with an LSA test plug to a 6P2C modular plug is used for testing and troubleshooting telephone and network connections.
Here’s a breakdown of the components and their functions:
2-Pole Test Cord: This refers to a test lead with two wires, used for connecting to a test device. In the context of telecommunications, this is typically used to check the integrity of a connection or to verify the functionality of a circuit.
LSA Test Plug: The LSA (Löt-Stift-Aufsatz) test plug is designed for use with LSA-PLUS (or similar) punch-down blocks, which are common in telecommunication panels. The LSA test plug allows you to connect test equipment to a terminated cable without having to directly access the cable ends. It provides a means to tap into the connections for testing purposes.
6P2C Modular Plug: The 6P2C (6 positions, 2 contacts) modular plug is a type of connector often used in telecommunication systems. It’s similar in appearance to the more common RJ45 or RJ11 connectors but with fewer contacts. This connector is typically used for telephone lines or other low-contact applications.
Main Features
The main feature of a 2-pole test cord with an LSA test plug to a 6P2C modular plug is its ability to facilitate the testing and troubleshooting of telephone lines or low-voltage network connections. Here are the key aspects:
Testing Capability: It allows technicians to connect a testing device or tool (such as a tone generator or a network tester) to a specific point in a telephone or network system. This helps in diagnosing issues like connectivity problems, signal integrity, or wiring faults.
Interfacing Different Connectors: The cord provides an interface between an LSA-style test point (common in telecom panels) and a 6P2C modular socket. This flexibility is useful in various testing scenarios where you need to bridge different types of connectors.
Simplicity and Efficiency: With just two poles, the cord simplifies the testing process for basic electrical continuity and connectivity checks. It’s straightforward and minimizes the need for more complex testing setups.
Overall, the main feature is its ability to facilitate effective and efficient testing of telecommunications and network systems by bridging different connector types and providing a direct means to test connectivity.

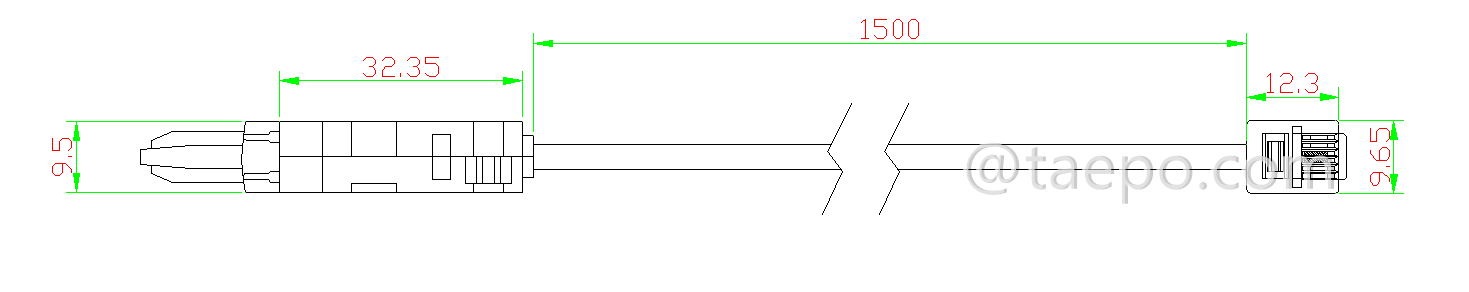

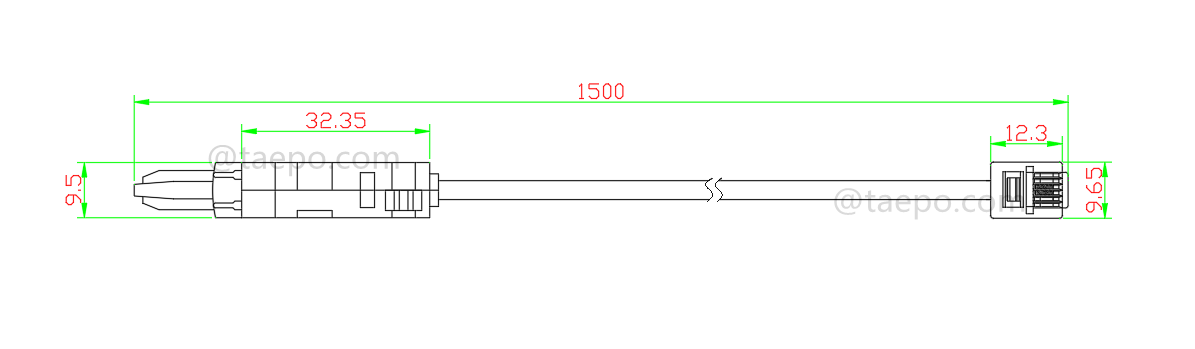

Schematic Diagrams

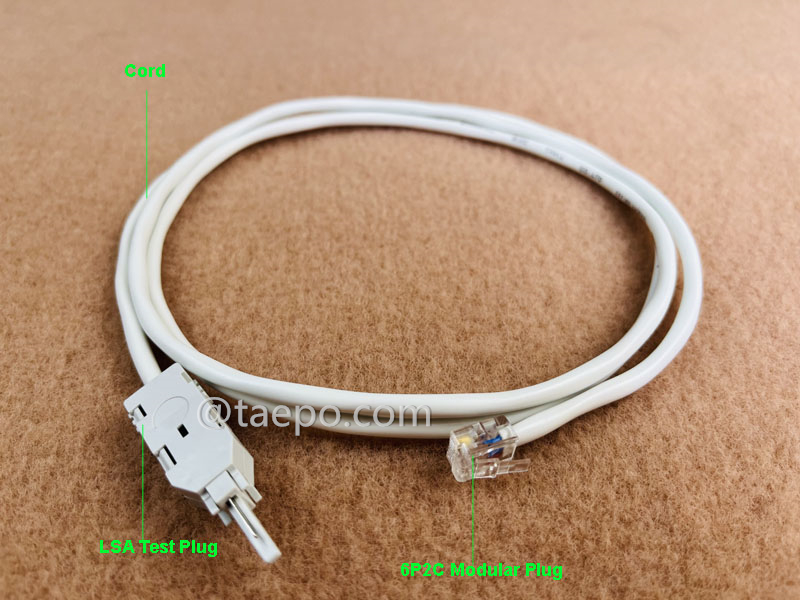

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-1220-2TM |
2-pole test cord, LSA test plug to 6P2C modular plug, 1.5m |
