What's the Definition of Test Cord ?
DESCRIPTIONS

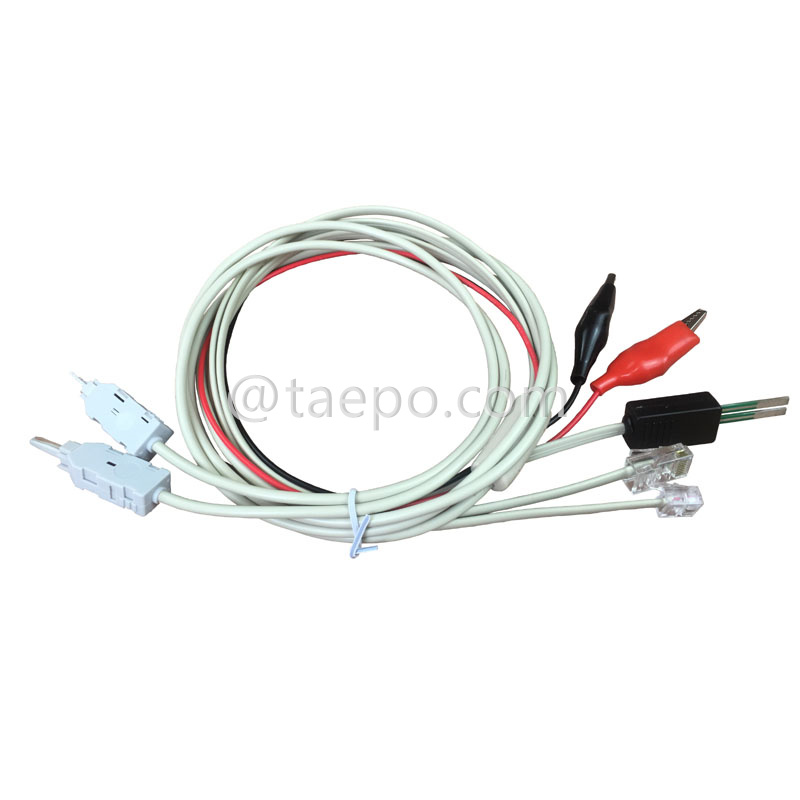

2-pole LSA test plug + 4-pole LSA plug to alligator clip, M plug, 8P2C modular plug, 6P2C modular plug (TP-1220-2LLAM86) is used for testing the telephone line. The LSA plug is used for inserting into the LSA module, M plug for inserting into the M block, and the alligator clip and modular plug for connecting to the telephone testing kit.
The grey 2-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 2-pole cords cannot be used in switching modules. The metal contacts would not make a positive contact in this case.
The grey 4-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 4-pole cords can be used in switching modules. The PCB contacts would make a positive contact in this case.
MAIN FEATURES
- Flexible and Insulated: The cable is flexible and well-insulated to ensure safety and ease of use.
- LSA Test Plug: One end is equipped with an LSA test plug designed for secure connections to LSA terminal blocks commonly used in telecommunications and networking.
- Alligator Clips: The opposite end features two alligator clips with serrated jaws for secure and temporary electrical connections.
- Durability: Designed to withstand repeated use, with durable materials and insulating coatings on alligator clips.
- Safety: Alligator clips are coated to prevent accidental short circuits, ensuring safety during testing.
- Multi-Termination Design: Includes alligator clip, M plug, 8P2C, and 6P2C modular plugs.
- Reusable Design: Durable enough for extended field use.
- Field Technician Approved: Frequently used in service kits.
- Quick Deployment: Pre-terminated for plug-and-go use.
- Color Coding: The cords have color-coded insulation or markings to help technicians identify specific connections quickly, enhancing efficiency during testing and maintenance.
- Lightweight Construction: Easy to carry in handheld kits

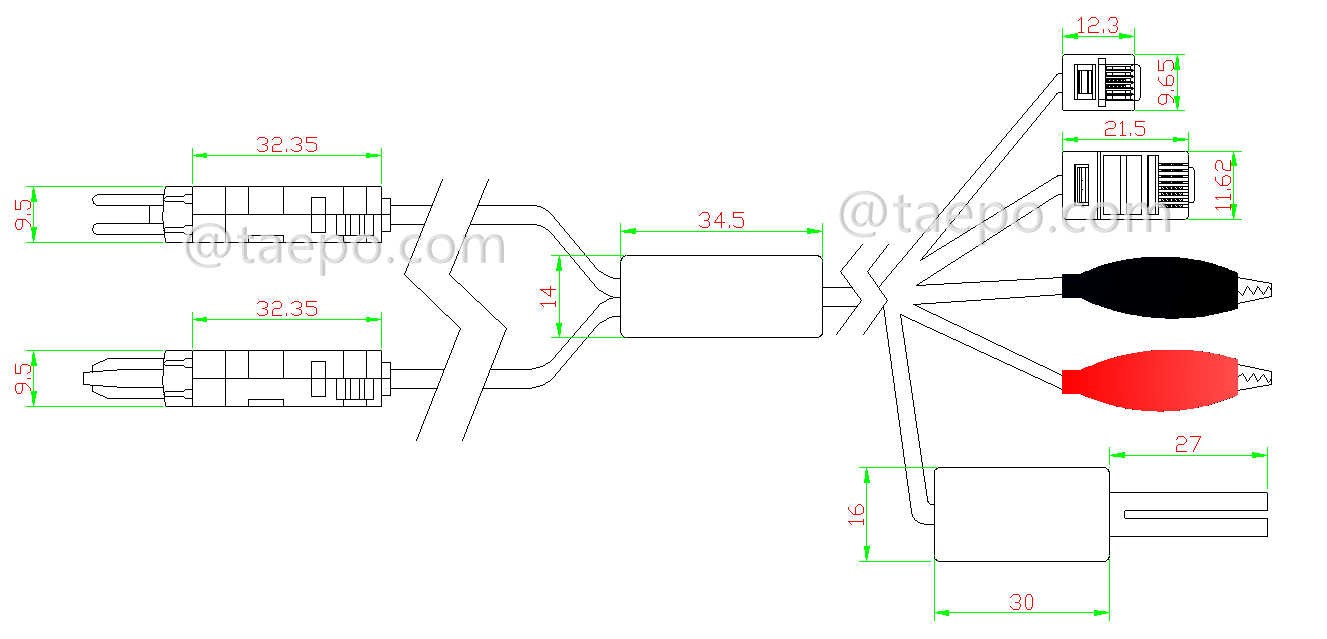

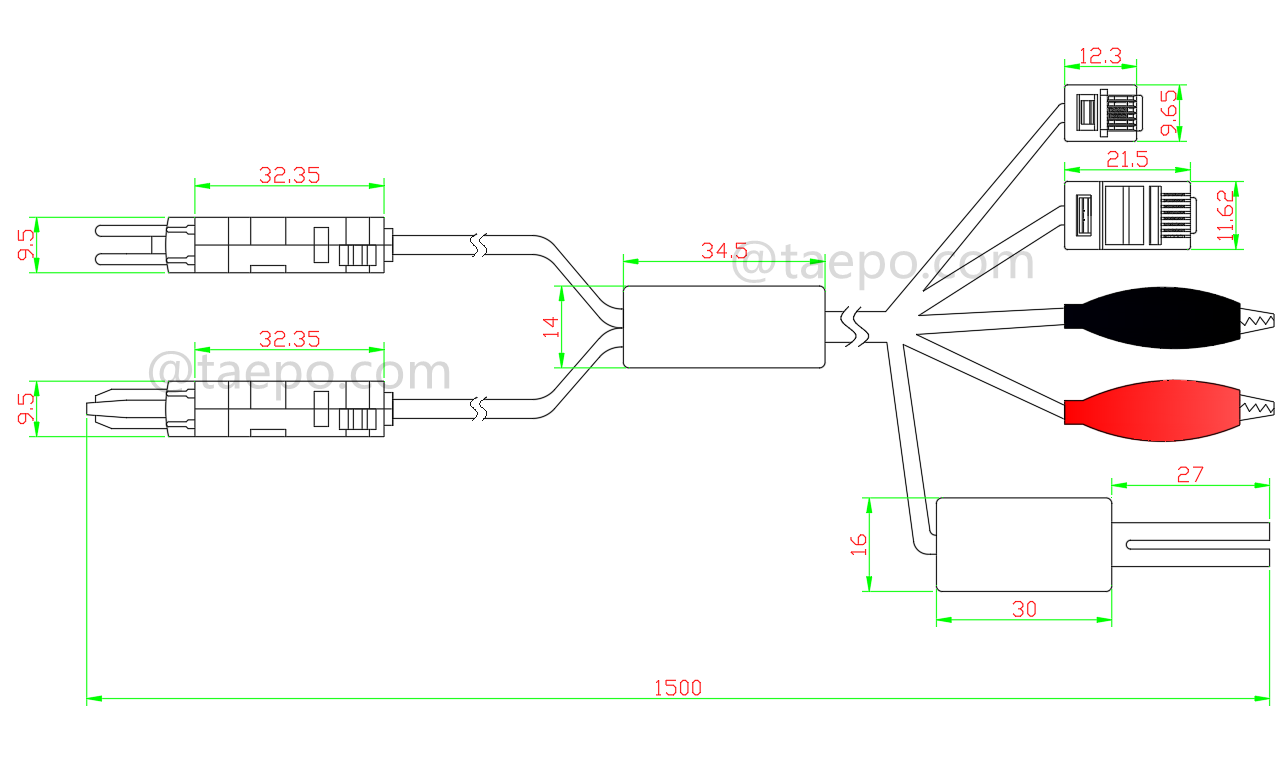

SCHEMATIC DIAGRAMS

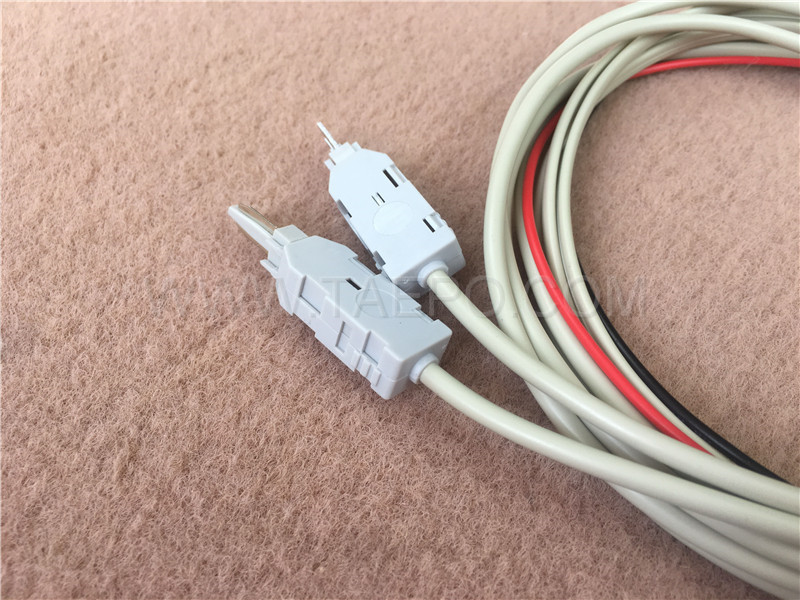

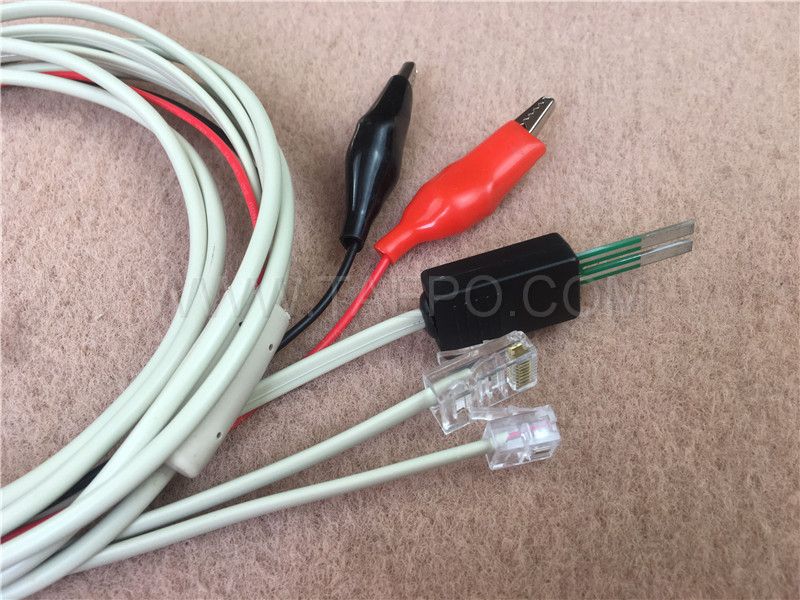

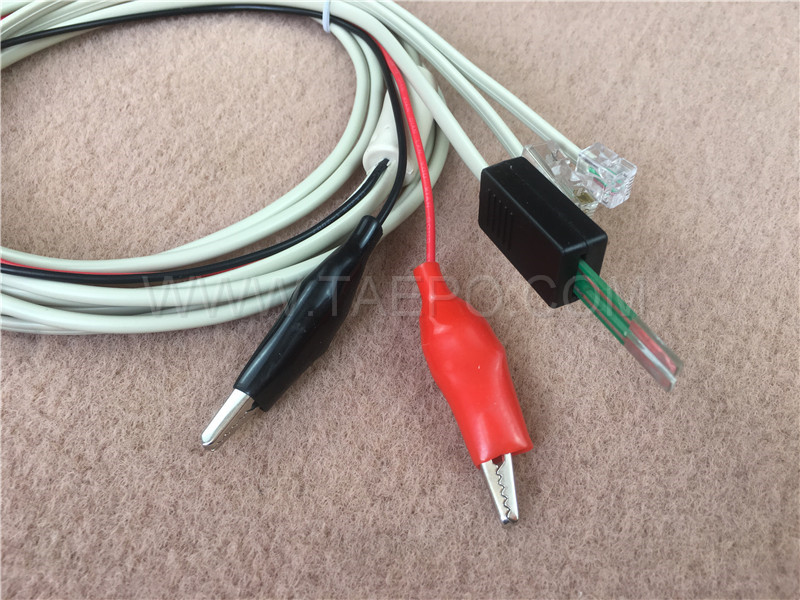

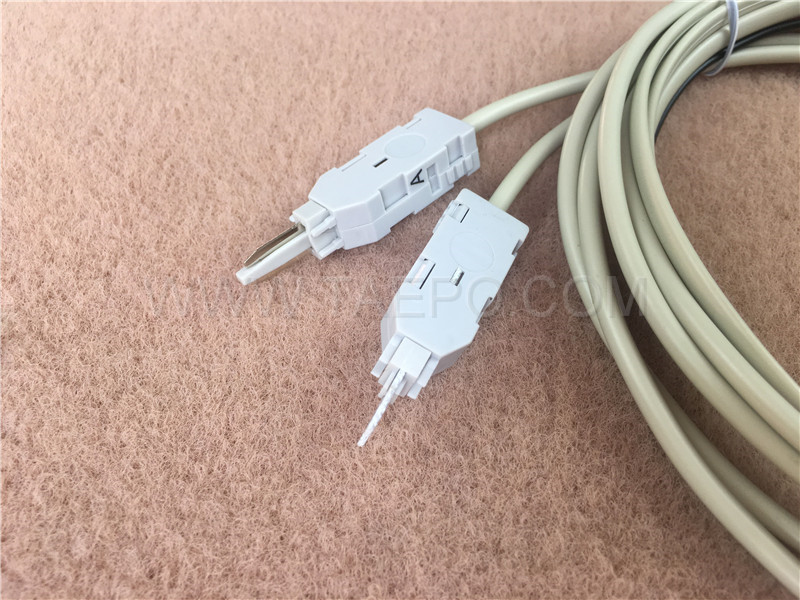

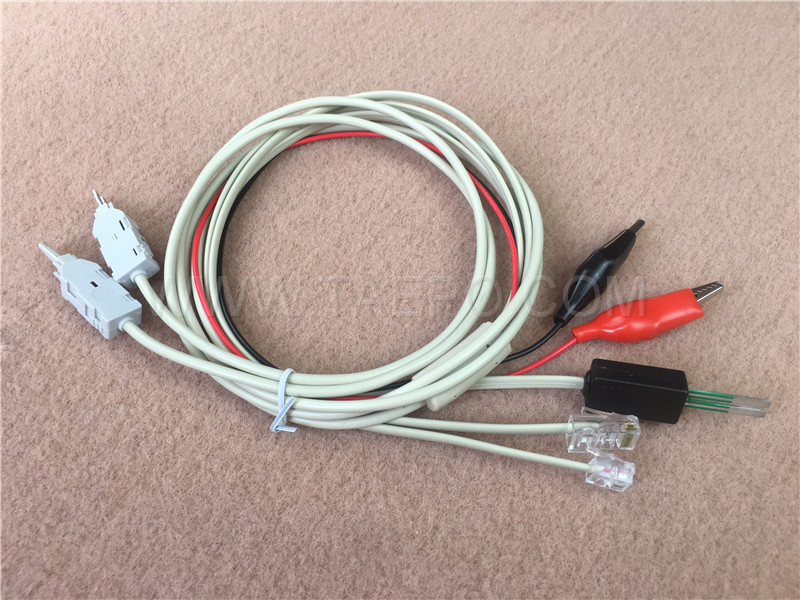

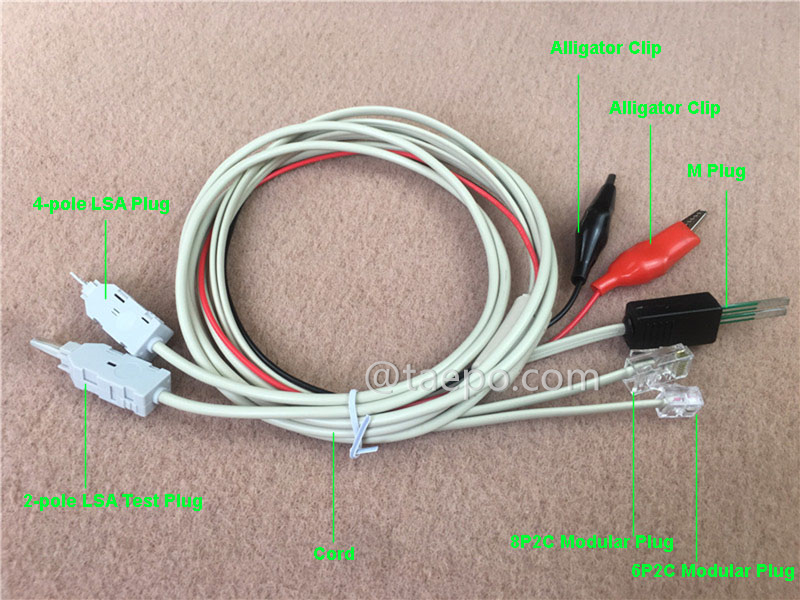

ILLUSTRATION PICTURES

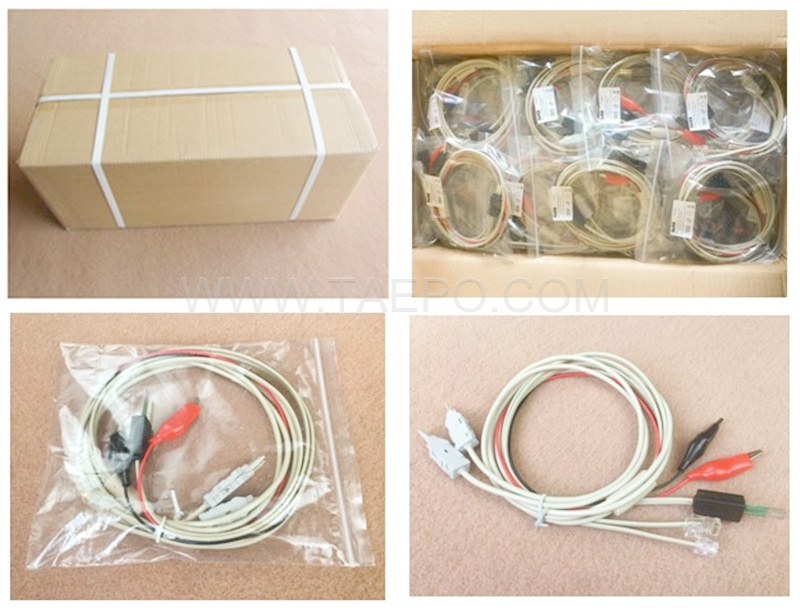

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1220-2LLAM86 |
2-pole test cord, 2-pole LSA test plug + 4-pole LSA plug to alligator clip, M plug, 8P2C modular plug, 6P2C modular plug, 1.5m |
