What Is a 10 Pairs QCS Back Mount Frame?
DESCRIPTIONS
10 pairs QCS back mount frame 10 ways (TP-1333-10-10) is used as to install the QCS modules, with the function of wiring. It is usually mounted onto the back plate in the Main Distribution Frame (MDF) or Cross Connection Cabinet (CCC) or just installed into the Distribution Point Boxes (DP). It belongs to the accessories for the copper connectivity. The frame holds 10 QCS modules (totaling 100 pairs) and is structured for easy access to jumper wires, earth bars, and test cords.
It is an element within modern telecommunications infrastructure, designed to optimize the organization and distribution of copper wire connections. This sturdy and efficient frame provides a reliable foundation for QCS modules, facilitating secure terminations and streamlined connections for voice and data communication.
Manufactured using high-strength, corrosion-resistant materials stainless steel, the frame guarantees long-term durability even in challenging operating environments. The base plate and vertical module supports are precision-bent to ensure secure fitting for each QCS block and accompanying accessories. Standard mounting holes are pre-punched for rapid installation onto back panels, enclosures, or walls.
MAIN FEATURES
- Snap-on Design: Module snap onto the frame and can take the module off with the assistance of the insertion tool
- Efficient Setup: The back mount frame streamlines the installation and arrangement of QCS modules, contributing to quicker network deployment.
- Organized Management: With designated labeling areas and modular capabilities, the frame ensures well-organized wire connections and simplified maintenance.
- Space Optimization: Its design maximizes the use of rack space, making the most of available infrastructure while promoting accessibility.
- Modular Flexibility: The frame's modular configuration allows for flexibility in adapting and expanding the network setup as connectivity needs evolve over time.
- Labeling Space: Dedicated areas for labeling or marking are often included in the frame's design. This aids in identifying and organizing QCS modules and their associated wire connections.
- Cable Protection: Its cable rings shield QCS modules and wire connections from physical damage, ensuring the longevity and reliability of the network infrastructure.
- Modular Mounting System: Each slot securely holds an individual QCS block, allowing for quick installation and future scalability.
- Back Mount Format: Optimized for mounting directly onto back panels or enclosure plates, saving front space in dense wiring configurations.
- 10-Way Configuration: Engineered to provide exactly ten module slots, supporting consistent planning and symmetrical layouts in cabinets.

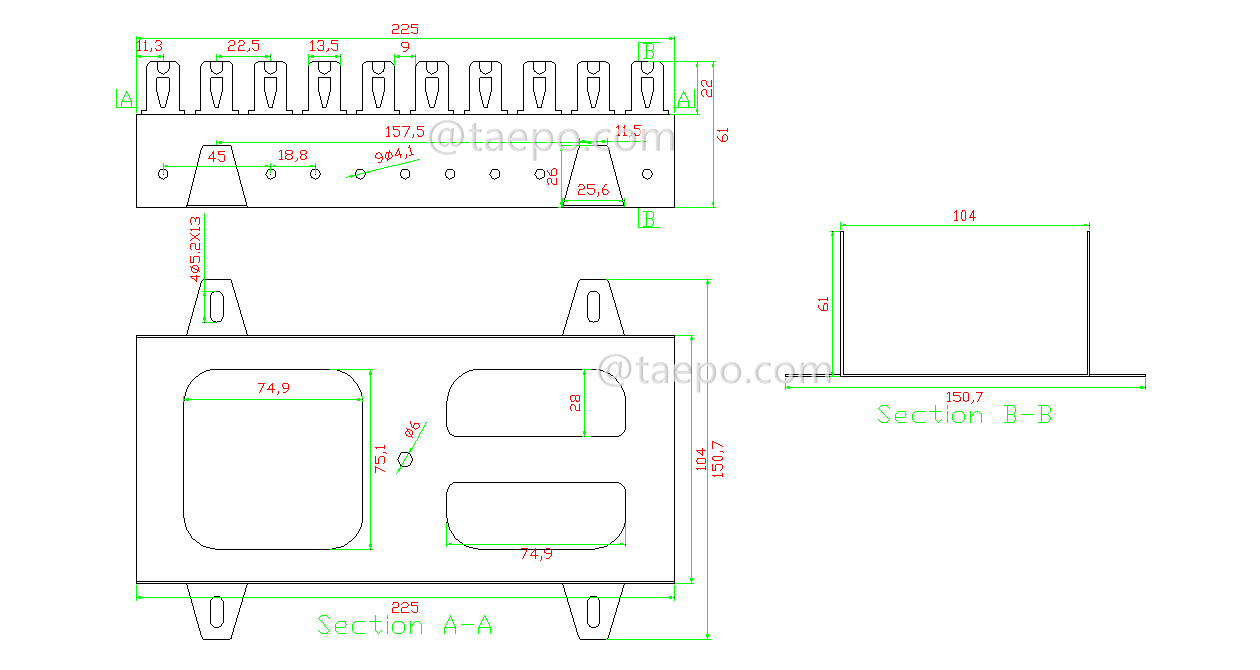

SCHEMATIC DIAGRAMS

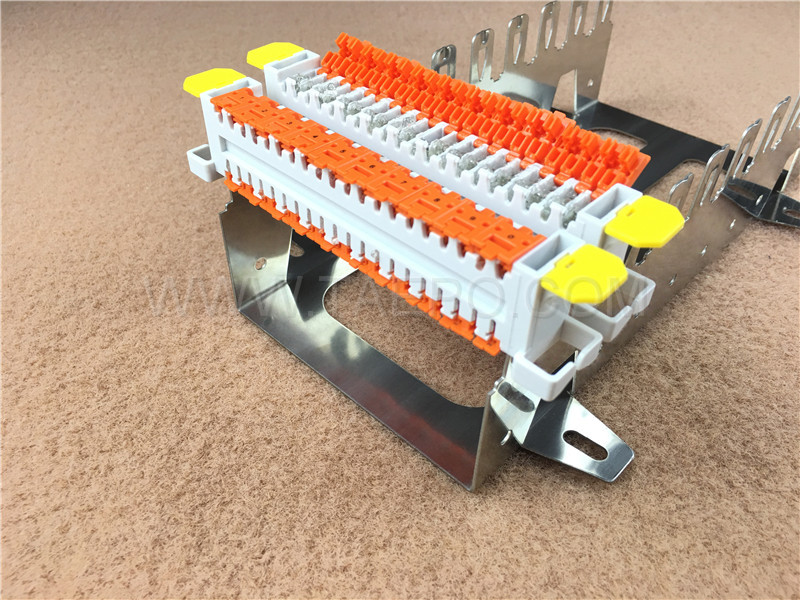

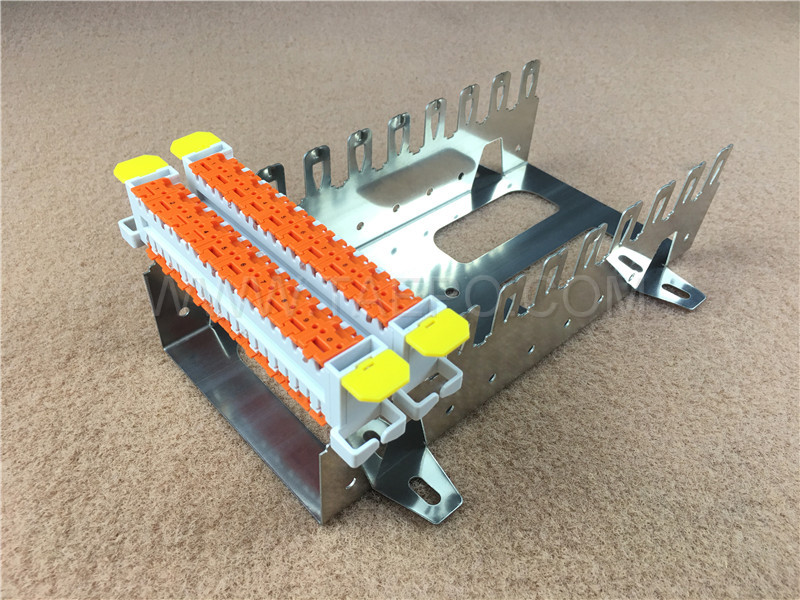

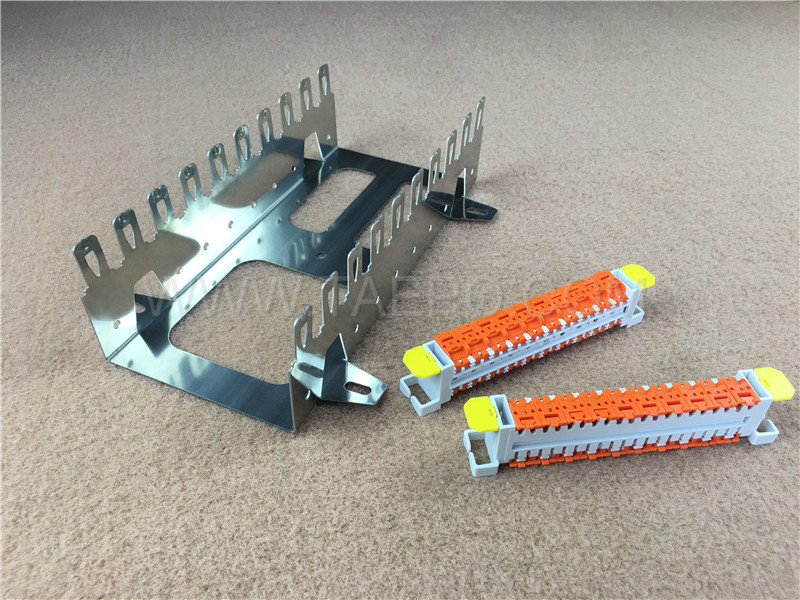

ILLUSTRATION PICTURES

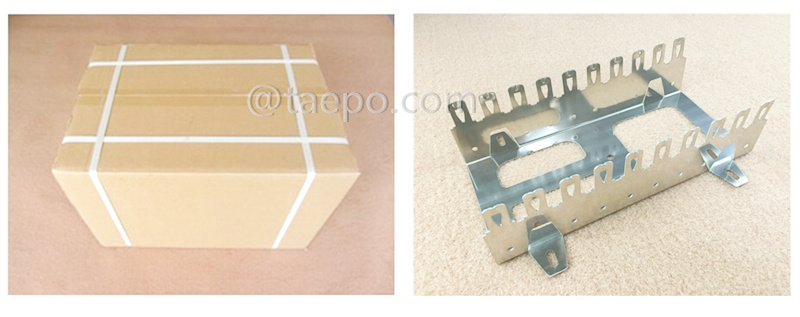

PACKING PICTURES
ORDER DATA
