What Is a 10 Pairs LSA Rack Mounting Frame?
DESCRIPTIONS
10 pairs LSA rack mounting frame, 20 ways (TP-1239-10-20) is used as to install the LSA modules. It is usually mounted onto the existing 19 inch distribution rack or cabinets. It belongs to the accessories for the copper connectivity. In these applications, the pitch of 22.5 mm can always be used.
It is an element within modern telecommunications infrastructure, designed to optimize the organization and distribution of copper wire connections. This sturdy and efficient frame provides a reliable foundation for LSA modules, facilitating secure terminations and streamlined connections for voice and data communication. It simplifies installation, maintenance, and troubleshooting while helping maintain cable organization and signal integrity.
The 20-way configuration is tailored for maximizing pair density in limited vertical rack space while maintaining excellent organization. With a polished finish and rigid architecture, the frame ensures precise alignment, minimal signal loss, and consistent performance over long-term service.
MAIN FEATURES
- Snap-on Design: Module snap onto the frame and can take the module off with the assistance of the insertion tool
- Efficient Setup: The back mount frame streamlines the installation and arrangement of LSA modules, contributing to quicker network deployment.
- Organized Management: With designated labeling areas and modular capabilities, the frame ensures well-organized wire connections and simplified maintenance.
- Space Optimization: Its design maximizes the use of rack space, making the most of available infrastructure while promoting accessibility.
- Modular Flexibility: The frame's modular configuration allows for flexibility in adapting and expanding the network setup as connectivity needs evolve over time.
- Labeling Space: Dedicated areas for labeling or marking are often included in the frame's design. This aids in identifying and organizing LSA modules and their associated wire connections.
- Cable Protection: Its cable rings shield LSA modules and wire connections from physical damage, ensuring the longevity and reliability of the network infrastructure.
- Rack-mount Design: Compatible with standard 19-inch telecom and server racks for universal installation.
- Corrosion Protection: Stainless material resists rust in high-humidity or partially exposed areas.
- Long Service Life: Suitable for long-term telecom installations with minimal degradation.

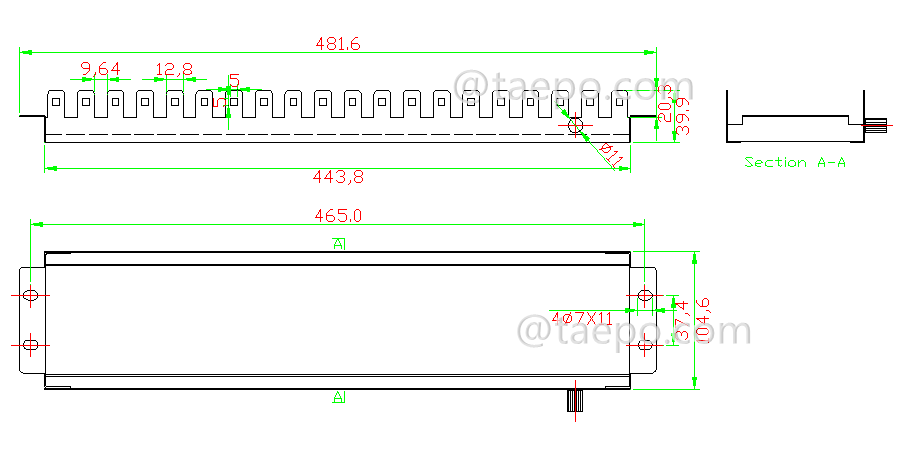

SCHEMATIC DIAGRAMS

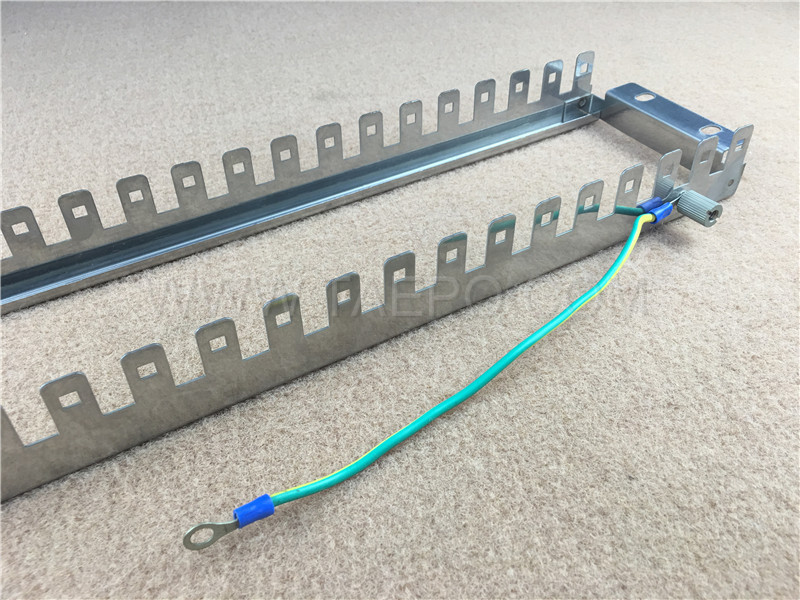

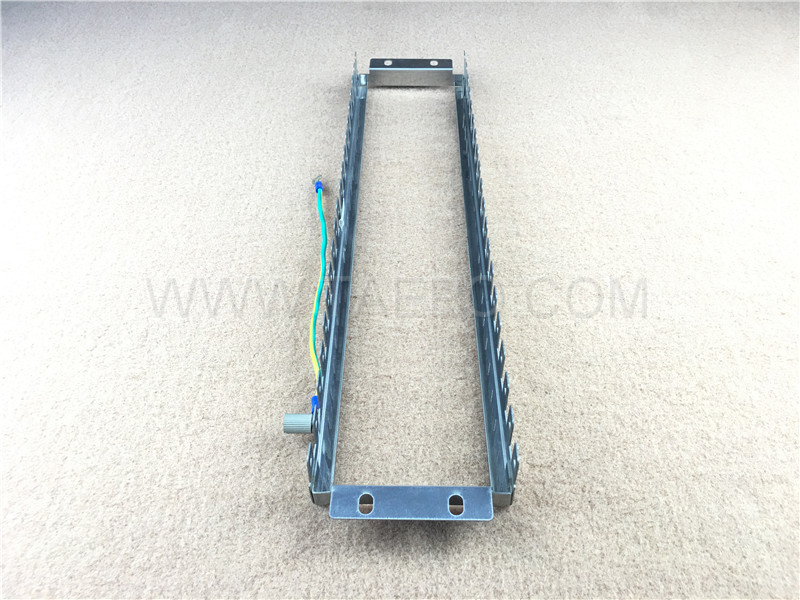

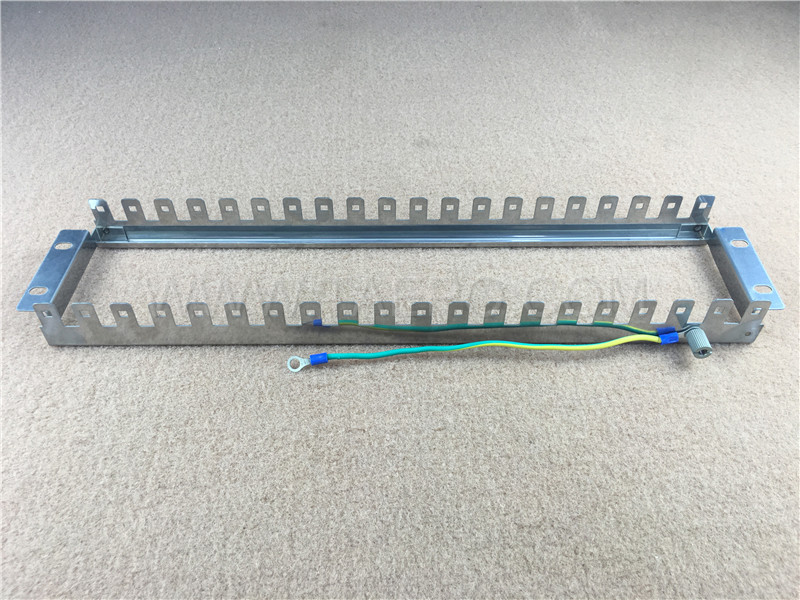

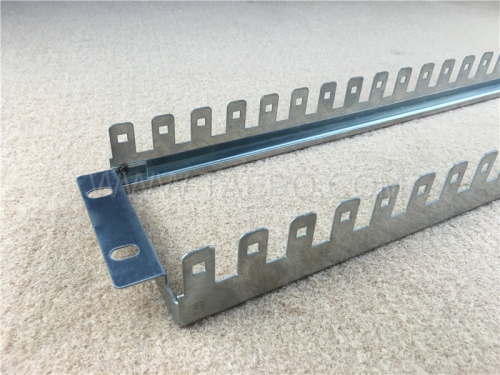

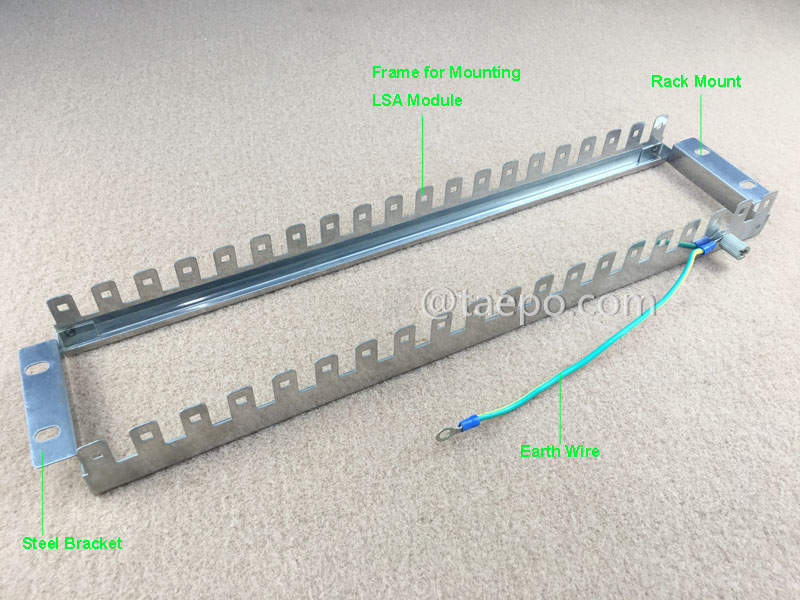

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1239-10-20 |
10 pairs LSA rack mounting frame, 20 ways, stainless steel |
