What Exaclty Is a 10 Ways 10 Pairs LSA Back Mount Frame?
DESCRIPTIONS

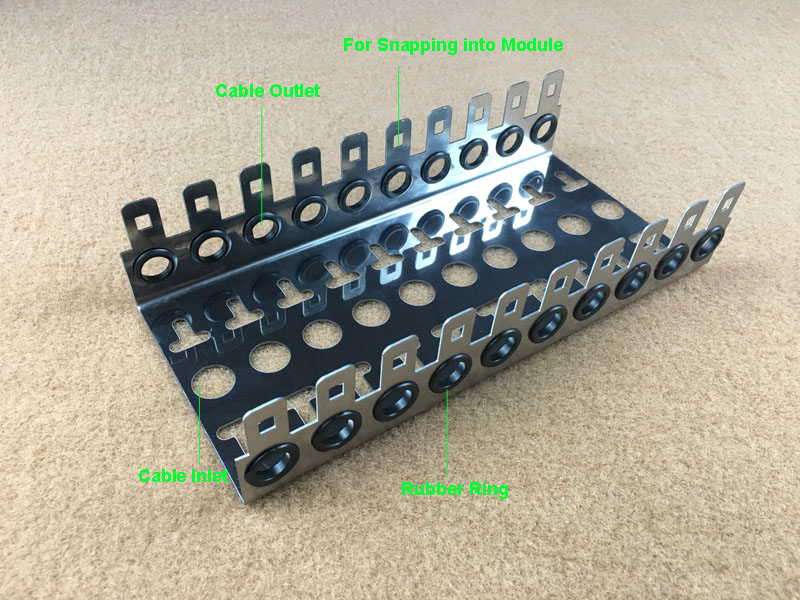

10 pairs back mount frame 10 ways (TP-1212-10-10) is used to install the LSA modules, with the function of wiring. It is usually mounted into Distribution Point Boxes (DP). It belongs to the accessories for the copper connectivity. Jumber wires can be fed in from both sides of the module through the black rubber ring, which is used for protection against scratch for cables inserting for wiring.
It is an element within modern telecommunications infrastructure, designed to optimize the organization and distribution of copper wire connections. This sturdy and efficient frame provides a reliable foundation for LSA modules, facilitating secure terminations and streamlined connections for voice and data communication.
Constructed from high-strength, corrosion-resistant materials, the frame ensures long-term reliability and minimal maintenance. Its design provides optimal alignment for IDC (insulation displacement connection) terminations and prevents mechanical stress on cables and modules. The standard mounting holes and dimensions allow easy installation in cabinets, or wall-mounted enclosures.
The 10-way version is ideal for small installations or extensions where only ten single 10-pair modules are needed. Despite its compact size, it adheres to the same technical rigor as larger back-mount frames. This makes it ideal for flexible deployments in residential buildings, small data rooms, or demarcation points.
MAIN FEATURES
- Snap-on Design: Module snap onto the frame and can take the module off with the assistance of the insertion tool
- Efficient Setup: The back mount frame streamlines the installation and arrangement of LSA modules, contributing to quicker network deployment.
- Organized Management: With designated labeling areas and modular capabilities, the frame ensures well-organized wire connections and simplified maintenance.
- Space Optimization: Its design maximizes the use of rack space, making the most of available infrastructure while promoting accessibility.
- Modular Flexibility: The frame's modular configuration allows for flexibility in adapting and expanding the network setup as connectivity needs evolve over time.
- Labeling Space: Dedicated areas for labeling or marking are often included in the frame's design. This aids in identifying and organizing LSA modules and their associated wire connections.
- Cable Protection: Its cable rings shield LSA modules and wire connections from physical damage, ensuring the longevity and reliability of the network infrastructure.

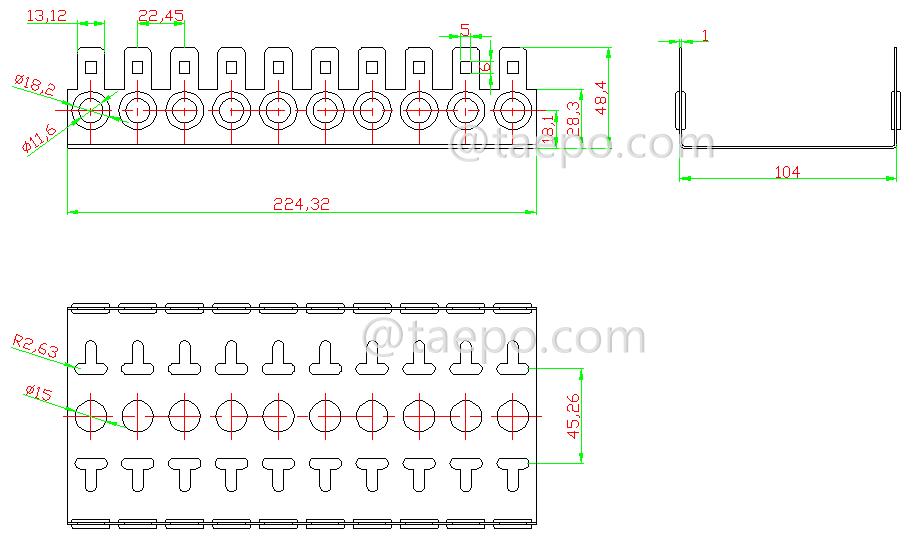

SCHEMATIC DIAGRAMS

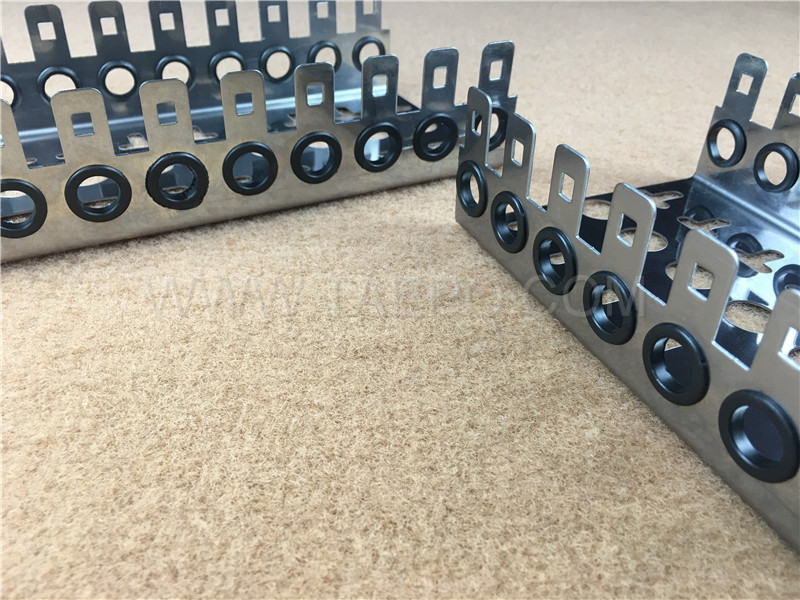

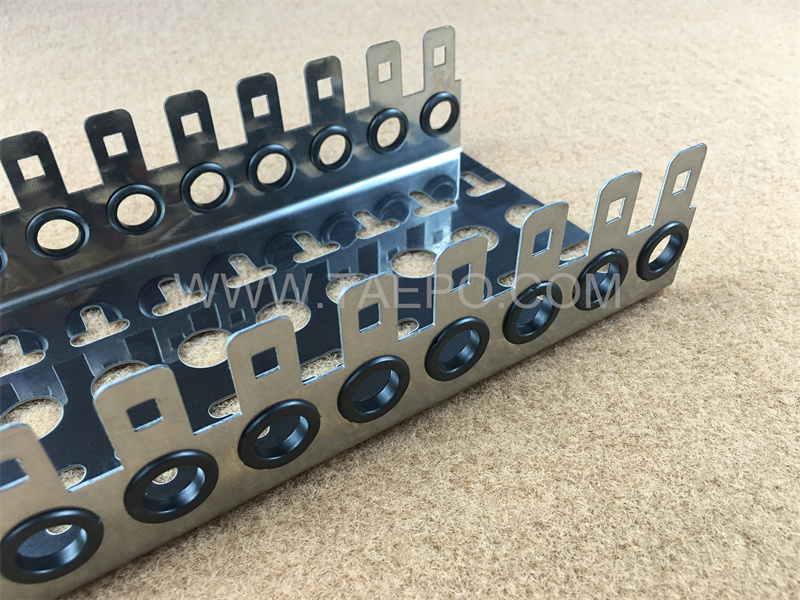

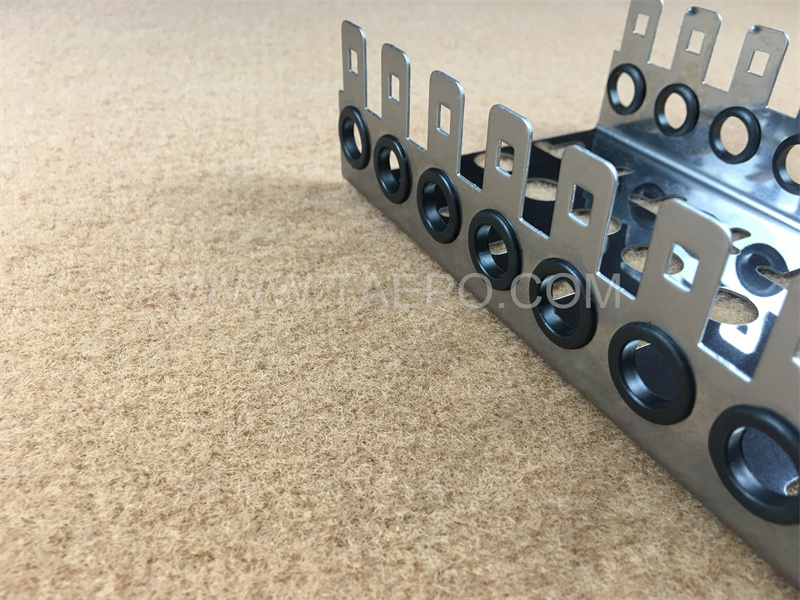

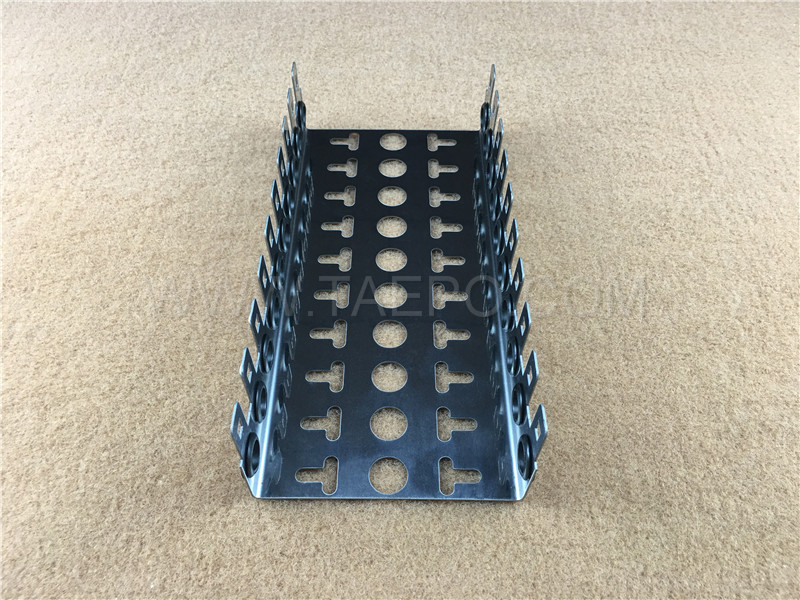

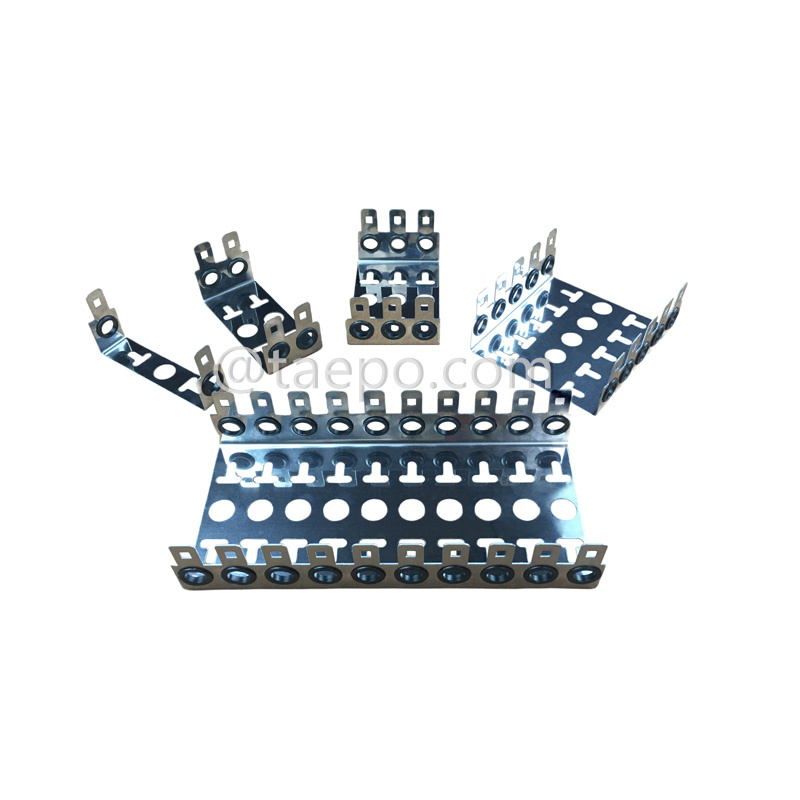

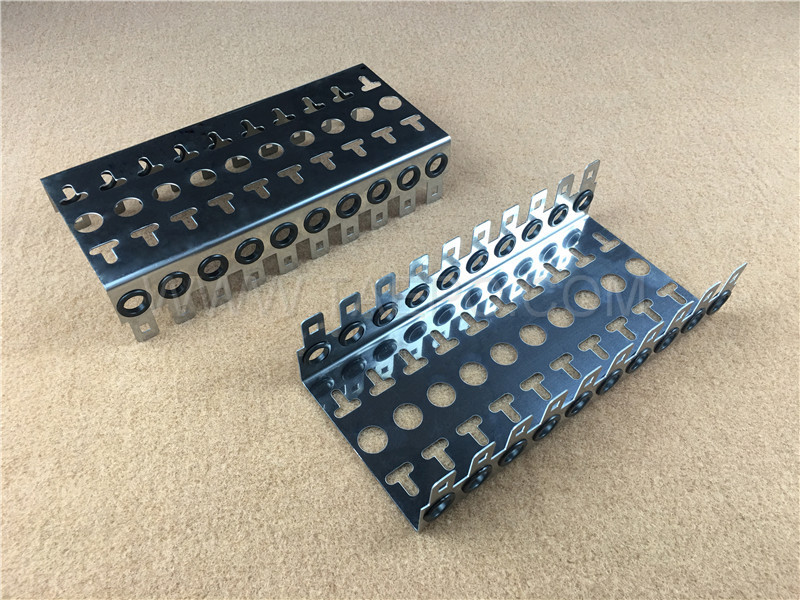

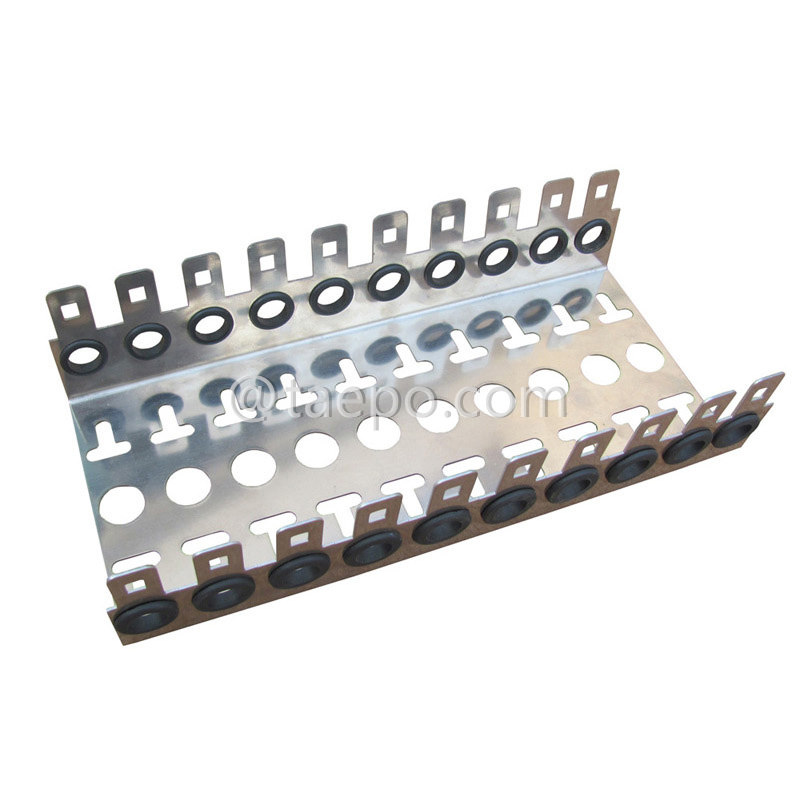

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1212-10-10 |
10 pairs LSA back mount frame, 10 ways |
