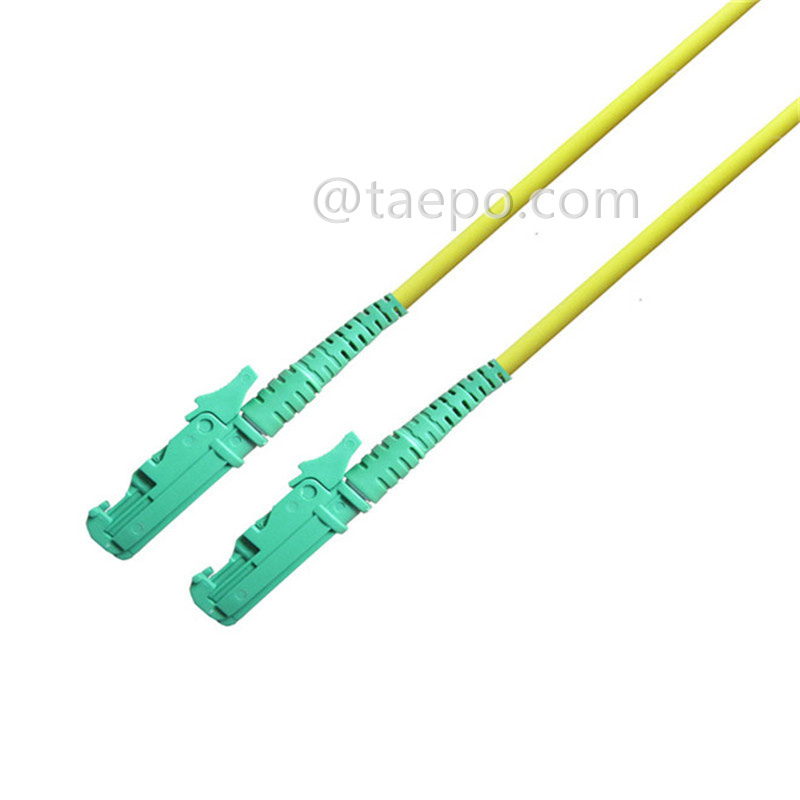

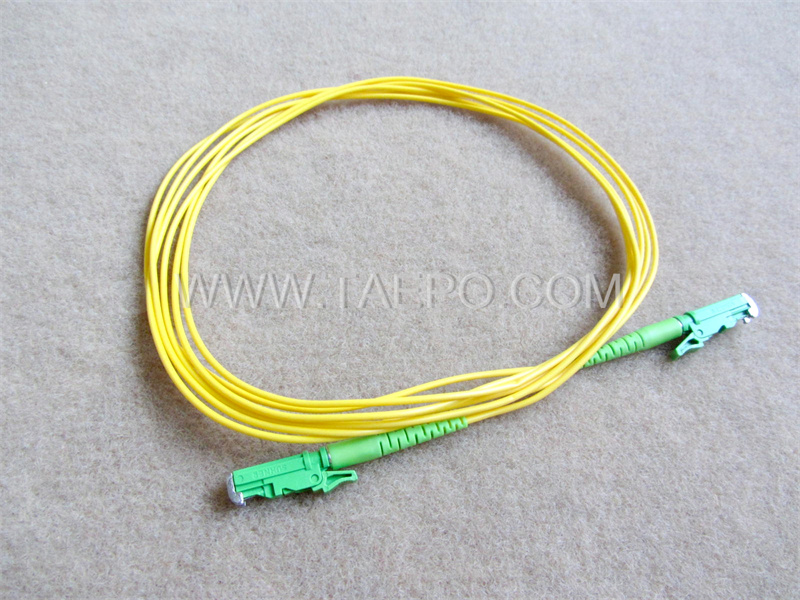

Single mode sm E2000 APC fiber optic patch cord

    Descriptions

A single mode simplex E2000 APC fiber optic patch cord is designed for efficient, high-speed data transmission in various networking applications. Its combination of single mode fiber, reliable E2000 connectors, and APC polish ensures optimal performance and minimal signal loss over long distances.

Here’s a detailed breakdown of its components :

Single Mode: This fiber type has a small core diameter (typically around 9µm), allowing only one mode of light to propagate. This minimizes signal loss and enables long-distance transmission, often exceeding 40 kilometers.

Simplex: The simplex configuration means the cable contains a single fiber strand, allowing for unidirectional data transmission. For bidirectional communication, two simplex cables or a duplex cable would be required.

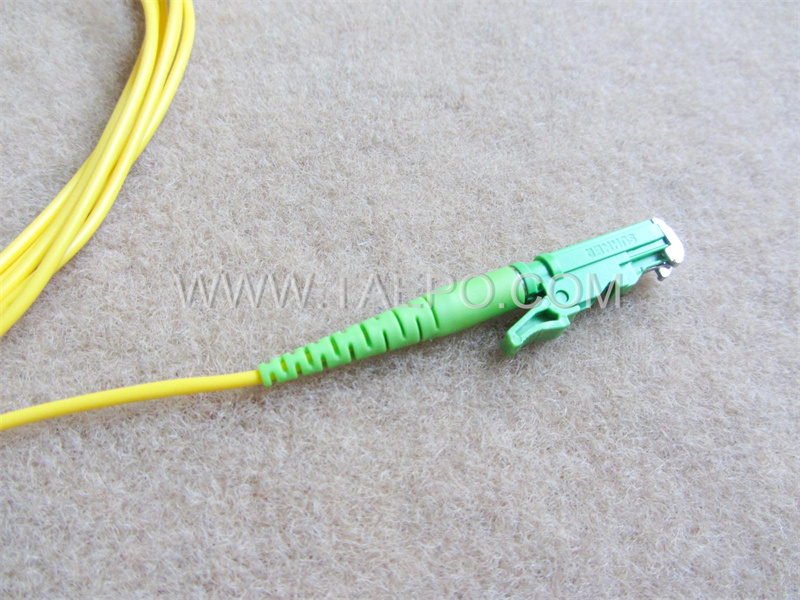

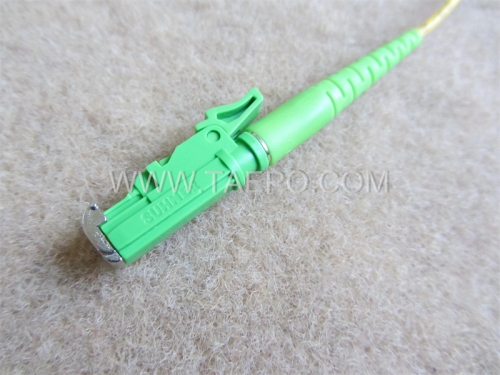

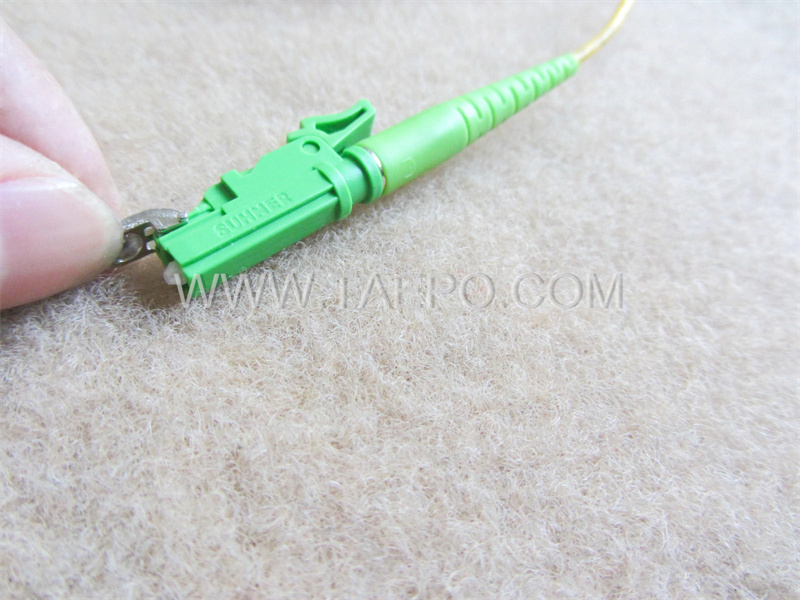

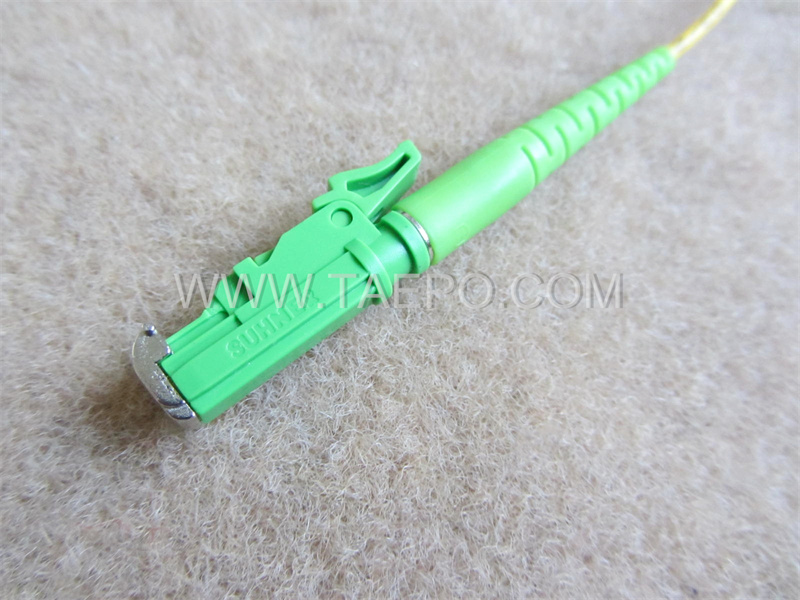

E2000 Connector: The E2000 connector is a high-performance connector known for its low insertion loss and minimal back reflection. It features a push-pull mechanism for easy handling and a protective cap for the end face.

APC (Angled Physical Contact): Refers to the angled polish of the connector's end face (typically 8 degrees), which reduces back reflections and enhances performance, especially important in high-speed telecommunications applications.

    Main Features

High Performance: The single mode design allows for efficient data transmission over long distances with low attenuation, making it ideal for telecommunications and network applications.

Secure Connection: The E2000 connector’s push-pull design ensures a stable and easy connection, reducing the risk of accidental disconnection.

Low Reflection: The APC polish minimizes back reflections, maintaining signal integrity and improving overall performance in sensitive applications.

    Schematic Diagrams

    Packing Pictures

    Order Data
