Descriptions

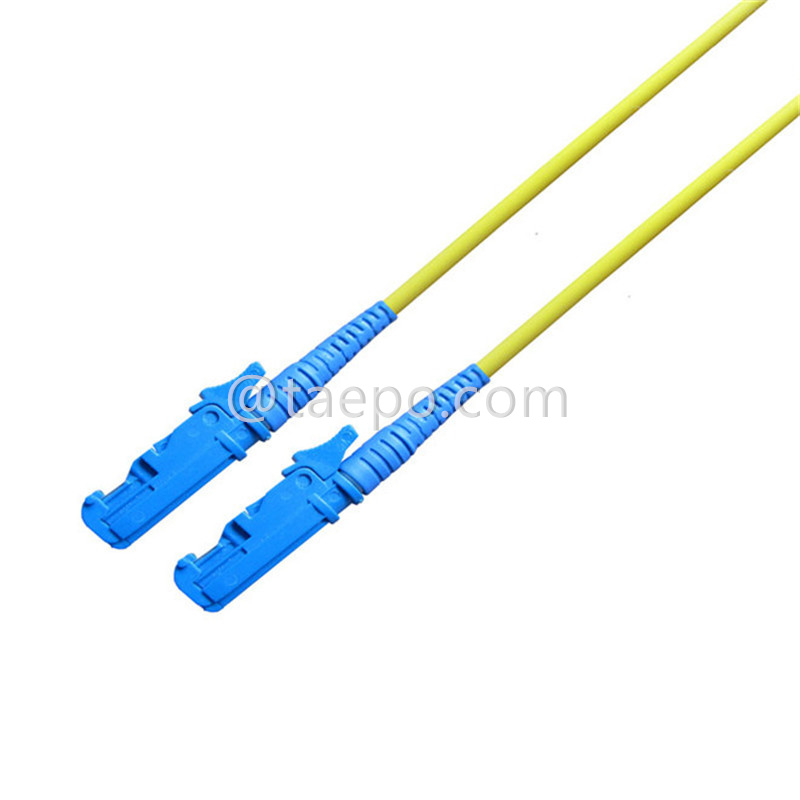

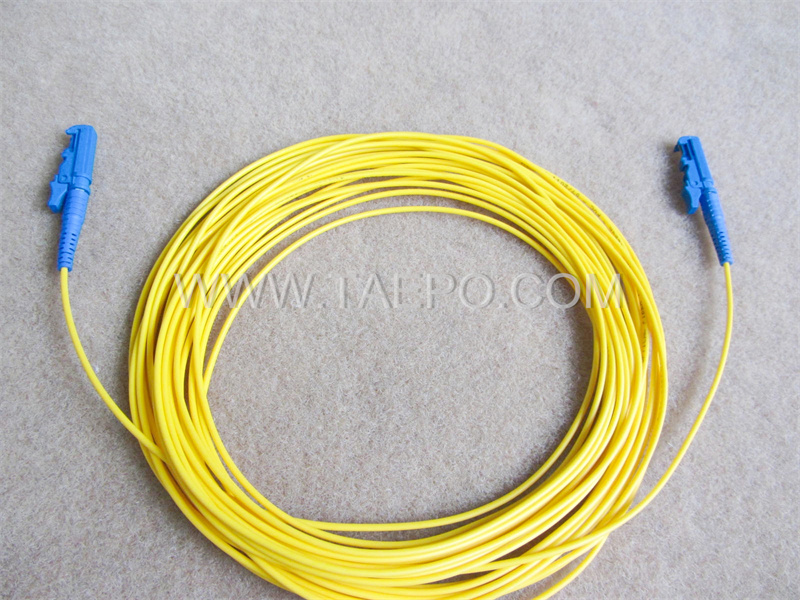

A "Single mode 9/125um OS1 Simplex E2000 UPC fiber optic cable patch cord" refers to a specific type of fiber optic cable used for high-speed data transmission.
Here's a breakdown of the terms:
Single mode: This type of fiber allows only one mode of light to propagate, which is ideal for long-distance communication because it minimizes signal loss and dispersion.
9/125um: This indicates the core diameter (9 micrometers) and the cladding diameter (125 micrometers) of the fiber. The small core size helps in maintaining the single mode of light propagation.
OS1: This is a standard that specifies the performance characteristics of the fiber, including maximum attenuation and bandwidth. OS1 fibers are typically used for indoor applications and short-distance connections.
Simplex: This means the cable has one fiber strand, allowing data to be transmitted in one direction only. For bidirectional communication, two simplex cables or a duplex cable (which has two strands) would be required.

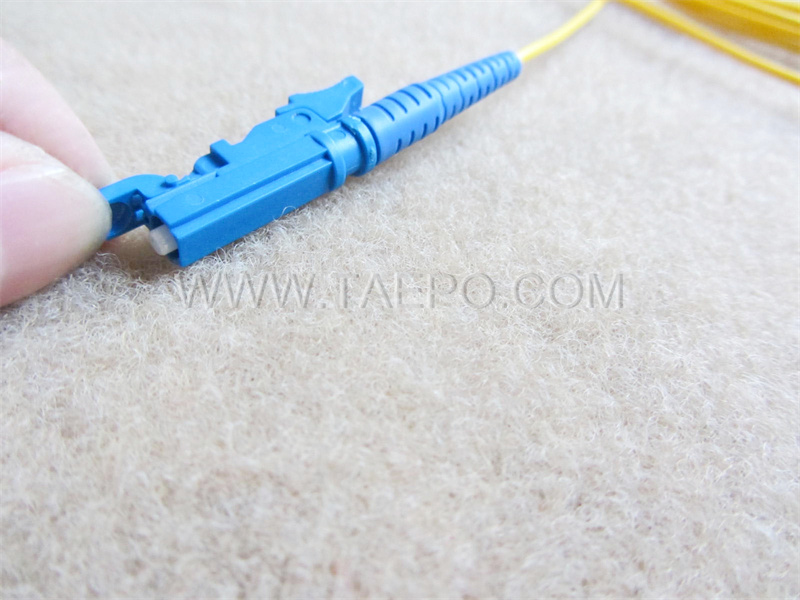

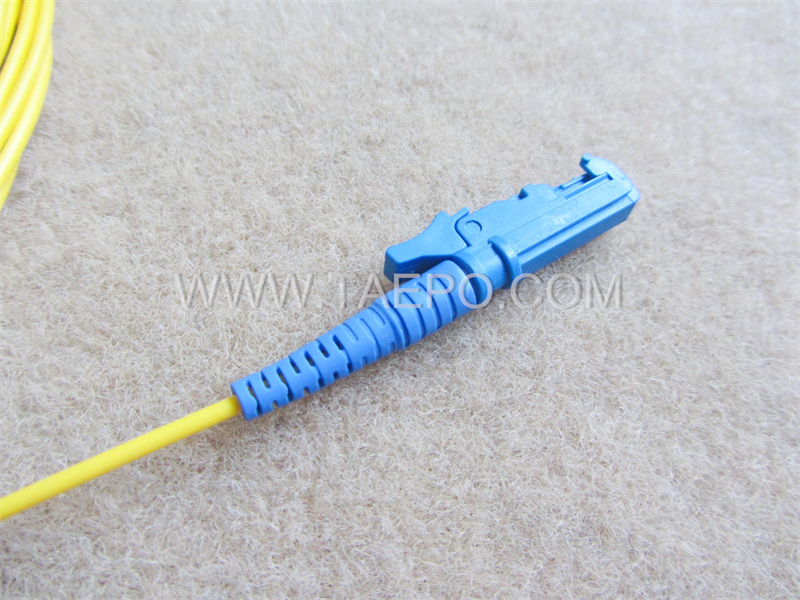

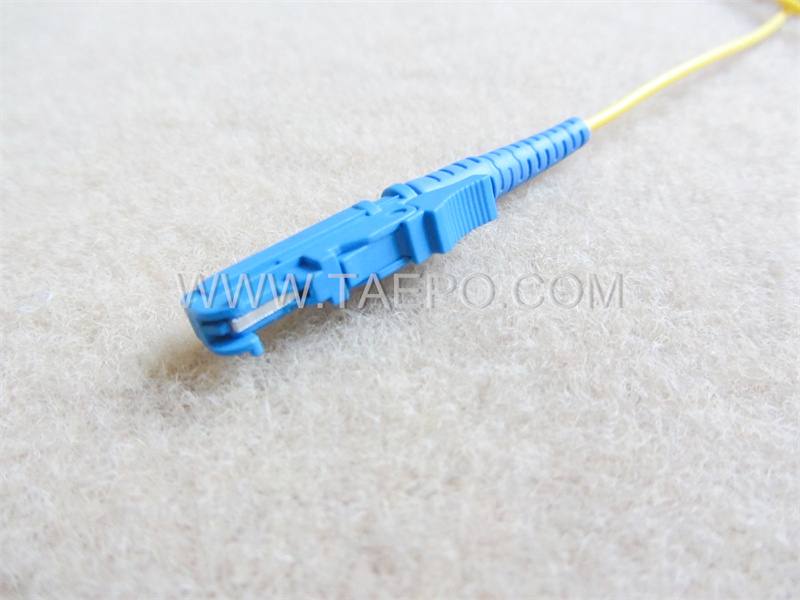

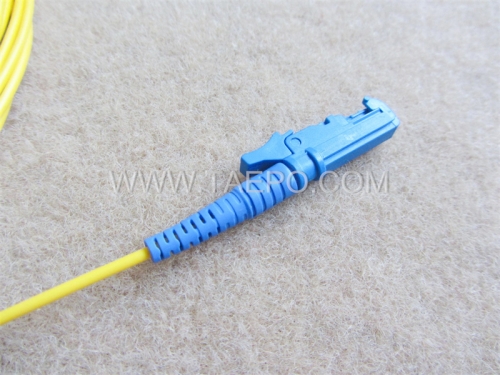

E2000: This refers to the type of connector used on the ends of the cable. E2000 connectors are known for their high performance and low insertion loss.
UPC: This stands for Ultra Physical Contact, which is a type of polishing for the connector that reduces signal loss and provides better performance compared to standard connectors.
Overall, this patch cord is designed for reliable, high-speed fiber optic connections in various networking applications.
Main Features
In addition to high-speed and long-distance capabilities, other notable features include:
Low Attenuation: The OS1 specification ensures low signal loss over distance, enhancing overall network performance.
High Bandwidth: Suitable for high-bandwidth applications, such as data centers and telecommunications.
Durability: Fiber optic cables are generally more resistant to electromagnetic interference and environmental factors compared to copper cables.
Lightweight and Flexible: Easier to install in tight spaces and complex network layouts.
E2000 Connector: Provides a secure and low-loss connection, which is important for maintaining signal integrity.
Simplex Design: Allows for straightforward installation and management in applications where one-way data transmission is sufficient.
Schematic Diagrams
Packing Pictures
Order Data
Item No | Descriptions |
TP-3005-9SM1E2UE2U30-0010 | Fiber optic patch cord, singlemode 9/125um OS1, simplex, E2000/UPC-E2000/UPC, 3mm, 1m |
