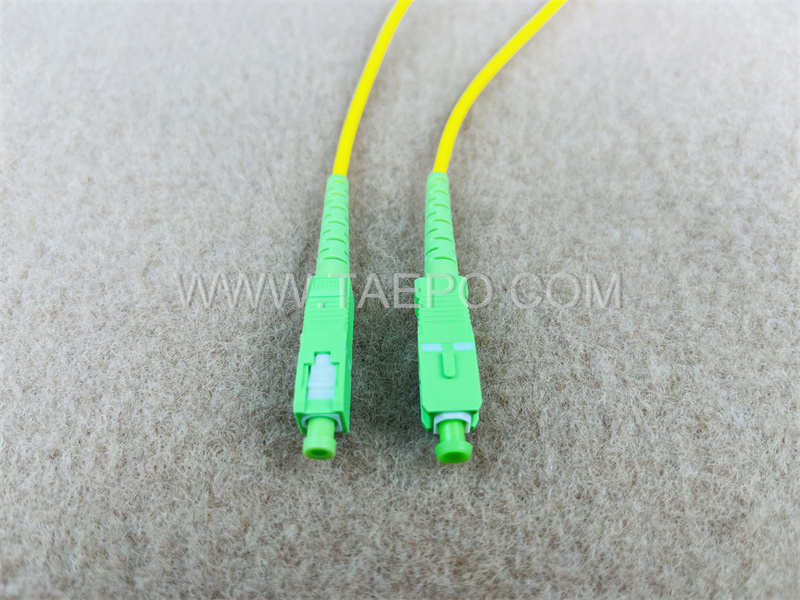

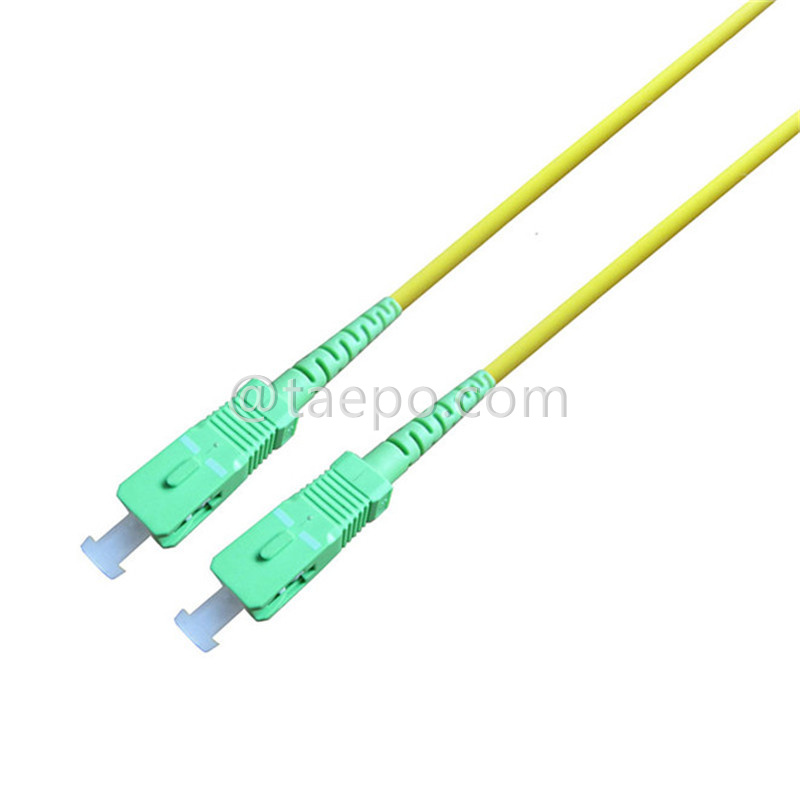

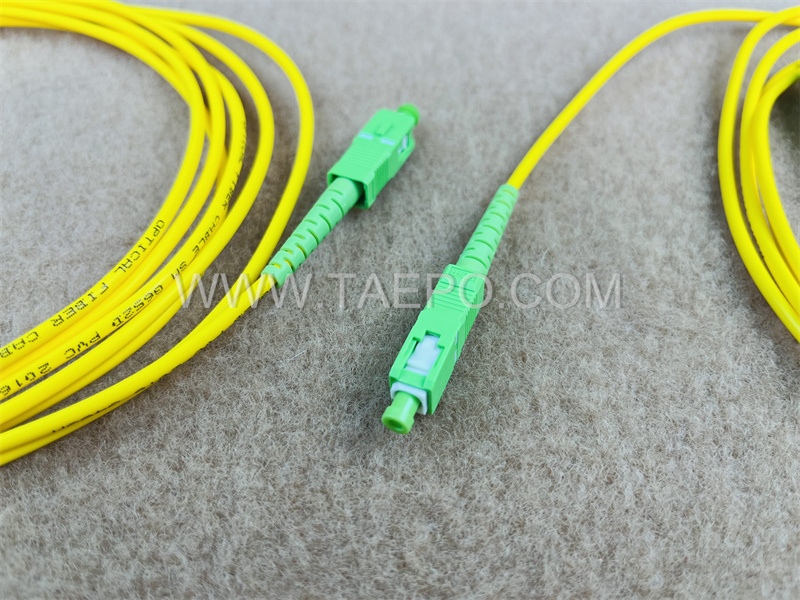

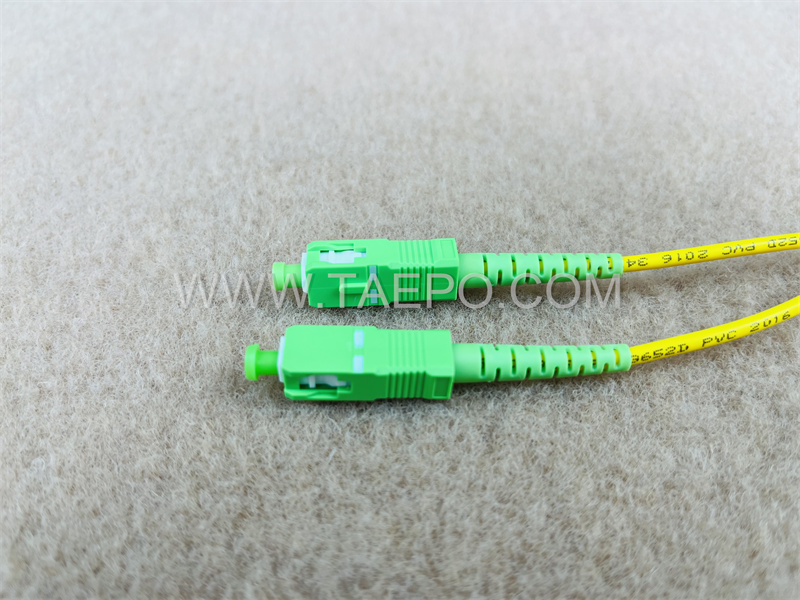

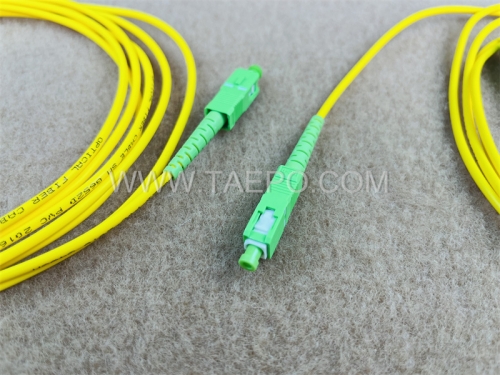

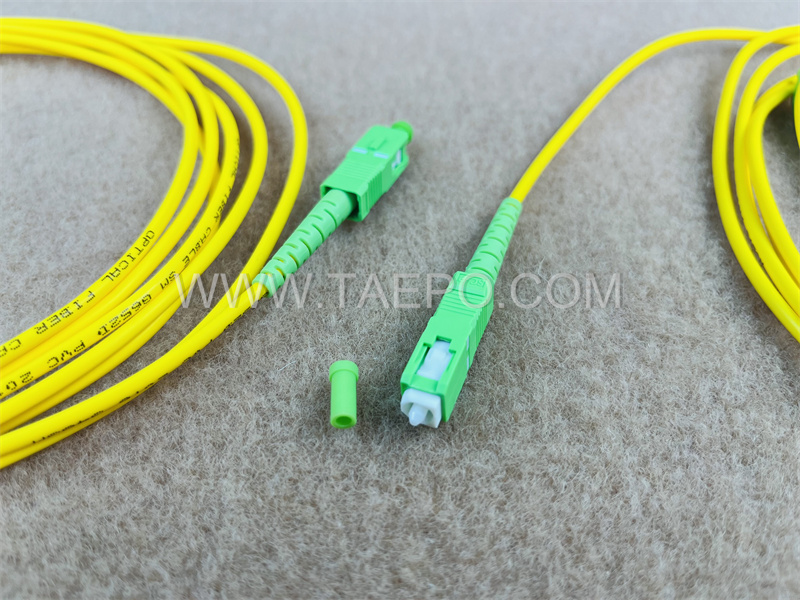

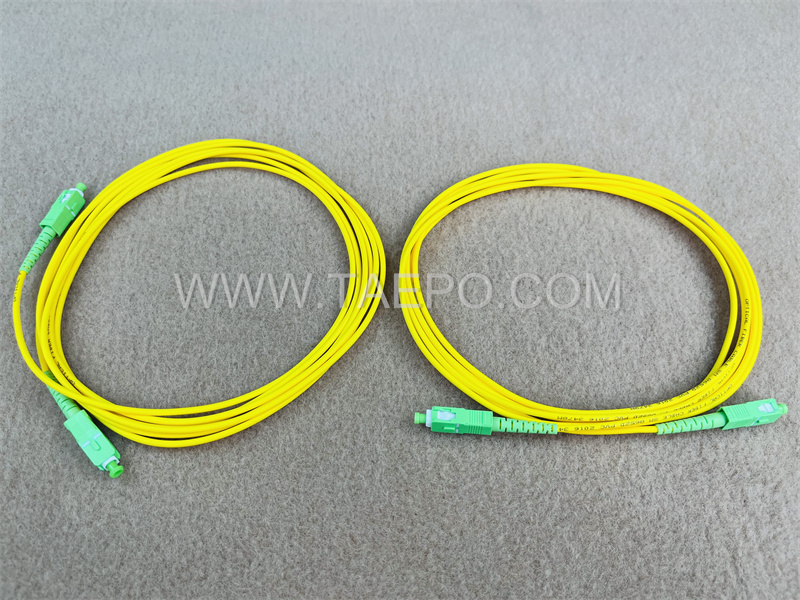

Single mode 9/125um OS1 simplex SC APC 3mm Fiber optic cable patch cord

    Descriptions

A Single Mode 9/125µm OS1 simplex SC APC 3mm fiber optic cable patch cord is a specific type of fiber optic cable used for high-speed data transmission. Here's a breakdown of its components and what they mean:


Single Mode: This refers to the type of optical fiber used. Single-mode fibers have a small core (8-10 micrometers in diameter), which allows only one mode of light to propagate. This is ideal for long-distance communication as it reduces signal loss and distortion.

9/125µm: This denotes the core and cladding dimensions of the fiber. The core is 9 micrometers in diameter, and the cladding surrounding the core is 125 micrometers. These dimensions are standard for single-mode fibers.

OS1: This is a specification for single-mode fiber cables. OS1 cables are designed for indoor use and typically have a maximum attenuation of 1.0 dB/km at 1310 nm wavelength and 1.5 dB/km at 1550 nm wavelength.

Simplex: This indicates that the cable has a single fiber, meaning it can transmit data in one direction at a time. For bidirectional communication, you would need two simplex cables or a duplex cable with two fibers.

SC: This refers to the type of connector used on the ends of the cable. SC (Subscriber Connector) is a push-pull connector that is commonly used in telecommunications and data communication.

APC: This stands for Angled Physical Contact. It's a type of fiber connector end-face that has an angle (usually 8 degrees) to minimize reflection and loss. APC connectors are designed to reduce back reflection, making them ideal for high-precision and high-performance applications.

3mm: This indicates the outer diameter of the cable’s jacket. A 3mm jacket is relatively thin and flexible, suitable for patch cords and short-distance applications.

In summary, a Single Mode 9/125µm OS1 simplex SC APC 3mm fiber optic cable patch cord is a high-performance fiber optic cable designed for single-mode applications, with specific characteristics for reduced signal loss and reflection, using SC APC connectors and a 3mm jacket. It's often used in network setups, data centers, and telecommunications for reliable and high-speed data transmission.

    Main Features

Low Attenuation: Single-mode fibers typically have lower attenuation compared to multimode fibers, meaning less signal loss over long distances. This is crucial for maintaining signal integrity in high-speed and long-distance applications.

High Bandwidth: Single-mode fibers support very high data rates and bandwidths, which is beneficial for modern data communication needs such as internet backbones, data centers, and high-definition video transmission.

Durability and Reliability: The 3mm jacket provides a balance between flexibility and protection, making the cable suitable for frequent handling and installations while still offering durability and protection against physical damage.

Precision and Low Reflection: The APC (Angled Physical Contact) connector significantly reduces back reflection and signal loss, which enhances the overall performance of the communication system. This is particularly important in high-precision and high-performance networks.

Compatibility: SC APC connectors are widely used and standardized, making them compatible with a broad range of networking equipment and optical network components.

Indoor Use: The OS1 specification indicates that the cable is intended for indoor environments, making it suitable for use within buildings, data centers, and telecommunications facilities.

Ease of Installation: The simplex design simplifies installation in point-to-point connections, and the 3mm jacket makes the cable more flexible and easier to manage in tight spaces or complex setups.

Overall, this patch cord is designed to provide reliable, high-quality performance for single-mode optical networks, with features that support efficient and high-speed data transmission while maintaining durability and ease of use.

    Schematic Diagrams

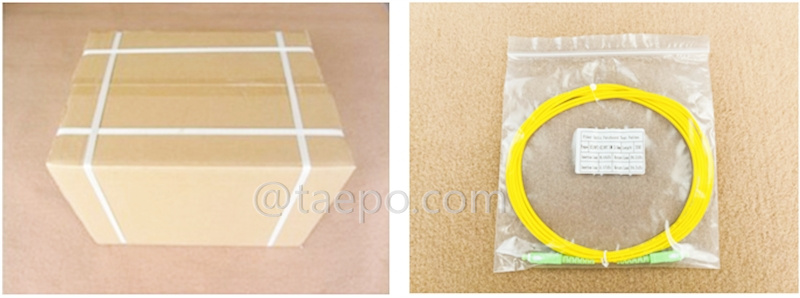

    Packing Pictures

    Order Data
