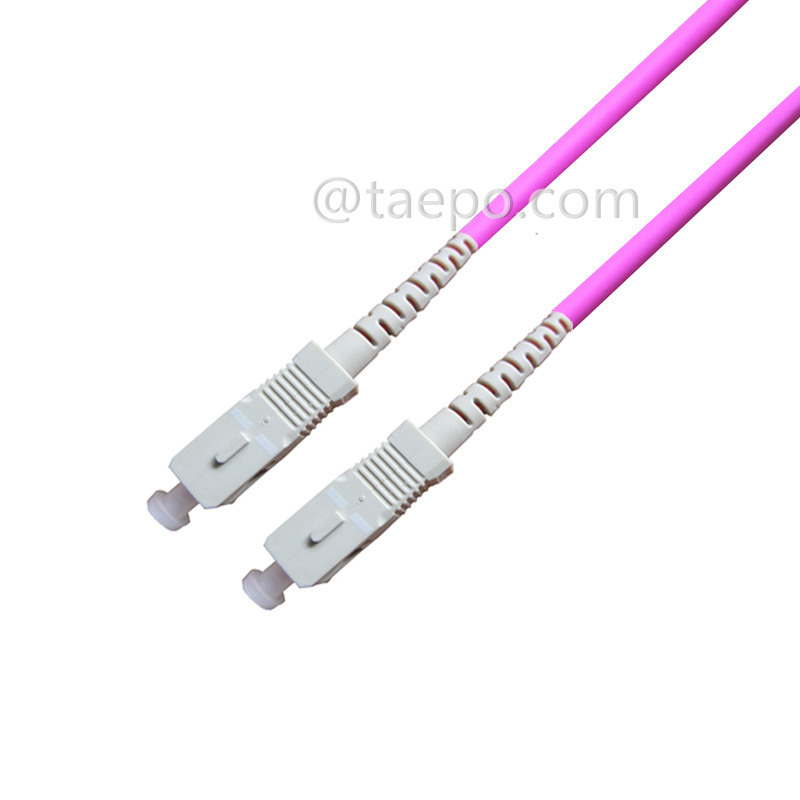

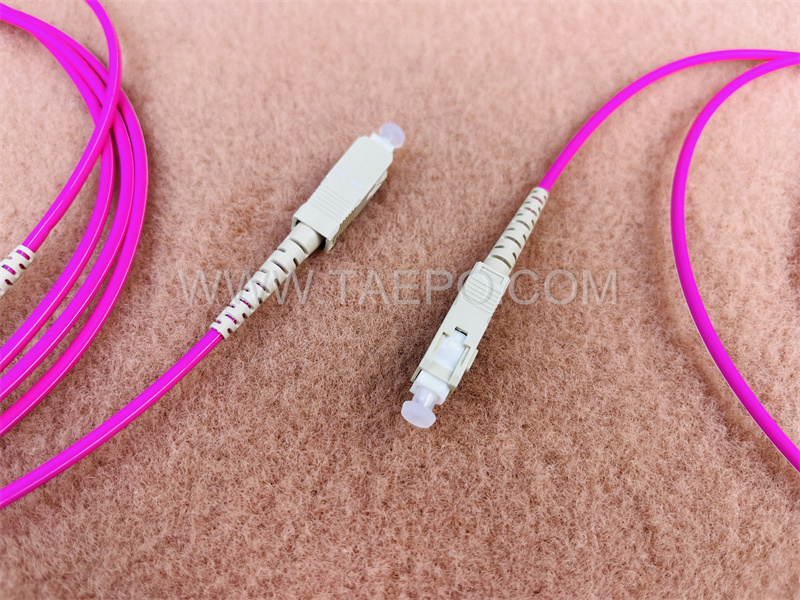

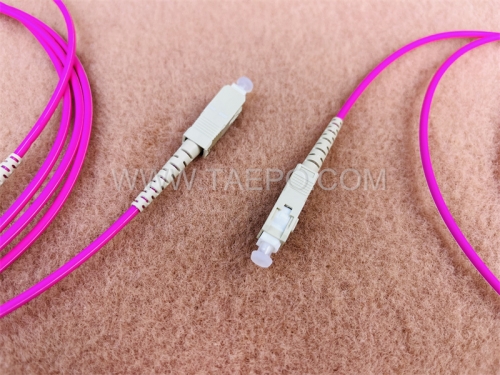

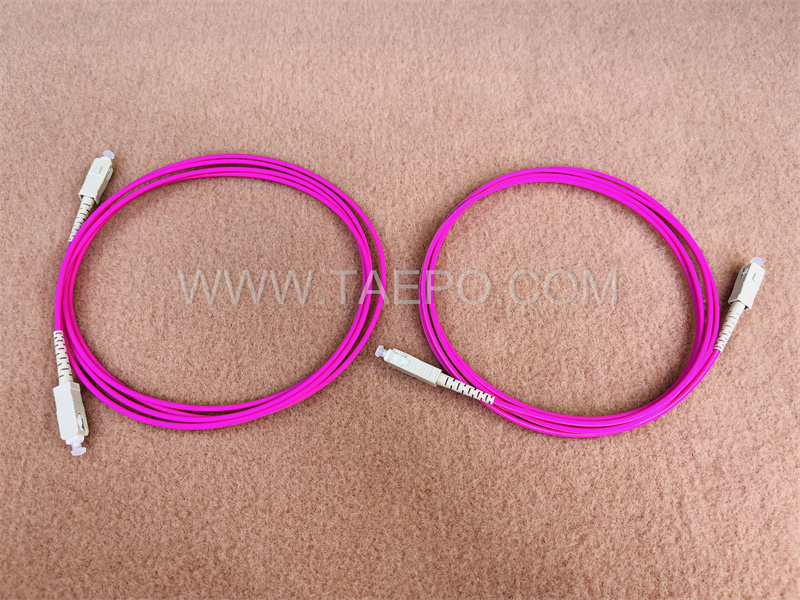

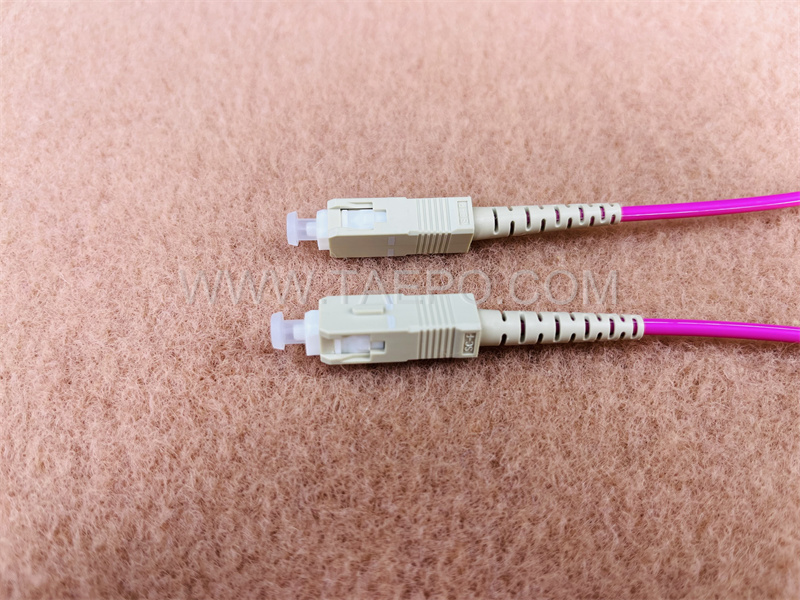

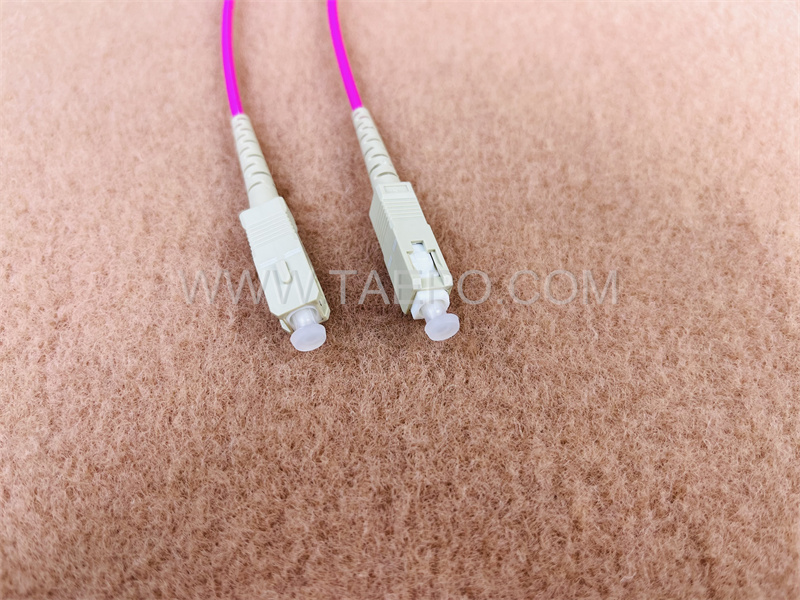

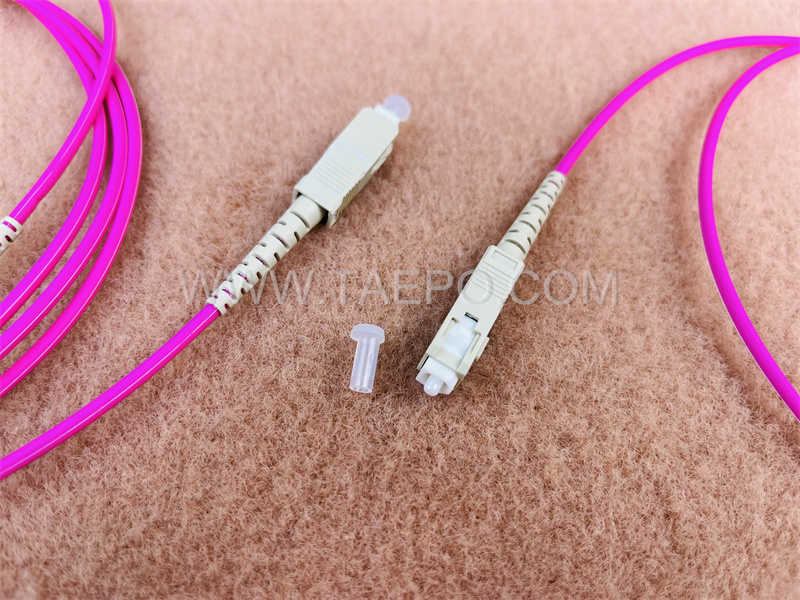

Multimode 50/125um OM4 simplex SC UPC 3mmfiber optic cable patch cord

    Descriptions

A "Multimode 50/125µm OM4 simplex SC UPC 3mm fiber optic cable patch cord" is a specific type of fiber optic cable used for high-speed data transmission. Let's break down what each part of the description means:


Multimode: This refers to the type of fiber optic cable that is designed to carry multiple light modes simultaneously. Multimode fibers are typically used for short to medium-distance applications because they have a larger core diameter compared to single-mode fibers.

50/125µm: This specifies the core and cladding diameter of the fiber. In this case, the fiber has a core diameter of 50 micrometers and a cladding diameter of 125 micrometers. The core is the central part of the fiber where the light is transmitted, and the cladding surrounds the core and reflects the light back into the core.

OM4: This is a category or standard for multimode fiber, indicating its performance characteristics. OM4 is designed for high-bandwidth and high-speed applications, supporting data rates up to 100 Gbps over distances up to 150 meters (or 300 meters at lower speeds).

Simplex: This term means the cable contains a single fiber, which allows data to travel in only one direction at a time. If you need bi-directional communication, you would use a duplex cable with two fibers.

SC (Subscriber Connector) is a type of connector used to join the fiber optic cables to devices or patch panels.
UPC (Ultra Physical Contact) refers to the type of polish on the fiber end-face that ensures low insertion loss and minimal back reflection.
3mm: This indicates the outer diameter of the cable jacket. A 3mm diameter jacket provides a balance between flexibility and protection for the fiber inside.

So, in summary, this patch cord is a high-performance, single-fiber cable used for high-speed data connections, with a 50/125 micrometer core/cladding size, OM4 grade for excellent bandwidth, simplex design for unidirectional data flow, SC UPC connectors for low loss and minimal reflection, and a 3mm outer diameter for the cable jacket.

    Main Features

The main feature of a "Multimode 50/125µm OM4 simplex SC UPC 3mm fiber optic cable patch cord" is its high-performance capability for data transmission over short to medium distances. Key aspects include:


High Bandwidth and Speed: The OM4 classification supports high data rates (up to 100 Gbps) over relatively short distances, making it ideal for high-speed network applications and data centers.

Multimode Fiber: Designed for multiple light modes, this fiber is suited for short-range communication, such as within data centers or between network switches.

SC UPC Connectors: These connectors provide low insertion loss and minimal back reflection, ensuring efficient and reliable connections.

Simplex Design: With a single fiber, it is used for one-way data transmission. For bidirectional communication, two simplex cables or a duplex cable would be required.

Durable Jacket: The 3mm outer diameter jacket offers protection and flexibility, suitable for various installation environments.

In essence, the main feature is its capability to deliver high-speed, reliable data transmission with a focus on performance and efficiency in short-range multimode applications.

    Schematic Diagrams

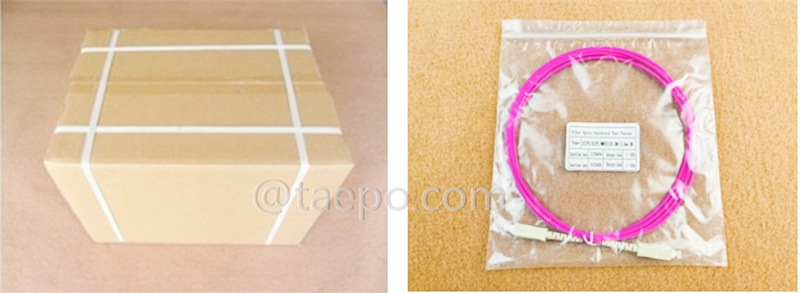

    Packing Pictures

    Order Data
