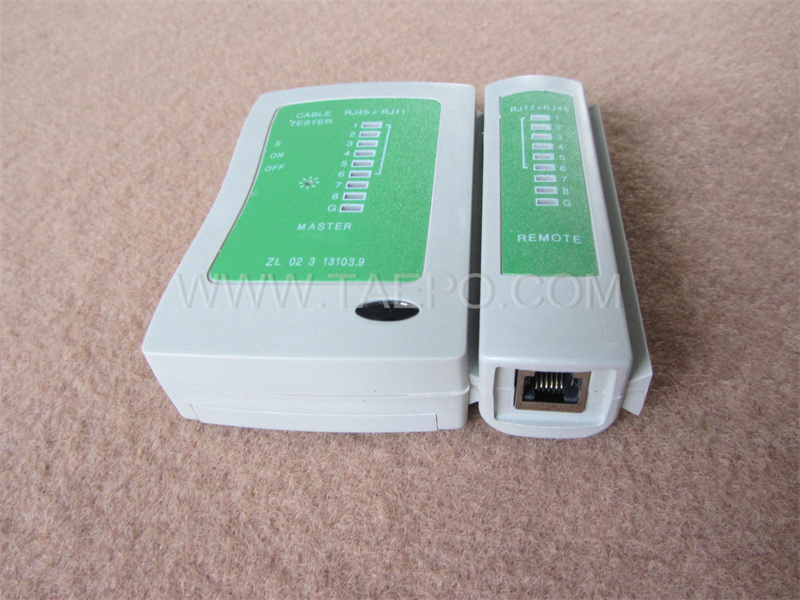

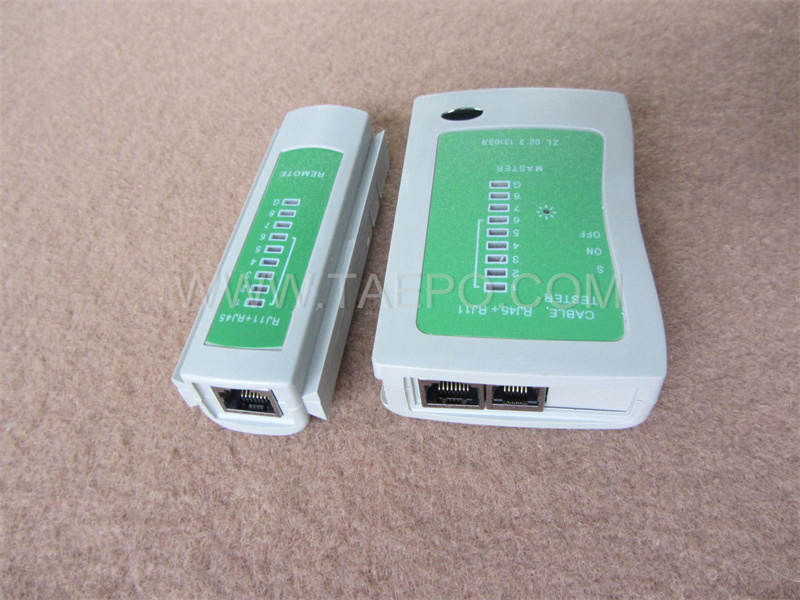

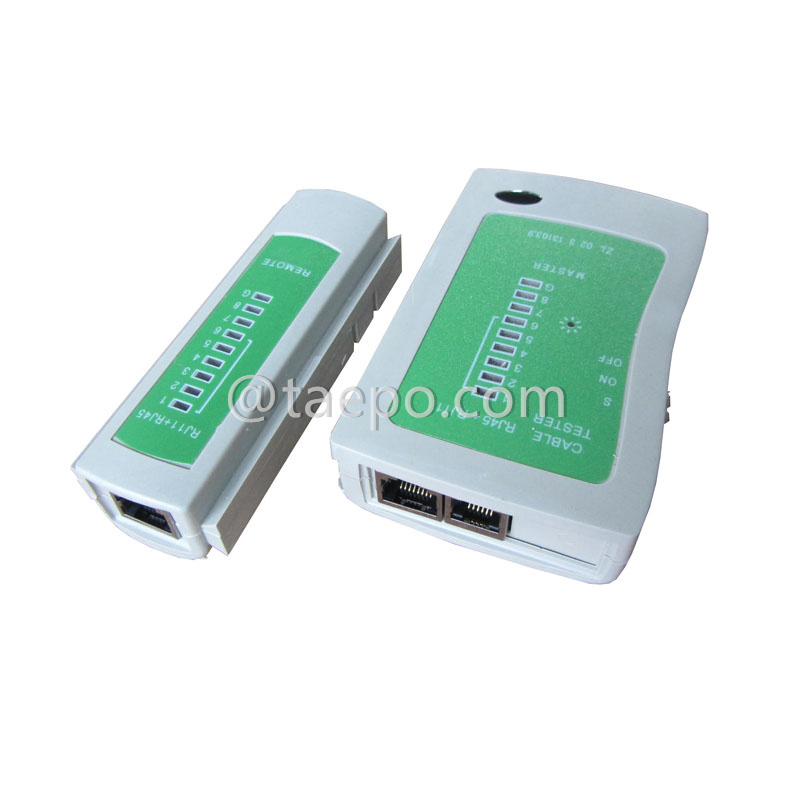

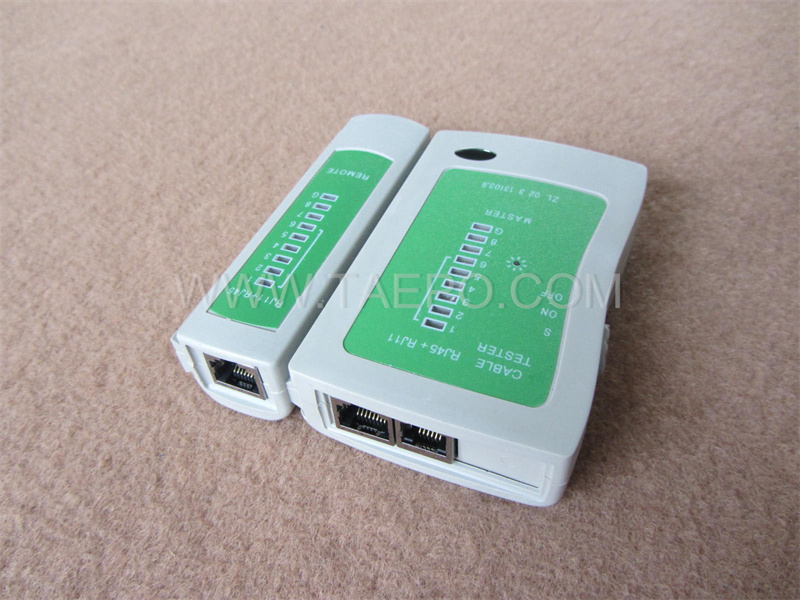

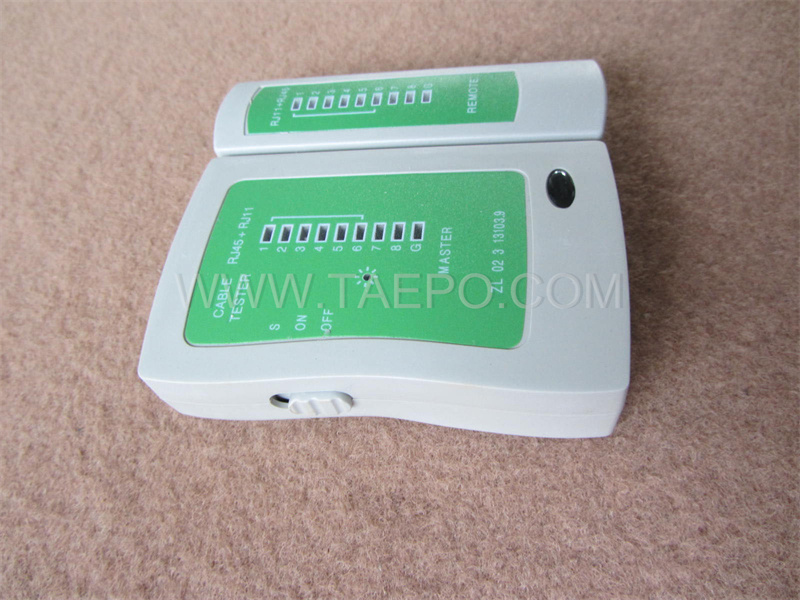

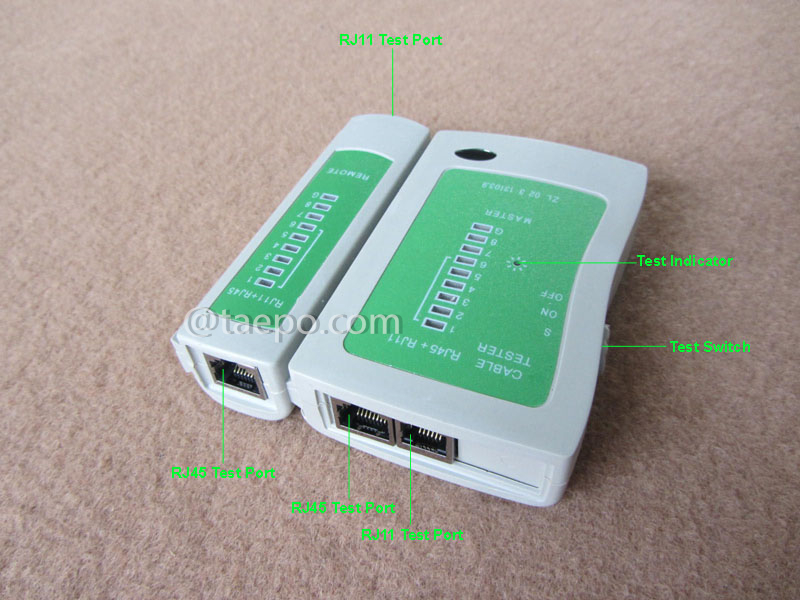

Network patch cable wire tester for RJ11 and RJ45

    Descriptions

A patch cable tester for RJ11/RJ45 (TP-5801-468A) is a device used to test and verify the functionality of network cables. It is designed specifically to test cables terminated with RJ11 or RJ45 connectors, which are commonly used in networking and telecommunications applications.

The patch cable tester typically consists of a main unit and a remote unit. The main unit is connected to one end of the cable being tested, while the remote unit is connected to the other end of the cable. The tester then sends a signal through the cable and measures the response to determine if there are any faults or issues with the cable.

    Main Features

• Compatibility: The tester should be compatible with both RJ11 and RJ45 connectors, which are commonly used in network and telecommunications applications.
• Testing capability: The tester should be capable of testing various aspects of the cable, including continuity, wiring configuration, and signal quality.
• LED indicators: The tester may feature LED indicators that provide visual feedback on the status of the cable being tested. This can help to quickly identify faults or issues with the cable.
• Automatic shut-off: The tester may feature an automatic shut-off function that conserves battery life and prolongs the lifespan of the tester.
• Compact design: The tester should be compact and portable, making it easy to carry and use in various locations.
• Ease of use: The tester should be easy to use, with clear instructions and controls.
•
• Overall, a patch cable tester for RJ11/RJ45 is an essential tool for anyone involved in network or telecommunications installations, maintenance, or troubleshooting. It can help to quickly identify faults or issues with network cables, ensuring that they are working correctly and efficiently.

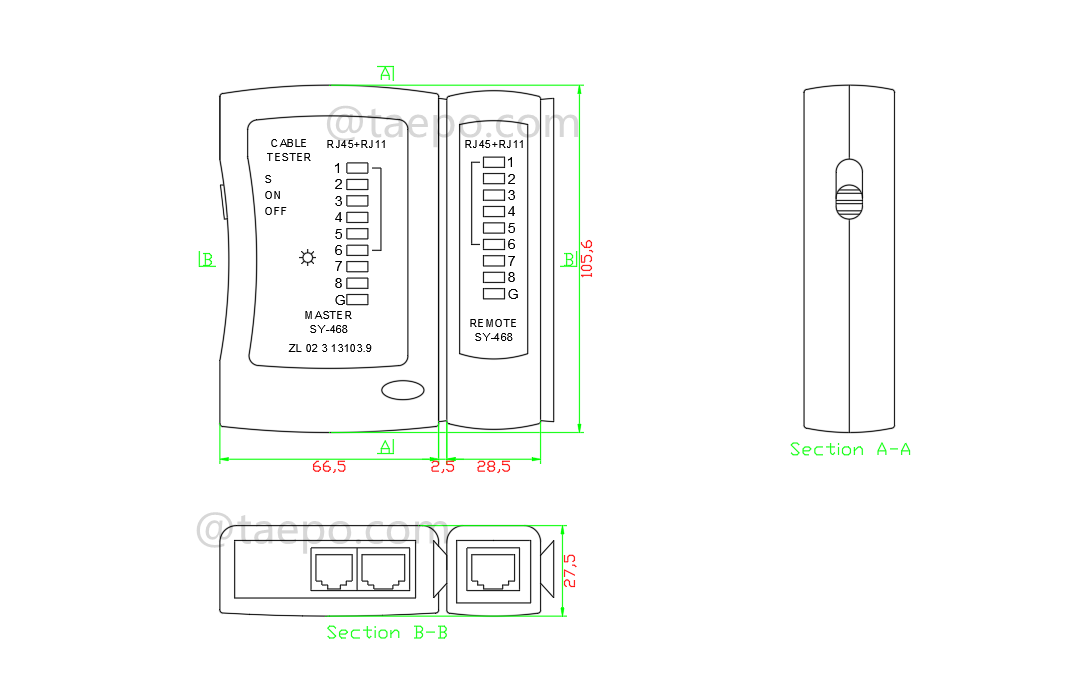

    Schematic Diagrams

    Packing Pictures

    Order Data
