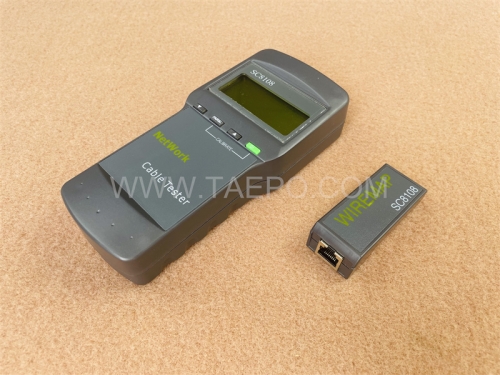

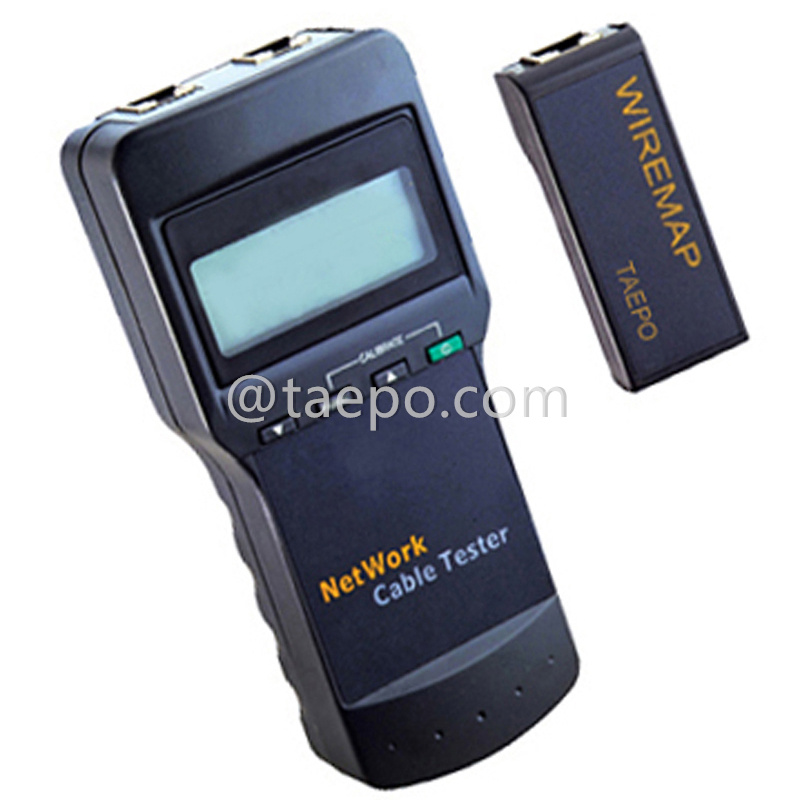

Intelligent network patch cable tester for RJ11 RJ45 and BNC

    Descriptions

TP-5808-SC8108 Network Cable Tester is a powerful special tool to prevent and solve cable installation problem. Network Cable Tester is the best choice to verify any speech and data cable installation procedure. The tester is capable to have a number of tests such as cable connection sequence, length, user jumper and cable connection continuity and determine any open circuit, short circuit, jumper or cross-talk interference. It is a useful tool to reduce cable installation cost and save cable installation time.

    Main Features

• One person enough to complete cable continuity checking.
• Checking cabling error in Cat5e, Cat6, coaxial cable and telephone lines, namely as open circuit, short circuit, reverse connection and cross talk interference.
• Locating the wiring or connection error.
• Measuring the length of the cable and determining the distance of open circuit and short circuit.
• Dynamically calibrating the cable length and making measurement of length as accurate as 97%
• Simple and easy to use, and big screen to display the test results clearly.
• Portable with long battery life (stand by mode 50 hours)
• Automatic time-delay powering off.
• Measuring of length and pair both available with or without far-end recognizer.
• Locating cable and there are 8 far-end passive test jacks (ID No. ID1-ID8)
• Far-end recognizer with prompting voice.
• Single-chip microcomputer software watchdog design and reliable operations.

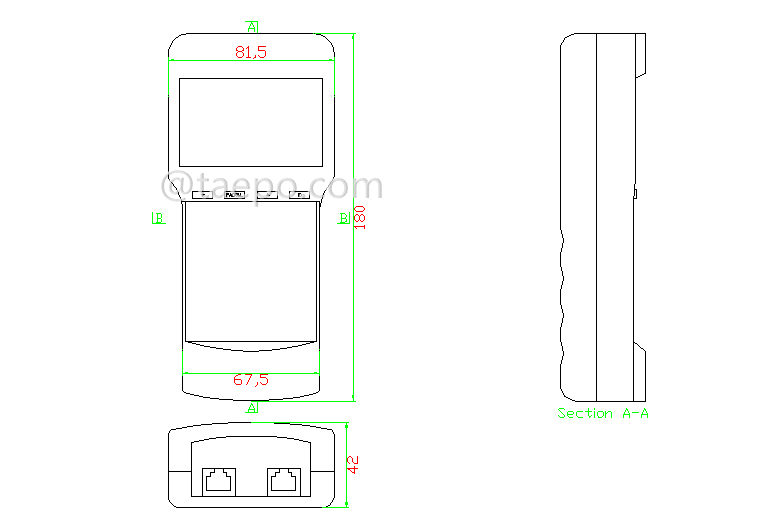

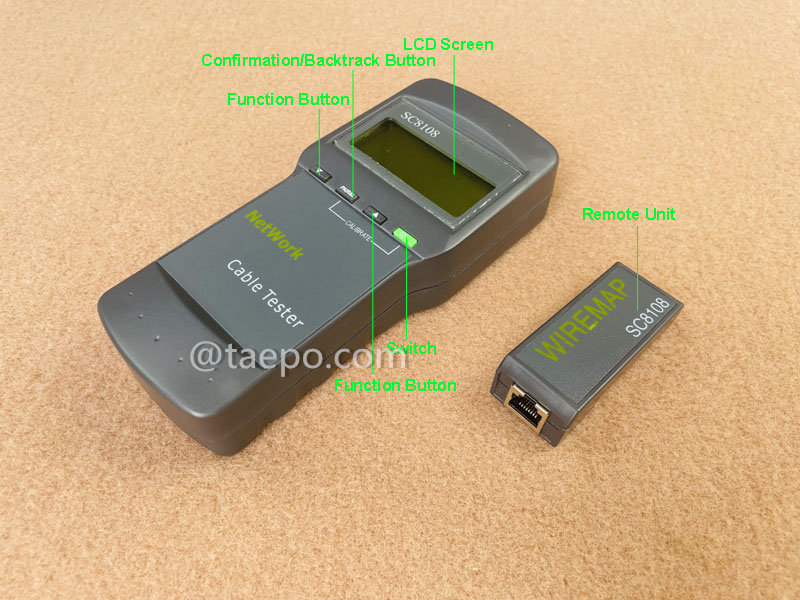

    Schematic Diagrams
