Descriptions

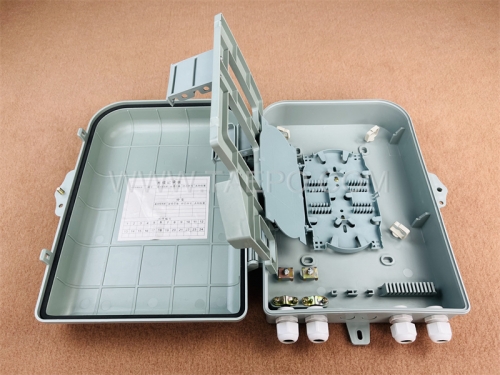

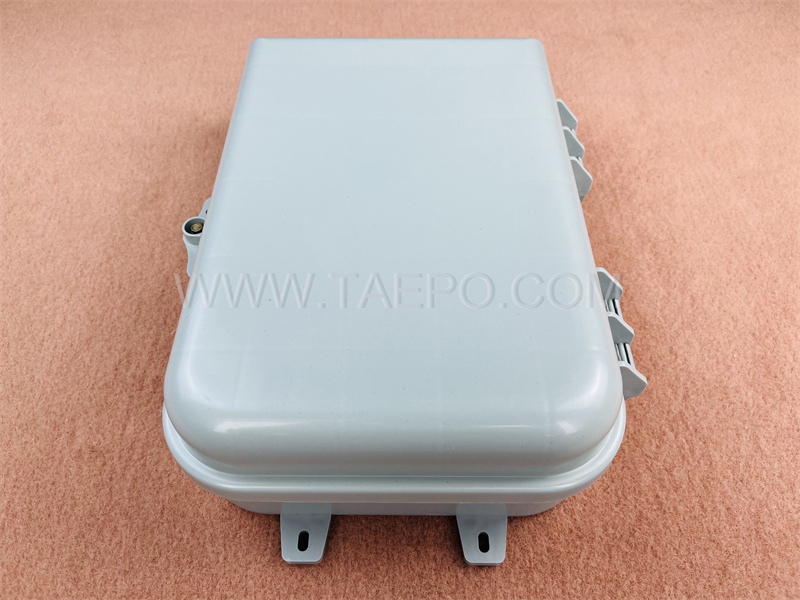

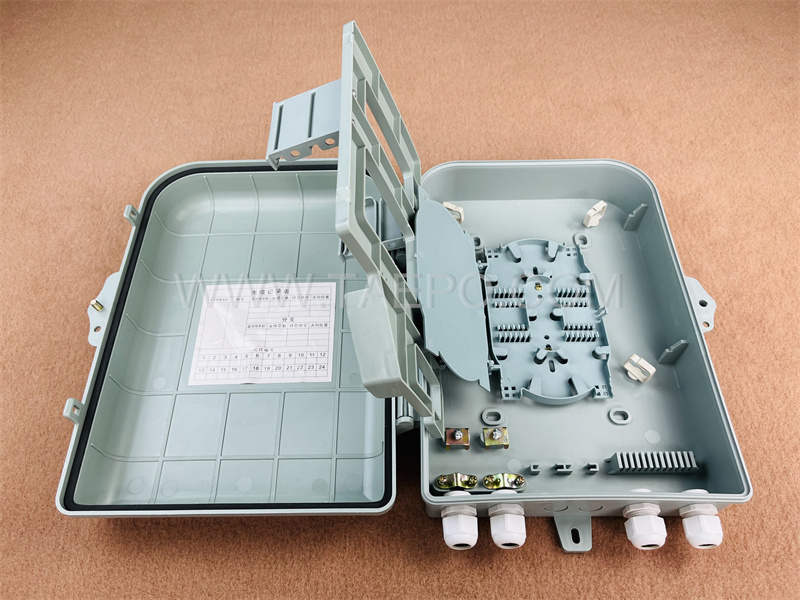

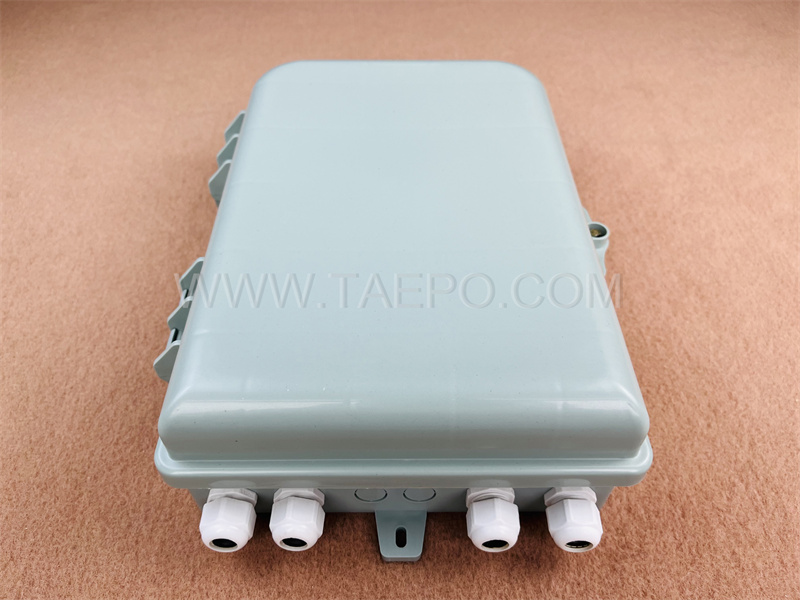

A 16 fibers plastic FTTH Fiber Splitter Box (FSB) is a housing or enclosure designed to accommodate and protect fiber optic splitters and fibers in Fiber-to-the-Home (FTTH) networks.
Outdoor Durability: This splitter box is built to withstand harsh outdoor conditions. The plastic material used is typically UV-resistant, weatherproof, and capable of protecting the internal components from rain, dust, and temperature variations.
16 Fibers Capacity: The box is designed to accommodate up to 16 individual fiber optic cables, allowing for multiple connections and efficient management of fiber optic splits.
SC Type Connectors: SC (Subscriber Connector or Standard Connector) type connectors are used for the fiber optic connections within the box. These connectors are widely used due to their ease of use and reliable performance.

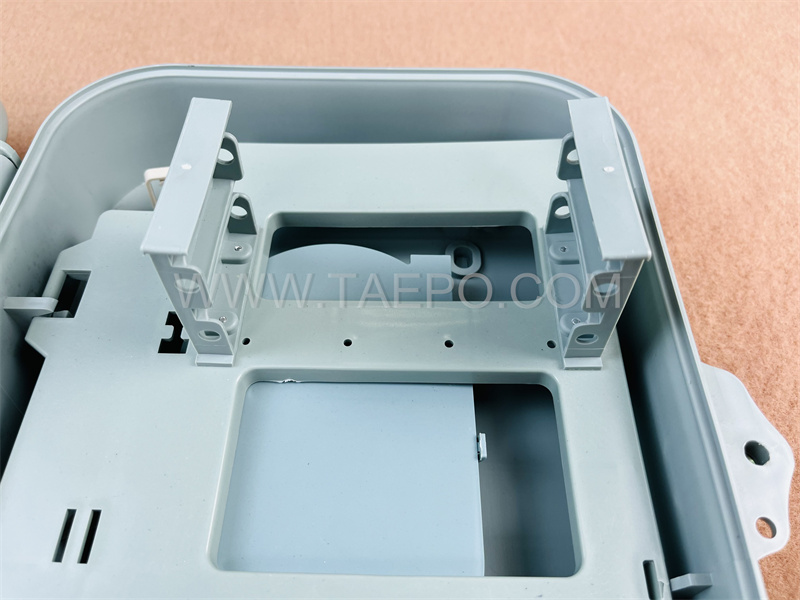

Cassette PLC Splitters: The box is designed to house cassette-type Planar Lightwave Circuit (PLC) splitters. PLC splitters are used to divide a single optical signal into multiple signals, allowing one input to be distributed to several outputs. The cassette format makes installation and maintenance straightforward.

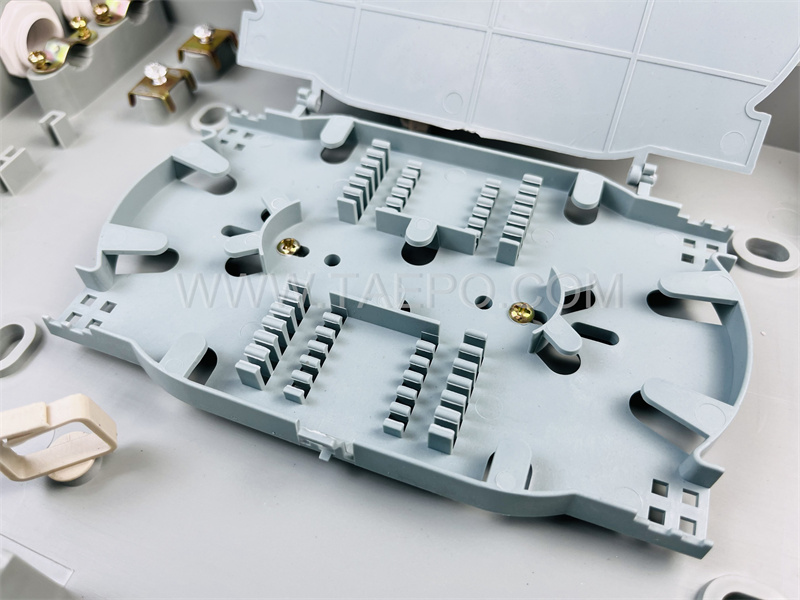

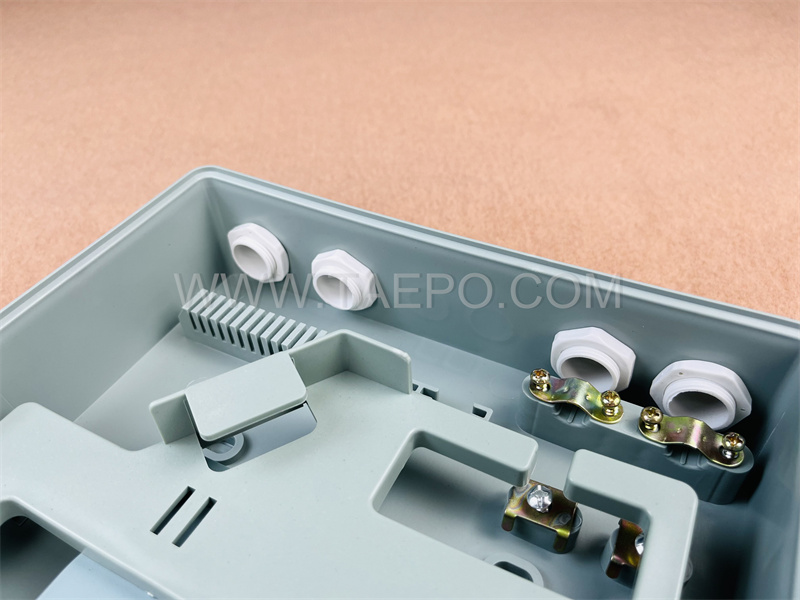

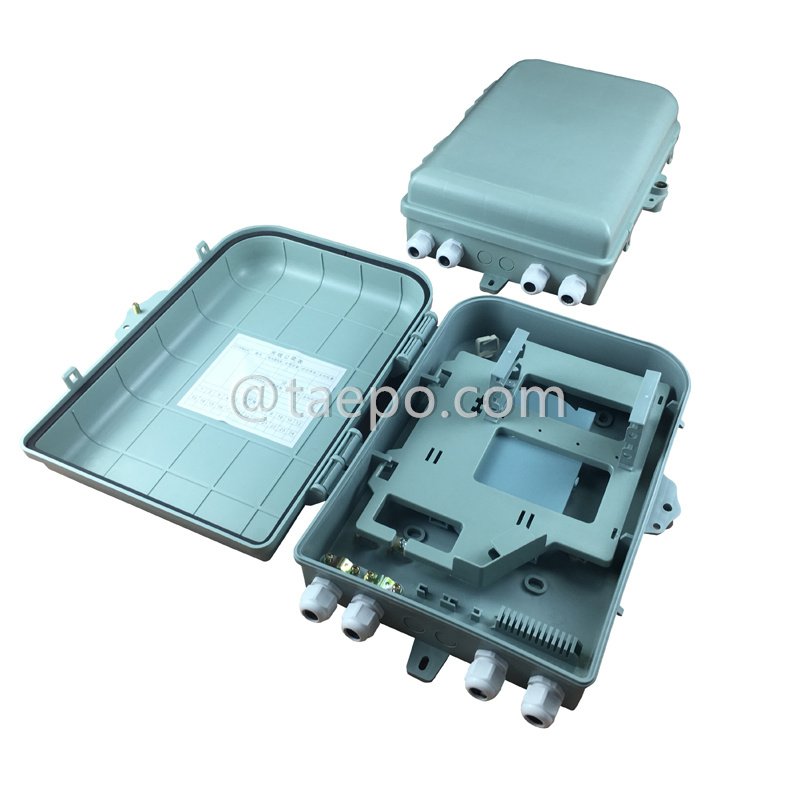

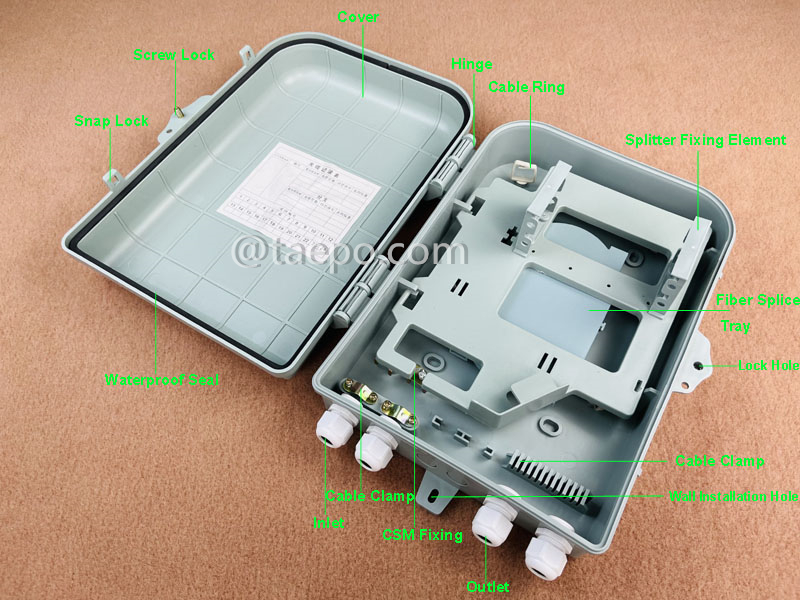

Protection and Organization: The splitter box provides robust protection for the delicate fiber optic components, safeguarding them from environmental damage and physical stress. It also includes features for organizing the fibers neatly, such as splice trays, cable management rings, and secure mounting points for the splitters and connectors.

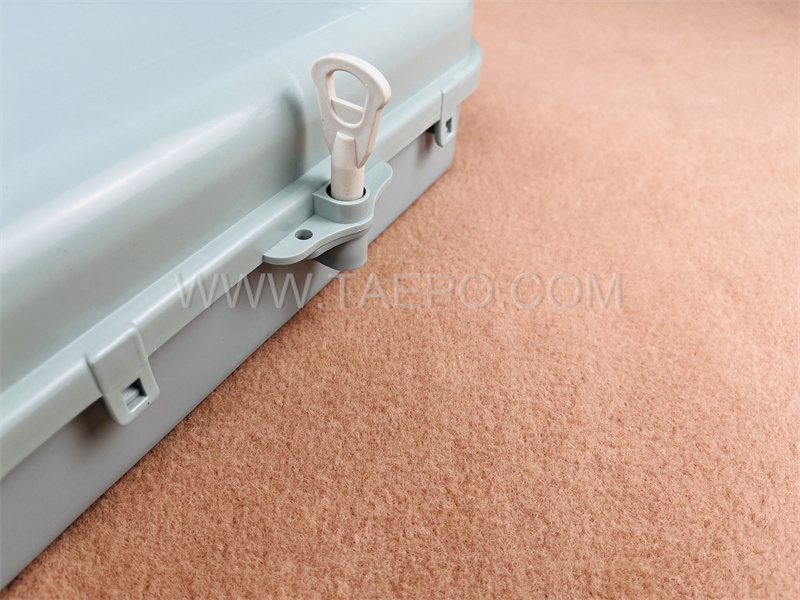

Easy Access and Maintenance: The design of the box allows for easy access to the internal components, facilitating quick installation, inspection, and maintenance. This typically includes features like hinged doors, secure latches, and clearly marked connection points.
Main Features
The main features of a 16 fibers plastic FTTH Fiber Splitter Box (FSB) for cassette PLC splitters would largely mirror those of the 8 fibers variant, with some enhancements to accommodate a greater number of fibers. Here are the main features:
Increased Capacity: The 16 fibers FSB can accommodate up to 16 individual fiber optic cables or fibers, doubling the capacity compared to the 8 fibers variant. This allows for more connections to be managed within the same enclosure.
Expanded Scalability: With the ability to handle more fibers, the 16 fibers FSB offers greater scalability, allowing for easier expansion of the network to accommodate more users or higher bandwidth demands.
Compact Design: Despite the increased capacity, the FSB maintains a compact design, maximizing space efficiency, which is crucial in FTTH installations where space may be limited.
Protection and Organization: Like the 8 fibers version, the 16 fibers FSB provides protection and organization for delicate fiber optic components, ensuring they are shielded from environmental factors and damage while also facilitating easier management of connections.
Ease of Installation and Maintenance: The use of cassette-type PLC splitters still ensures easy installation and maintenance, with features like pre-terminated adapters and accessible connection points.
Material Durability: The plastic construction remains lightweight and durable, suitable for both indoor and outdoor installations, ensuring long-term reliability and performance.
Efficient Signal Distribution: With PLC splitters, the 16 fibers FSB can distribute optical signals from a single input to multiple outputs efficiently, maintaining high-quality signal transmission across the network.
Overall, the 16 fibers plastic FTTH Fiber Splitter Box offers increased capacity and scalability while retaining the essential features of protection, organization, ease of installation, and efficient signal distribution found in its 8 fibers counterpart.

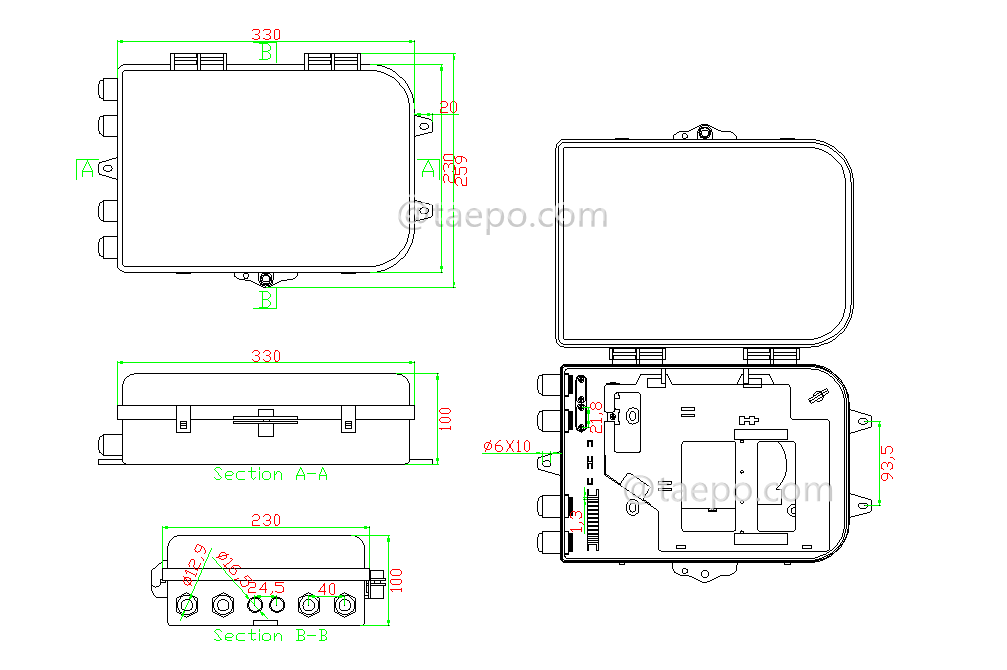

Schematic Diagrams

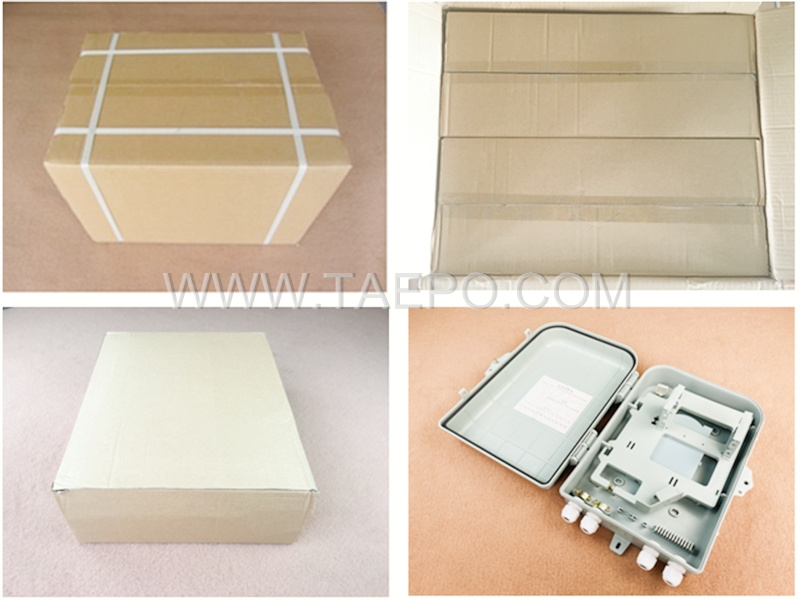

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3232-16S |
Fiber splitter box (FSB), outdoor, SC, 16 fibers, plastic housing, 330x230x100mm, without casette PLC splitters |
