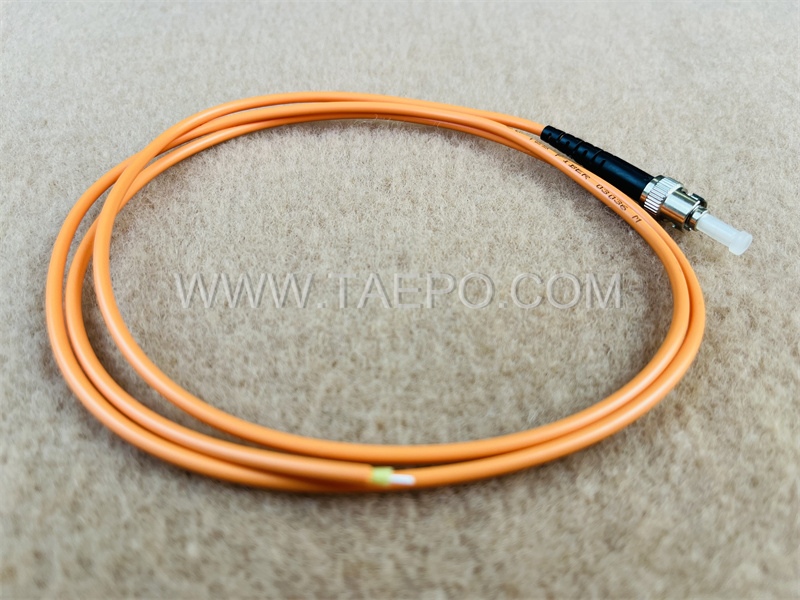

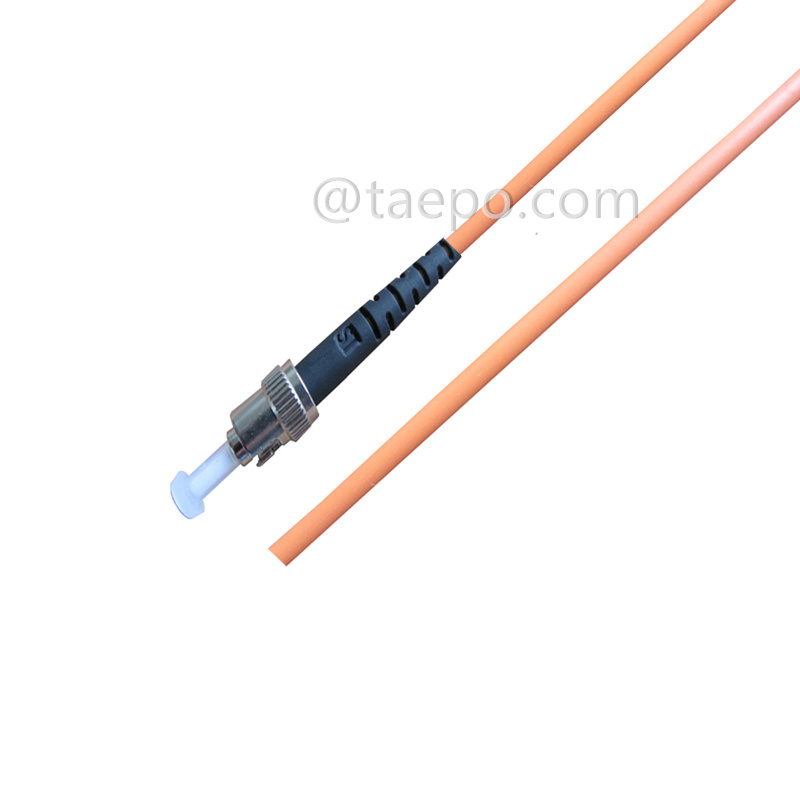

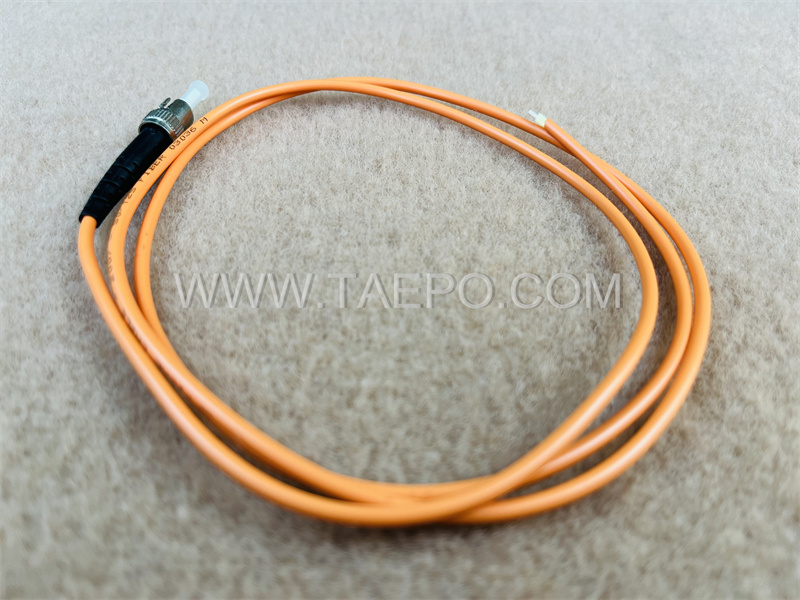

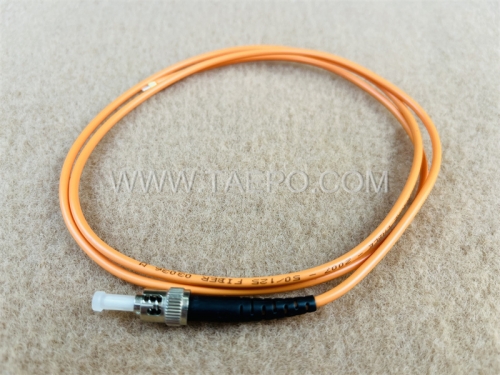

Multimode simplex ST UPC 3mm Fiber optic pigtail

    Descriptions

A Multimode Simplex ST UPC 3mm Fiber Optic Pigtail is another type of fiber optic cable assembly used in telecommunications and data networking.

Here's a breakdown of its components:
Multimode: Multimode Fiber is used for transmitting multiple light signals simultaneously over a single fiber core, ideal for shorter-distance data transmission.
Multimode fiber is typically used for shorter links, as it has more attenuation (signal loss) compared to single-mode fiber over longer distances.
Simplex: Simplex indicates that this pigtail has a single fiber core, which is used for one-way communication (i.e., sending data in one direction). It is not for bidirectional communication like duplex cables.

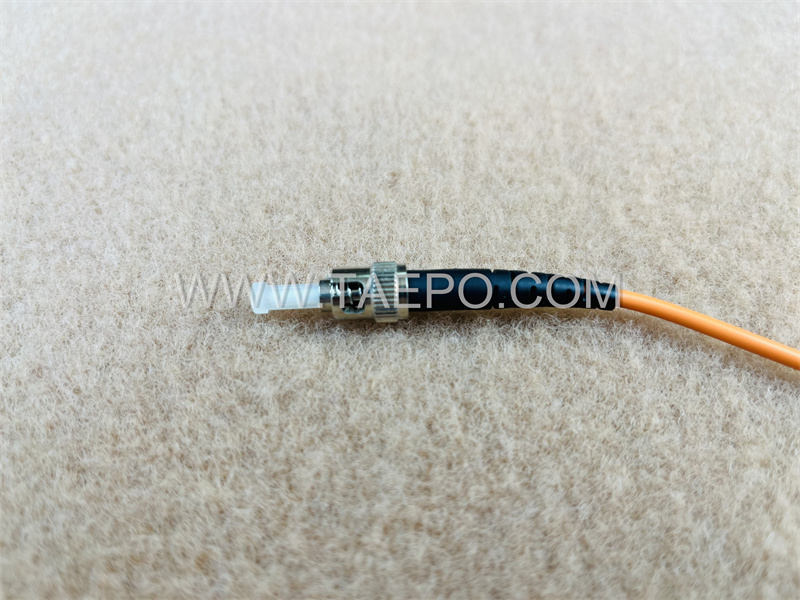

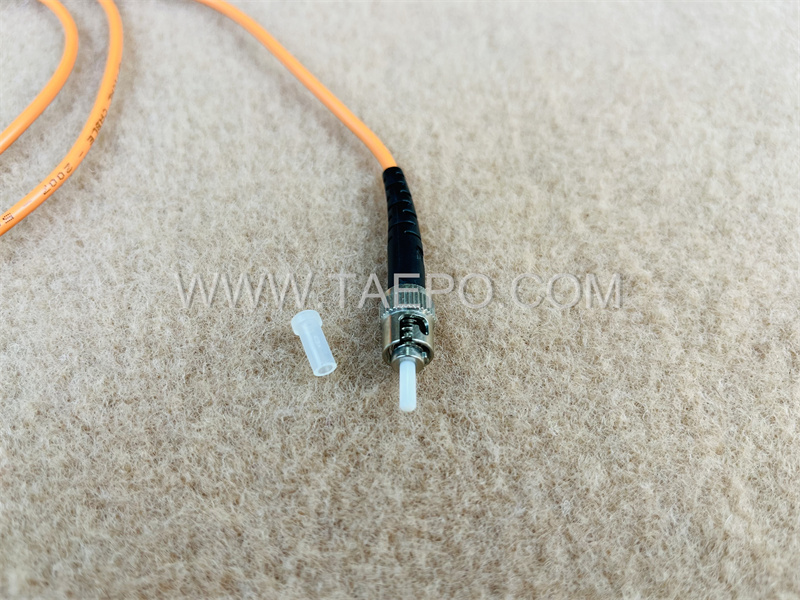

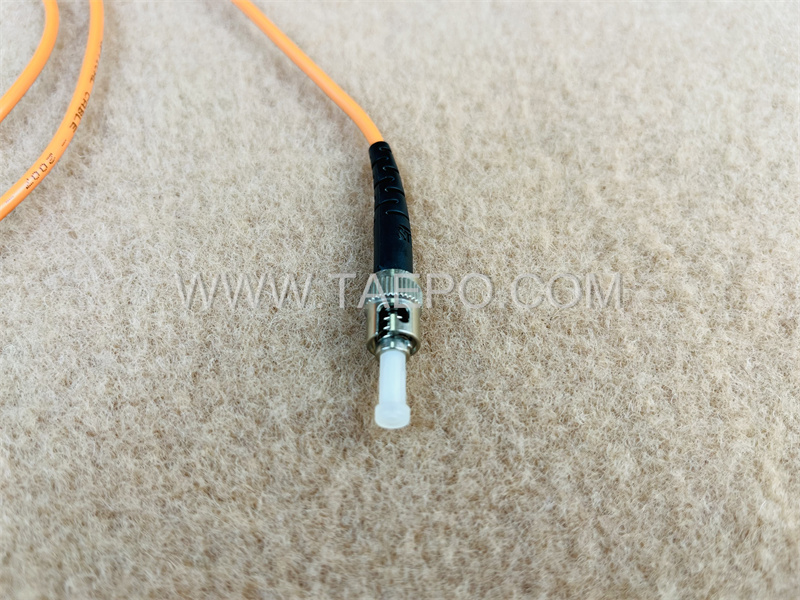

ST UPC: ST (Straight Tip) Connector: This is a bayonet-style fiber optic connector that uses a twist-lock mechanism to secure the connection. ST connectors are widely used in fiber optic networking and are easy to insert and remove. They are common in applications like local area networks (LANs) and campus networks.
UPC (Ultra Physical Contact): The connector has an UPC-polished end, which reduces signal loss and reflections at the fiber-to-fiber connection point. This results in better signal quality and lower insertion loss.
3mm: The cable has an outer diameter of 3 millimeters, which provides extra durability and protection, making it suitable for more rugged or demanding environments.
Fiber Optic Pigtail: A pigtail is a short piece of fiber optic cable, typically pre-terminated with a connector on one end (ST, in this case) and exposed fiber on the other end. It’s designed to be spliced into longer cables or connected to networking hardware, such as patch panels or distribution frames.

    Main Features

Short-Distance Data Transmission: Multimode fiber, typically OM2, is optimized for high-speed data transmission over distances up to 500 meters at 850 nm wavelength. It is used in LANs, data centers, and short-distance communication networks.

Single Fiber Communication (Simplex): The simplex design means it only supports one-way data transmission, making it simpler and cheaper for one-directional data links.

ST Connector with Twist-Lock Mechanism: The ST connector is easy to install and remove with a twist-and-lock mechanism, providing secure connections in environments prone to physical disturbances.

UPC Polished End for Low Signal Loss: The UPC polish helps reduce signal loss and reflection, ensuring better signal integrity and performance in the network.

Durability with 3mm Outer Diameter: The 3mm outer jacket adds protection to the fiber, making it robust for various environments, including industrial settings or more rugged installations.

    Schematic Diagrams

    Packing Pictures

    Order Data
