Descriptions

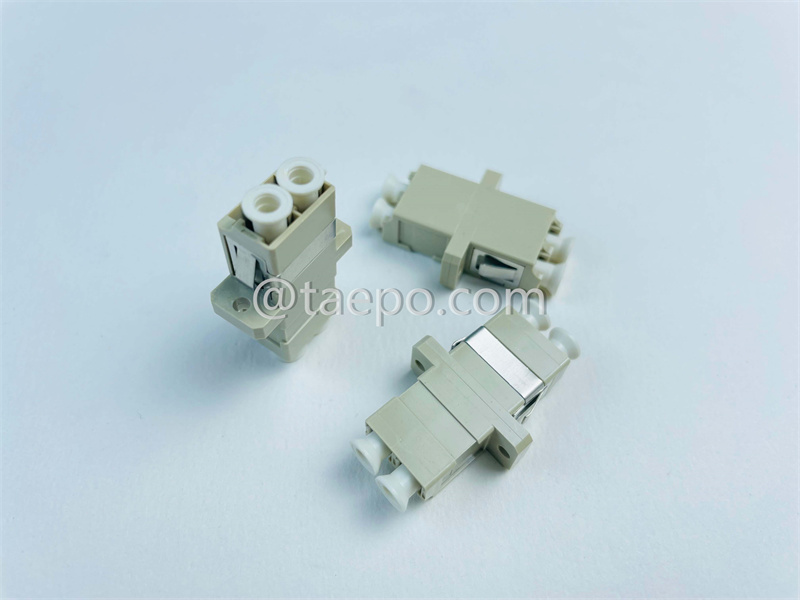

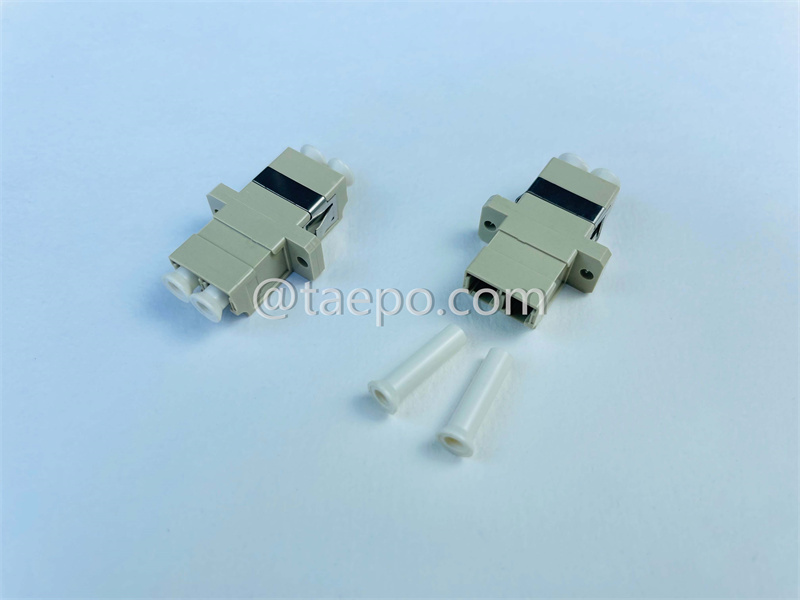

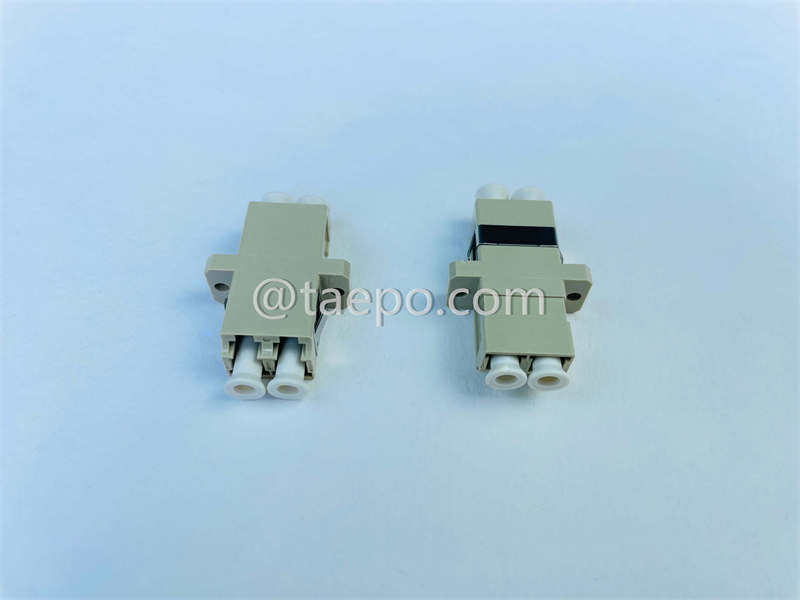

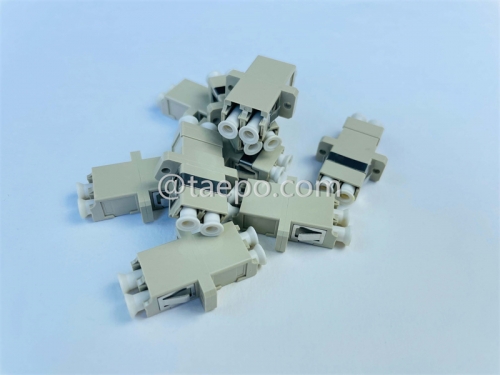

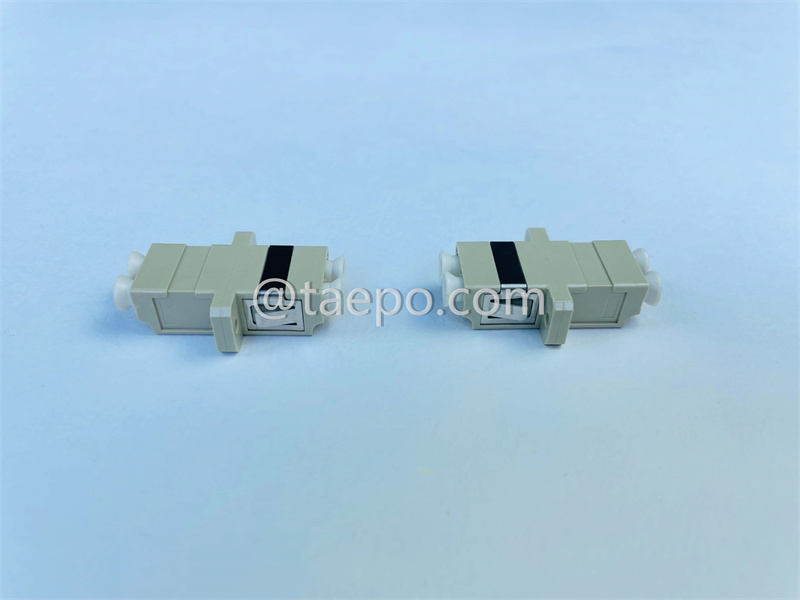

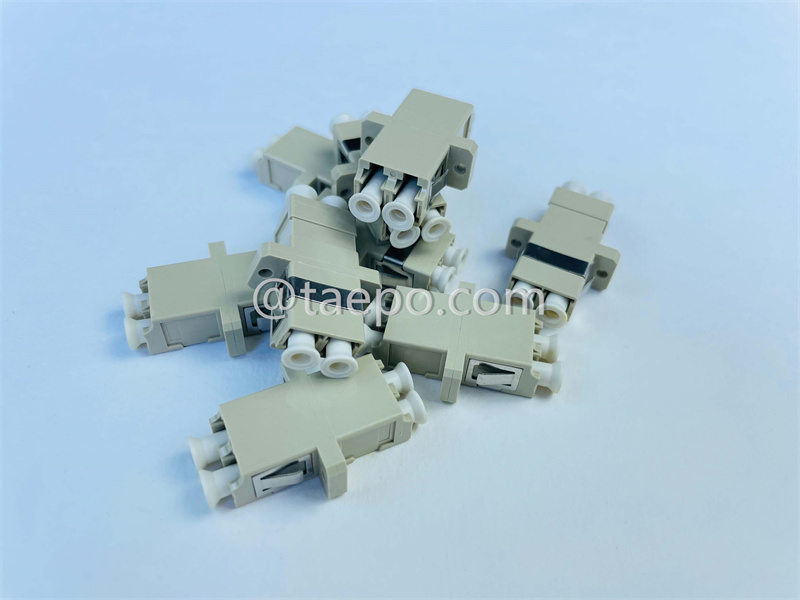

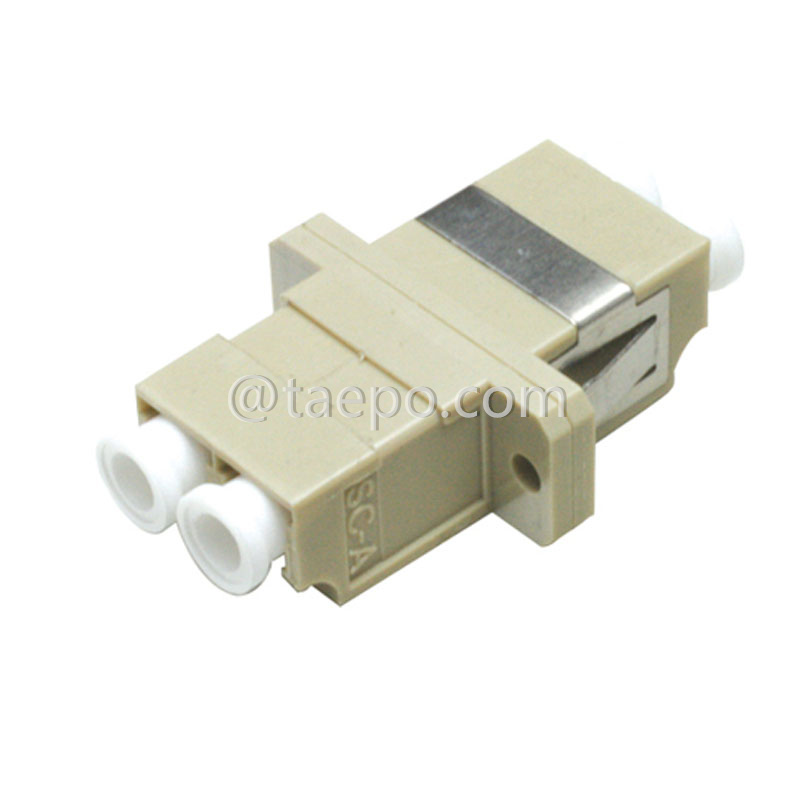

A Multimode Duplex LC UPC Fiber Optic Adapter is a device used to connect two multimode fiber optic cables, each terminated with LC UPC connectors. This adapter enables reliable communication in fiber optic networks, especially for short-distance applications.
Breakdown of the Components:
Multimode: Multimode fiber is designed to carry multiple light signals (or modes) simultaneously, making it suitable for high-bandwidth applications over short distances. It's commonly used in environments like data centers, local area networks (LANs), and other short-distance communication setups.
Duplex: Duplex indicates that the adapter supports two fibers, allowing for bidirectional communication—one fiber for transmitting data and the other for receiving data. This is essential for many networking applications where data needs to flow in both directions.
LC Connector: LC (Lucent Connector) is a small, compact connector type known for its high density. It features a latch mechanism that allows for easy and secure connections, making it ideal for high-density applications where space is a concern.
UPC (Ultra Physical Contact): UPC refers to the type of polish on the connector’s end-face. UPC connectors have a flat, highly polished surface, which reduces signal reflection (return loss) and ensures low insertion loss, typically around 0.3 dB. While UPC connectors are effective in minimizing signal loss, they generally provide less return loss compared to APC (Angled Physical Contact) connectors, making them suitable for applications where ultra-high precision is not critical.
Main Features
Low Insertion Loss: The UPC polish allows for low insertion loss, ensuring strong signal integrity in multimode applications.
Duplex Configuration: Supports simultaneous bidirectional communication through two fibers, making it useful for various networking scenarios.
LC Connector: The compact design of LC connectors allows for efficient use of space in fiber optic installations, making them ideal for high-density environments.
Optimized for Short-Distance Applications: Multimode fiber with LC UPC connectors is particularly well-suited for high-speed data transmission over short distances, commonly found in data centers, enterprise networks, and local area networks.

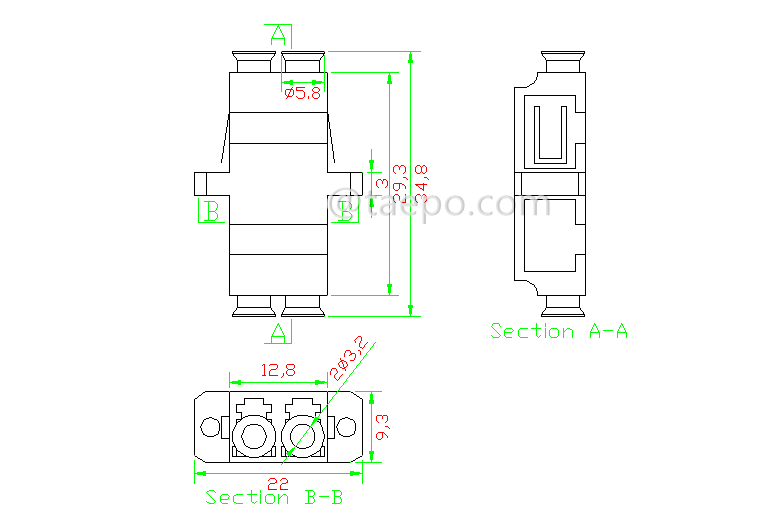

Schematic Diagrams

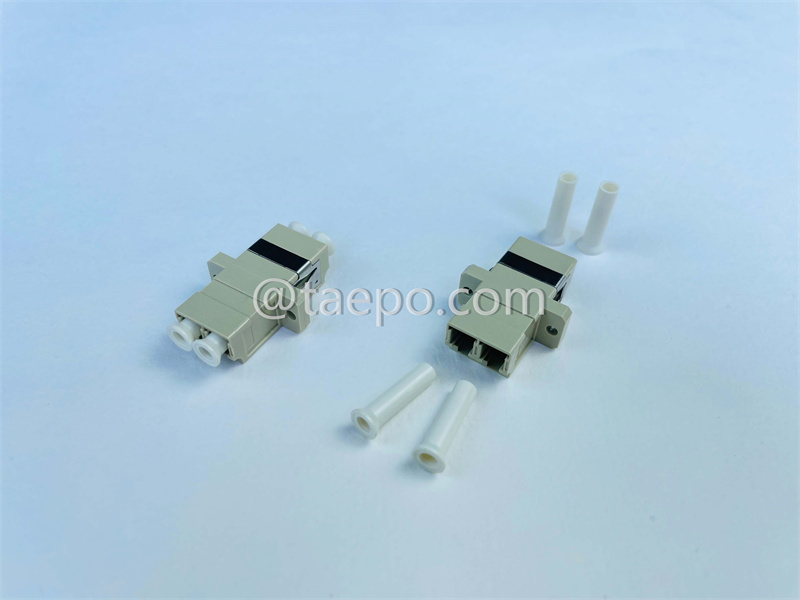

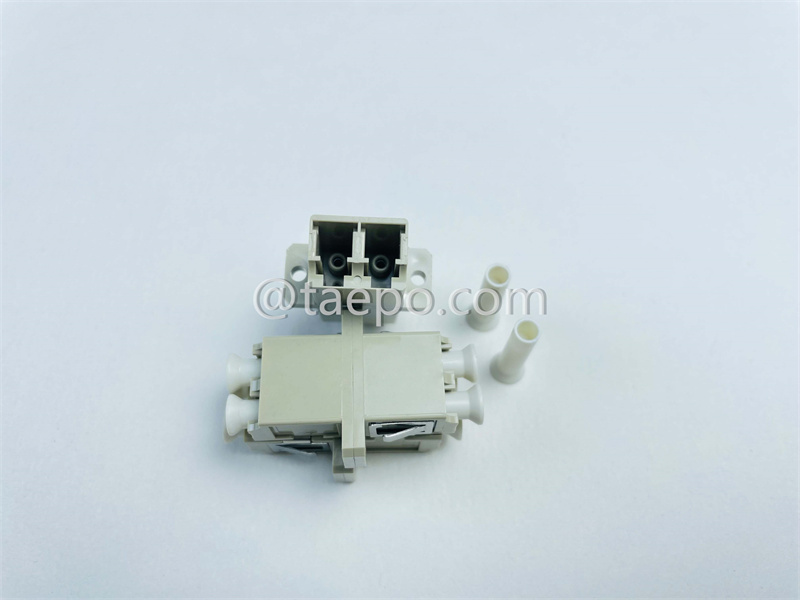

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3001-MM2LCULCU-LF |
Fiber optic adapter, singlemode, simplex, SC/APC-SC/APC, with shutter |
