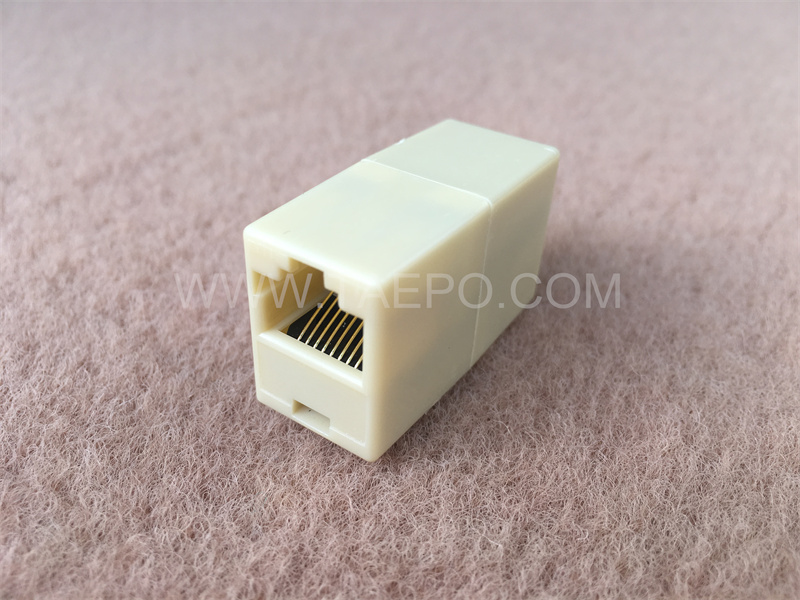

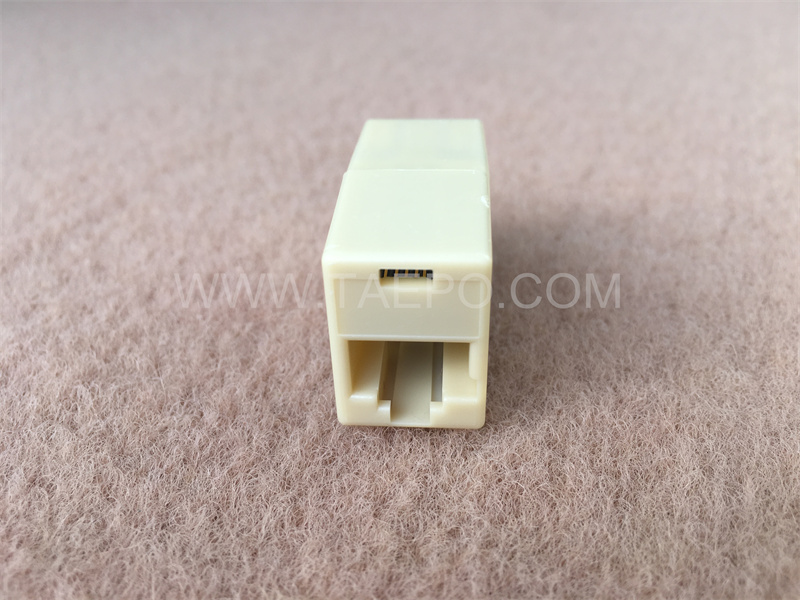

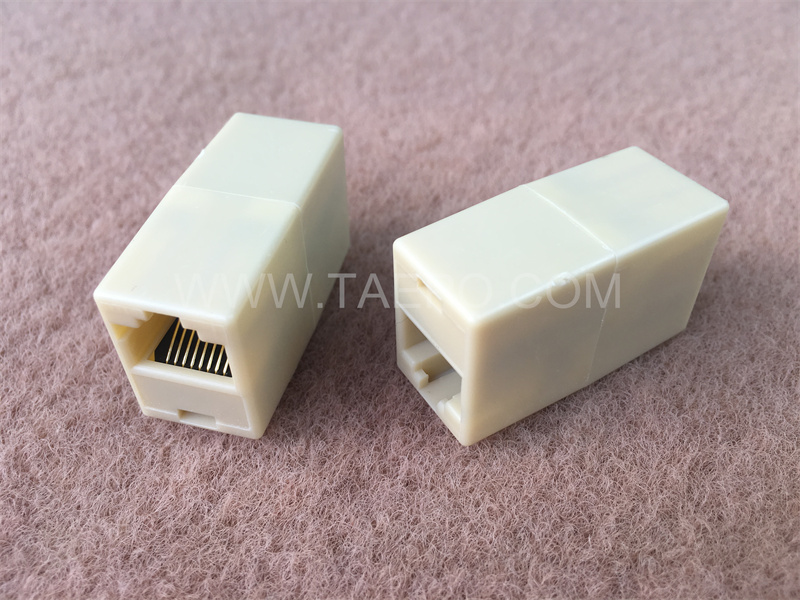

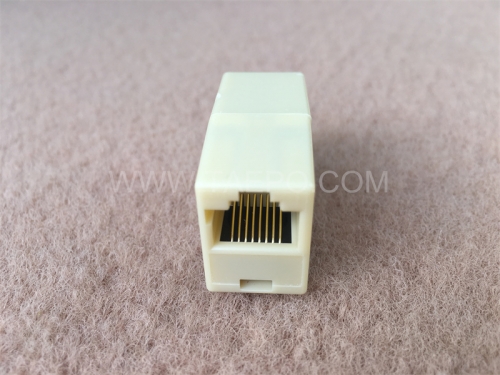

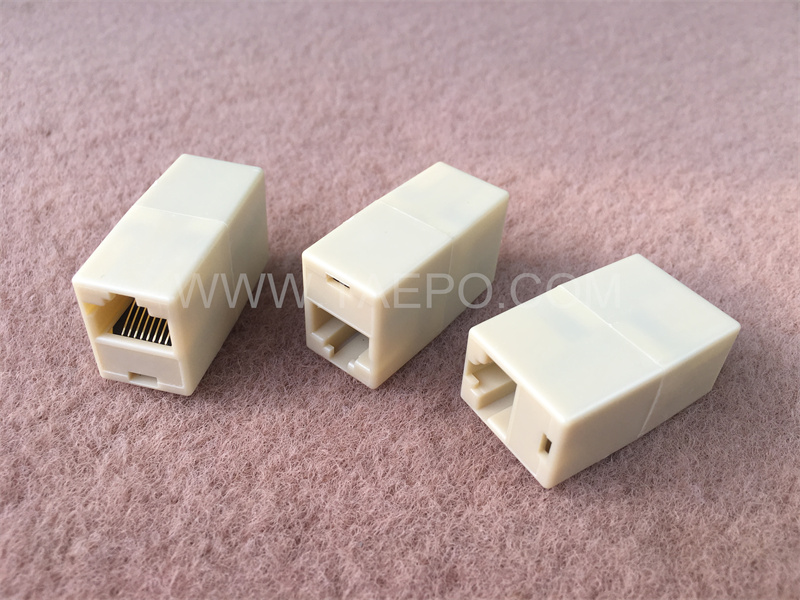

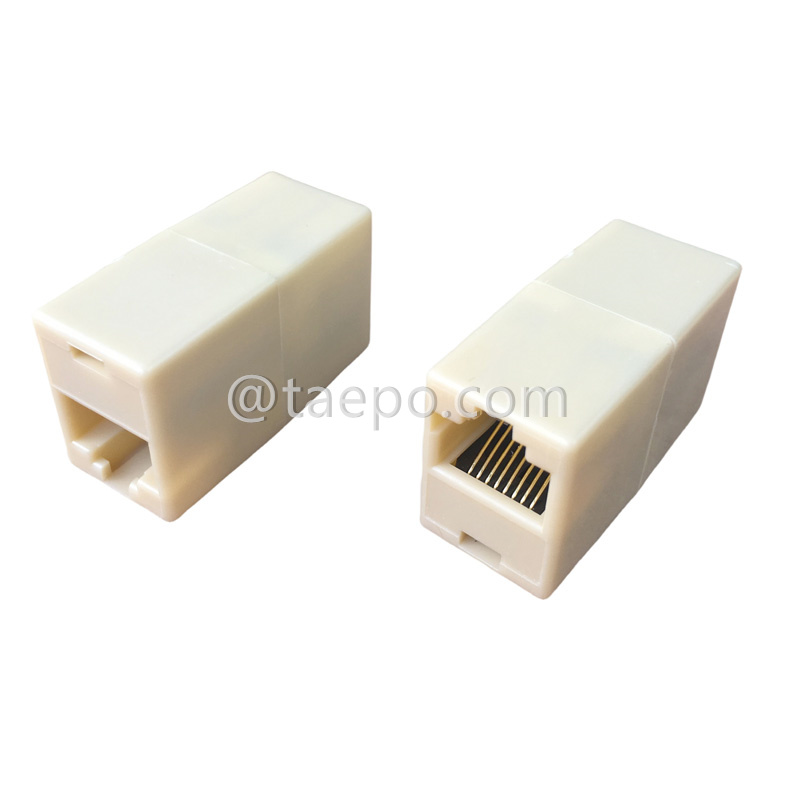

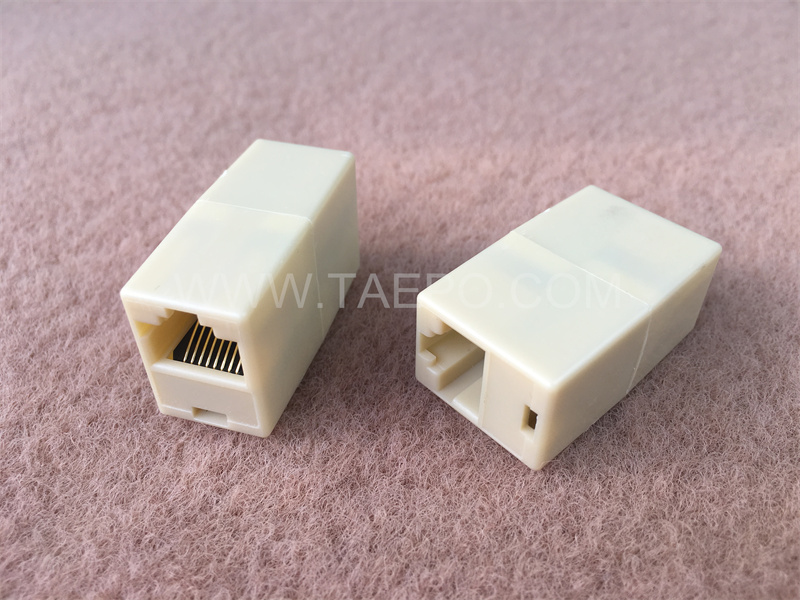

180 degree RJ45 to RJ45 UTP 8P8C CAT5E Inline coupler

Item No.: TP-5225-C5EU8
It is a small device used to extend Ethernet cables by connecting two CAT5E UTP cables together
  • Color: Ivory
  • Brand: Neutral / OEM / TAEPO
  • Packing: 100pcs/poylbag, 40bags/ctn, 26.4kg/ctn, 38*36*47cm/ctn
  • MOQ: 1000pcs
  • Delivery: 7-14 days
  • Description

        Descriptions


    An 180-degree RJ45 to RJ45 UTP 8P8C CAT5E inline coupler is a small device used to connect two Ethernet cables together, extending the length of a network cable. Here’s a breakdown of the terms:


    • 180-degree: Refers to the connectors. In this context, it usually means that the coupler connects the two cables in a straight line without any angling or turning.
    • RJ45: The standard type of connector used for Ethernet networking.
    • UTP (Unshielded Twisted Pair): A type of cable that uses pairs of wires twisted together to reduce interference without additional shielding.
    • 8P8C (8 Positions, 8 Contacts): Describes the configuration of the RJ45 connector, which has 8 positions for pins and 8 contacts, making it compatible with Ethernet cables.
    • CAT5E (Category 5 Enhanced): A standard for network cables that supports up to 1 Gbps (gigabit per second) speeds and improved crosstalk specifications compared to its predecessor, CAT5.
    • Inline coupler: A device designed to join two Ethernet cables end-to-end.


    So, this coupler is used to extend Ethernet cables by connecting two CAT5E UTP cables together in a straightforward, inline manner.





        Main Features


    The main feature of an 180-degree RJ45 to RJ45 UTP 8P8C CAT5E inline coupler is its ability to extend the length of an Ethernet cable by directly connecting two Ethernet cables together. Key features include:


    1. Extension of Network Cables: It allows for the simple and effective extension of Ethernet cables without needing to rewire or replace existing cabling.
    2. Compatibility: It is compatible with CAT5E cables, which support gigabit Ethernet speeds up to 1 Gbps, making it suitable for most home and office networking needs.
    3. Ease of Use: The coupler provides a plug-and-play solution; simply plug the RJ45 connectors of two Ethernet cables into the coupler, and the connection is established.
    4. Straight-through Connection: The 180-degree design ensures a straight, inline connection without altering the cables.
    5. Durability and Reliability: Designed to maintain the integrity of the network connection, ensuring minimal signal loss or interference.


    These features make the inline coupler a practical tool for network setup, maintenance, and expansion.




        Schematic Diagrams

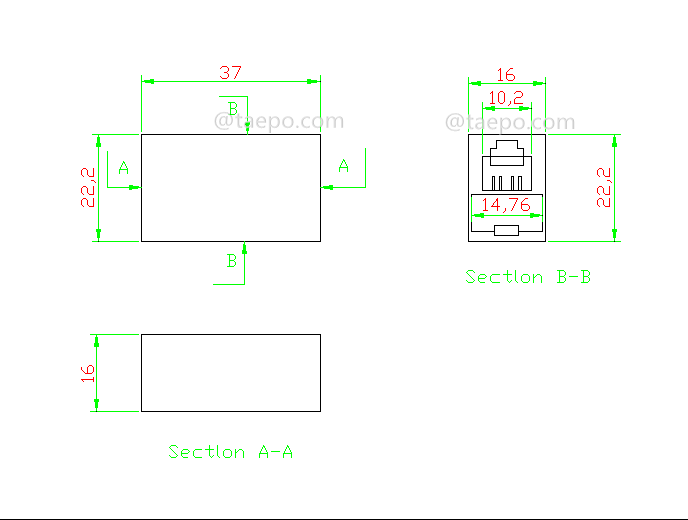

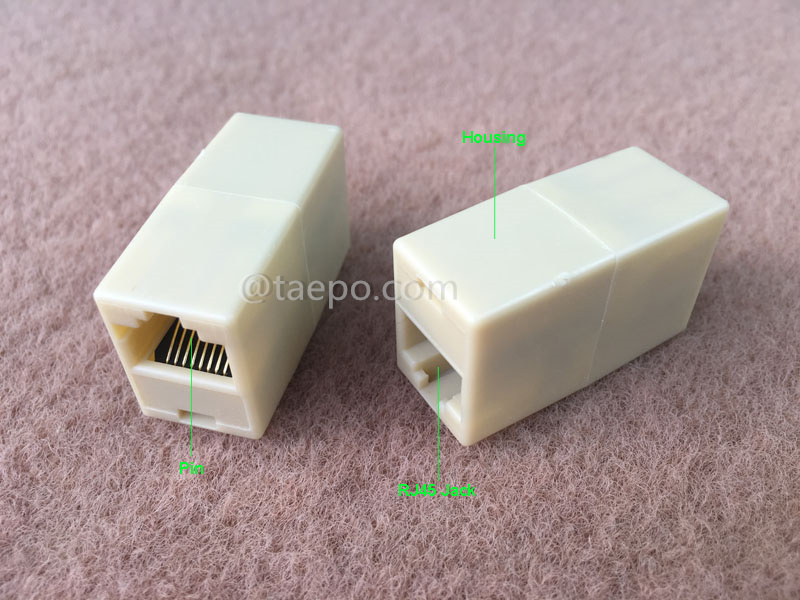

    Schematic Diagrams for 180 degree RJ45 to RJ45 UTP 8P8C CAT5E Inline coupler

        Packing Pictures


    Packing Picture for180 degree RJ45 to RJ45 UTP 8P8C CAT5E Inline coupler




        Order Data



    Item No Descriptions
    TP-5225-C5EU8 Inline coupler, CAT5E, RJ45-RJ45, UTP, 8P8C, 180 degree
