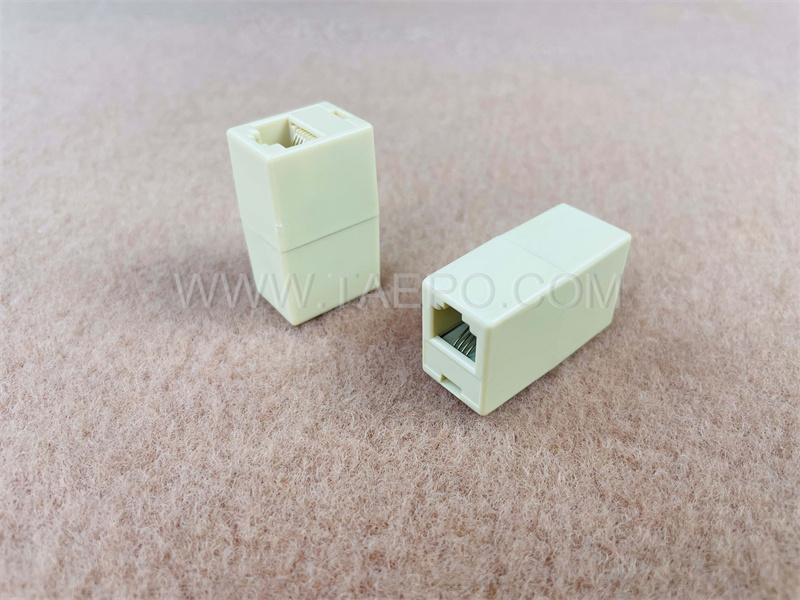

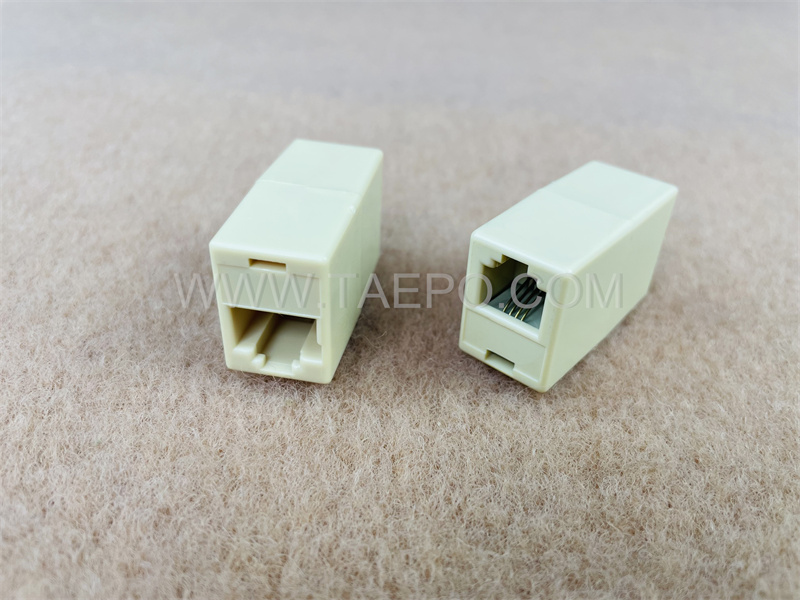

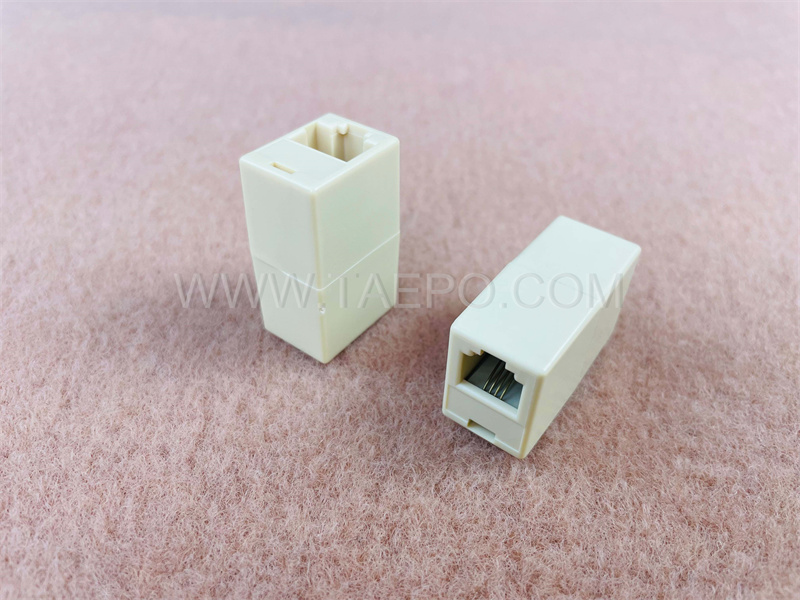

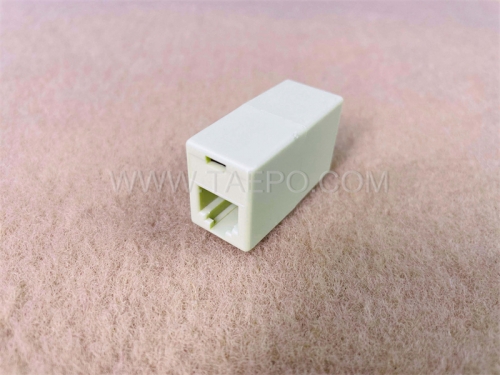

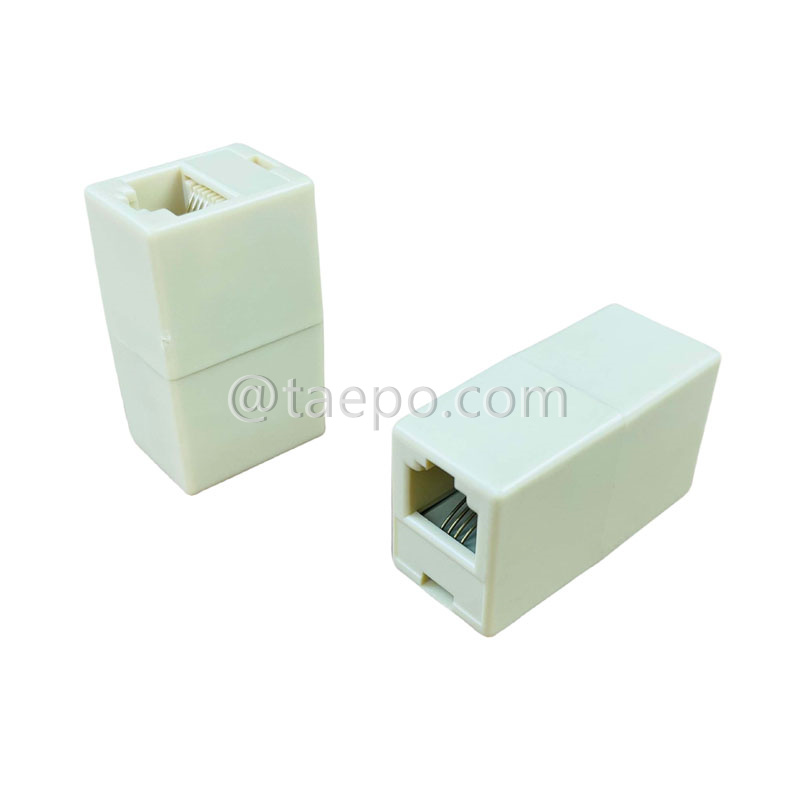

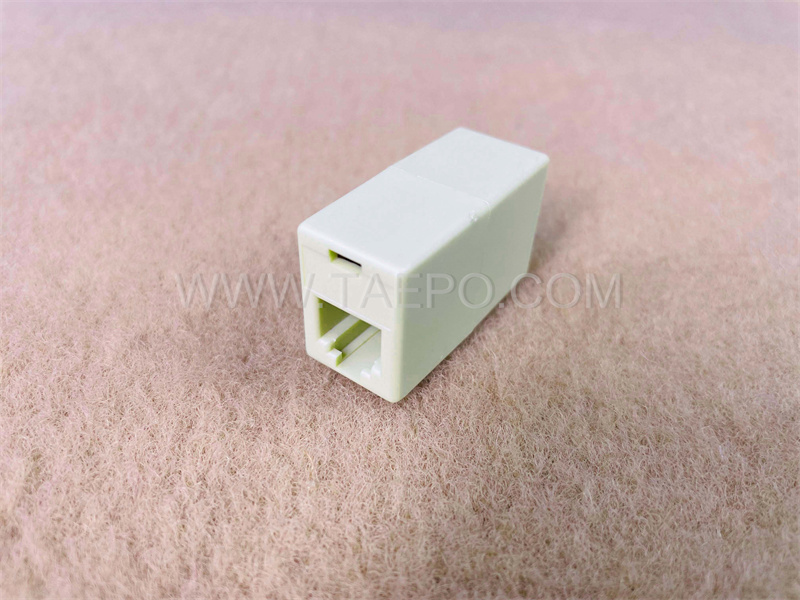

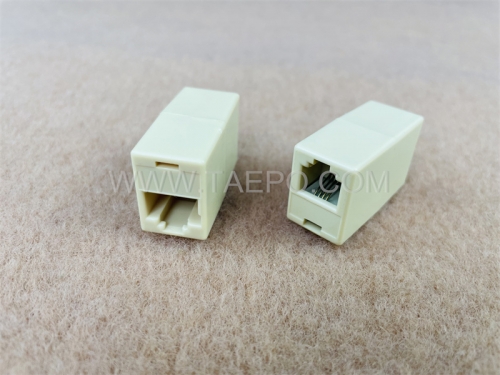

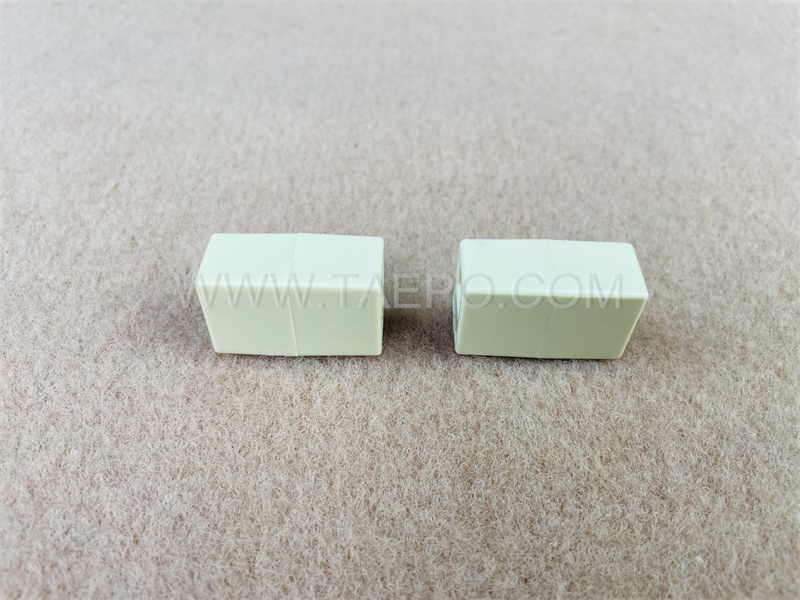

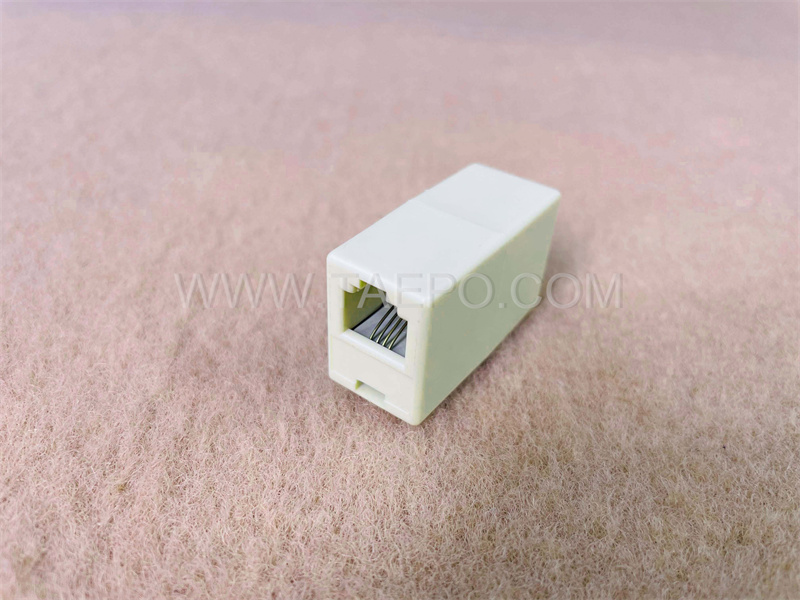

180 degree CAT3 6P4C telephone Inline coupler

    Descriptions

A 180-degree CAT3 6P4C inline coupler refers to a device used in networking and telecommunications.

Let's break down what each part of the term means:

CAT3: This refers to Category 3 cabling, which is a type of twisted pair cable commonly used in telephone networks and for data transmission at speeds up to 10 Mbps (Ethernet).

6P4C: This stands for 6-position 4-conductor. It describes the connector type, which is typically used for telephone connections. In a 6P4C connector, there are six positions where wires can be inserted, with four conductors (wires).

Inline coupler: This is a device used to connect two cables together. An inline coupler has female connectors on both ends, allowing you to plug in cables from each side to extend the length of a cable run.

180-degree: In the context of an inline coupler, the term "180-degree" usually indicates the design of the coupler where the connectors are aligned straight in opposite directions (180 degrees apart). This means that when you connect two cables through this coupler, they form a straight line without any bending or angle.

So, a "180 degree CAT3 6P4C inline coupler" is a specific type of coupler designed to join two CAT3 cables with 6P4C connectors in a straight-through configuration, maintaining the connection straight without any bend or angle. It's typically used in applications where you need to extend the reach of CAT3 cables in a telephone or low-speed Ethernet network setup.

    Main Features

The main feature of a 180-degree CAT3 6P4C inline coupler is its ability to seamlessly extend CAT3 cables with 6P4C connectors in a straight-through manner.

Here are the key features:

Straight-through Connection: The coupler allows you to connect two CAT3 cables with 6P4C connectors in a straight line (180-degree alignment). This maintains the integrity of the electrical connections without introducing any additional angles or bends.

Compatibility: It is specifically designed for CAT3 cables, which are commonly used in telephone systems and for low-speed Ethernet (up to 10 Mbps). The 6P4C connectors are standard for telephone handsets and certain networking equipment.

Ease of Use: Inline couplers are simple to use — you just plug the male connectors from each cable into the female ports on either side of the coupler. This makes it easy to extend the length of your cables as needed without the need for special tools or configurations.

Compact Design: Inline couplers are typically small and lightweight, making them convenient for use in various networking setups, whether in residential, office, or industrial environments.

Cost-Effective Solution: They provide a cost-effective way to extend the reach of existing cables without having to replace the entire length of cable or invest in more expensive solutions.

Overall, the main feature of a 180-degree CAT3 6P4C inline coupler is its straightforward functionality in extending CAT3 cable connections while maintaining signal integrity and simplicity of use.

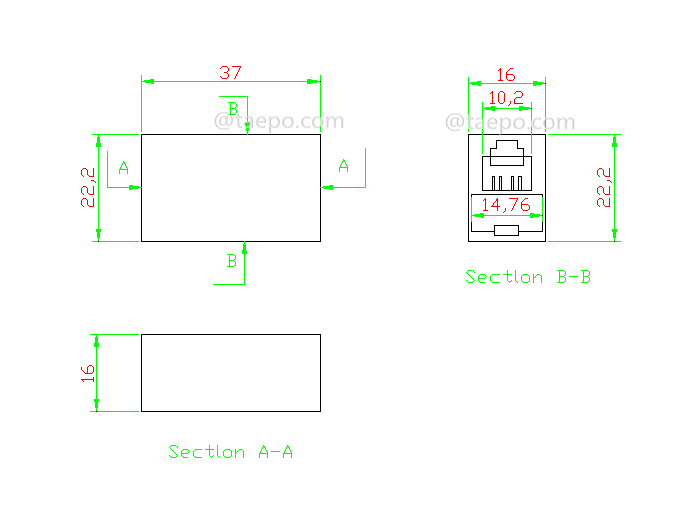

    Schematic Diagrams

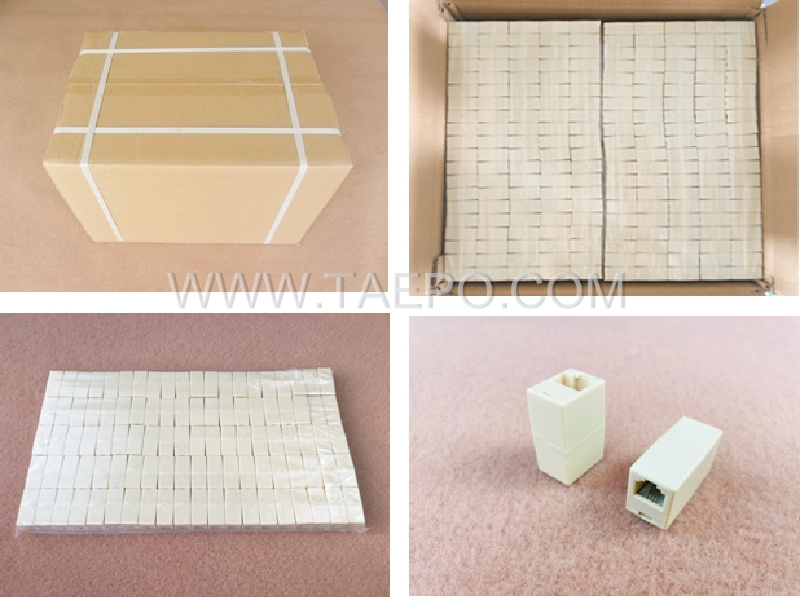

    Packing Pictures

    Order Data
