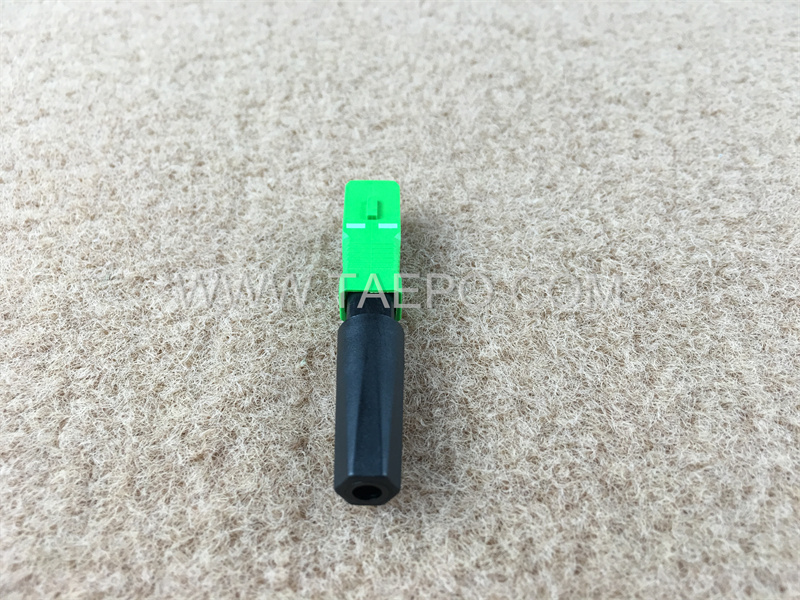

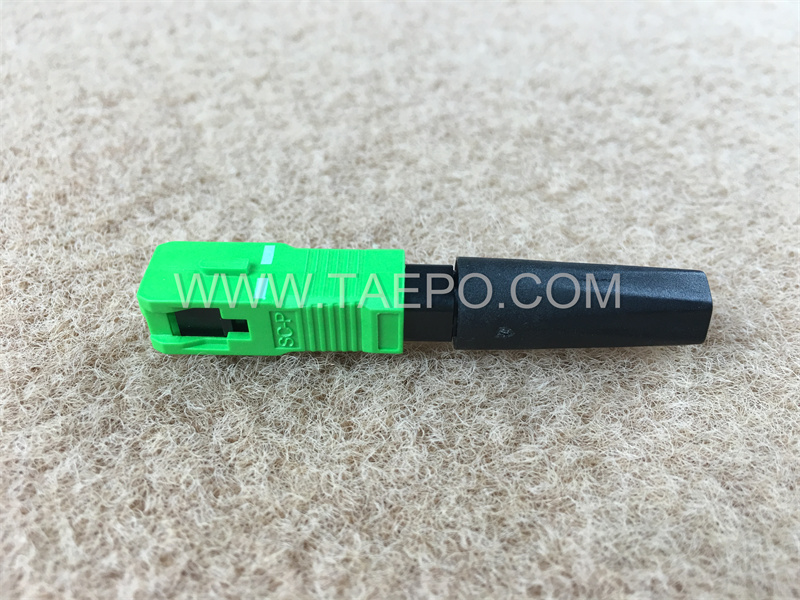

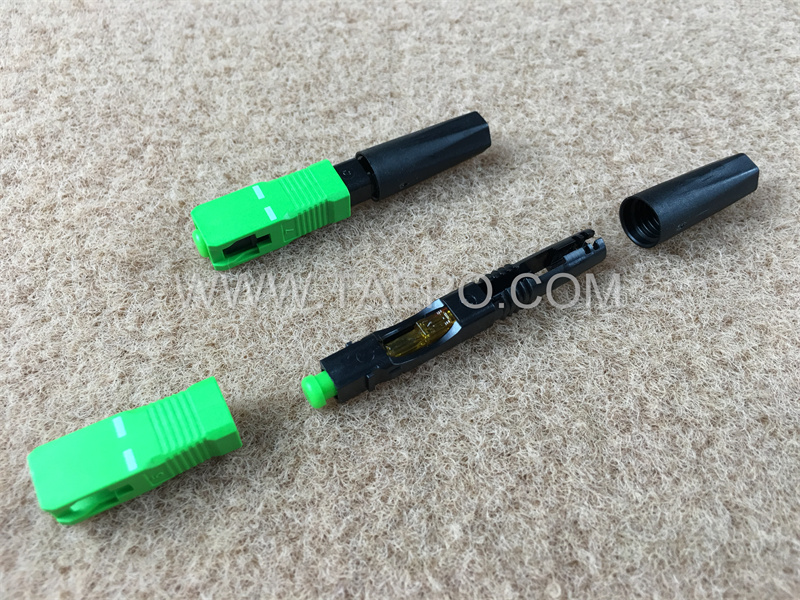

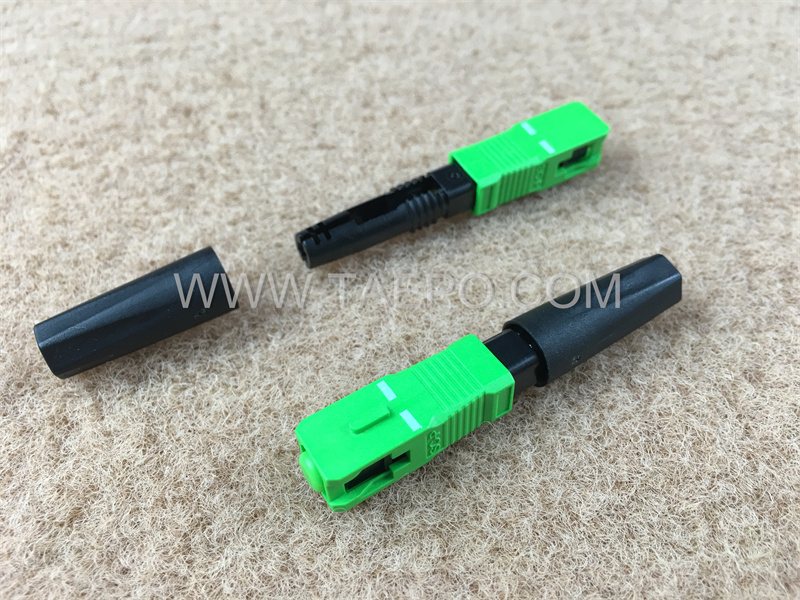

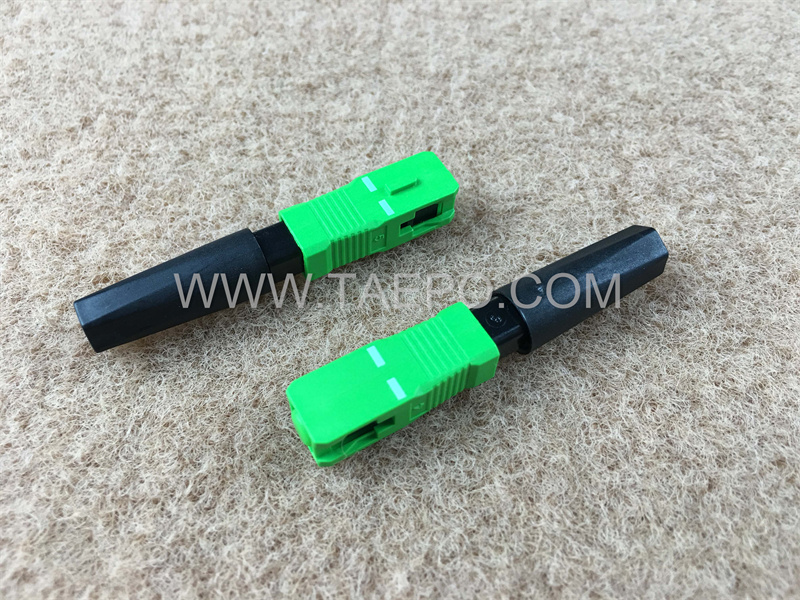

SC APC Field assembly fiber optic quick connector

Item No.: TP-3002-FSCA3
fiber optic quick connector | SC/APC
  • Color: Green body with Black cap
  • Brand: Neutral / OEM / TAEPO
  • Packing: blister + ctn
  • MOQ: 5000pcs
  • Delivery: 7-14 days
  • Description

        Descriptions


    SC APC Field assembly fiber optic quick connector (TP-3002-FSCA3) can proivide a quick and easy fiber termination in the field. It allows the installer to terminate and make connection in minute. This connector system removes any requirements for epoxy, polishing or fiber endface inspection.





        Main Features


    • Pre-installed polished ferrule.
    • No epoxy required.
    • Quick and easy fiber termination in the field.
    • Cost effective.
    • Precision mechanical alignment.
    • Low insertion loss.
    • High return loss.

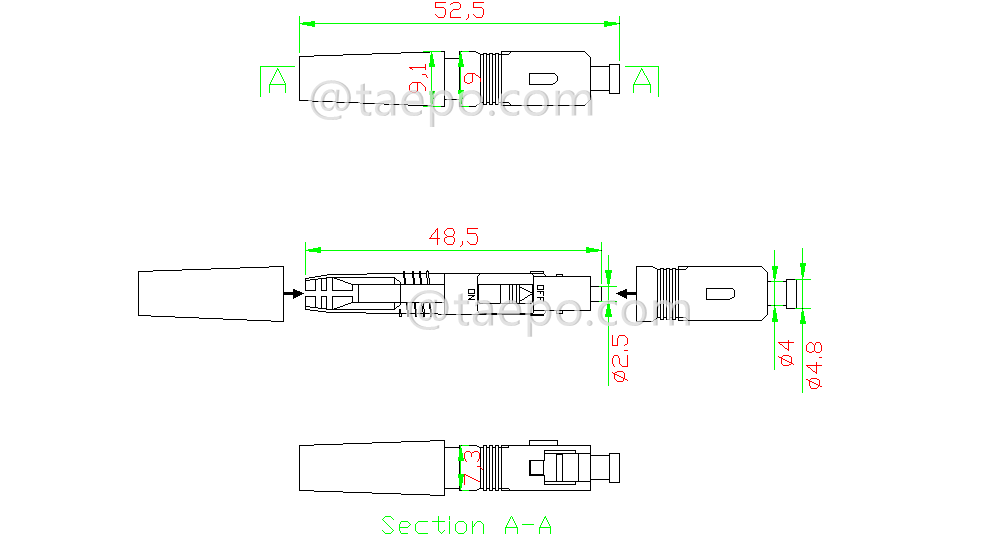

        Schematic Diagrams





        Applications


    • Telecommunication networks
    • FTTx
    • CATV
    • Test equipments
    • LAN & WAN

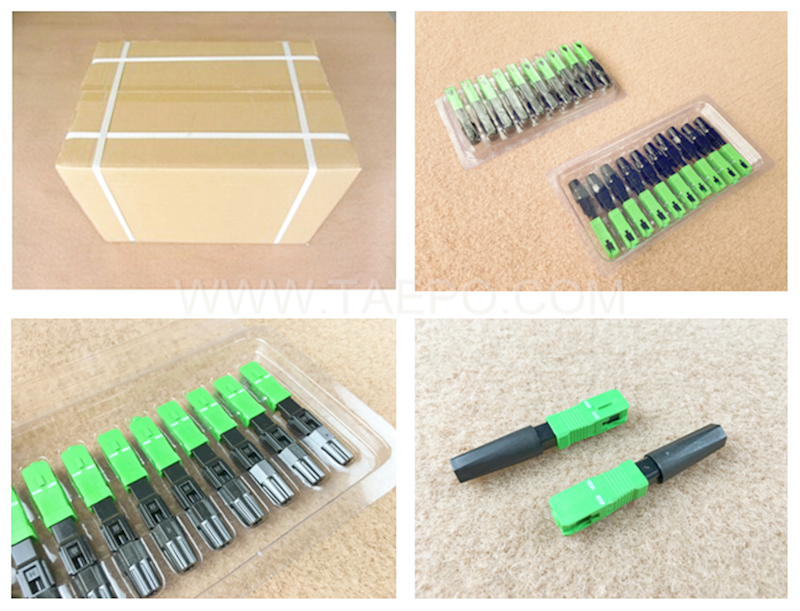

        Packing Pictures







        Order Data



    Item No Descriptions
    TP-3002-FSCA3 Field assembly optical connector, SC/APC
