Descriptions
Quesstion 1: What is "3m fiber optic mechanical splice kit for bow-type cable " ?
Answer :The 3M Fiber Optic Mechanical Splice Kit for bow-type cable is a specialized kit designed for joining optical fibers using mechanical splicing techniques.
Here's what it typically includes and its features:
Mechanical Splicing: Unlike fusion splicing, which uses heat to join fibers, mechanical splicing aligns and holds the fibers together using a special adhesive or a gel-filled splice cap. This method is generally quicker and does not require specialized equipment like a fusion splicer.
Bow-Type Cable Compatibility: This kit is specifically designed for bow-type optical fibers, which have a certain construction that may require specialized handling and tools for proper splicing.
Components: The kit usually includes:
Mechanical splice connectors or splice holders
Fiber cleaving tools for accurately cutting the fibers
Cleaning wipes or solutions to ensure fiber ends are free from contamination
Adhesive or gel for securing the fibers within the splice
Ease of Use: The kit is designed for ease of use, allowing technicians to perform splicing in the field without needing extensive training or complex machinery.
Applications: It's commonly used in telecommunications, data networks, and other applications where quick and reliable fiber optic connections are necessary.
Using the 3M Fiber Optic Mechanical Splice Kit allows for effective and efficient fiber optic splicing, ensuring minimal signal loss and maintaining the integrity of the optical signal.
Question 2: How does "fiber optic mechanical splice kit" work ?
Answer : A fiber optic mechanical splice kit works by aligning and joining two optical fibers without the use of heat, allowing light to pass through with minimal signal loss.
Here’s how it typically operates:
Preparation:
Cleaving the Fibers: The fibers to be spliced are prepared by stripping the protective coating and then cleaving (cutting) them to create flat ends. This ensures a clean surface for the splice.
Inserting the Fibers:
The cleaved ends of the fibers are inserted into a mechanical splice holder or a splice cap within the kit. This holder is designed to align the fibers precisely to ensure maximum light transmission.
Alignment:
The mechanical splice mechanism aligns the two fiber ends accurately. Some kits use a gel or adhesive that helps fill the air gap between the fibers, reducing signal loss.
Securing the Fibers:
Once aligned, the fibers are held in place by a clamp or other securing mechanism within the splice holder. This prevents movement and maintains the alignment.
Testing the Connection:
After securing the splice, technicians may test the connection using an optical power meter to measure the signal loss and ensure the splice is effective.
Finalizing the Splice:
Once confirmed, the splice is often protected with a splice closure or sleeve to provide mechanical strength and environmental protection.
Overall, the mechanical splice method is a reliable and efficient way to join fiber optic cables, especially in situations where quick repairs or installations are needed without specialized equipment.
Main Features
- High performance insertion loss
- 30 second installation time
- Minimum tooling requirements
- Easy on-site installation
- Simple, easy to use Minimal training
- Ability to reposition fibers
- Single splice for any combination
- Robust long-term environmental stability
- Flexible indoor and outdoor use
- 2.0 × 3.0 mm drop cable

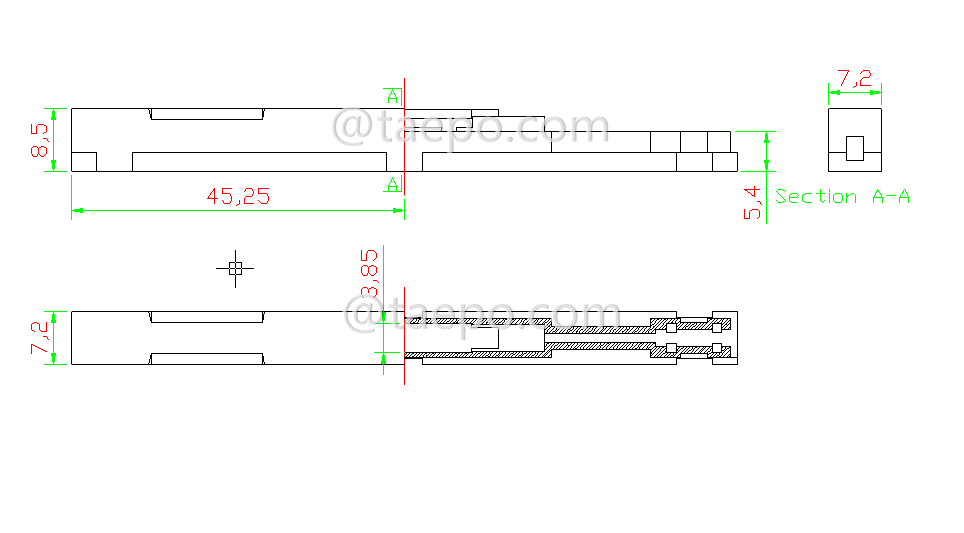

Schematic Diagrams

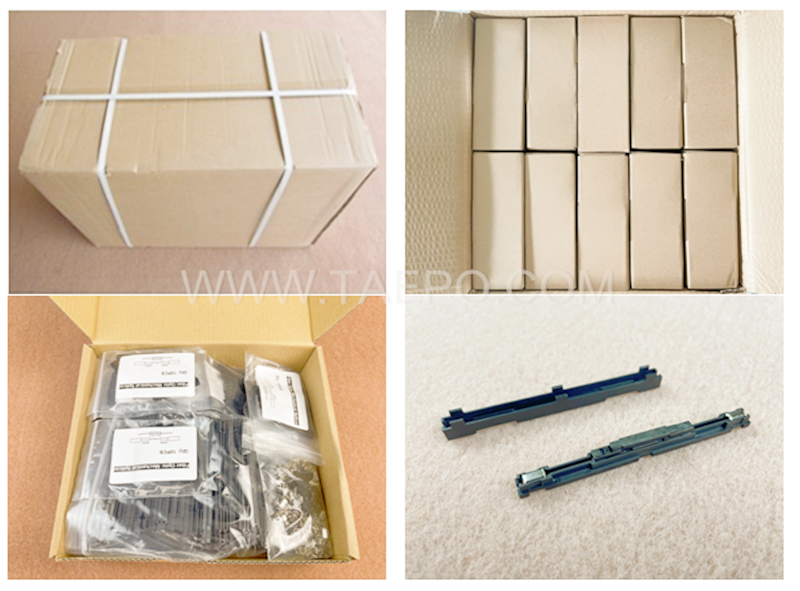

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3002-MS2B |
Fiber optic mechanical splice, for bow-type cable |
