FTTH 2 inlets 2 oulets Drop cable splice box

    Descriptions

A drop cable splice box with "2 inlets 2 outlets"  (TP-3132) is a junction box designed to splice together two incoming cables (the inlets) into two outgoing cables (the outlets). This type of splice box is used in scenarios where two separate cable lines need to be combined or split into two separate lines, such as in branching off two main cable lines to serve multiple locations or devices.

Here's what each component means:

1. Inlets: These are the entry points for the main cables that need to be spliced. In a "2 inlets 2 outlets" box, there are two inlets, allowing two separate cables to be connected for splicing.

2. Outlets: These are the exit points for the spliced cables. In a "2 inlets 2 outlets" box, there are two outlets, allowing the spliced cables to be distributed to two separate destinations.

These types of splice boxes are commonly used in telecommunications, networking, and cable TV installations where multiple cable lines need to be interconnected or split. They provide a convenient and organized way to manage cable splices and connections while ensuring proper signal transmission to each outlet.

    Main Features

Inlet: This refers to the point where the main cable enters the splice box. The main cable typically carries signals from a larger network, such as a fiber optic backbone.

Outlet: This is where the drop cable exits the splice box. The drop cable is usually a smaller cable that connects to individual subscribers or endpoints.

Drop Cable: This is the cable that extends from the splice box to the subscriber's location. It's often a smaller, more flexible cable designed for easier installation and connection to individual premises.

Splice: The splice box allows for the connection of the main cable to the drop cable. Splicing involves joining the individual fibers or conductors of the cables in a secure and reliable manner to ensure proper signal transmission.

Box: The enclosure that houses the splicing components and provides protection against environmental factors such as moisture, dust, and physical damage.

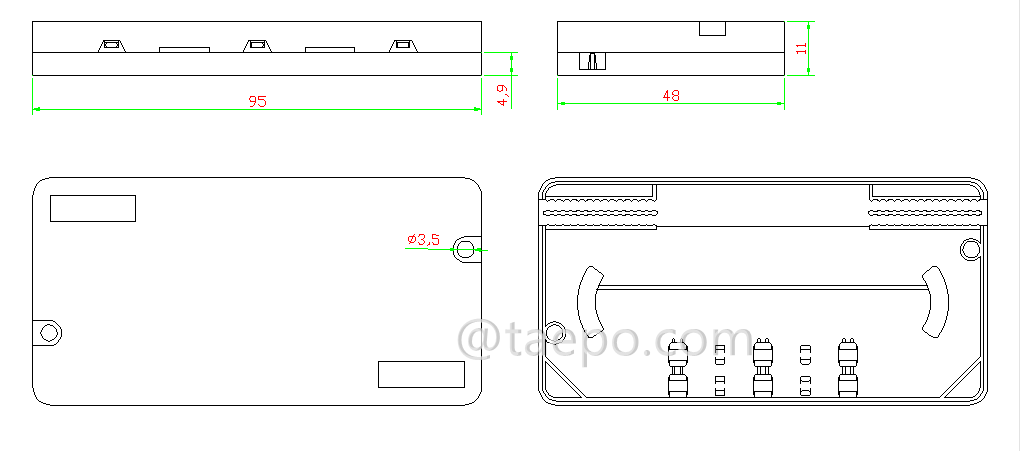

    Schematic Diagrams

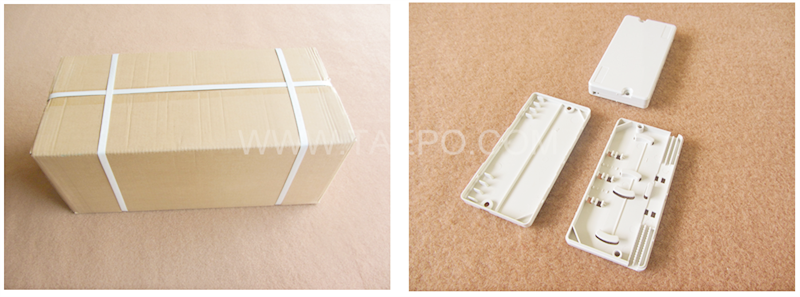

    Packing Pictures

    Order Data
