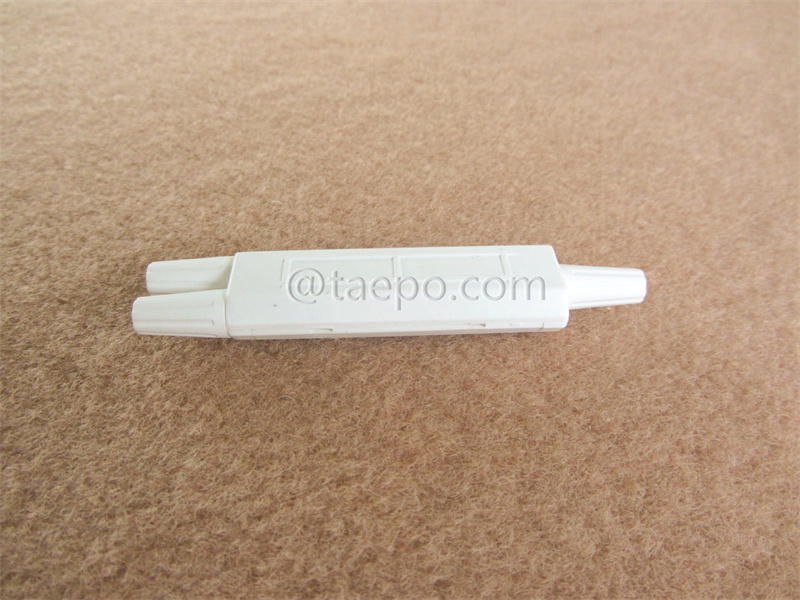

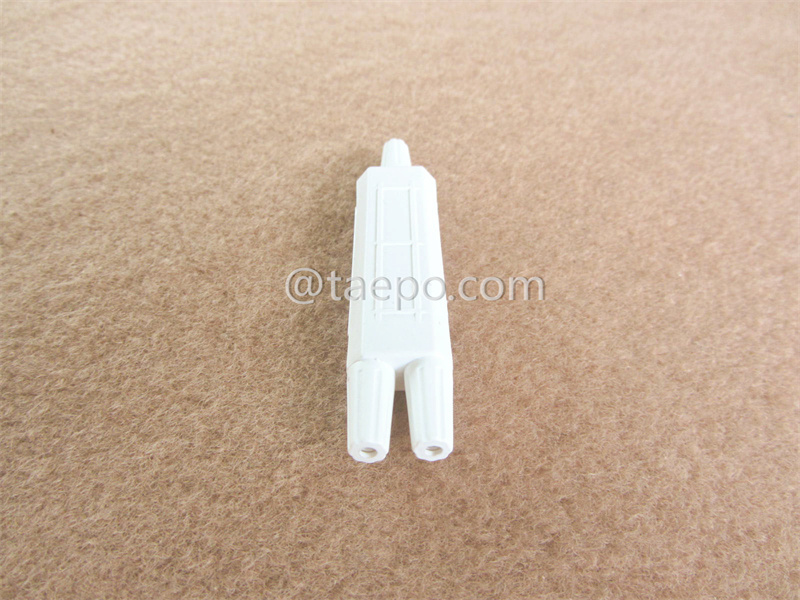

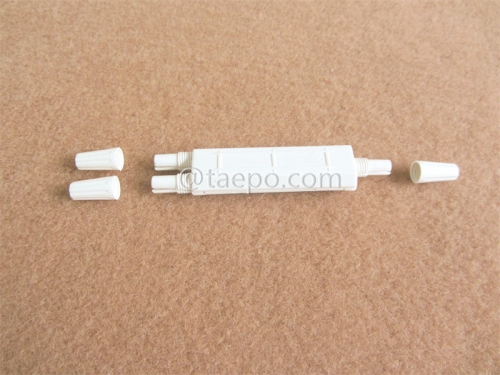

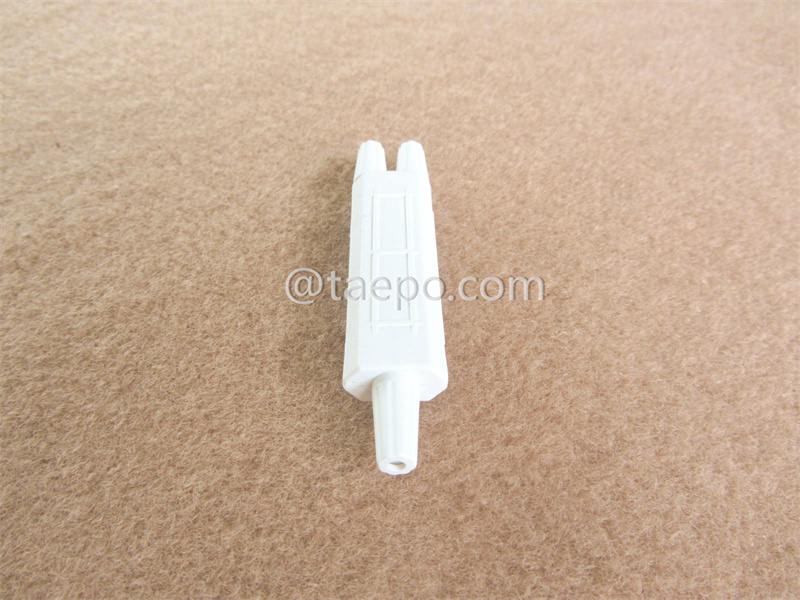

1 inlet 2 oulets Drop cable fiber splice protection box

    Descriptions

A drop cable splice box with "1 inlet 2 outlets" typically refers to a junction box designed for splicing a single incoming cable (the inlet) into two outgoing cables (the outlets). These boxes are commonly used in scenarios where a single cable needs to be split into two separate lines, such as in branching off a main cable line to serve multiple locations or devices.

Here's a breakdown of what each component means:

1. Inlet: This is the entry point for the main cable that needs to be spliced. The incoming cable is connected to this inlet.

2. Outlets: These are the exit points for the spliced cables. In a "1 inlet 2 outlets" box, there are two outlets, allowing the spliced cable to be distributed to two separate destinations.

These types of splice boxes are often used in telecommunications, networking, and cable TV installations to facilitate the distribution of signals from a main cable line to multiple locations. They provide a convenient and organized way to manage cable splices and connections while ensuring proper signal transmission to each outlet.

    Main Features

Inlet: This refers to the point where the main cable enters the splice box. The main cable typically carries signals from a larger network, such as a fiber optic backbone.

Outlet: This is where the drop cable exits the splice box. The drop cable is usually a smaller cable that connects to individual subscribers or endpoints.

Drop Cable: This is the cable that extends from the splice box to the subscriber's location. It's often a smaller, more flexible cable designed for easier installation and connection to individual premises.

Splice: The splice box allows for the connection of the main cable to the drop cable. Splicing involves joining the individual fibers or conductors of the cables in a secure and reliable manner to ensure proper signal transmission.

Box: The enclosure that houses the splicing components and provides protection against environmental factors such as moisture, dust, and physical damage.

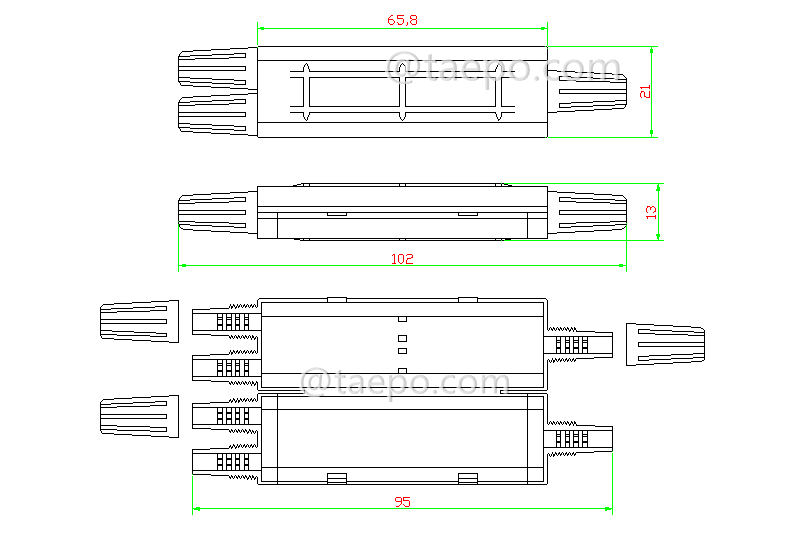

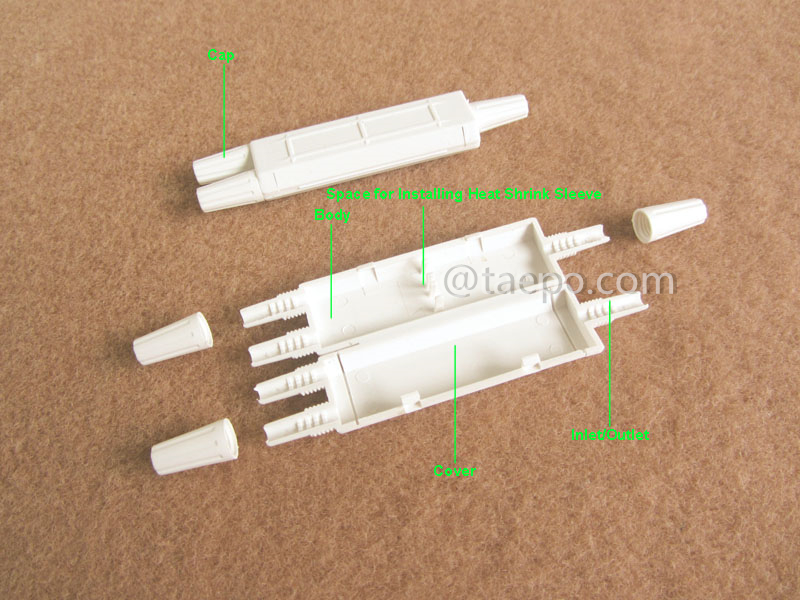

    Schematic Diagrams

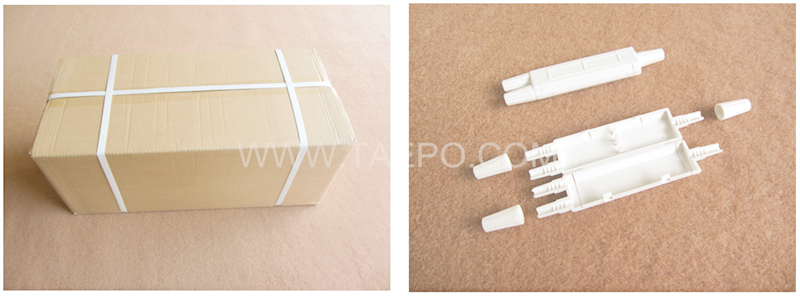

    Packing Pictures

    Order Data
